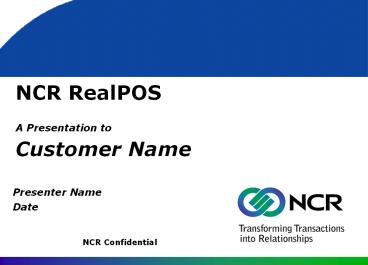

NCR RealPOS A Presentation to Customer Name
Presenter Name Date
  • NCR Confidential

2
NCR RealPOS Terminal Family
  • Worldwide Product Offering for POS
  • Retail-hardened POS Workstations
  • Full Line of Retail Peripherals
  • Open Operating Systems
  • Enabling Platform Software
  • Platform Strategy
  • Leverage Industry Standard PC Technology
  • Retail Enhancements
  • Advanced Human Interfaces

Provide the best balance of cost, performance,
migration, and longevity to our customers
3
NCR RSD Value Statement...
  • NCR Retail Solutions Division (RSD) chooses key
    components and technologies carefully, in order
    to provide the best balance of cost, performance,
    migration, and longevity to our customers.
  • The key point is balance.

4
Principles of - Designing For MigrationBuilding
Bridges
  • Protect application compatibility
  • Support standards in emerging interfaces and key
    legacy interfaces on new products
  • Provide O/S support for strategic O/Ss
  • Convert peripherals systematically to new
    interfaces in step with our customers
    requirements

5
RealPOS Architectural Leverage
6
NCR RealPOS Overview
A powerful, flexible solution designed to provide
maximum investment protection for the dynamic
retail marketplace
  • Outstanding performance and scalability
  • Excellent expansion
  • Tool free serviceability
  • Upgradeability
  • Superior Connectivity
  • Unmatched Retail Packaging
  • Configuration Flexibility via Integration Tray
  • Superior connectivity
  • Retail-hardened design
  • Broad operating system support
  • Dual Color Option

Unequaled Price / Performance and Value in the
POS Industry
7
Tool Free Serviceability RealPOSRealSimple
  • Tool-Free Serviceability
  • Total Accessibility
  • Secure
  • Comprehensive
  • Easy
  • Front Removable Primary Hard Drive

Total Accessibility and Tool-Free Service reduces
downtime and enables for straightforward field
upgradeability.
8
Tool Free ServiceabilityRealPOSRealSimple
  • Tool Free Sled Design
  • Primary HDD Drawer
  • Flex Drive
  • CD ROM
  • Secondary hard disk drive
  • Battery
  • Memory
  • Mother board sled
  • USB Card
  • Power Supply

9
RealPOS Technology Overview
  • Processor Scalability
  • 850Mhz Intel Celeron w/ 126K on-die cache
  • 1Ghz PIII Pentium III Socket 370 Processors w/
    256k on-die cache
  • 133MHz Memory Bus to take advantage of fast PC133
    SDRAM
  • Memory expansion from 128MB to 512MB PC133 SDRAM
  • 2 DIMM memory sockets facilitates future memory
    upgrades
  • Up to 8MB user definable Video Memory
  • Ultra DMA 100 support provides a high speed disk
    interface

Scalable performance for today and tomorrow!
10
RealPOS - Video / Audio
  • Video
  • AGP 2X Graphics with 2D/3D Graphics Engine
  • Support for VGA, SVGA and XGA resolutions
  • Up to 8MB Video Memory
  • Industry Standard Video Interfaces
  • DVI-I Port (Digital Visual Interface)
  • VGA Port (15-pin D shell) for legacy analog CRT /
    LCD displays
  • Audio
  • Speaker Out / Mic In
  • AC-97 Audio with amplified stereo output (5W /
    channel)
  • SoundBlaster compatible

Delivers rich AGP graphics and audio support for
multimedia applications
11
RealPOS Expandability
  • Industry leading in box expansion
  • 3 PCI Slots - 33MHz, 32 bit
  • 3.5 1.44MB Flex Disk Drive
  • Front Removable 3.5 20GB Hard Disk Drive
  • Second internal 3.5 20GB Hard Disk Drive
  • 256MB Compact Flash Memory option (IDE interface)
  • Slimline CD ROM Drive option (bootable)
  • Integrated Battery Back-up option

No need to compromise... you can have it all in
one cabinet Flexible expansion options support
current and future needs
12
RealPOS Connectivity
  • Powered USB
  • 4 Powered USB Ports
  • (1) 24V Powered USB Port
  • (3) 12V Powered USB Ports
  • Industry standard interface with faster data
    transfer speeds
  • Plug Play and USB Hot Pluggable
  • Positive latching
  • RS-232 Connectivity
  • (4) External RS-232 Ports (3 powered with 12V)
  • (1) Internal Serial port dedicated to Integrated
    UPS Battery
  • Support for legacy peripherals

Optimized mix of Powered USB and RS-232 provides
maximum flexibility
13
Universal Serial Bus (USB)
  • Benefits of USB
  • Industry standard peripheral interface
  • Fast data transfer speeds
  • Data signal and power (5V) in a single cable
  • Plug-and-Play connect peripherals without
    reconfiguring system
  • Eliminates IRQ assignments, I/O addresses, etc.
  • Hot Plugging connect / disconnect peripherals
    without powering down the system
  • What is Powered USB
  • Emerging defacto standard in retail. Provides
    benefits of USB plus
  • Additional power for retail peripherals (12V or
    24V)
  • Color coded and keyed connectors based on voltage
  • Positive latching connectors

14
RealPOS Connectivity
  • 10/100 Mbps Ethernet LAN (on-board)
  • Wake on LAN support
  • PXE Boot ROM
  • PS/2 Keyboard / Mouse Port
  • Utilize Y cable for PS/2 Mouse
  • Parallel Port
  • Standard 25 pin D shell
  • Cash Drawer Port
  • Supports two cash drawers with Y cable

Enhanced Connectivity for Retail
15
RealPOS Standard ConnectivityBack Panel View
16
RealPOS Base Models
Scalable performance supports a range of
environments
17
Integration TrayRealPOSRealFlexible
  • Sleek aesthetic design
  • Smooth integrated lines
  • Sunken Keyboard
  • Printer inset
  • Incredible flexibility
  • Integration of multiple peripherals
  • Reversibility
  • E-box, drawer or counter mounting
  • Unequalled Functionality

18
Integration Tray RealPOSRealFlexible
  • Reversibility -
  • Printer and display positioning are completely
    reversible
  • No special parts required
  • Pen Holder
  • Superior cable management

19
Integration TrayOperator Display Options
  • Supports leveraged asset - Swing arm rotates
    180º
  • Dual rotation for optimal positioning
  • Unique mount integrates all NCR displays
  • 10.4 DynaKey
  • 12.1 DynaKey
  • 12.1 LCD
  • 12.1 Touch
  • 9 Monochrome
  • 10 Color

20
Integration TrayCustomer Displays
21
Integration TrayKeyboard Integration
  • Keyboard Well
  • Clean Integrated Look
  • USB K/B
  • Big Ticket PS/2
  • POS K/B w/ Insert
  • Coin tray
  • Misc. Compartment
  • Standard PC Keyboard

Form fitting keyboard well hugs to all NCR K/B
offerings
22
Integration TrayPrinter Well
  • Printer Well
  • Sleek tight fitting
  • Integrates both the single and dual station
    printers
  • 3rd party printers

3rd party printer w/ adapter plate
23
RealPOSBuilt for Real World Retailing
  • Rigorous Testing for Retail Environments
  • Shock and Vibration
  • Packaging / Drop Testing
  • Stress Testing
  • Temperature Cycling
  • Electrical Load and ESD (Electro-Static
    Discharge)
  • Regulatory POS Testing
  • Worldwide Governmental Safety Tests
  • Safety Certifications (UL), Emissions Test (FCC)
  • Platform Integration Testing
  • Terminal, peripherals, multiple operating
    systems, platform software

24
Power Management
  • 300 Watt Power Supply with Powered USB / RS-232
  • Eliminates power bricks for peripherals
  • Improves cable management and reliability
  • Integrated UPS Battery Back-up
  • Allows POS transactions to be completed during
    power loss
  • Facilitates an orderly shutdown of system
  • Advanced Power Management
  • APM 1.2 compliant - supports APM Standby and
    Suspend Modes for reduced power consumption and
    lower energy costs
  • Turn LCD back-light off during periods of
    inactivity
  • Clean Integrated Workstation
  • Peripheral tray eliminates unsightly clutter
  • Cable management for appearance ease of service

25
Cable Power ManagementRealPOSRealClean
  • Excellent Cable Management
  • Peripheral cables hidden from view
  • Large 300w power supply provides peripheral power
    w/o bricks
  • Poor Cable Power Management
  • Typical of PC piece parts
  • Multiple outlets and bricks

26
Open Software Environments
  • Industry Standard Operating Systems
  • Windows XP Professional
  • Windows XP Embedded
  • Windows 2000 Professional
  • DOS 6.22
  • Linux Certified
  • Note Windows 98 and NT available by request
    using SCER process.

27
Enabling Platform Software
NCR Value-Added POS Offering
  • Operating System Gold Images
  • Norton Ghost Crisis Recovery - Every Unit Item
  • OPOS and JPOS POS Peripheral Drivers
  • Fit Client Manager POS Management Software
  • Enhanced PC BIOS Features

28
RealPOS Summary
  • Industrys first Tool Free serviceability
  • Impeccable Styling
  • Advanced technology and scalable performance to
    address your requirements today and tomorrow
  • Superior connectivity for retail
  • Incredible Integration Flexibility
  • Excellent expansion capability
  • Retail hardened design
  • Advanced human interfaces

Unequaled Price / Performance and Value in the
POS Industry .Exceptional Investment Protection
