Title: CCD diagnostics and 04122003 data


1

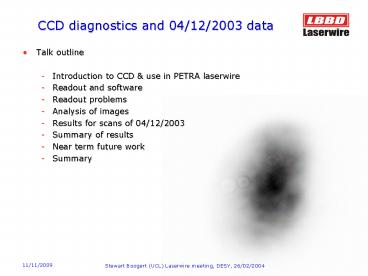

CCD diagnostics and 04/12/2003 data
  • Talk outline
  • Introduction to CCD use in PETRA laserwire
  • Readout and software
  • Readout problems
  • Analysis of images
  • Results for scans of 04/12/2003
  • Summary of results
  • Near term future work
  • Summary

Stewart Boogert (UCL) Laserwire meeting, DESY,
26/02/2004
2
CCD Diagnostics
  • System
  • 2 cameras
  • Pre/post IP
  • Image IP laser spot
  • Basler A302f
  • Camera specifications
  • Monochrome
  • 8bit ADC
  • 780-582 resolution
  • 8.3 ?m pixel pitch
  • 30 fps frame rate
  • Shutter/Gain/Brightness control
  • Triggered operation
  • Firewire
  • External line
  • Small footprint

3
Readout software
  • Firewire
  • Digital
  • No readout card required or grabber
  • BCAM driver simple API
  • Cable lengths (lt10m)
  • Readout
  • C library
  • Simple to use
  • Tied to Microsoft
  • No problem now (W2000/XP)
  • Multiple file formats (ascii, bmp)
  • MFC based windows executable
  • Fast (25-30 fps)
  • See images directly as DAQ runs
  • Upgrade for next run
  • Triggered image acquisition
  • Multiple cameras
  • Analysis included

4
Readout problems
  • Trigger
  • Laser 30 Hz CCD 30 fps
  • Empty frames
  • Partial images
  • Recently found
  • Only occurs in 1st scan
  • Cause unknown
  • Laser damage
  • Care must be taken not to damage devices
  • Filtering
  • Currently use OD 2-5 ND filters
  • Reflection reduction in intensity

5
CCD image analysis
  • Analysis procedure
  • Delete burn marks
  • Apply threshold (gt 13)
  • Project x y
  • Mean/rms/fit projections
  • Pixel error constant in fits
  • Average over all images for a scan point
  • Important to remember
  • Area of interest (AoI)
  • Fits and mean/RMS calculation
  • None implemented here
  • Errors on pixel values
  • Constant?
  • Dependent on signal?
  • Propagation through to background subtraction

6
CCD Background
  • Analysis of blank images
  • Pixel histograms
  • Camera1 (post IP) very noisy
  • Partly due to damage
  • Shutter
  • Ambient light noise should be reduced
  • Post IP camera very noisy.
  • Could be from damage
  • Radiation
  • Source of background
  • Ambient light
  • Diffuse laser reflections?
  • Electronics noise
  • Thermal?
  • Accelerator induced electronics noise?

7
CCD analysis Low Current Scan (camera 1)
  • Data taking
  • 10-30 frames/camera/scan point before calorimeter
    measurement

8
CCD analysis Low Current Scan (camera 2)
  • Data taking
  • 10-30 frames/camera/scan point before calorimeter
    measurement

9
CCD analysis High Current Scan (camera 1)
  • Data taking
  • 50 frames/camera/scan point before calorimeter
    measurement
  • 30 frames not enough

10
CCD analysis High Current Scan (camera 2)
  • Data taking
  • 50 frames/camera/scan point before calorimeter
    measurement

11
CCD calibration summary
  • Summary of CCD/scanner results
  • Mean mean position / scanner voltage
  • Fit-? Gaussian mean position / scanner voltage
  • RMS average RMS
  • Fit-? average Gaussian width
  • Calibration
  • Fit and simple calculation consistent
  • Low and high current scans are not consistent!

12
Future work
  • Analysis
  • Gain/Brightness tuning loop
  • Online analysis fitting etc
  • Trigger
  • 100 filled images
  • Camera from RHUL, kitted out PC _at_ UCL
  • Cooling/Radiation
  • Temperature monitoring
  • Investigate cooling options
  • Background
  • Background levels with/without
  • PETRA beam
  • Laser
  • Area of Interest
  • Calibration
  • CCD to chamber centre

13
CCD Calibration _at_ RHUL
  • CCD Calibration
  • Optical calibration
  • SB, Gary Boorman, Stephen Malton, John Carter.
  • Setup
  • HeNe laser
  • Knife edge scan at IP focus measure
  • Position (if possible)
  • Width
  • Then measure with CCD
  • Hardware on order
  • CMOS A600hd camera
  • Optical components
  • ADC card

14
Short term developments
  • Trigger
  • Signal generator
  • Pulse generator with delay (trigger signal)
  • LED (for fake signal)
  • Stephen Malton
  • Software (triggered version is quite complicated)
  • Testing
  • Large increase in good CCD data factor 2-3
  • Environment monitoring
  • Damaged 2 cameras last year!
  • Temperature
  • Humidity
  • Radiation
  • Ambient light (background)
  • Insert during next visit?

15
Longer term
  • High speed scanning
  • CMOS technology
  • Basler A500
  • 500 fps _at_ 1Mpixel
  • 7000 fps maximum
  • More radiation hard
  • Even faster scanning with multiple laser pulses
    per
  • Larger dynamic range
  • Basler A302f
  • 8 bit
  • How about 12-16 bit output?
  • Better signal to noise
  • Basler A600hd
  • Effective 16bit output _at_ VGA resolution
  • 50 fps _at_ 8 bit
  • 8 fps _at_ 16 bit

16
Summary
  • First use of CCDs during scan
  • Fit and simple calculation consistent
  • Low and high current scans are not consistent!
  • Much to be done
  • Calibration
  • Measurements soon (1 month)
  • Analysis
  • Implement in DAQ
  • Software
  • Being upgraded for
  • Multiple camera grabbing
  • Automatic camera parameter tuning
  • Background
  • Tests in PETRA with/without beam laser/electron
  • Reliability
  • Environment monitoring (discuss here)
