Verification Based on Run-Time, Field-Data, and Beyond

1

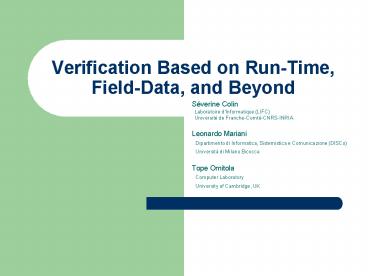

Verification Based on Run-Time, Field-Data, and
Beyond

• Séverine Colin
• Laboratoire dInformatique (LIFC)
• Université de Franche-Comté-CNRS-INRIA
• Leonardo Mariani
• Dipartimento di Informatica, Sistemistica e
  Comunicazione (DISCo)
• Università di Milano Bicocca
• Tope Omitola
• Computer Laboratory
• University of Cambridge, UK

2
Outline

• Traditional Run-Time Verification Techniques
• checking properties on execution data at run-time
• Test and Verification Techniques based on
  Field-Data
• gathering execution data to increase
  effectiveness of (off-line) test and verification
  techniques
• Discussion on Test, Verification and
  Model-Checking
• Conclusions

3
Run-Time Verification Techniques

• Basic idea to extract an execution trace of an
  executing program and to analyze it to detect
  errors
• To check classical error pattern (data races,
  deadlock)
• To verify a program against formal specification

4
Data races detection

• Data race two concurrent threads access a shared
  variable and at least one access is a write in
  same time
• Eraser tool dynamically detects data races
• To enforce every shared variable is protected by
  some lock
• Eraser algorithm is used by PathExplorer, Visual
  Thread

5
Deadlock Detection

• Deadlock to occur whenever multiple shared
  resources are required to accomplish a task
• A model representation of the program is
  constructed during the program execution
• Deadlock circularity in the dependency graph
• Used by VisualThread and PathExplorer

6
Monitoring and Checking (MaC)

• System requirements are formalised
• Monitoring script is constructed
• to instrument the code
• to establish a mapping from low-level information
  into high-level events
• At run-time, generated events are monitored for
  compliance with the requirements specification

7
MaC Events and Conditions

• Events occur instantaneously during the system
  execution
• Conditions are information that hold for a
  duration of time
• Three-valued logic true, false, undefined
• PEDL (Primitive Event Definition Language)
  language for monitoring scripts
• MEDL (Meta Event Definition Language) language
  for safety requirements

8
PathExplorer (1/2)

• Instrumentation module (using Jtrek) it emits
  relevant events
• An interaction module send events to observer
  module
• An observer module it verifies the requirement
  specification

9
PathExplorer (2/2)

• Requirements are written using past LTL
  (Monitoring operators are added ?F, ?F, F,F)S,
  F,F)w
• Use the recursive nature of past time temporal
  logic the satisfaction relation for a formula
  can be calculated along the execution trace
  looking only one step backwards (see our paper
  for the algorithm)

10
TV Techniques based on Field-data

• Field-data run-time data collected from the
  field
• Why collecting field data for Test and
  Verification?
• limited knowledge about the final system,
• e.g., sw components are usually developed in
  isolation, assembled with third-party components
  and, finally, deployed in unknown environments
• uncertainty of the final environment
• e.g., in the case of ubiquitous computing,
  pervasive computing, mobile computing, and
  wireless networks, it is not possible to predict
  in advance every possible situation
• dynamic environments
• e.g., in the case of mobile code, self-adaptive
  systems and peer-to-peer systems, resources
  suddenly appear and disappear

11
Existing Approaches

• Field-data has been collected for
• Evaluating usability of an application (usability
  testing)
• Modelling usage of the system
• which components, modules and functionalities are
  used?
• Learning properties of the implementation
• Modelling program faults
• which failures have been recognized on the target
  system?

12
Evaluating Usability

• Traditionally, data for usability testing has
  been gathered by running testing sessions
• Novel approaches silent data-gathering systems
• Automatic Navigability Testing System (ANTS)
  Rod02
• Web Variable Instrumented Program (Webvip) VG
• Gamma System OLHL02

13
Silent Data-Gathering Systems (1/2)
ANTS
Webvip
ANTS server
Data server
users actions
users actions
script
multimedia content
14
Silent Data-Gathering Systems (2/2)
Gamma
figure appeared in OLHL02
15
Modelling Usage of the System (1/2)

• for performing system-specific impact analysis
• Law and Rothermels impact analysis LR03
• the program is instrumented to produce execution
  traces representing the procedure-level execution
  flow, e.g., MBrACDrErrrrx
• the impacted set for procedure P is computed by
  selecting procedures that are called by P and
  procedures that are in the call stack when P
  returns
• Orso et al.s impact analysis OAH03
• entity-level instrumentation an execution trace
  is a sequence of traversed entities
• a change c on entity e potentially affects all
  entities of traces containing e
• the impact set is given from the intersection
  between the potentially affected entities and the
  result of a forward slicing with variable used on
  change c as slicing criterion

16
Modelling Usage of the System (2/2)

• Information from impact analysis can be used in
  regression testing
• Orso et als regression testing OAH03
• entity-level instrumentation
• test suite T is initialized with all test cases
  contained in existing test suite T traversing the
  change
• T is augmented with test cases covering
  uncovered impacted entities computed with Orso et
  als impact analysis technique
• test suite prioritization is performed by
  privileging test cases covering more impacted
  entities
• for increasing confidence of the program
• Pavlopoulou and Youngs perpetual testing PY99
• normal executions are considered as tests
• instrumentation measures statement coverage of
  uncovered blocks, even in the final environment
• the program can be iteratively generated to
  reduce instrumentation

17
Learning Properties (1/2)

• Automatic synthesis of properties/invariants
• Ernst et als approach ECGN01
• initially, a large set of invariants is supposed
  to hold over monitored variables
• each execution can falsify some invariants.
  Falsified invariants are deleted
• for each of true invariants is computed the
  probability that it randomly holds
• if this probability is below a given threshold
  the invariant is accepted
• synthesized properties are defined by the set of
  accepted invariants
• Automatic synthesis of programs
• Many approaches from machine learning, but they
  learn very simple functions
• Lau et als approach LDW03
• it is still simple, but it learns small computer
  programs
• based on accurate execution traces and
  programming constructs

18
Learning Properties (2/2)

• Synthesized properties, invariants and programs
  can be used to
• check the implementation with respect to the
  specification
• verify safety of updates (in terms of components
  replacements)
• Ernst at al. approach has been used to verify
  Pre-cond, Post-cond and Inv corresponding to
  implemented services when replacing components
  ME03
• derive test suites
• provide to the programmer confidence over the
  implementation

19
Test, Verification and Model-Checking (TVM)

• Evolution of Testing, Model Checking, and
  Run-time Verification
• Will mention their advantages and disadvantages
• Mention future research agenda
• Conclusion

20
TVM

• It started with The Software Crisis NATO,
  1968
• Led to calls for software Engineering Bauer,
  1968
• Focus on methodology for constructing software
  (e.g. Structured Programming Dijkstra, 1969
  Chief Programmer Team Harlan Mills _at_ IBM, 1973)

21
TVM

• Higher level languages viewed as panacea (C,
  Java, ML, Meta-ML)
• Buggy software was still being produced
• Focus shifted to detecting and preventing
  mistakes during software construction --- Testing

22
TVM - Testing

• 2 main approaches to Testing Reliability Growth
  Modelling (RGM) and Random Testing
• In RGM, program is corrected, tested, fails,
  corrected, tested again, goes on many times
• MTBF (Mean Time Between Failure) entered into a
  mathematical model derived from previous
  experiences

23
TVM - Testing

• When the model indicates a very long MTBF, we
  stop testing, and ship product
• Pitfalls of RGM
• Very tenuous (weak) link between past development
  processes and the current one
• Correction of a bug can introduce new bugs, which
  reduces dependability, and

24
TVM - Testing

• Industrial practice found you need extremely
  large amounts of failure-free testing
• Thereby not cost-effective
• Random Testing test cases are selected randomly
  from a domain of possible inputs
• Advantages of Random Testing over RGM
• Random, therefore non-automatable, you are more
  likely to find errors, and

25
TVM - Testing

• Random testing draws on tools from information
  theory to analyse results
• Pitfalls of Random Testing
• Distribution of random test cases may not be the
  same as real usage of system
• Random testing takes no account of program size,
  a 10-line program treated the same as a
  10000-line program

26
TVM - Program Review

• Buggy software was still being produced
• Another panacea tried was Program Review
  (Software Inspection)
• Depends on humans making the right decisions
• Fallible on human errors

27
TVM - Program Proving (Theorem Provers)

• Solution then became Formal Deductive Reasoning
  Program Proving
• Automated Theorem Provers (e. g. Isabelle Camb)
  developed to prove programs
• A main problem with theorem provers is the
  impracticality of proving all layers of the
  system from software programs to hardware to
  circuits

28
TVM - Model Checking

• Alternative approach to theorem provers is model
  checking
• In model checking, specification for a system is
  expressed in temporal logic, and the system is
  modelled as graph of finite state transitions,
  and a model checker checks whether the graph
  matches the temporal logic specification

29
TVM - Model Checking

• Advantages over theorem provers
• Algorithmic, so the user need only to press a
  button and wait for the result while in theorem
  provers, a user may need to direct the theorem
  prover to find a solution
• Gives counterexamples if formula is not satisfied

30
Model Checking

• Disadvantage of model checking
• Computational complexity, and
• Some information about the system is lost when
  you turn a system with an infinite number of
  states to a finite number
• There are calls for Run-Time Verification of
  software

31
TVM - Run-Time Verification (RTV)

• Some ideas of this were presented above.
• Observations of some RTV tools
• Simply debuggers with fancy features
• Or they provide good tracing mechanisms
• Encouraging observations of RTV tools
• Some use LTL (or extensions) to describe the
  program monitor

32
TVM - RTV

• Some use LTL as the basis for a Property
  Specification Language, such as PEDL, MEDL
• May be used as a basis for understanding and for
  theory

33
Call to Arms - Future Research Agenda

• We need a Theory of Testing
• Such theory should integrate good aspects of
  testing, model checking, and run-time
  verification
• I shall mention some approaches (references in
  our paper)

34
Some Approaches to Theory of Testing

• Type Systems/Abstract Interpretation
• Work from compiling and type systems directed
  towards optimisation of code can provide good
  information to direct selection of test cases
• Polymorphism and linearity can help
• Very little work so far on Semantics of Testing
  (encouraging work from this workshop)

35
Some Approaches to Theory of Testing

• Developing semantic structures (e.g. of domain)
  that facilitate testing may be something to look
  at
• Semantics of A.I. Planning to provide a basis for
  semantics of run-time verification (ref. in our
  paper)
• Domain theory in concurrency to provide semantics
  for distributed system testing (ref. in paper)

36
Conclusions

• Call to arms for theory builders and tool
  builders
• Come up with good theories and better tools
• Provide tools for software professionals to use
  for system specification, design, build, test,
  audit, monitor systems
• Lets do it !!!
