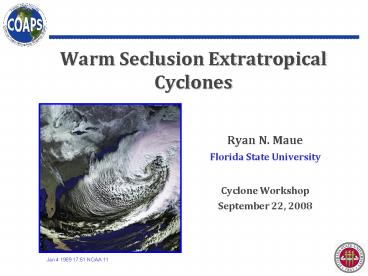

Warm Seclusion Extratropical Cyclones

1
Warm Seclusion Extratropical Cyclones

• Ryan N. Maue
• Florida State University
• Cyclone Workshop
• September 22, 2008

Jan 4 1989 1751 NOAA 11
2
Introduction

• Shapiro and Keyser (1990) Cyclone Paradigm 4
  distinct phases
• Incipient frontal wave along broad baroclinic
  zone
• Frontal Fracture III. T-Bone cold frontal
  structure weakens near cyclone center bent-back
  warm front development
• IV. Warm Seclusion or mature phase as bbwf
  encircles previously post-cold frontal air

Shapiro and Keyser (1990)
Often a result of Rapid intensification or
bomb-like deepening (Sanders and Gyakum 1980) and
may be associated with Tropical Cyclone
transition or downstream development
3
Explosive Cyclone Climatology Track Density
1979-2007
24 hPa / 24 hrs at 45 deg
4
GFS Sep 2007- May 2008 Bombs
Average frequency Total 46 Atlantic 16 Pacific
30 Aug 1, Sept 1, Oct 2, Nov 6, Dec 9, Jan 14,
Feb 9, Mar 3, April 1 May 1
5
Downstream Development of Tropical Cyclones
September 16-21, 2007 Downstream Development of
Super Typhoon Wipha and Typhoon Nari ETC Minimum
SLP 957 mb GFS analysis
Hart (2003) Cyclone Phase Space
6
Explosive Warm Seclusion Feb 10 2008
August 2008 Mariners Weather Log - OPC Analysis
7
Explosive Warm Seclusion Feb 10 2008
Hart (2003) Cyclone Phase Space
Deep cold-core structure at cyclogenesis Rapid
intensification 2 bergerons (41 hPa at
37N) Upper-level (600-300 hPa) warm-core
structure at maximum intensity (943 hPa)
Mariners Weather Log
8
Predictability of Maximum Intensity
Maue and Langland
9
Maximum Intensity 925 hPa Wind Speed
10
Example of Poor Predictability
Maue and Langland
Yikes!
11
MM5 Simulation of February 2008 Storm
18 km 500x1000x29 KF cupa, Blackadar PBL,
Reisner II 0-84 hrs Initialized at 12Z10FEB2008
12
72 hour Initialization Experiments w/o Latent
Heating and Surface Fluxes
Full Physics
? No Latent Heating Weak Warm core develops
(adiabatic)

• No Surface Fluxes
• Seclusion structure weaker,
• Japanese storm considerably weaker

13
Explicit Simulation of Warm Core Development
24 hour period of most-rapid intensification
ISCCP GIBBS MTSAT1 Feb 11, 2008 12Z
4 km
925 hPa Wind Speed
14
Explicit Simulation of Warm Core Development
24 hour period of most-rapid intensification
ISCCP GIBBS MTSAT1 Feb 12, 2008 12Z
4 km
925 hPa Wind Speed
15
Rapid Inner-Core Wind Speed Evolution
0hr
6hr
Sting jet
12hr
16
Summary
Warm seclusion cyclones range from
run-of-the-mill to extreme. Those resulting from
rapid-intensification develop HF winds and strong
900-600 hPa warm thermal structure in a period of
6-12 hours.
In this framework, what determines the strength
of the warm-core and the magnitude scale of
Chevron-shaped HF winds? Upper-levels
Convection (LH Release) Surface Fluxes
timing Sensitivity Experiments
Acknowledgements Bob Hart, Mark Bourassa
(COAPS), Rolf Langland NASA ESS Fellowship
17
4km 925 hPa Wind Speed
