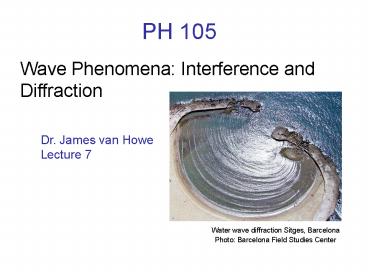

PH 105

1
PH 105
Wave Phenomena Interference and Diffraction
Dr. James van Howe Lecture 7
Water wave diffraction Sitges, Barcelona
Photo Barcelona Field Studies Center
2
Announcements

• Exam 1 this Friday!!!
• Cover up through interference and diffraction
  (todays material)
• Multiple choice, short answer, calculation
• I will provide any equations you may need (no
  need to memorize equations but do need to
  understand how to use them)
• Review on Wednesday in class
• No make-ups except for excused absences (by Dean
  of Students)

3
Outline

• Doppler Effect
• Interference
• Constructive
• Destructive
• Beats
• Diffraction
• Huygens-Fresnel Principle
• Barrier
• Single and double slit
• Poissons Spot

4
Name the Artist/Composer

• Irving Berlin
• Maurice Ravel
• Jeff Buckley
• Rufus Wainwright

5
Variation on an old one
Letting go of the mass will give oscillations at
a frequency of
k
Stretched an amount
m
To get half of the frequency, what needs to
happen to the mass?

• The mass should be doubled
• The mass should be cut in half
• The mass should be increased by four times
• The mass should be decreased by four times

6
Refraction
Incoming sound wave
CO2
air
Faster velocity
?
What happens to the sound wave at the boundary?

• It bends toward the normal and the wavelength
  gets longer
• It bends towards the normal and the wavelength
  gets shorter
• It bends away from the normal and the wavelength
  gets longer
• It bends away from the normal and the wavelength
  gets shorter

7
Diffraction
If a sound wave hits a door opening, the sound
will bent/spread
Spreading will be the most for
A.
B.
C.
D. None, they spread the same in each
case
8
Doppler Effect
A change in the observed frequency of a wave due
to a moving source or a moving observer
Stationary Source
Longer wavelength
Shorter wavelength
Moving Source
Higher Frequency
Lower Frequency
9
Doppler Effect Moving Observer
Stationary Source
Observer moves away source
Observer moves towards source
Counts less wavefronts in a given time
Counts more wavefronts in a given time
Frequency goes down
Frequency goes up
Use top signs for towards each other Use bottom
signs for away
Equation for all cases
New frequency
10
Doppler Effect for Light
Earth
Red Shift
Blue Shift
Moving Galaxy
For light lower frequencies are red, and higher
frequencies are blue
The color of a moving galaxy gives a measurement
of velocity, which can give us a measurement of
distance of the galaxy
11
Interference The property of waves to add up
(superpose) constructively or destructively
DP
Pressure, DP
position, x
Pressure Change
12
Constructive Interference
Two speakers facing each other play the same
note, in phase, at the same amplitude
DP
position, x
Pressure, DP
Pressure Change
13
Destructive Interference
Two speakers facing each other play the same
note, at the same amplitude, but 180 degrees out
of phase
DP
position, x
Pressure, DP
Pressure Change
14
Examples of intentional acoustical destructive
interference

• Muffler in car/resonator
• Pipe length chosen so that reflections interfere
  with noise 180 degrees out of phase
• Noise canceling headphones
• Records noise and plays it back 180 degrees out
  of phase for cancellation

Demo video destructive interference
15
Beats
The same speaker plays two tones with slightly
different frequency
DP
Pressure, DP
time, t
Pressure Change
16
Beats
In Phase
In Phase
In Phase
Out of Phase
Out of Phase
DP
Pressure, DP
time, t
17
Beats
DP
Pressure, DP
time, t
Envelope
If and ,
we hear a sine wave at
whose volume goes up and down (modulated) at

Envelope slow variation
18
Diffraction
Diffraction Bending of waves from a barrier,
obstruction, or aperture
Really just interference of many spherical waves
19
Huygens-Fresnel Principle
Every point on a wavefront serves as a secondary
source of point sources

Plane Wave
Infinite amount of point sources plane wave
20
Waves will diffract around a barrier
Bending
Many point sources, but not infinite
Plane Wave
21
Diffraction by a Single Slit
Case 1
Infinite point sources fit inside aperture
Shadow
plane wave out
Bright
Like light going through a window
Shadow
22
Diffraction by a Single Slit
Many point sources, but not infinite
spreading
23
Diffraction by a Single Slit
Slit so small only one point source fits
24
Double Slit Diffraction
like two point sources
could be two speakers
Lines of constructive interference
25
Poissons Spot
If obstruction size is on the order of
wavelength diffraction
Bright spot behind obstacle
Demo Video ripple tank, acoustic Poisson
Demo optics card
26
Homework

• Ch3 R15, E2

Due at the beginning of class on Wednesday
R Review Question E Exercise
