Title: Static Event Health Monitoring A Capability Improvement Program


1

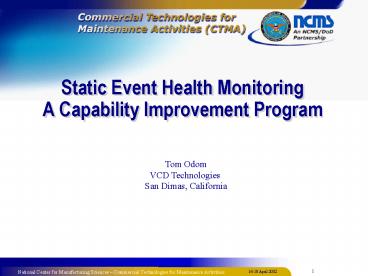

Static Event Health MonitoringA Capability
Improvement Program
Tom Odom VCD Technologies San Dimas, California
2
Topics
  • History of the Technology
  • Magneto-Optics
  • Prototype ExMOD Detectors
  • Detector Fabrication
  • Proposed Technology Improvements
  • Risk Analysis Mitigation
  • Conclusions

3
History of the technology
  • Bubble Memories
  • Developed in the 1970s as an alternative to
    magnetic tape data storage
  • Photo lithographically defined magnetic domains
    on a single crystal wafer.
  • Used Large Scale Integration processes developed
    for the semiconductor industry
  • Light Modulation Devices
  • Developed for Military applications in the
    1980s.
  • Used Single Crystal Magneto-Optic wafers to
    modulate light in nano-second time frames.
  • Missile tracking applications
  • Image Projection
  • Magneto-Optic Static Event Detectors (MOSED)

4
History of the technology, (continued)
Switched pixel
  • Magneto-Optic Static Event Detectors (MOSED)
  • Invented and demonstrated in 1990s
  • Created to aid in the detection of ESD events.
  • Magnetic fields created by the ESD transient
    changes the properties of the Magneto-Optic thin
    film deposited on a single crystal substrate
  • Devices can be remotely reset
  • Effect is observed using a polarizing microscope

Un-Switched pixel
5
Magneto-Optics
  • Magneto-Optic Effects
  • Kerr Effect for Magneto-Optic Recording
  • Faraday Effect for Light Modulation and memory
    devices
  • Also known as the Magneto-Optic Effect, was the
    first experimental evidence that light and
    magnetism are related
  • Result of ferromagnetic resonance in association
    with a magnetic field
  • Resonance causes waves to be decomposed into
    circularly polarized rays which propagate at
    different speeds (circular birefringence)
  • Upon re-combining, owing to the differences in
    propagation speed, a net phase offset and a
    resulting rotation of the angle of linear
    polarization results.

6
Magneto-Optics, (continued)
  • A magnetic field, caused by ESD transient,
    Changes the way light is polarized in the M-O
    Material
  • Polarization changes are permanent until device
    is externally reset
  • Effect is observed using a polarizing microscope

7
Prototype ExMOD Detectors
TO-5 packaged Detector
  • Manufactured from Prototype Magneto-Optic wafers
  • Uses mature Semiconductor wafer processing
    techniques and materials

0.030
3.00
Over 6000 die can be produced from a 3 inch
diameter wafer
0.020
8
Detector Fabrication
  • M-O Thin film is grown over non magnetic
    substrate wafer
  • Wafer is patterned and etched in the sequences
    shown below
  • M-O devices are characterized and tested to
    determine electro-optic performance

9
Prototype DetectorsAdvantages of the old
Technology
  • Resettable The device can be reset as many times
    as desired so long as the current remains below
    protection level.
  • Static Memory The device remains permanently
    switched after an ESD event until reset.
    Alternatively, the device can be observed
    continuously to record the time and threshold of
    the event.
  • Small Size The die can be as small as 500mm x
    750mm.
  • External Readout The device can be read without
    physical contact, using a polarizing
    microscope/optical system.
  • External Reset The sensing device can be reset
    with an external non-contact device.
  • Solid State Operates at extreme temperatures and
    environments.
  • Fast Switching Provides discharge detection of
    fast ESD pulses generated by HBM, CDM, and MM
    events.
  • Polarity Sensitivity If required, the device can
    distinguish the polarity of the ESD event.
  • Sensitivity Levels High or low threshold devices
    will be available.
  • Pulse Resolution Current devices can detect ESD
    events down to 300mA.
  • Custom Configuration Available for customer
    specific applications with associated engineering
    development.

10
Prototype DetectorsDisadvantages of the old
Technology
  • Difficult to view
  • Expensive microscopes are required to view the
    event
  • Dual Polarizer analyzers required
  • Difficult for customer to Assemble
  • High Cost of Fabrication at low volume
  • Customer acceptance of new technology

11
Proposed Technology Improvements for CTMA / NCMS
Cost share
Active Domain
  • Detector Device Improvements
  • Replace multi-domain detector (14 individual
    sensors) with a single, active, domain
  • Add a redundant domain for Readout verification
  • Increase domain size to increase readout signal
    strength and simplification

Redundant domain
12
Proposed Technology Improvements for CTMA / NCMS
Cost share
Alternative Two Cell Structure to discriminate
polarity
13
Proposed Technology Improvements for CTMA / NCMS
Cost share
  • Readout Reset Device Improvements
  • Replace the polarizing microscope with an
    autonomous reader.
  • The new reader will consist of the following
    components subsystems
  • Polarized light source
  • Magnifier
  • Charge coupled device (CCD) camera or other
    sensing device
  • Optical elements that cross polarize incoming and
    reflected light
  • Processor
  • Result indicator
  • To read the MOSED, a Reader is placed above and
    in proximity to the MOSED to determine its state
    of polarization
  • To reset the device , a permanent or
    electro-magnet device is integrated with the
    readout device

Example of Readout Device concept
14
Proposed Technology Improvements for CTMA / NCMS
Cost share
  • Operational Scenario

15
Risk Analysis Mitigation
  • Multiple Deliveries
  • MOSED Device in discrete package
  • Static Sensitive Test devices integrated with the
    new SED to characterize performance
  • Multiple threshold devices for wide range of ESD
    sensitive devices
  • Diverse Applications
  • Surge Suppression device will be co-developed
  • Use state-of-the-art surge suppression technology
  • Couple with MOSED to identify existence of surge
  • Government Review and Concurrence throughout
    development cycle
  • Multiple workshops to obtain government input
  • Reduces risk of redesign to meet user needs

16
Conclusions
  • Detection of ESD events can benefit the life
    cycle of electronic devices
  • Manufacturers can improve on processes that
    historically have damaged, destroyed or degrade
    devices.
  • End users can improve their handling of ESD
    sensitive devices, resulting in improved
    reliability in the field.
  • Depot repair facilities can improve their ability
    to minimize field returns thereby providing added
    value to their repair/replacement functions.
  • The Existing MOSED technology can be improved to
    overcome deficiencies in a risk-controlled CTMA
    cost share development program
  • Provides Government and industry users with cost
    effective tools necessary to detect, analyze and
    control ESD events
  • Dual Use technology improvements will result in
    significant cost savings for government and
    industry.
