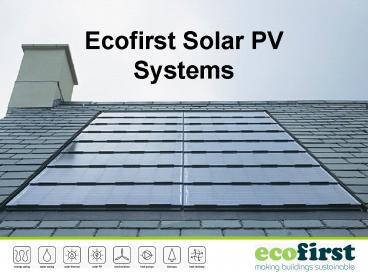

Ecofirst Solar PV Systems

1
Ecofirst Solar PV Systems
2
Ecofirst Making Buildings Sustainable
SUSTAINABLE SOLUTIONS

• DEDICATED SERVICES
• System design
• Turn-key installations
• Technical support
• Product supply
• Training

3
Ecofirst Turn-key Installations
4
Solar PV Systems
Solar PV Systems
5
Solar Panels- different technologies
Solar PV Electricity
Solar Thermal Hot Water
6
System Outputs Power, Energy Carbon

• Solar PV systems are usually referred to in terms
  of the maximum potential power they could
  generate in full sunlight
• Potential power is measured in kilowatt peak
  (kWp)
• The amount of electrical energy that 1kWp will
  generate will vary depending upon the type of
  cells used and the amount of sunlight falling on
  them
• In the UK a 1kWp photovoltaic system will
  generate between 750 850 kWh of electricity per
  annum
• Electricity generated is zero carbon and replaces
  mains electricity that has a carbon footprint of
  0.43kg/kWh

7
System Sizes

• A 2kWp PV system is an average sized domestic
  system
• 2kWp of PV is typically 12 panels which will
  cover about 16-20 m² of roof area
• A 2kWp system of polycrystalline modules will
  generate about 1500kWh of electricity per annum
  and cut 645 kg of CO2 emissions
• The annual electricity consumption of an average
  house (3 bed/4 person) is 3300kWh per annum so
  fitting a 2kWp PV system will reduce bills by
  about 45

8
Benefits of PV

• Easy to install
• No bulky internal equipment or layout alterations
• Maintenance free
• Less planning restrictions
• Electricity generation offers highest carbon
  savings
• Long system life
• Proven to work sunshine much more certain than
  wind in an urban environment

9
Solar PV Systems

• SYSTEM COMPONENTS

10
Grid Connected PV Systems
11
PV Array Above Roof
12
PV Array - Above Roof Mounting System
Mounting rail
Roof anchor
Panel fixing clips
13
PV Array Roof Integrated (Tiles)
14
PV Array PV Tile Integrated Mounting System
Fixing bracket
Panel support
PV Tile
Roof Tile
15
PV Array Roof Integrated (Panels)
16
Inverter in loft
17
Inverter in garage
18
Cable Run
19
Cable Run
20
Generation Meter AC Spur
AC Isolator
Generation meter
21
Design Considerations

• Available roof space
• Roof orientation
• Type of roof roof covering
• Shading
• Ease of installing AC spur
• Condition of existing electrics
• Planning (aesthetics)
• Customer budget!

22
Available Roof Space
23
Optimum Orientation
24
Flat Roof Installations
25
Shading
26
Planning / Aesthetics
27
Visualisation
28
Budget

• Approximate installed cost of a 2kWp solar PV
  system
• Above Roof 12,000 (12 x 162W Sharp panels)
• Roof Integrated 16,500 (24 x 80W Redland PV
  tiles)
• Price includes
• - System design specification
• - Scaffolding installation
• - Grid connection, System commissioning
  handover
• - Comprehensive product installation guarantee
• Potential grant 2,500 (LCBP Phase 1
  2,000/kWp)
• Payback for electricity generated 12p/kWh ROCs
