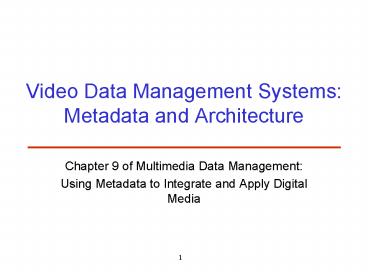

Video Data Management Systems: Metadata and Architecture

1
Video Data Management Systems Metadata and
Architecture

• Chapter 9 of Multimedia Data Management
• Using Metadata to Integrate and Apply Digital
  Media

2
????

• ??Video Data Management System?????,?????????????
• Good understanding of digital media
• Typical applications of digital media
• Types of queries

3
????

• Introduction
• Video Data Management System (VDMS)
• Natural of Video Data
• Application of Video
• Challenges in Video Data Management
• ViMOD The Video Data Model
• Architecture for a Video Data Management System

4
Introduction

• Video audio-visual temporal data
• Streaming data (temporally extended) with high
  resolution and multiple channels
• Video data management system (VDMS)
• Storage of video on computer systems
• Content based retrieval
• Real-time synchronized delivery of video
• Content based retrieval
• Data modeling (especially the metadata)
• Automatic extraction of data models
• Query processing and retrieval mechanisms

5
Introduction (Cont.)

• Developing a (meta) data model for video requires
  a good understanding of video as a media, the
  typical applications of video and the types of
  queries that will be encountered

6
Video Data Management System (VDMS)
7
What is a VDMS?

• A software system which provides
• Content based access to video data
• Audiovisual content of video (color, texture,
  voice similarity)
• Semantic content of video (topic of video,
  persons in a scene)
• Facilities
• Facilities provided by standard DBMS (insertion,
  deletion, schema definition)
• User interface for smooth interaction between the
  user and the video data collection
• Predefined set of query classes and an associated
  query interface
• Tools for navigation and manipulation video data

8
Example Scenario Sporting Event VDMS

• Purpose
• Postgame analysis
• Plan strategies for future games
• Analyze game strategies of opposing teams
• Analyze the performance of players

• Scenario 1
• Question Remember the OSU game from last fall?
• Query Retrieve ltGamefootballgt ltSchoolOSUgt
  ltYear1994)
• Response The video is cued to the beginning of
  the OSU game of 1994

9
Example Scenario Sporting Event VDMS (Cont.)

• Scenario 2
• Didnt OSU score a field goal in the 3rd quarter
  of the game?
• Locate ltQuarter3gt ltPlayfield-goalgt ltTeamOSUgt
• The retrieved video is marked with the time
  points of all field goal attempts

• Scenario 3
• Can we see a close up shot of this kick?
• Retrieve ltPlayfield-goalgtltShotClose upgt
• The database is searched for a close up shot and
  the video is cued if the search is successful

10
Example Scenario Sporting Event VDMS (Cont.)

• Scenario 4
• Lets look at the track of the kickers foot
• Tracking Mode. Using the interface, a bounding
  box is placed around the kickers foot to
  indicate the object to be tracked.
• The system tracks the kickers foot through the
  shot, and displays a track of the foot

• Scenario 5
• Lets see other kickers with similar kicks in
  last years NCAA football
• Similarity Search. ltYEAR1993gtltGameNCAA-footgtltPla
  y field goalgt ltMatch-CriteriaIntra video object
  location based matchinggt
• The system searches through the NCAA games of
  1993 for field goal attempts. Compare the
  kickers tracks for attempts. Ranked set

11
Nature of Video Data
12
Content of Video What is in Video?

• Video is an audiovisual media of information
  presentation
• Semantic content
• Message or information conveyed by the video
• Criminal news story what, when, who
• Audiovisual content
• Video clips and audio signals
• Criminal news story associated sound track
• Distinction Amount of contextual information and
  knowledge required to extract contents

13
Content of Video
14
Semantic Content

• Content extraction
• Need background knowledge
• Complex, manually require user interfaction
• Metadata
• Example
• Emotion, Classification
• Similar to manage textual information
• Access Finer grain than traditional library
• scenes, shot ( chapters and sections in books)

15
Audiovisual Content

• Content extraction
• No Need background knowledge
• (Semi-)automatically
• Example
• Object recognition, object tracking over time,
  temporal events recognition, word and sentence
  recognition, unusual sound events
• Camera and object motion, color and texture
  properties, audio properties (like loudness,
  pitch)

16
Unique Characteristics of Video

• How is video different from other classes of
  data?
• Data classification
• Alphanumeric data generated from a finite set
  of symbols
• Essentially generated by human agency
• Example free text data, computer programs,
  product data
• Non-Alphanumeric data not derived from a finite
  set of symbols
• Generated by an instrument or sensor
• Images, speech signals, MRI data, Video data

17
Unique Characteristics of Video (Cont.)

• Criteria for comparing alphanumeric and
  non-alphanumeric data
• Resolution the detail that the media provides
• Production process human agency vs. machine
  agency
• Ambiguity of interpretation measure the number
  of interpretations derivable from the data
• Interpretation effort measure the computational
  effort required to interpret a given unit of
  information
• Data volume in terms of digital storage
• Similarity how to measure the similarity between
  two units of information

18
Comparison between Alphanumeric and
Non-alphanumeric data
19
Applications of Video
20
Introduction

• Identify the nature of queries which are used to
  derive the design of the video data models
• Example applications feature films, news videos,
  sporting event videos, biomechanical analysis of
  sports, building security videos
• Analyzed from several perspectives
• Video intent What are the purpose of making the
  video?
• Provide clues into the video structure, content,
  and organization
• Video content What is the typical content?
• Depending on the domain of the video, the
  predictability of the content varies

21
Introduction (Cont.)

• Analyzed from several perspectives (Cont.)
• Video production How was the video made?
• Provide the clues into the syntactic structure,
  and the audio-visual properties of the video data
• Script control visualization of a certain
  script? Audiovisual log?
• Filming control environment, subject, video
  filming parameters
• Measure of the degree of control exercised by the
  filmmaker on these parameters
• Composition control
• Channel control audio and video channels
• Video usage dictate the queries that arise in
  the database context

22
Feature Films

• Video intent provide entertainment and convey
  the message of the director to the audience
• Video content
• A wide range of subjects (genre, like western
  movies and war movies) and each subject can be
  filmed in many different ways
• Given a particular class, the content is
  predictable
• Video production a planned and controlled
  process
• Script control very high and very structured
• Filming control very high (location, action,
  cinematography)
• Composition control very high
• Channel control some visual orientation, others
  aural information

23
Feature Films (Cont.)

• Video usage
• Film viewer for entertainment
• List films with TitleX, ActorsY, DirectorsZ,
• List films with GenreWestern
• Film critics for evaluation (require finer
  grain access)
• Find scene where ActorX Emotioncry
• Find shot with camerastationary, Lens
  actionsZoom in
• Find scene with Special EffectMorphing
• Film Database Managers video rent, for
  statistics
• Number of rentals for TitleX, ActorY
• Average number of movies per customer per week

24
News Video

• Video intent convey the news to the audience
• News events that occurred over a given duration
  of time as observed by a certain team of people
• Background information events (self-contained
  and understandable)
• Video content unstructured, but has a definite
  presentation structure
• Main Points ? segments (politics, sports) ?
  anchor person reporter
• Video production less controlled than a feature
  film
• Script control limited to the structure of the
  news
• The stories are controlled however, the exact
  content of the stories and their presentation are
  less controlled. SNG
• Filming control studio environment (well
  controlled) news location environment (less
  controlled)
• Composition recorded report vs. live reports
• Channel control more in the audio channel

25
News Video (Cont.)

• Video usage
• News Browser at the granularity of news report
• Retrieve hockey events occurred between 1994 and
  1995
• Retrieve results of 1992 elections
• News Producers and Reporters
• Interested in researching facts related to a
  particular story
• Reuse news for news report production
• Nomination of a new presidential candidate
  highlight the persons life beginning from birth

26
Sporting Event Videos

• Video intent a log of the sporting event
  entertainment
• Video content highly structured
• The structure in the game translates to structure
  in the video
• Large scale temporal structure predictable
• More detailed structure (plays, passes) unknown

• Video production comparable to that of news
  videos
• Script control video maker has no control of
  the actual event
• Filming control
• Game environment cannot be modified for video
• Subject of video is the progress of the game,
  which cannot be controlled for the video
• Cinematography can be controlled to a large extent

27
Sporting Event Videos

• Video production (Cont.)
• Composition control controlled (game segments)
• Less than feature films and comparable to live
  news reports
• Channel control visually oriented
• Complete control of the information distribution
  between the audio and video channels
• Video usage
• Casual Viewer
• Locating game videos (like film viewers)
• Sports Coaches, Trainers
• Coaching teams, analyzing player performance,
  game strategies

28
Classification of Video Queries
29
Query Type

• Semantic Query
• Require high level semantic recognition and
  interpretation of the video content
• Require metadata generated manually
• Find scene with ActorX EmotionCrying
• Audiovisual Query
• Require metadata generated automatically or
  semi-automatically
• Find shot with CameraStationary, Lens
  ActionsZoom in

30
Matching Required

• Exact match query
• Find scene with ActorX
• Similarity match query
• Find all shots similar to this shot

31
Function

• Location queries locate video information with
  the DB
• Find scene with ActorX
• Point to the beginning of scenes with the videos
  which contain actor X
• Tracking queries track visual quantities within
  the video
• Track the ball through this shot
• Location of the ball in each of the frames in the
  shot

32
Temporal Unit Type

• Unit query complete units of video
• Find films with ActorX
• Subunit Query subunits of video
• Find scenes with ActorX

33
Challenges in Video Data Management
34
Issues in Managing Traditional Databases

• Data modeling design application specific data
  representation which support a certain set of
  queries
• Data insertion introduce new data items into an
  existing collection
• Extract the necessary information for
  instantiating a data model
• For example, adding a new employee into an
  employee DB
• Data organization arrange data items with
  reference to each other in the collection (data
  indexing)
• Choice of fields or features to be used for data
  indexing and the choice for data structures for
  indexing the DB
• Data retrieval extract data item from the
  collection
• Formulation and processing of queries

35
Managing Video Data

• Data model
• Film viewer queries limit to queries which
  locate feature films
• Need a high-level description of the video
  maker, topic, actors
• Film critic producer queries
• Require access to the video data at a granularity
  which is finer than locating feature films
• Require access to parts of a film like scene and
  shot
• Data model should support a segmented
  representation for video
• Biomechanical analysis queries
• Require the partitioning of video based on
  different portions of an object track
• Data model should support representation of raw
  data features like locations of objects over a
  period of time

36
Managing Video Data (Cont.)

• Data insertion Related to the granularity of
  video data
• Film viewer video data metadata like title,
  actors, directors,
• Film critics and analyst require some form of
  automation
• Segment the video data based on the suitable
  criteria
• View each segment to extract the necessary
  details (description) about the segment
• Annotation and logging of the video segment
• Data organization
• Film viewer use title, actors, directorsas
  search key
• Paths of objects over a segment measure the
  distance between two paths
• Data retrieval Interface for presenting query
  and video data

37
Requirement Summary for Video Data Model

• A notion of time
• A segmented representation for time intervals
• A relationship between time intervals
• A set of descriptions associated with each time
  interval

38
ViMOD The Video Data Model
39
Video Data Model

• The basic unit of video is a temporal interval
• V
• Video Interval tb, te
• Temporal Relations R
• R((r1,v1), (r2,v2), , (rk,vk))
• Feature Count n
• Feature Type (?1, ?2,, ?n)
• Feature (F1, F2, F3,, Fn)

40
Segmentation Criteria

• The basis on which a particular interval of the
  video can be chosen
• Grouping of criteria
• Syntactic segmentation criteria
• Domain independent
• Example Shot (an image sequence generated by a
  single operation of the camera)
• Semantic segmentation criteria
• Domain specific
• Example Anchor-person segment, News-reporter
  segment

41
Segmentation Criteria (Cont.)
42
Interval Relationships
43
Definition of Features

• A feature provides information about a video
  interval. A feature has associated with a feature
  type ?.

44
Feature Classification Criteria

• Content Dependence
• Independent the feature is not directly
  available from the video data
• Meta features
• Example Budget of a video
• Dependent
• Data features
• Example Story
• Temporal Extent
• Image based on viewing a single frame
• Example dominant color
• Video based on a time interval
• Example Feature track

45
Feature Classification Criteria (Cont.)

• Labeling
• Domain model based labels
• Qualitative features (Q-features)
• Example in basketball pass, dribble, dunk
• Low-level domain independent models
• Raw features (R-features)
• Example object trajectories

46
Type of Video Features
47
Feature Type Classification in ViMod
48
Meta Features

• Content independent features of video
• In general, apply to a complete video
• Examples

49
Video Q-Features

• Content dependent, temporally extended, labeled
  features
• Has a value belonging to a finite set of labels
• Low level property
• Cinematographic properties
• Higher level properties
• Time frame, point of view

50
Video Q-Feature Examples
51
Video R-features

• Content dependent, temporally extended, raw data
  values
• Usually a set which is indexed by time
• Tracks of object motions within a video shot,
  variations in lighting over time, variations in
  audio level over time

52
Image Q-Features

• Content dependent, single frame, labeled features
• Refer to a single instant of time in the video
  shot
• Has a value belonging to a finite set of labels
• Usually describe the video that do not change
  over the time interval of the video
• A White House video ? based on a single frame, it
  is possible to recognize the building
• Low level property
• Higher level properties

53
Image Q-Feature Examples
54
Image R-Features

• Content dependent, single frame, raw feature
  values
• Raw image measurements made from frames in the
  video sequence

55
ViMOD Architecture
56
ViMOD Architecture

• Video server
• Database interface
• Metadata store
• Query processor
• Insertion module
• User interface

57
Block Interactions

• Data insertion operation
• Database Interface
• Metadata store
• Insertion module
• User interface

• Data retrieval operation
• Query processor
• User interface
• Database interface
• Metadata store

58
(No Transcript)
59
??

• ??????????????????,??
• ????????
• ?????????
• ???????????(Query)
• ???????????????????????
