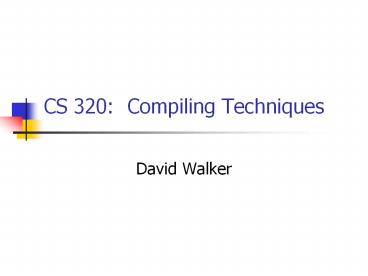

CS 320 Compiling Techniques

• David Walker

2
People

• David Walker (Professor)
• 412 Computer Science Building
• dpw_at_cs.princeton.edu
• office hours after each class
• Dan Dantas (TA)
• 417 Computer Science Building
• ddantas_at_cs.princeton.edu
• office hours Mondays 2-3 PM

3
Information

• Web site
• www.cs.princeton.edu/courses/archive/spring04/cos3
  20/index.htm
• Mailing list

4
Books

• Modern Compiler Implementation in ML
• Andrew Appel
• required
• Elements of ML Programming
• Jeffrey D. Ullman
• also online references see Web site

5
Assignment 0

• Write your name and other information on the
  sheet circulating
• Find, skim and bookmark the course web pages
• Subscribe to course e-mail list
• Begin assignment 1
• Read chapter 1 Appel
• Figure out how to run use SML
• Due next Thursday 12

6
onward!
7
What is a compiler?

• A compiler is program that translates a source
  language into an equivalent target language

8
What is a compiler?
while (i gt 3) ai bi i
C program
compiler does this
mov eax, ebx add eax, 1 cmp eax, 3 jcc eax, edx
assembly program
9
What is a compiler?
class foo int bar ...
Java program
compiler does this
struct foo int bar ...
C program
10
What is a compiler?
class foo int bar ...
Java program
compiler does this
........ ......... ........
Java virtual machine program
11
What is a compiler?
\newcommand ....
Latex program
compiler does this
\sfd\sf\fadg
Tex program
12
What is a compiler?
\newcommand ....
Tex program
compiler does this
\sfd\sf\fadg
Postscript program
13
What is a compiler?

• Other places
• Web scripts are compiled into HTML
• assembly language is compiled into machine
  language
• hardware description language is compiled into a
  hardware circuit
• ...

14
Compilers are complex

• text file to abstract syntax
• lexing parsing
• abstract syntax to intermediate form (IR)
• analysis optimizations data layout
• IR to machine code
• code generation register allocation

front-end
middle-end
back-end
15
Course project

• Tiger Source Language
• simple imperative language
• Instruction Trees as intermediate form (IR)
• type checking data layout on the stack
• Code Generation
• instruction selection algorithms register
  allocation via graph coloring

front-end
middle-end
back-end
16
Standard ML

• Standard ML is a domain-specific language for
  building compilers
• Support for
• Complex data structures (abstract syntax,
  compiler intermediate forms)
• Memory management like Java
• Large projects with many modules
• Advanced type system for error detection

17
Introduction to ML

• You will be responsible for learning ML on your
  own.
• Today I will cover some basics
• Resources
• Jeffrey Ullman Elements of ML Programming
• Robert Harpers an introduction to ML
• See course webpage for pointers and info about
  how to get the software

18
Intro to ML

• Highlights
• Data Structures for compilers
• Data type definitions
• Pattern matching
• Strongly-typed language
• Every expression has a type
• Certain errors cannot occur
• Polymorphic types provide flexibility
• Flexible Module System
• Abstract Types
• Higher-order modules (functors)

19
Intro to ML

• Interactive Language
• Type in expressions
• Evaluate and print type and result
• Compiler as well
• High-level programming features
• Data types
• Pattern matching
• Exceptions
• Mutable data discouraged

20
Preliminaries

• Read Eval Print Loop
• - 3 2

21
Preliminaries

• Read Eval Print Loop
• - 3 2
• gt 5 int

22
Preliminaries

• Read Eval Print Loop
• - 3 2
• gt 5 int
• - it 7
• gt 12 int

23
Preliminaries

• Read Eval Print Loop
• - 3 2
• gt 5 int
• - it 7
• gt 12 int
• - it 3
• gt 9 int
• - 4 true
• stdIn17.1-17.9 Error operator and operand don't
  agree literal
• operator domain int int
• operand int bool
• in expression
• 4 true

24
Preliminaries

• Read Eval Print Loop
• - 3 div 0
• Failure Div - run-time error

25
Basic Values

• - ()
• gt () unit gt like void in C (sort of)
• gt the uninteresting value/type
• - true
• gt true bool
• - false
• gt false bool
• - if it then 32 else 7 else clause is always
  necessary
• gt 7 int
• - false andalso loop_Forever
• gt false bool and also, or else short-circuit
  eval

26
Basic Values

• Integers
• - 3 2
• gt 5 int
• - 3 (if not true then 5 else 7)
• gt 10 int No division between expressions
• and statements
• Strings
• - Dave Walker
• gt Dave Walker string
• - print foo\n
• foo
• gt 3 int
• Reals
• - 3.14
• gt 3.14 real

27
Using SML/NJ

• Interactive mode is a good way to start learning
  and to debug programs, but
• Type in a series of declarations into a .sml
  file
• - use foo.sml
• opening foo.sml

list of declarations with their types
28
Larger Projects

• SML has its own built in interactive make
• Pros
• It automatically does the dependency analysis for
  you
• No crazy makefile syntax to learn
• Cons
• May be more difficult to interact with other
  languages or tools

29
Compilation Manager
sources.cm
c.sml
b.sml
a.sig
Group is a.sig b.sml c.sml

• sml
• OS.FileSys.chDir /courses/510/a2
• CM.make() looks for sources.cm, analyzes
  dependencies
• compiling compiles files in group
• wrote saves binaries in ./CM/
• - CM.make myproj/() specify directory

30
What is next?

• ML has a rich set of structured values
• Tuples (17, true, stuff)
• Records name Dave, ssn 332177
• Lists 345nil or 3,4_at_5
• Datatypes
• Functions
• And more!
• Rather than list all the details, we will write a
  couple of programs

31
An interpreter

• Interpreters are usually implemented as a series
  of transformers

lexing/ parsing
evaluate
print
stream of characters
abstract syntax
abstract value
stream of characters
32
A little language (LL)

• An arithmetic expression e is
• a boolean value
• an if statement (if e1 then e2 else e3)
• an integer
• an add operation
• a test for zero (isZero e)

33
LL abstract syntax in ML
datatype term Bool of bool If of term
term term Num of int Add of term term
IsZero of term
-- constructors are capitalized --
constructors can take a single argument of
a particular type
type of a tuple another eg string char
vertical bar separates alternatives
34
LL abstract syntax in ML
Add
Add (Num 2, Num 3) represents the expression 2
3
Num
Num
2
3
35
LL abstract syntax in ML
If
If (Bool true, Num 0, Add (Num 2, Num
3)) represents if true then 0 else 2 3
Add
Bool
Num
true
Num
Num
0
3
2
36
Function declarations
function name
function parameter
fun isValue t case t of Num n gt true
Bool b gt true _ gt false
default pattern matches anything
37
What is the type of the parameter t? Of the
function?
function name
function parameter
fun isValue t case t of Num n gt true
Bool b gt true _ gt false
default pattern matches anything
38
What is the type of the parameter t? Of the
function?
fun isValue (tterm) bool case t of Num
n gt true Bool b gt true _ gt false
val isValue term -gt bool
ML does type inference gt you need not annotate
functions yourself (but it can be helpful)
39
A type error
fun isValue t case t of Num _ gt true
_ gt false
ex.sml22.3-24.15 Error types of rules don't
agree literal earlier rule(s) term -gt int
this rule term -gt bool in rule _ gt false
40
A type error
Actually, ML will give you several errors in a
row ex.sml22.3-25.15 Error types of rules
don't agree literal earlier rule(s) term -gt
int this rule term -gt bool in rule
Successor t2 gt true ex.sml22.3-25.15 Error
types of rules don't agree literal earlier
rule(s) term -gt int this rule term -gt bool
in rule _ gt false
41
A very subtle error
fun isValue t case t of num gt true _
gt false
The code above type checks. But when we test it
refined the function always returns true. What
has gone wrong?
42
A very subtle error
fun isValue t case t of Num 0 gt 1
Add(Num t1,Num t2) gt t1 t2 _ gt 0
The code above type checks. But when we test it
refined the function always returns true. What
has gone wrong? -- num is not capitalized (and
has no argument) -- ML treats it like a variable
pattern (matches anything!)
43
Exceptions
exception Error of string fun debug s unit
raise (Error s)
44
Exceptions
exception Error of string fun debug s unit
raise (Error s)
in SML interpreter
- debug "hello" uncaught exception Error
raised at ex.sml15.28-15.35
45
Evaluator
fun isValue t ... exception NoRule fun eval t
case t of Bool _ Num _ gt t ...
46
Evaluator
... fun eval t case t of Bool _ Num _
gt t If(t1,t2,t3) gt let val v eval
t1 in case v of Bool b gt if
b then (eval t2) else (eval t3) _ gt
raise NoRule end
let statement for remembering temporary results
47
Evaluator
exception NoRule fun eval1 t case t of
Bool _ Num _ gt ... ... Add (t1,t2) gt
case (eval v1, eval v2) of (Num
n1, Num n2) gt Num (n1 n2) (_,_) gt
raise NoRule
48
Finishing the Evaluator
fun eval1 t case t of ... ... Add
(t1,t2) gt ... IsZero t gt ...
be sure your case is exhaustive
49
Finishing the Evaluator
fun eval1 t case t of ... ... Add
(t1,t2) gt ...
What if we forgot a case?
50
Finishing the Evaluator
fun eval1 t case t of ... ... Add
(t1,t2) gt ...
What if we forgot a case?
ex.sml25.2-35.12 Warning match nonexhaustive
(Bool _ Zero) gt ... If
(t1,t2,t3) gt ... Add (t1,t2) gt ...
