The Grid: Experience and Practice

1

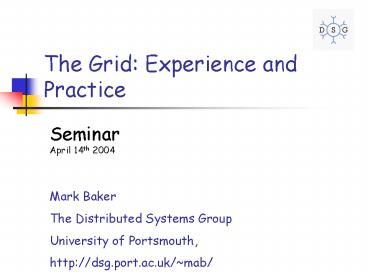

The Grid Experience and Practice
Seminar April 14th 2004

• Mark Baker
• The Distributed Systems Group
• University of Portsmouth,
• http//dsg.port.ac.uk/mab/

2
Outline

• Characterisation of the Grid.
• What is not a grid!
• Evolution of the Grid.
• Experiences with grid middleware.
• Comments on grid software.
• Observations and Summary.
• DSG Projects
• GridRM,
• jGMA,
• Semantic Logging,
• MPJ.

3
Characterisation of the Grid

• In 1998, Ian Foster and Carl Kesselman provided
  an initial definition in The Grid Blueprint for
  a New Computing Infrastructure (see ref 1).
• A computational grid is a hardware and software
  infrastructure that provides dependable,
  consistent, pervasive, and inexpensive access to
  high-end computational capabilities."
• This particular definition stems from the earlier
  roots of the Grid, that of inter-connecting high
  performance facilities at various US laboratories
  and universities.

4
Characterisation of the Grid

• Since this early definition there have been a
  number of other attempts to define what a grid
  is.
• For example
• A grid is a software framework providing layers
  of services to access and manage distributed
  hardware and software resources (CCA - see ref
  2).
• widely distributed network of high-performance
  computers, stored data, instruments, and
  collaboration environments shared across
  institutional boundaries (IPG - see ref 3).

5
Characterisation of the Grid

• In 2001, Foster, Kesselman and Tuecke refined
  their definition of a grid to
• "co-ordinated resource sharing and problem
  solving in dynamic, multi-institutional virtual
  organizations" (see ref 4).
• This latest definition is the one most commonly
  used to day to abstractly define a grid.

6
Characterisation of the Grid

• Foster later produced a checklist (see ref 5)
  that could be used to help understand exactly
  what can be identified as a grid system, three
  parts
• Co-ordinated resource sharing with no centralised
  point of control and that the users resided
  within different administrative domains.
• If not true it is probably the case that this is
  not a grid system!
• Standard, open, general-purpose protocols and
  interfaces
• If not, it is unlikely that system components
  will be able to communicate or inter-operate, and
  it is likely that we are dealing with an
  application-specific system, and not the Grid.

7
Characterisation of the Grid

• Delivering non-trivial qualities of service -
  here we are considering how the components that
  make up a grid can be used in a co-ordinated way
  to deliver combined services, which are
  appreciably greater than sum of the individual
  components.
• These services may be associated with throughput,
  response time, meantime between failure,
  security, or many other facets.

8
Characterisation of the Grid

• From a commercial view point, IBM define a grid
  as
• a standards-based application/resource sharing
  architecture that makes it possible for
  heterogeneous systems and applications to share
  compute and storage resources transparently (see
  ref 6).

9
What is not a Grid!

• A cluster, a network attached storage device, a
  desktop PC, a scientific instrument, a network
  these are not grids
• Each might be an important component of a grid,
  but by itself, it does not constitute a grid.
• Screen saver/cycle stealers
• SETI_at_HOME, fold_at_home, etc,
• Other application specific distributed computing.
• Most of the current Grid providers
• Proprietary technology with closed model of
  operation.
• Globus
• It is a toolkit to build a system that might work
  as or within a grid.
• Sun Grid Engine, Platform LSF and related.
• Most anything referred to as a Grid by marketeers!

10
The Evolution of the Grid The First Generation

• The early to mid 1990s marks the emergence of the
  early metacomputing or grid environments.
• Typically, the objective of these early
  metacomputing projects was to provide
  computational resources to a range of high
  performance applications.
• Two representative projects in the vanguard of
  this type of technology were FAFNER (see ref 7)
  and I-WAY (see ref 8) both cica 1995.

11
Convergence of Technologies

• Both projects attempted to provide metacomputing
  resources from opposite ends of the computing
  spectrum
• FAFNER was Web-based for factoring the RSA
  challenge, capable of running on any workstation
  with more than 4 Mbytes of memory, and was a
  aimed at a trivially parallel application.
• IWAY was a means of unifying the resources of
  large US supercomputing centres, and was targeted
  at high-performance applications (compute/data
  intensive).
• Each project was in the vanguard of metacomputing
  and helped pave the way for many of the
  succeeding projects.
• FAFNER was the forerunner of the likes of
  SETI_at_home, fold_at_home and Distributed.Net,
• I-WAY was the same for Globus, Legion, and
  UNICORE.

12
Convergence of Technologies

• Since the emergence of the second generation of
  systems (e.g. Globus/Legion circa 1995) there
  has been a number of classes of wide-area
  systems that have been developed
• Grid-based, aimed at HPC compute/data
  intensive, e.g. Globus/Legion/UNICORE
• Object-based, e.g. CORBA/CCA/Jini/Java-RMI
• Web, e.g. Javelin, seti_at_home, Charlotte,
  fold_at_home, ParaWeb, distributed.net
• Enterprise - bespoke systems, such as IBMs
  WebSphere, BAEs WebLogic, and Microsofts .Net
  platform.

13
Convergence of Technologies

• The developers in these four areas, over the
  years, evolved their systems there were many
  overlaps, various collaborations started, and to
  an extent, a realisation that a unified approach
  to the development of middleware to support
  wide-area applications was arrived at.
• Unifying standards bodies helped this process
  for example GGF,OASIS, W3C, and IETF.
• Convergence of WS, HPC, OO, SOA, .
• A results of this was that the Open Grid Service
  Architecture (OGSA) was announced at GGF4 in Feb
  2002, and was declared their flagship
  architecture in March 2004.
• OGSA was based on Web Services technologies.

14
Convergence of Technologies

• The OGSA document, first released at GGF11 in
  June 2004, gave current thinking on the required
  capabilities and was released in order to
  stimulate further discussion.
• Note instantiations of OGSA depends on emerging
  specifications
• Currently the OGSA document does not contain
  sufficient in formation to develop an actual
  implementation of OSGA-based system.
• The first OGSA-based reference implementation was
  GT3 OGSI, released in July 2003.
• Major problems were identified with OGSI, some
  where political and other were technical.

15
Convergence of Technologies

• In Jan 2004, a significant shift happened when
  WS-RF was announced.
• Problems were identified with OGSI
• Re-implementation of a lot of layers which are
  already standardised in commodity WS, for example
  GSDL,
• Felt too much in one specification,
• Did not work well with existing tooling for WS,
• Too OO!
• Whereas with WS-RF
• New mechanisms build on top of existing WS
  standards and adds a few,
• Basically rebuilding OGSI functionality using WS
  tooling, extending where necessary,
• Dependant on six new or emerging WS
  specifications!

16
Grid and Web ServicesConvergence!
Grid
GT1
GT2
OGSI
Started far apart
WSRF
WSDL 2, WSDM
WSDL, WS-
Web
HTTP
WSRF means that Grid and Web communities are
moving forward on a common base!
17
Emerging Grid Standards
Latest issue of IEEE Computer
18
Emerging Grid Standards
19
Experiences with the Grid

• Background
• First installed Globus at Portsmouth back in
  early 2000 GT1.
• Developed monitoring system based on Globus
  MDS, and Liquid Crystal Portal,
• Oct 2003 funded to lead the OGSA Testbed
• Consortium of Daresbury, Manchester, Reading and
  Westminster,
• Funded to explore, investigate and feedback our
  experiences installing, maintaining and using
  OGSI (GT3/OGSILite) and deploying our
  applications across the testbed,
• Details at http//dsg.port.ac.uk/projects/ogsa-tes
  tbed/.

20
The OGSA Testbed Project
21
Recap - Core Globus Services

• GridFTP - high-performance, secure, reliable data
  transfer protocol for wide-area networks.
• GRAM (Globus Resource Allocation Manager)
  provides a standard interface for requesting and
  using remote resources for the execution of
  "jobs".
• The most common use is remote job submission and
  control.
• MDS (Monitoring and Discovery System) is the
  information services component and provides
  information about the available resources and
  their status.
• GSI (Grid Security Infrastructure) for secure
  authentication and communication over an open
  network.
• GSI provides a number of useful services for
  Grids, including mutual authentication and single
  sign-on.

22
Experiences with Globus

• Documentation
• 3.2 installation guide is better, lt3.0 was a
  nightmare.
• Earlier documents had gaps which were glossed
  over and things did not happen for us as the docs
  described.
• Size of install (GT3)
• 251 Mbytes for 3.0.2, 320 Mbytes for 3.2.
• Time to compile
• 6 hours on a 1 GHz 256 Mbyte PC,
• 2 hours on dual 2.8GHz with 2 Gbytes of RAM.
• Setting up GT security and certificates
• Getting e-Science certificate OK,
• gridmap file an ACL, fairly easy, problem is
  you need to hand edit file
• For small organisations with few users this is
  fine, but many users means more work need to
  add GridPP patch.

23
Experiences with Globus

• Test programs
• Yes, but they do not test whether a service is
  functioning correctly.
• We used/developed GT3GITS scripts.
• Bugs/features - reporting!
• Yes, via http//bugzilla.globus.org/globus/
• Week commencing March 20th 2005 - 25 bugs (just
  Monday), marked as new 241 ...
• Total unresolved 438 and resolved 1950 just for
  globus.org.
• Issue with which ones get prioritised
• If you ask a non-standard (newbie) question on
  the mailing list we never got a useful reply,
  just lots of people saying "yep same problem
  here".
• Application versus installation answers.

24
Experiences with Globus

• Hardwired software, pinned to a platform!?
• Pretty good now for Java!
• Usually works for 32-bit platforms, 64-bit
  platforms, like IBM SP/HP, painful
• Works on one Linux platform, but not another!
• Strange how it did not work on some
  distributions, and worked better on Debian than
  some versions of Redhat.
• No where near as good as most portable projects
  (e.g. Apache) which builds on everything,
  correctly.
• Implications of frequent updates and reinstalls
• Often a complete rebuild/reinstall,
• Software not backwardly compatible,
• No direct path or bridge from GT 2.x ? 3.2 ? 4.0.

25
Experiences with Globus

• Opening ports many open!
• Globus container 8080,
• Gatekeeper 2119,
• Grid ftp - 2811 a range of TCP ports (roughly
  256 ports as recommended by UK grid-support
  centre).
• Makes systems people VERY unhappy!
• Apache Tomcat as service container
• GT comes with Tomcat this was a just
  development environment,
• Needed to deploy GT in Tomcat container
• Memory problems, GC having problems, eventually
  failed,
• Sorted out issues and now been running
  continuously for 5 months.
• Needed to figure out ways of working with Tomcat
  and GT.

26
Other Experiences

• Portsmouth firewall committee decided to stop
  access to FTP on University systems and also
  updated the firewall system
• GridFTP stopped working!
• Took two weeks to convince systems people that
  the GridFTP was not working and was secure!
• OGSA-DAI middleware based on OGSI for accessing
  distributed databases.
• Natural to run examples first to test all was
  well, so we did
• One did not run, had feature that we were
  informed will be fixed in the next release! One
  contained bugs,
• Confused roadmap now! Trying to support to many
  grid platforms.
• January 2004 refactoring exercise
• OGSI to WS-RF,
• No consultation, a slight hiccup!

27
Summary of Experiences

• Globus is ambitious effort to produce middleware
  that satisfies the needs of wide-area distributed
  applications.
• Good for people who are familiar with GT - like
  us now, but, its total disaster for a newbie
• Expect application scientist to have tech
  knowhow!
• Very steep learning curve.
• Globus is a worthy effort, but it is still
  research software, with all the implications of
  such.
• Many projects are staying with GT2.4, as this
  provides a more stable platform.
• No new services developed over the last few
  years.
• DataGrid/EGEE are having a significant affect on
  future grid middleware offerings

28
Other Observations

• In UK, went to GT2, to early (probably
  12months), GT3 deprecated, now awaiting GT4
  early 2005.
• OGSI ? WS-RF, done for the right reasons, but
  announcement confounded the community and
  frustrated many developers.
• GT is not production quality software yet, so
  expect the associated problems.
• GSI is success, being used widely by the
  community.
• Need alternative OGSA instantiations, emerging
  systems such as WSRFLite and UNICORE will help
  this diversity.
• Need hardened and usable software, otherwise
  the Grid will encounter its own AI Winter.
• UK OMII addressing this area.

29
Other Observations

• Need money to develop robust middleware
  infrastructure, not just money to do further
  research in future infrastructure and
  applications
• Question Is a research council (e.g. UK EPSRC)
  the right place to allocate these funds from!?
• Currently much confusion as to which standard
  to follow
• WS-RF GT4 - 1st 2nd Quarter 2005,
• WS-GAF,
• WS/WS-I/WS-I.
• Many developers in the UK are using just Web
  Services mainly SOAP WSDL.
• UDDI does not satisfy the needs for a grid
  information service.

30
DSG Projects

• The development of a selection grid and cluster
  middleware.

31
DSG Projects

• GridRM a unifying resource monitoring system,
  capable of be used a number of diverse purposes
  including scheduling, performance, faults, and
  policing QoS or SLA.
• jGMA a event-based messaging system with an
  integrated P2P-based registry.
• Semantic Logging RDF-based system unifying and
  annotating log data for a more complete
  analysis of distributed systems.
• MPJ Java MPI-based message-passing systems and
  runtime infrastructure.
• Others Portals, OGSA-DAI, investigation of
  NaradaBroker can mention further if interested!

32
GridRM

• A data gathering framework for monitoring and
  managing the Grid
• http//gridrm.org/

33
Background

• Lack of knowledge about the status of the
  resources in any distributed system will hamper
  strategies for optimal scheduling, allocation and
  usage.
• There is a need for a ubiquitous framework that
  provides information about the health and status
  of Grid resources
• Gathering resource information, such as
• Compute (nodes, CPU, memory),
• Network (inter-site communications links, network
  devices),
• Sensors (specialised devices, Web cam,
  microphone),
• Software services (information services,
  schedulers).
• Need a generic system that does not need another
  local agent, but can utilise whatever exists
• SNMP, Network Weather Service, NetLogger,
  Ganglia, /proc, MDS, or other services

34
GridRM Structure

• Global layer of peer-related gateways
• Which in turn have a local layer that interacts
  with the local data sources, and/or a hierarchy
  child gateways.

35
GridRM Architecture
36
GridRM Local Layer
37
GridRM Layered View
38
GridRM Query API

• Producing an API is fairly simple, but creating
  one that will be taken up and accepted is another
  matter.
• We are using an API based on JDBC from Java.
• Example of API
• Agent Driver Interface
• forName(GridRM.sql.agent.NWSDriver)
• forName(GridRM.sql.agent.SNMPv1Driver)
• Connection Interface
• String agentURL GridRMNWS/barney5550/PerfDat
  a
• Connection con DriverManager.getConnection(agent
  URL)
• Statement Interface
• Statement stmt con.createStatement()
• ResultSet rs stmt.executeQuery(get CPU table)
• Manipulating Results
• ResultSet is another interface contains a handful
  of methods for manipulating the data returned
  from the agent.

39
GridRM Naming Schema

• No single naming schema for this area at the
  moment.
• We needed something that can markup the
  information that can be gathered by the local
  agents
• Static and dynamic information
• Name/IP/OS/Processor/NIC/
• CPU load/memory available/disk space/network/
• Did not want to produce our own schema, so choose
  an emerging one that is increasingly being used -
  Grid Laboratory Uniform Environment (GLUE)
  schema
• A schema that defines the attributes of computer
  system resources (CE/NE/)
• Others, CIM, UNICORE, etc..

40
GridRM Drivers and Manager

• The GridRM Driver Manager gets data from the
  Agent API and translates it into something that
  the local agents can understand
• The Driver Manager also provide other
  functionality that is particular to GridRM such
  as configuration, caching, streaming or
  pushing/pulling data to/from clients.
• The driver manager includes a simple low-level
  API to interact with the local agents based on
  a common sub-set of information that can be
  retrieved from all the agents.

41
Local Layer Use of SQL

• SQL used extensively throughout the framework.
• All resources are seen as databases and queried
  using SQL.
• Resource queries enter the framework as SQL
  syntax.
• Pluggable resource drivers are implemented as
  JDBC drivers
• Translate SQL requests into native protocol.
• Normalise results according to selected schema.
• Framework benefits from a single, flexible
  approach to resource interaction.
• Makes for a simple, extensible framework.

42
GridRM GUI
Homogeneous view of the data sources
43
GridRM Portal

• The GridRM Portal (gridrm.org) is a demonstration
  of gateways, data sources, SQL and data
  normalisation.
• An example of the use of GridRM, particularly its
  ability to discover and utilise resource data.
• An example of a GridRM client which
• Allows the use of GridRM with no knowledge of the
  underlying technologies.
• Hides details like SQL, XML, etc
• Provides an abstraction everyone can use
  clickerity click!).

44
GridRM Portal
45
International Testbed
46
GridRM
47
GridRM
48
Summary

• Heterogeneous information returned from a diverse
  range of possible data sources.
• Need to harvest data into a homogeneous form
• Hide underlying complexity from clients.
• Provide data in a format that meets a clients
  requirements.
• Combine legacy resources with modern cluster and
  Grid information servers to provide
• An over-arching grid information system.
• Independent of particular middleware and
  services.
• GridRM promotes homogeneity through
• JDBC-like data source driver,
• Standard SQL syntax,
• The GLUE naming schemas,
• Request translation and result normalisation,

49
Future Work

• Provide an example of a job submission system
  using GridRM, several options
• Other schedulers, Condor, SGE,
• Further security
• Integrate UK e-Science certificates for resource
  access control.
• Secure interface for remote Gateway
  administration.
• Performance and scalability testing.
• More translation schema for different resource
• DBMS, telescope, surf conditions!
• Use of portlet technologies to provide a better
  Web interface - GridSphere

50
jGMA

• A event-based messaging system
• http//dsg.port.ac.uk/projects/jGMA/

51
jGMA

• Needed a lightweight implementation of the GGF
  Grid Monitoring Architecture in Java for GridRM.
• There are others
• R-GMA,
• pyGMA,
• Autopilot, MDS, NWS, CODE
• Found that existing systems were heavyweight,
  complex or not standalone.
• Decided to produce our own version
• Aims
• GMA compliant,
• Easy to install and use,
• Easy to program and extend,
• Java-based.

52
jGMA Architecture

• GMA Compliance
• 21 features,
• GGF document is only a guide,
• It is very easy to claim to be compliant,
• For now jGMA is GMA like.

53
jGMA Infrastructure
54
jGMA Demo
55
jGMA Demo
56
jGMA Status and Future Work

• jGMA messaging API complete.
• Currently completing the virtual registry
• Text file/mySQL interfaces complete,
• Implementing the P2P part.
• Testing implementation in June versus
  NaradaBroker and R-GMA.
• jGMA v1 can be download from - http//dsg.port.ac.
  uk/projects/jGMA/
• A couple of demos linked to the web page.
• Applying jMGA to GridRM, myGrid applications, and
  eventually as on-line gaming infrastructure.

57
jGMA
58
Semantic Logging

• Semantic Logging using RDF
• http//dsg.port.ac.uk/projects/UISB/

59
UISB

• Had a desire to investigate Semantic Web
  technologies for the purposes of unifying
  Information Services LDAP/MDS/LUS/UDDI used
  RDF as in information store.
• We can harvest and annotate IS data and store in
  in a centralised RDF store.
• Initially funded by an IBM Innovation award
  used the Eclipse platform.
• Have developed all the components needed and
  discovered a number of hurdles and issues.

60
UISB
61
UISB
62
Semantic Logging

• UISB project has diverged.
• There was a keen interest to investigate the idea
  that UISB components could be used to unify logs
  events from various sources and provide a better
  overall source of information for analysis of the
  behaviour of distributed systems and
  applications.
• The idea is we harvest log data (events) from
  the OS, executing middleware and applications
  from a range of systems, store in our RDF-based
  repository, and then visualise ALL the various
  events in the logs in order to better understand
  the systems overall behaviour.

63
Semantic Logging RDF view!
64
Semantic Logging A View of Events
65
MPJ

• A Java-based message passing system
• http//dsg.port.ac.uk/projects/MPJ/

66
Introduction

• A lot of interest in a Java messaging system
• Wanted to produce a reference pure Java messaging
  system that follows the MPJ API specification
• Create an MPJ implementation which is the
  corollary of MPICH.
• What a Java messaging system has to offer?
• Portability
• Write once run anywhere.
• Object oriented programming concepts
• Higher level of abstraction for parallel
  programming,
• A extensive set of API libraries
• Avoids reinventing the wheel.
• Multi-threaded language
• Thread-safe.
• Automatic memory management.
• Popularity first language and therefore good
  for teaching MP as well.

67
MPJ
68
The New Design
69
(No Transcript)
70
MPJ Status

• MPJ API complete and being tested,
• MPJ runtime infrastructure being developed want
  something that works the same on UNIX/Linux and
  Windows!
• Installation being looked at!
• Further devices (SHMEM).
• Release of beta version in June.
• Applications being ported.

71
Other Projects

• Grid integrations tests.
• Optimisation of complex distributed queries using
  OGSA-DAI based on GIS/SDSS data.
• Investigation of NaradaBroker leading to the
  development of P2P file store.
• Portal Work for JISC development of a range of
  JSR-168 compliant services.

72
Summary

• The DSG is involved in a range of projects that
  are developing middleware for clusters and the
  Grid.
• Attempting to use generally accepted and widely
  used standards may of those being purported
  today are ephemeral!
• Want to create relatively simple and easy to use
  software not trying to reinvent the wheel,
  which seems a common happening.

73
Shameless Plug
http//www.amazon.co.uk/exec/obidos/ASIN/047009417
6/qid3D1113207878/202-7878523-7639008
74
The End!

• Any Questions?

75
References

• Ian Foster and Carl Kesselman (Editors), The
  Grid Blueprint for a New Computing
  Infrastructure, published by Morgan Kaufmann
  Publishers 1st edition (November 1, 1998), ISBN
  1558604758
• CCA, http//www.extreme.indiana.edu/ccat/glossary.
  html
• IPG, http//www.ipg.nasa.gov/ipgflat/aboutipg/glos
  sary.html
• I. Foster, C. Kesselman, and S. Tuecke, The
  Anatomy of the Grid Enabling Scalable Virtual
  Organizations, International J. Supercomputer
  Applications, 15(3), 2001.

76
References

• Checklist, http//www.gridtoday.com/02/0722/100136
  .html
• IBM Grid Computing, http//www-1.ibm.com/grid/grid
  _literature.shtml
• FAFNER, http//www.npac.syr.edu/factoring.html
• I. Foster, J. Geisler, W. Nickless, W. Smith, S.
  Tuecke Software Infrastructure for the I-WAY
  High Performance Distributed Computing
  Experiment in Proc. 5th IEEE Symposium on High
  Performance Distributed Computing. pp. 562-571,
  1997.
• LCG, http//lcg.web.cern.ch/LCG/
• WS-GAF, http//www.neresc.ac.uk/ws-gaf
• WS-I, http//www.ws-i.org
• WS-RF, http//www.globus.org/wsrf
