From Grid to Global Computing: Deploying Parameter Sweep Applications

1

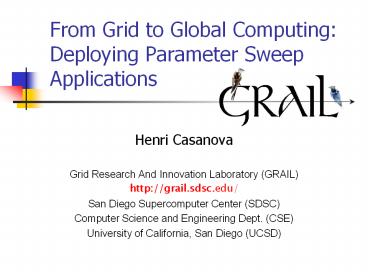

From Grid to Global ComputingDeploying
Parameter SweepApplications

• Henri Casanova
• Grid Research And Innovation Laboratory (GRAIL)
• http//grail.sdsc.edu/
• San Diego Supercomputer Center (SDSC)
• Computer Science and Engineering Dept. (CSE)
• University of California, San Diego (UCSD)

2
Parameter Sweep Applications

• Many compute tasks
• No or simple dependencies
• Several output post-processing stages
• Potentially large datasets

3
Relevance

• Arise in virtually every field of science an
  engineering
• Monte Carlo, Parameter Space Searches, Parameter
  Studies, etc.
• Biology, Astrophysics, Physics, Bioinformatics,
  Economics, etc.
• Primary candidate for Grid computing
• Latency-tolerant, amenable to simple
  fault-tolerance
• Need huge amount of resources

4
Outline of the Presentation

• Parameter Sweep Applications (PSAs)
• APST
• The Virtual Instrument
• BIO_at_Home

5
Scheduling of PSAs
6
Grid Scheduling Practice

• Ad-hoc solutions
• specific to one application
• hand-tuned to the environment
• (e.g. SF-Express demo)
• Large body of work on Scheduling
• What can we re-use on the Grid?
• Heterogeneous resources
• Dynamic performance characteristics
• Resources downtimes
• Complex network topologies
• Performance prediction errors

7
DataGrid Scheduling

• Goal Co-locate/replicate data and computation
• Dynamic Priority List-Scheduling
• Built on heuristics described in Ibarra77,
  Siegel99
• Added adaptivity
• Simulation results
• List-scheduling works, adaptivity should make it
  practical
• Experimental results (Demo at SC00 and SC01)
• HCW00 H. Casanova, A. Legrand, et al.

8
Lessons

• Much scheduling work to re-use
• List-scheduling with Dynamic Priorities seems
  effective
• Simulation
• Experimental
• Lets build software that uses it
• Lets target scientific communities

9
Motivation for APST

• Started as scheduling research
• Evolved into a tool that provides
• Transparency of Grid execution
• Data movements
• Remote job management
• Multiple Grid middleware back-ends
• Scheduling
• Self-scheduling
• List scheduling w/ dynamic priorities

10
APST Designs

• The AppLeS Parameter Sweep Template An
  Application Execution Environment

APST
Grid Services
APST client
Grid
11
APST Lessons

• The Grid is difficult to use
• APST provides a simple software layer that does
  one thing well
• Minimal user interface (XML, command-line)
• Used as a building block for domain-specific
  applications
• E.g. multi-cluster bio-informatics (Singapore)
• Ssh?
• Default mechanism
• Critical for gaining user buy in
• Natural way to lead to using the Grid

12
APST Status

• Version 1.1 released 2 weeks ago
• Available for public download
• Used for 10 applications
• Bioinformatics (BLAST, HMM, )
• Computational Neuro-science
• Globus, NetSolve, Ssh, Condor
• GASS, IBP, Scp, GridFTP, SRB,
• NWS, MDS, Ganglia,
• http//grail.sdsc.edu/projects/apst

13
APST Research Directions

• APST is a research platform
• Maintained by one staff
• Several graduate student contributors
• Partitionable Workload
• Bioinformatics (database splitting)
• Factoring Decrease chunk size
• Pipelining Increase chunk size
• Combined?
• Create APST-BLAST
• (Mario Lauria, OSU Yang Yang, UCSD)

14
Outline of the Presentation

• Parameter Sweep Applications (PSAs)
• APST
• Virtual Instrument
• BIO_at_home

15
Computational Neuroscience

• MCell Monte Carlo Cell simulator

• Developed at Salk and PSC
• Gain knowledge about neuro-transmission
  mechanisms
• Fundamental for drug design (psychiatry)
• Large user base (yearly MCell workshop)
• Parallel MC simulations at the molecular level

16
Traditional MCell usage

• By hand
• No automatic project management
• No transparent resource access
• No automated data management
• Consequences
• No interactive simulations
• No fault-tolerance, scheduling,
• MCell limited to resources in the lab

17
MCell and APST

• APST alleviates some of the limitations
• Large-scale simulations
• Fault-tolerance and scheduling
• Data retrieval from distributed storage
• XML application descriptions
• No interactivity
• MCell is exploratory
• User interaction is fundamental for many users

18
The Virtual Instrument

• 2.5M funding from the NSF
• Salk, PSC, UCSB, UTK, UCSD
• A running MCell simulation should behave as a lab
  instrument
• Computational steering for MCell
• User interface
• Grid software
• Application software
• Scheduling research
• (how does one scheduling an application thats
  being steered interactively?)

19
VI Software
Grid Storage and Compute Resources
control data
VI Daemon
compute
Grid Services
control
VI Interface
control data
process
VI Database
VI User
data
data
OpenDX
storage
20
Scheduling Goals

• Reduce the search time
• Let user assign levels of importance to regions
  on the parameter space
• Assign fraction of resources with respect to the
  importance levels
• Assign priorities to tasks
• Interesting questions
• Job control limited on Grid resource
• Cannot assign exact fractions
• Interesting trade-offs between control overhead
  and accuracy of priorities

21
Current Status

• First software prototype released in Feb 2002
• Globus and Ssh
• MySQL
• OpenDX
• priority-based scheduling
• 20,000 lines of C
• Upcoming papers
• JPDC submission
• Scheduling paper (SC submission)

22
Outline of the Presentation

• Parameter Sweep Applications (PSAs)
• PSAs on the Grid with APST
• MCell Virtual Instrument
• Global Computing

23
SETI_at_home

• Over 500,000 active participants, most of which
  run screensaver on home PC
• Over a cumulative 20 TeraFlop/sec
• Versus 12.3 TeraFlop/sec of IBMs ASCI White
• Cost 500,000 200,000 in donated hardware
• Less than 1 of the 110 million required for
  ASCI White

24
Global vs. Grid Computing

• Nature of resources
• Home desktops running Windows and are completely
  autonomous
• Machines powered on and off by user
• Behind firewalls, dynamic IP, transient network
  connections
• Programming model
• Server cannot push tasks to clients
• Server has no little means for remote job control
• Server has incomplete information about resources
  and availability

25
Goal

• SETI_at_home limitations
• Embarrassingly parallel
• Infinite amount of input data
• Pure throughput
• Can we do something more?
• Short-lived applications?
• Parallel applications?
• Compute service?
• BIO_at_Home
• Smith-Waterman for short/long sequences
• No real software yet (build on XtremWeb?)

26
Scheduling?

• Sophisticated scheduling algorithms need
  information and control
• At the moment Simple mechanisms
• Work unit duplication
• Specifies max number of times a work unit can be
  resent
• Timeouts
• Time that must elapse before work unit is resent

27
Simulation

• Built a simulation model
• Using statistics/surveys/extrapolations
• Next logs from real systems (XtremWeb?,
  Entropia?)
• Evaluated the impact of both mechanisms on
  performance and throughput

28
Early Lessons

• Trade-off between throughput and turn-around time
• Duplication
• aggressively decreases turn-around time
• wastes resources
• there is an optimal value
• Timeouts
• moderately lowers turnaround times
• preserves good throughput
• infinite timeouts is of course not a good idea

29
Future work

• Two knobs
• Question A compute service?
• Mix of applications (SETI, short-lived, )
• Singapore Bio-informatics institute
• Notion of fairness?
• How do we implement policy with many volatile
  resources?
• Software
• Re-use existing platforms
• XtremWeb
• Entropia

30
Conclusion

• APST, Virtual Instrument, BIO_at_Home
• Other GRAIL activities I didnt talk about
• Scientific Computing
• Simulation
• Adaptive Scheduling
• Networking
• http//grail.sdsc.edu

31
(No Transcript)
32
(No Transcript)
33
Experimental Results
