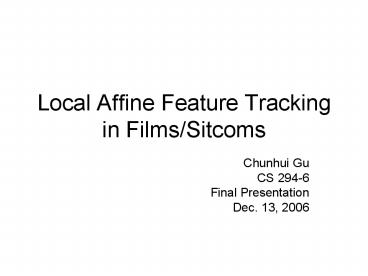

Local Affine Feature Tracking in Films/Sitcoms

1
Local Affine Feature Tracking in Films/Sitcoms

• Chunhui Gu
• CS 294-6
• Final Presentation
• Dec. 13, 2006

2
Objective

• Automatically detect and track local affine
  features in film/sitcom frame sequences.
• Current Dataset Sex and the City
• Why sitcom?
• Simple daily environment
• Few or no special effects
• Repeated scenes

3
Outline

• Preprocessing
• Tracking Algorithm
• Pairwise local matching
• Robust features
• Feature Matching across Shots
• Results
• Feature matching vs baseline color histogram
• Time complexity
• When does tracking fail

4
Preprocessing
Frame Extraction
Shot Detection
MSER Interest Point Detection
SIFT Feature Extraction
5
Tracking Algorithm

• Basic Pairwise Matching

Frame i
Frame ji1
6
Tracking Algorithm

• Basic Pairwise Matching

Frame i
Frame ji1
7
Tracking Algorithm

• Basic Pairwise Matching

Frame i
Frame ji1
Thresholding on both minimum distance and ratio
8
Tracking Algorithm

• Basic Pairwise Matching

Frame i
Frame ji1
9
Tracking Algorithm

• Basic Pairwise Matching

Frame i
Frame ji1
10
Tracking Algorithm

• Problem of Pairwise Matching
• Sensitive to occlusion and feature misdetection
• Solutions
• Use multiple overlapping windows
• Backward Matching
• Match features in current frame to features in
  all previous frames within the shot
• Pruning process (reduce computation time)
• Select a proportion of features that have longer
  tracking length as robust features

11
Shot grouping/Scene Retrieval
12
Inter-Shot Matching
Shot I
Shot J
13
Confusion Table
14
ROC
15
When Does Tracking Fail?

• Tracking feature outside local window
• Rare when continuous tracking
• Happens when occlusion occurs
• Same feature splitting to two or more groups
• Long occlusion
• Multiple matching in a single frame

Frame i
Frame ji1
16
Computation Complexity

• Everything except for MSER and SIFT algorithms
  are implemented in Matlab (slow)

Complexity Time
Frame Extraction O(N) 0.3s/frame
Shot Detection O(Nf(B)) 0.07s/frame (B16)
MSER Detection O(N) 0.3s/frame
SIFT Detection O(N) 0.9s/frame
Feature Tracking O(NFWL) 0.5s/frame
Matching across shots O(S2T2) 1s/shot pair
N of frames (30,000) B of bins for color
hist (16) F ave. of features per frame (400)
W Local window size (15) L tracking length
(20) T ave. of robust trackers per shot
(300) S of shots (35)
17
Conclusion

• We successfully implemented local affine feature
  tracking in sitcom sex and the city. The
  tracking method is robust to occlusion and
  feature misdetection.
• Although no quantitative precision/recall curve
  (hard to find ground truth), the demonstration
  shows that precision is almost perfect with good
  recall performance.
• We show one successful application of using
  robust features to associate similar shots
  together for scene retrieval.

18
Future Work

• Implement algorithm in real-time (C/C)
• Search unique shots in films/sitcoms
• Separate indoor scenes from outdoor scenes
• Determine context of the scene

19
Acknowledgement
