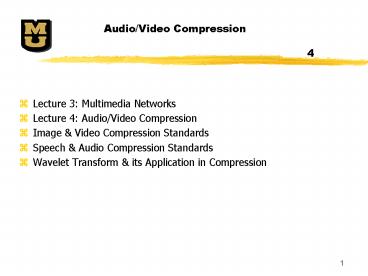

Audio/Video Compression 4

1
Audio/Video Compression

4

• Lecture 3 Multimedia Networks
• Lecture 4 Audio/Video Compression
• Image Video Compression Standards
• Speech Audio Compression Standards
• Wavelet Transform its Application in Compression

2
Introduction to Audio/Video Compression

4

• With todays technology, only compression makes
  storage/transmission of digital audio/video
  streams possible
• Redundancy exploitation for compression based on
  human perceptive features

3
Introduction to Audio/Video Compression

4

• Spatial redundancy Values of neighboring pixels
  strongly correlated in natural images
• Temporal redundancy Adjacent frames in a video
  sequence often show very little change, a strong
  audio signal in a given time segment can mask
  certain lower level distortion in future past
  segments

4
Introduction to Audio/Video Compression

4

• Spectral redundancy In multispectral images,
  spectral values of same pixel across spectral
  bands correlated, an audio signal can completely
  mask a sufficiently weaker signal in its
  frequency-vicinity
• Redundancy across scale Distinct image features
  invariant under scaling
• Redundancy in stereo Correlations between stereo
  images/audio channels

5
Introduction to Audio/Video Compression

4

• Spatial/spectral redundancies Transform Coding
• Temporal redundancy DPCM (differential pulse
  code modulation), motion estimation/motion
  compensation
• First compression methods lossless
• Huffman coding
• Ziv-Lempel coding
• Arithmetic coding
• Inadequate for transmission media of low
  bandwidth (e.g., ISDN) or for devices of low data
  throughput (e.g., CD-ROM)

6
Introduction to Audio/Video Compression

4

• Lossless vs. lossy compression
• Intraframe vs. interframe compression
• Symmetrical vs. asymmetrical compression
• Real-time Encoding-decoding delaylt50 ms
• Scalable Frames coded at different resolutions
  or quality levels
• Recent advanced compression methods reduce
  bandwidths enormously without reduction of
  perceptive quality

7
Introduction to Audio/Video Compression

4
Preprocessing
Source coding
Entropy coding

• Entropy coding Arithmetic coding, Huffman
  coding, Run-length coding
• Source coding DPCM, DCT, DWT, motion-estimation/m
  otion compensation
• Hybrid Coding H.261, H.263, H.263, JPEG, MPEG1,
  MPEG2, MPEG4, Perceptual Audio Coder

Uncompressed data
Compressed data
Hybrid coding source coding entropy coding
8
Wavelet Theory
4

• A unified framework for analysis of
  non-stationary signals
• Wavelet transform (WT) Alternative to classical
  Short-Time Fourier Transform (STFT) or Gabor
  Transform
• By contrast to STFT, WT does constant-Q or
  relative bandwidth frequency analysis short
  windows at high frequencies and long windows at
  low frequencies

9
Short-Time Fourier Transform

4

• Fourier Transform (FT)
• X(f) Projection of signal x(t) along exp(j2?ft)
• How signal energy being distributed over
  frequencies

10
Short-Time Fourier Transform

4

• To know local energy distribution, STFT is
  introduced
• g(t) A window of finite support
• Around local time ?, how signal energy being
  distributed over frequencies

11
Short-Time Fourier Transform

4

• Given f, STFT(?,?) Output of a bandpass filter
  having the window function (modulated to f) as
  its impulse response
• Resolution in time/frequency by window g(t)

12
Short-Time Fourier Transform

4

• Uncertainty Principle (Heisenberg)
• Once window g(t) chosen, resolution in
  time/frequency fixed

13
Continuous Wavelet Transform (CWT)

4

• If ???? can be kept constant, resolution in
  frequency becomes arbitrarily good at low
  frequencies while resolution in time becomes
  arbitrarily good at high frequencies
• CWT follows the above idea but all impulse
  responses of filter bank are defined as scaled
  versions of the same prototype or basic wavelet
  h(t)

14
Continuous Wavelet Transform (CWT)

4

• Let
• h(t) Any bandpass function

15
Continuous Wavelet Transform (CWT)

4

• FT of ha(t)

16
Continuous Wavelet Transform (CWT)

4

• Resolution in frequency of ha(t)

17
Continuous Wavelet Transform (CWT)

4

• Given a fixed frequency f0, if scale a is chosen
  as

18
Continuous Wavelet Transform (CWT)

4

• By definition of CWT
• Scale a not linked to frequency modulation but
  related to time-scaling

19
Continuous Wavelet Transform (CWT)

4

• Signal x(at) seen through a constant length
  filter centered at ?/a
• Larger scale a is, more contracted signal x(t)
  becomes
• Smaller scale a is, more dilated signal x(t)
  becomes
• Larger scales CWT(?,a) provides more global view
  of signal x(t)
• Smaller scales CWT(?,a) provides more detailed
  view of signal x(t)

20
Continuous Wavelet Transform (CWT)

4

• Define wavelet ha,?
•
  Inner product or correlation between x(t) and
  ha,?
• CWT(?,a) called analysis stage (of signal x(t))
  at scale a

21
Continuous Wavelet Transform (CWT)

4

• x(t) can be recovered from multi-scale analysis
  if

22
Continuous Wavelet Transform (CWT)

4

• Energy conservation
• Signal energy distributed at scale a by
• wavelet spectrogram, or
  scalogram, distribution of signal energy in
  time-scale plane (associated with area
  measure )

23
Continuous Wavelet Transform (CWT)

4

• Larger scales ? more global view ? courser
  resolutions
• Smaller scales ? more detailed view ? finer
  resolutions
• CWT decomposition of signal over scales ? signal
  energy distribution with various resolutions

24
Discrete Wavelet Transform (DWT)

4

• Two methods developed independently in late 70s
  and early 80s
• Subband Coding
• Pyramid Coding or multiresolution signal analysis

25
Multiresolution Pyramid

4

• Given an original sequence x(n), n ? Z, define a
  lower resolution signal

Where g(n) a halfband lowpass filter
26
Multiresolution Pyramid

4

• An approximation of x(n) from y(n)

Where y(2n) y(n), y(2n1) 0 g(n) an
interpolative filter
27
Multiresolution Pyramid

4

• If g(n) and g(n) are perfect halfband filters,
  i.e.,
• then a(n) provides a perfect halfband lowpass
  approximation to x(n)

28
Multiresolution Pyramid

4

• It can be proved

29
Multiresolution Pyramid

4

• Let
• d(n) x(n) - a(n)
• Then x(n) a(n) d(n)
• But ? redundancy between a(n) and d(n)
• If x(n) uses sampling rate fs , d(n) and y(n)
• use sampling rate fs or fs /2, respectively

30
Multiresolution Pyramid

4

• Pyramid decomposition a redundant
  representation
• But redundancy upper bounded by
• 1 1/2 1/4 lt 2 in one dimensional
  system
• x(n) y(n) y (n)
• d(n) d (n)

31
Multiresolution Pyramid

4

• For perfect halfband lowpass filters g(n) and
  g(n),
• it is clear that d(n) contains frequencies above
  ?/2
• of x(n), and thus can also be subsampled by two
• without loss of information.
• In a pyramid, it is possible to take very good
  lowpass filters and derive visually pleasing
  course versions
• In a subband scheme, critical sampling is
  accomplished at a price of a constraint filter
  design and a relatively poor lowpass version as a
  course approximation undesirable if the course
  version is used for viewing in a compatible
  subchannel

32
Subband Coding
4

• One stage of a pyramid decomposition ?
• a half rate low resolution signal
• a full rate difference signal
• (samples) increased by 50
• If filter g(n) and g(n) meet certain conditions,
  oversampling can be avoided
• Subband coding first popularized in speech
  compression does not produce such redundancy

33
Subband Coding
4

• A full-band one dimensional signal is decomposed
  into two subbands using an analysis filter bank
• Ideally, the analysis filter bank consists of a
  lowpass filter and a highpass filter with
  nonoverlapping frequency responses and unit gain
  over their respective bandwidth
• After filtering, lowpass and highpass signals
  each have only a half of original bandwidth or
  frequency content, and thus can be downsampled
  in half
• But ideal filters are unrealizable

34
Subband Coding
4

• By using overlapping responses, frequency gaps in
  subband signals can be prevented
• Aliasing will be introduced when lowpass and
  highpass signals are downsampled in half
• The aliasing effect can be eliminated to produce
  perfect reconstruction at synthesis stage
• Lowpass and highpass signals will each have a
  bandwidth more than a half of original bandwidth
• Quadrature Mirror Filters (QMF) for
  analysis/synthesis filtering

35
Subband Coding
4

• Output signals from analysis bank after
  downsampling
• y1(n)(h1x)(2n)
• y2(n)(h2x)(2n)
• After quantization, y1(n) and y2(n) ?
• After upsampling,
  become

36
Subband Coding
4

• Output signals from synthesis bank
• Reconstructed signal

37
Subband Coding
4

• Ignoring quantization or coding effect,
• If H1(z), G1(z) are ideal lowpass filters and
  H2(z), G2(z) are ideal highpass filters,

38
Subband Coding
4

• Then

39
Subband Coding
4

• Implying
• Indicating
  is the aliasing component when
  filters are not ideal, which is desired to be
  zero

40
Subband Coding
4

• To have perfect reconstruction in non-ideal
  filtering case, the iff conditions are
• If H2(z)H1(-z), G1(z)2H1(z), G2(z)-2H1(-z),
  the aliased term becomes zero and the
  reconstructed is given

41
Subband Coding
4

• For perfect reconstruction, we need
• or
• Using symmetric linear phase FIR of length N for
  H1 results in

42
Subband Coding
4

• As Neven,
• QMF filters

1
?
0
?
?/2
43
Subband Coding
4

• If subband filters Hi(z), Gi(z) satisfy three
  conditions
• perfect reconstruction results, too
• Aliased term

44
Multiresolution Wavelet Representation and
Approximation
4

• Embedded linear spaces in L2(R)
• Let Aj be an orthogonal projection on Vj
• Let Oj be the orthonormal complement of Vj in
  Vj1

45
Multiresolution Wavelet Representation and
Approximation
4

• Let Dj be an orthogonal projection on Oj
• Then an original signal A0f can be decomposed as

46
Multiresolution Wavelet Representation and
Approximation
4

• A-J f the orthogonal projection of A0f on
• D-j f the orthogonal projection of A0f on O-j
• D-j f and D-k f orthogonal to each
  other or uncorrelated to each other
• D-j f orthogonal to A-J f ,
  or uncorrelated to A-J f
• A-J f a coarse version of A0f
• details of A0f arranged
  from coarser to finer

47
Multiresolution Wavelet Representation and
Approximation
4

• Let be an orthonormal
  basis of Vj
• Aj f can be characterized by the coefficients of
  orthonormal expansion
• The sequence denoted by and called a
  discrete approximation of f in Vj

48
Multiresolution Wavelet Representation and
Approximation
4

• Let be an orthonormal
  basis of Oj
• Dj f characterized by the coefficients
• The sequence denoted by and called a
  discrete approximation of f in Oj

49
Multiresolution Wavelet Representation and
Approximation
4

• Thus, A0f can be characterized by
• can be further characterized by
• This set of discrete signals is called orthogonal
  wavelet representation
• is organized as a coarse version added
  by increasing fine details
• The orthogonal representation decorrelated
  representation

50
Multiresolution Wavelet Representation and
Approximation
4

• If we require
• Aj f is band-limited such that it can be sampled
  by a rate of 2j, i.e., 2j samples per time or
  length unit

51
Multiresolution Wavelet Representation and
Approximation
4

• Translation invariant with A0
• Translation invariant with produced by

52
Multiresolution Wavelet Representation and
Approximation
4

• Then s can be constructed by a scaling
  function
• Furthermore, let
• then

53
Multiresolution Wavelet Representation and
Approximation
4

• filtered by and downsampled
  by two
• Let

54
Multiresolution Wavelet Representation and
Approximation
4

• Let
• then s can be constructed by
• Let
• then

55
Multiresolution Wavelet Representation and
Approximation
4

• filtered by and
  downsampled by two
• From
• H,G Quadrature Mirror Filters

56
Multiresolution Wavelet Representation and
Approximation
4
57
Multiresolution Wavelet Representation and
Approximation
4
58
Multiresolution Wavelet Representation and
Approximation
4

• Think of
• Then, analysis stage for subband or wavelet
  decomposition is the same
• Higher resolution signal ? Two low resolution
  signals through filtering by
  and downsampling by two

59
Multiresolution Wavelet Representation and
Approximation
4

• Synthesis stage for subband or wavelet
  decomposition is different
• For subband low resolution signals upsampled by
  two, followed by filtering by
  , followed by summation to
  reconstruct higher resolution signal
• For wavelet low resolution signals filtered by
  the same , and downsampled by two,
  followed by summation to reconstruct higher
  resolution signal

60
Multiresolution Wavelet Representation and
Approximation
4

• After filtering at analysis stage, two produced
  signals have only a half resolution as the
  original signal
• Downsampling by two is justifiable
• Before filtering at synthesis stage, upsampling
  by two on two low resolution signals in subband
  decomposition seems not well justifiable

61
Multiresolution Wavelet Representation and
Approximation
4
62
Multiresolution Wavelet Representation and
Approximation
4
63
Multiresolution Wavelet Representation and
Approximation
4
