Title: Shield Group Plans


1

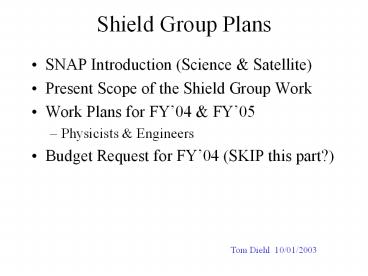

Shield Group Plans
  • SNAP Introduction (Science Satellite)
  • Present Scope of the Shield Group Work
  • Work Plans for FY04 FY05
  • Physicists Engineers
  • Budget Request for FY04 (SKIP this part?)

Tom Diehl 10/01/2003
2
Cosmology and Type 1a SN
  • Detect SN w/ 0.3 lt z lt 1.7 in multiple filter
    bands (0.35 to 1.7 microns).
  • Peak luminosity to 2 (stat.) or better through
    multiple measurements over the light curve.
  • Spectographic observations near peak intensity
  • Measure host galaxy redshifts
  • Identify and analyze 2000 branch normal Type
    1a supernovae to produce redshift vs. distance
    curve.

From S.P. 7/9/2
3
Wide-Field Survey
  • SNAP Plans
  • The SN survey is narrow and deep 15 deg.2. SNAP
    also plans for 300 (some of our EAG guys are
    pushing for 1000 deg.2)
  • Measure weak-lensing of distant galaxy clusters
    from intervening dark matter.
  • More

HST image with SNAP resolution. (Annis et al.
SNAP WAS on web)
4
SPACECRAFT CONFIGURATION
Secondary Mirror Hexapod and Lampshade Light
Baffle
Door Assembly
Main Baffle Assembly
Secondary Metering Structure
Primary Solar Array
Primary Mirror
Optical Bench
Solar Array, Dark-Side
Instrument Metering Structure
Instrument Radiator
Tertiary Mirror
Fold-Flat Mirror
Instrument Bay
Spacecraft
Shutter
5
Shield Components and Electronics
  • The shield consists of a conical object 2/3m
    tall 2/3 meter wide.
  • Multi Purpose
  • Ionizing radiation
  • Thermal Isolation of detector
  • Block or absorb stray light

Focal plane CCD Readout electronics Spectrograph M
ass storage
All material is potentially shielding
6
Cone Shield (Mar. 2003)
  • text

7
Present Scope of the Shield Group Work
  • Instrument package must be shielded against
  • stray optical light, thermal hotspots, and
    ionizing radiation
  • Instruments that have requested shielding and
    calculations
  • Focal plane
  • Spectograph
  • Readout electronics (back of focal plane)
  • Mass memory
  • Fermilab should take responsibility for the
    physics calculations, design, and possibly
    fabrication of the shields
  • Physics involves understanding the components of
    the Cosmic Rays, simulating the effects on the
    detect using MARS/GEANT, and optimizing the
    shield design (trades between effectiveness,
    material, and weight).
  • Engineering Design involves optimization for
    mechanical and thermal stability, integration
    into the spacecraft, etc
  • Of course, these are coupled.

Based on 03/2003 SNAP Collaboration Meeting and
subsequent trip report (4/4/3)
8
Physics Work in FY04 Strategy
  • Concentrate on the MARS effort at first
  • Produce a standard set of cosmic ray source files
    (useful for either MARS or GEANT)
  • Model the satellite and instrument components
    (think shielding material and detector)
  • Optimize the shield design
  • Progress as of Aug. 20, 2003
  • Cosmic Ray Sources a good start
  • Satellite model is crude
  • Instruments model is undeveloped

We are making progress on all of these
things.
Be reminded that SNAP is thinking about using
thinner ccds because of the cosmic ray
background and that our simulations might be
helpful there, as well.
9
Almost Preliminary Results Using MARS
Cosmic Ray Sources
Creme96 Spenvis Proton spectrum matches AMS
data in higher energy range
From TM-2221 Draft By Rakhno, Mokhov, and
Striganov, Peterson
10
Physics Work in FY04 Goals
  • Finalize the Cosmic Ray Sources
  • Satellite Model should be recognizable and
    approximate the major materials. Instrument
    package modeled in some detail.
  • We should have specs for the electronics in the
    instruments.
  • We should have made first estimates of the
    radiation doses in the instruments.

11
Physics Work in FY05 Strategy Goals
  • In FY05 we should be working on a full detector
    simulation that allows us to provide a catalog of
    cosmic ray images for timed exposures in the CCD
    and spectrograph
  • Wed like to provide MC cosmic ray images that
    can be combined with MC images of observables.

12
Engineering Work in FY04
  • To do this job right requires (vetted by Jim
    Kerby)
  • 1/4 to ½ FTE in support of the physics work
  • ½ to 1 FTE of finite element structural modeling
  • ½ to 1 FTE thermal analysis and integration (I
    suppose this could include optical reflections
    shielding on the inside surface of the cone, as
    well).
  • ½ FTE planning design verification test venue,
    apparatus, instrumentation
  • 1 FTE coordinating, communicating with Pankow,
    Lafever et al., bringing in outside designs and
    design concepts
  • Sum is 0.5 to 4.0 FTEs
  • Require Drafters/Detailers at about 25 once we
    are past 1 FTE.
  • Require technician effort at 0.5 FTE level.

13
Engineering Request in FY04
  • At present we have ¼ FTE engineering. We should
    have 4 FTE working on it within a year.
  • As a practical matter we will have ¼ FTE at
    beginning FY04.
  • An engineer costs about 120,000 salary and
    benefits (J.K.).
  • 0.5 FTE is 60,000. 4.0 FTE is 480,000.
  • One of myriad realistic turn-on curves is
    linear growth in engineering effort.
  • Wed like to be at 4.0 FTE by the end of 04.
  • 270,000 for engineers (0.5 1/21.75 FTE)
  • Plus 280,0000.25 for designer/draftspeople
  • Plus 25,000 for technicians
  • Total for salaries and benefits is 365,000.

14
Engineering Work in FY05
  • Assumption is that we stay within scope
  • We could possibly do more once we are doing the
    shielding work well
  • One more FTE working on test apparatus
  • Significant drafting and tech. labor will require
    more supervisory/management time from the lead
    engineer.

15
Scope Planning Contingencies
  • In order for this effort to grow past ¼ FTE (the
    minimum for supporting the shielding calculation)
    some things must happen
  • It can be done for pay. But, the engineers must
    receive a clear and visible signal from the
    divisions it is permissible to work on SNAP. The
    attraction is there. Engineers capable of
    performing the jobs are interested.
  • The extent to which we are involved in the
    engineering depends on our communications with
    LBL and the greater SNAP community.
  • We have to establish good lines of communication
    in order to be effective.
  • This suggests an initial push on travel.
  • Peter Limon is drafting the integrated request
    document.

16
Travel etc Total for FY04
  • 365,000 for salaries and benefits (assuming
    120,000 per engineer)
  • 30,000 for travel (25 trips to LBL at 1,000 per
    plus 5,000 more)
  • 10,000 for engineering software. I dont know
    what it is yet.
  • 2,000 for one computer.
  • 1,000 for books and technical manuals
  • 12,000 for test venue and samples.

Total 420,000
17
Summary
  • SNAP is great science and interesting as physics
    and engineering problem.
  • I found (03/2003) that SNAP leadership seems
    willing to let us be responsible for as much as
    we want w.r.t shielding.
  • Shield subgroup physics effort seems on track for
    accomplishing FY04 goals and has nice plans for
    beyond that.
  • We have listed what engineering we need to
    accomplish scope of work involved in shielding
  • Requires permission to work on SNAP.
  • Effective communication with LBL at the
    engineering level.
  • Shielding subgroup FY04 Budget request is
    420,000.

John Marriner pointed out that we have a budget
code and a line in the effort report sheet, so it
can be worked-on by the engineers.
