1

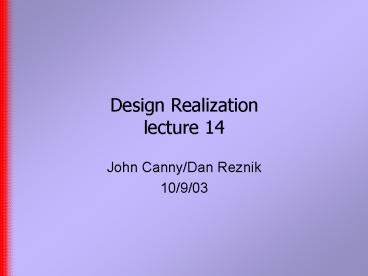

Design Realization lecture 14
  • John Canny/Dan Reznik
  • 10/9/03

2
Last Time
  • Composites Fiberglass, carbon fiber and kevlar.
  • Hierarchical materials.
  • Cellular materials, honeycomb and foam.

3
This time
  • Electronics

4
Voltage, Current, Ohms law
  • Voltage is analogous to pressure, and is measured
    naturally enough, in volts.
  • Current is analogous to flow, and is measure in
    amperes or amps for short.
  • Direct current (DC) is a constant voltage, e.g. a
    single C or D battery produces 1.5 volts.
  • Alternating Current (AC) is a voltage that
    reverse rapidly, at 60 cycles/second in the US.
    An electrical outlet gives 110 volts AC.

5
Voltage, Current, Ohms law
  • Resistors are used to produce desired voltage or
    current, independent of frequency.
  • Resistance is measured in ohms, and the current
    through a resistor satisfies Ohms law
  • V I R
  • I in amps
  • V in volts

6
Resistors
  • Resistors have a power rating as well, ½, ¼, 1/8
    watt etc. (P V I)
  • Resistors used to all look like this(axial lead
    type)
  • But increasingly are surface-mount
  • Or grouped in chip packages

7
Resistors
  • Variable resistors are called potentiometers
  • Heres a simple circuit, avoltage divider
  • Note the ground and power supply symbols
  • A potentiometer can actas a variable voltage
    divider, to control a voltage.

8
AC and frequency
  • Alternating current most often has a sinusoidal
    shape over time
  • The frequency is thenumber of completecycles
    per second.
  • Its measured in Hertz (Hz).
  • Waveform is
  • V sin 2 ? f t

9
AC and Capacitors
  • Capacitors are charge storage devices, but dont
    allow DC to flow.
  • AC can flow because a little charge is stored
    each cycle and returned.
  • The current flow increases with frequency.

10
Capacitor Construction
  • Capacitors are sandwiches of dielectric between
    two conductors.
  • The dielectric is an insulator, usually a
    polymer.
  • Performance determined by dielectric constant
    and electrical breakdown strength (kV/mm).

11
Capacitor Construction
12
Capacitor Reactance
  • A capacitor limits AC current rather like a
    resistor does.
  • The reactance Z of the capacitor determines how
    much current flows, V Z I where
  • C is the capacitance in Farads.
  • A Farad is a huge unit. Most capacitors are
    measured in micro-farads or pico-farads (10-12)

13
Variable Capacitors
  • Capacitors can be variable. Used for tuning
  • Radios, antennas, crystal oscillators (to drive
    computers).

14
Inductors
  • Inductors are coils of wire, sometimes around a
    ferrite or iron core.
  • The ferrite core is a composite with small
    magnetic particles. Works at high frequencies
    where iron doesnt.

15
Transformer
  • Two coils of wire around the same magnetic core
    create a transformer.
  • An AC voltage in one coil induces a voltage in
    the other.
  • Ratio of voltages ratio of turns.
  • (more turns highervoltage).

16
A simple R/C circuit
  • This circuit is a voltage divider, with one leg
    which is a capacitor, one a resistor.
  • Discuss what high-pass and low-pass would
    mean in this circuit.

17
Amplifiers
  • Amplifiers are an important class of active
    component (resistors, capacitors and inductors
    are passive they cant strengthen a signal).
  • Amplifiers boost small signals from radio
    antennas, microphones, sensors etc. to larger
    values.
  • Ex stereo amplifier.
  • There is a popular component for building
    amplifiers called an Operational Amplifier
    (Op-Amp).

18
Inverting Amplifier
  • Here is a basic inverting amplifier.
  • The gain (ratio of Vo to Vi) is - Rf / Ri
  • The OpAmp has very high gain, which makes it
    change output until its two inputs are nearly
    equal you can assume they are.

19
Non-Inverting Amplifier
  • Here is a basic non-inverting amplifier.
  • The gain (ratio of Vo to Vi) is (Rf Rg) / Rg
