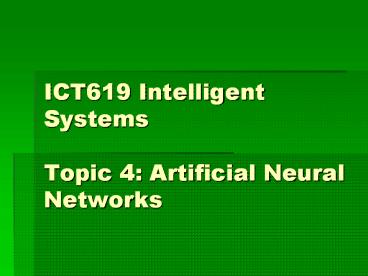

ICT619 Intelligent SystemsTopic 4 Artificial
Neural Networks
2
Artificial Neural Networks

• PART A
• Introduction
• An overview of the biological neuron
• The synthetic neuron
• Structure and operation of an ANN
• Problem solving by an ANN
• Learning in ANNs
• ANN models
• Applications

• PART B
• Developing neural network applications
• Design of the network
• Training issues
• A comparison of ANN and ES
• Hybrid ANN systems
• Case Studies

3
Introduction

• Artificial Neural Networks (ANN)
• Also known as
• Neural networks
• Neural computing (or neuro-computing) systems
• Connectionist models
• ANNs simulate the biological brain for problem
  solving
• This represents a totally different approach to
  machine intelligence from the symbolic logic
  approach
• The biological brain is a massively parallel
  system of interconnected processing elements
• ANNs simulate a similar network of simple
  processing elements at a greatly reduced scale

4
Introduction

• ANNs adapt themselves using data to learn problem
  solutions
• ANNs can be particularly effective for problems
  that are hard to solve using conventional
  computing methods
• First developed in the 1950s, slumped in 70s
• Great upsurge in interest in the mid 1980s
• Both ANNs and expert systems are non-algorithmic
  tools for problem solving
• ES rely on the solution being expressed as a set
  of heuristics by an expert
• ANNs learn solely from data.

5
(No Transcript)
6
An overview of the biological neuron

• Estimated 1000 billion neurons in the human
  brain, with each connected to up to 10,000 others
• Electrical impulses produced by a neuron travel
  along the axon
• The axon connects to dendrites through synaptic
  junctions

7
An overview of the biological neuron
8
An overview of the biological neuron

• A neuron collects the excitation of its inputs
  and "fires" (produces a burst of activity) when
  the sum of its inputs exceeds a certain threshold
• The strengths of a neurons inputs are modified
  (enhanced or inhibited) by the synaptic junctions
• Learning in our brains occurs through a
  continuous process of new interconnections
  forming between neurons, and adjustments at the
  synaptic junctions

9
The synthetic neuron

• A simple model of the biological neuron, first
  proposed in 1943 by McCulloch and Pitts consists
  of a summing function with an internal threshold,
  and "weighted" inputs as shown below.

10
The synthetic neuron (contd)

• For a neuron receiving n inputs, each input xi (
  i ranging from 1 to n) is weighted by multiplying
  it with a weight wi
• The sum of the products wixi gives the net
  activation value of the neuron
• The activation value is subjected to a transfer
  function to produce the neurons output
• The weight value of the connection carrying
  signals from a neuron i to a neuron j is termed
  wij..

11
Transfer functions

• These compute the output of a node from its net
  activation. Among the popular transfer functions
  are
• Step function
• Signum (or sign) function
• Sigmoid function
• Hyperbolic tangent function
• In the step function, the neuron produces an
  output only when its net activation reaches a
  minimum value known as the threshold
• For a binary neuron i, whose output is a 0 or 1
  value, the step function can be summarised as

12
Transfer functions (contd)

• The sign function returns a value between -1 and
  1. To avoid confusion with 'sine' it is often
  called signum.

outputi
1
0
activationi
-1
13
Transfer functions (contd)

• The sigmoid
• The sigmoid transfer function produces a
  continuous value in the range 0 to 1
• The parameter gain affects the slope of the
  function around zero

14
Transfer functions (contd)

• The hyperbolic tangent
• A variant of the sigmoid transfer function
• Has a shape similar to the sigmoid (like an S),
  with the difference being that the value of
  outputi ranges between 1 and 1.

15
Structure and operation of an ANN

• The building block of an ANN is the artificial
  neuron. It is characterised by
• weighted inputs
• summing and transfer function
• The most common architecture of an ANN consists
  of two or more layers of artificial neurons or
  nodes, with each node in a layer connected to
  every node in the following layer
• Signals usually flow from the input layer, which
  is directly subjected to an input pattern, across
  one or more hidden layers towards the output
  layer.

16
Structure and operation of an ANN

• The most popular ANN architecture, known as the
  multilayer perceptron (shown in diagram above),
  follows this model.
• In some models of the ANN, such as the
  self-organising map (SOM) or Kohonen net, nodes
  in the same layer may have interconnections among
  them
• In recurrent networks, connections can even go
  backwards to nodes closer to input

17
Problem solving by an ANN

• The inputs of an ANN are data values grouped
  together to form a pattern
• Each data value (component of the pattern vector)
  is applied to one neuron in the input layer
• The output value(s) of node(s) in the output
  layer represent some function of the input
  pattern

18
Problem solving by an ANN (contd)

• In the example above, the ANN maps the input
  pattern to either one of two classes
• The ANN produces the output for an accurate
  prediction, only if the functional relationships
  between the relevant variables, namely the
  components of the input pattern, and the
  corresponding output, have been learned by the
  ANN
• Any three-layer ANN can (at least in theory)
  represent the functional relationship between an
  input pattern and its class
• It may be difficult in practice for the ANN to
  learn a given relationship

19
Learning in ANN

• Common human learning behaviour repeatedly going
  through same material, making mistakes and
  learning until able to carry out a given task
  successfully
• Learning by most ANNs is modelled after this type
  of human learning
• Learned knowledge to solve a given problem is
  stored in the interconnection weights of an ANN
• The process by which an ANN arrives at the right
  values of these weights is known as learning or
  training

20
Learning in ANN (contd)

• Learning in ANNs takes place through an iterative
  training process during which node
  interconnection weight values are adjusted
• Initial weights, usually small random values, are
  assigned to the interconnections between the ANN
  nodes.
• Like knowledge acquisition in ES, learning in
  ANNs can be the most time consuming phase in its
  development

21
Learning in ANNs (contd)

• ANN learning (or training) can be supervised or
  unsupervised
• In supervised training,
• data sets consisting of pairs, each one an input
  patterns and its expected correct output value,
  are used
• The weight adjustments during each iteration aim
  to reduce the error (difference between the
  ANNs actual output and the expected correct
  output)
• Eg, a node producing a small negative output when
  it is expected to produce a large positive one,
  has its positive weight values increased and the
  negative weight values decreased

22
Learning in ANNs

• In supervised training,
• Pairs of sample input value and corresponding
  output value are used to train the net repeatedly
  until the output becomes satisfactorily accurate
• In unsupervised training,
• there is no known expected output used for
  guiding the weight adjustments
• The function to be optimised can be any function
  of the inputs and outputs, usually set by the
  application
• the net adapts itself to align its weight values
  with training patterns
• This results in groups of nodes responding
  strongly to specific groups of similar inputs
  patterns

23
The two states of an ANN

• A neural network can be in one of two states
  training mode or operation mode
• Most ANNs learn off-line and do not change their
  weights once training is finished and they are in
  operation
• In an ANN capable of on-line learning, training
  and operation continue together
• ANN training can be time consuming, but once
  trained, the resulting network can be made to run
  very efficiently providing fast responses

24
ANN models

• ANNs are supposed to model the structure and
  operation of the biological brain
• But there are different types of neural networks
  depending on the architecture, learning strategy
  and operation
• Three of the most well known models are
• The multilayer perceptron
• The Kohonen network (the Self-Organising Map)
• The Hopfield net
• The Multilayer Perceptron (MLP) is the most
  popular ANN architecture

25
The Multilayer Perceptron

• Nodes are arranged into an input layer, an output
  layer and one or more hidden layers
• Also known as the backpropagation network
  because of the use of error values from the
  output layer in the layers before it to calculate
  weight adjustments during training.
• Another name for the MLP is the feedforward
  network.

26
MLP learning algorithm

• The learning rule for the multilayer perceptron
  is known as "the generalised delta rule" or the
  "backpropagation rule"
• The generalised delta rule repeatedly calculates
  an error value for each input, which is a
  function of the squared difference between the
  expected correct output and the actual output
• The calculated error is backpropagated from one
  layer to the previous one, and is used to adjust
  the weights between connecting layers

27
MLP learning algorithm (contd)

• New weight Old weight change calculated from
  square of errorError difference between
  desired output and actual output
• Training stops when error becomes acceptable, or
  after a predetermined number of iterations
• After training, the modified interconnection
  weights form a sort of internal representation
  that enables the ANN to generate desired outputs
  when given the training inputs or even new
  inputs that are similar to training inputs
• This generalisation is a very important property

28
The error landscape in a multilayer perceptron

• For a given pattern p, the error Ep can be
  plotted against the weights to give the so called
  error surface
• The error surface is a landscape of hills and
  valleys, with points of minimum error
  corresponding to wells and maximum error found on
  peaks.
• The generalised delta rule aims to minimise Ep by
  adjusting weights so that they correspond to
  points of lowest error
• It follows the method of gradient descent where
  the changes are made in the steepest downward
  direction
• All possible solutions are depressions in the
  error surface, known as basins of attraction

29
The error landscape in a multilayer perceptron
Ep
j
i
30
Learning difficulties in multilayer perceptrons -
local minima

• The MLP may fail to settle into the global
  minimum of the error surface and instead find
  itself in one of the local minima
• This is due to the gradient descent strategy
  followed
• A number of alternative approaches can be taken
  to reduce this possibility
• Lowering the gain term progressively
• Used to influence rate at which weight changes
  are made during training
• Value by default is 1, but it may be gradually
  reduced to reduce the rate of change as training
  progresses

31
Learning difficulties in multilayer
perceptrons(contd)

• Addition of more nodes for better representation
  of patterns
• Too few nodes (and consequently not enough
  weights) can cause failure of the ANN to learn a
  pattern
• Introduction of a momentum term
• Determines effect of past weight changes on
  current direction of movement in weight space
• Momentum term is also a small numerical value in
  the range 0 -1
• Addition of random noise to perturb the ANN out
  of local minima
• Usually done by adding small random values to
  weights.
• Takes the net to a different point in the error
  space hopefully out of a local minimum

32
The Kohonen network (the self-organising map)

• Biological systems display both supervised and
  unsupervised learning behaviour
• A neural network with unsupervised learning
  capability is said to be self-organising
• During training, the Kohonen net changes its
  weights to learn appropriate associations,
  without any right answers being provided

33
The Kohonen network (contd)

• The Kohonen net consists of an input layer, that
  distributes the inputs to every node in a second
  layer, known as the competitive layer.
• The competitive (output) layer is usually
  organised into some 2-D or 3-D surface (feature
  map)

34
Operation of the Kohonen Net

• Each neuron in the competitive layer is connected
  to other neurons in its neighbourhood
• Neurons in the competitive layer have excitatory
  (positively weighted) connections to immediate
  neighbours and inhibitory (negatively weighted)
  connections to more distant neurons.
• As an input pattern is presented, some of the
  neurons in the competitive layer are sufficiently
  activated to produce outputs, which are fed to
  other neurons in their neighbourhoods
• The node with the set of input weights closest to
  the input pattern component values produces the
  largest output. This node is termed the best
  matching (or winning) node

35
Operation of the Kohonen Net(contd)

• During training, input weights of the best
  matching node and its neighbours are adjusted to
  make them resemble the input pattern even more
  closely
• At the completion of training, the best matching
  node ends up with its input weight values aligned
  with the input pattern and produces the strongest
  output whenever that particular pattern is
  presented
• The nodes in the winning node's neighbourhood
  also have their weights modified to settle down
  to an average representation of that pattern
  class
• As a result, the net is able to represent
  clusters of similar input patterns - a feature
  found useful for data mining applications, for
  example.

36
The Hopfield Model

• The Hopfield net is the most widely known of all
  the autoassociative - pattern completing - ANNs
• In autoassociation, a noisy or partially
  incomplete input pattern causes the network to
  stabilise to a state corresponding to the
  original pattern
• It is also useful for optimisation tasks.
• The Hopfield net is a recurrent ANN in which the
  output produced by each neuron is fed back as
  input to all other neurons
• Neurons computer a weighted sum with a step
  transfer function.

37
The Hopfield Model (contd)

• The Hopfield net has no iterative learning
  algorithm as such. Patterns (or facts) are simply
  stored by adjusting the weights to lower a term
  called network energy
• During operation, an input pattern is applied to
  all neurons simultaneously and the network is
  left to stabilise
• Outputs from the neurons in the stable state form
  the output of the network.
• When presented with an input pattern, the net
  outputs a stored pattern nearest to the presented
  pattern.

38
When ANNs should be applied

• Difficulties with some real-life problems
• Solutions are difficult, if not impossible, to
  define algorithmically due mainly to the
  unstructured nature
• Too many variables and/or the interactions of
  relevant variables not understood well
• Input data may be partially corrupt or missing,
  making it difficult for a logical sequence of
  solution steps to function effectively

39
When ANNs should be applied (contd)

• The typical ANN attempts to arrive at an answer
  by learning to identify the right answer through
  an iterative process of self-adaptation or
  training
• If there are many factors, with complex
  interactions among them, the usual "linear"
  statistical techniques may be inappropriate
• If sufficient data is available, an ANN can find
  the relevant functional relationship by means of
  an adaptive learning procedure from the data

40
Current applications of ANNs

• ANNs are good at recognition and classification
  tasks
• Due to their ability to recognise complex
  patterns, ANNs have been widely applied in
  character, handwritten text and signature
  recognition, as well as more complex images such
  as faces
• They have also been used successfully for speech
  recognition and synthesis
• ANNs are being used in an increasing number of
  applications where high-speed computation of
  functions is important, eg, in industrial robotics

41
Current applications of ANNs(contd)

• One of the more successful applications of ANNs
  has been as a decision support tool in the area
  of finance and banking
• Some examples of commercial applications of ANN
  are
• Financial market analysis for investment decision
  making
• Sales support - targeting customers for
  telemarketing
• Bankruptcy prediction
• Intelligent flexible manufacturing systems
• Stock market prediction
• Resource allocation scheduling and management
  of personnel and equipment

42
ANN applications - broad categories

• According to a survey (Quaddus Khan, 2002)
  covering the period 1988 up to mid 1998, the main
  business application areas of ANNs are
• Production (36)
• Information systems (20)
• Finance (18)
• Marketing distribution (14.5)
• Accounting/Auditing (5)
• Others (6.5)

43
ANN applications - broad categories (contd)

• The levelling off of publications on ANN
  applications may be attributed to the ANN moving
  from the research to the commercial application
  domain
• The emergence of other intelligent system tools
  may be another factor

44
Some advantages of ANNs

• Able to take incomplete or corrupt data and
  provide approximate results.
• Good at generalisation, that is recognising
  patterns similar to those learned during
  training
• Inherent parallelism makes them fault-tolerant
  loss of a few interconnections or nodes leaves
  the system relatively unaffected
• Parallelism also makes ANNs fast and efficient
  for handling large amounts of data.

45
ANN State-of-the-art overview

• Currently neural network systems are available as

• Software simulation on conventional computers -
  prevalent
• Special purpose hardware that models the
  parallelism of neurons.
• ANN-based systems not likely to replace
  conventional computing systems, but they are an
  established alternative to the symbolic logic
  approach to information processing
• A new computing paradigm in the form of hybrid
  intelligent systems has emerged - often involving
  ANNs with other intelligent system tools

46
REFERENCES

• AI Expert (special issue on ANN), June 1990.
• BYTE (special issue on ANN), Aug. 1989.
• Caudill,M., "The View from Now", AI Expert, June
  1992, pp.27-31.
• Dhar, V., Stein, R., Seven Methods for
  Transforming Corporate Data into Business
  Intelligence., Prentice Hall 1997
• Kirrmann,H., "Neural Computing The new gold rush
  in informatics", IEEE Micro June 1989 pp. 7-9
• Lippman, R.P., "An Introduction to Computing with
  Neural Nets", IEEE ASSP Magazine, April 1987
  pp.4-21.
• Lisboa, P., (Ed.) Neural Networks Current
  Applications, Chapman Hall, 1992.
• Negnevitsky, M. Artificial Intelligence A Guide
  to Intelligent Systems, Addison-Wesley 2005.

47
REFERENCES (contd)

• Quaddus, M. A., and Khan, M. S.,  "Evolution of
  Artificial Neural Networks in Business
  Applications An Empirical Investigation Using a
  Growth Model", International Journal of
  Management and Decision Making, Vol.3, No.1,
  March 2002, pp.19-34.(see also ANN application
  publications end note library files, ICT619 ftp
  site)
• Wasserman, P.D., Neural Computing, Theory and
  Practice, Van Nostrand Reinhold, New York 1989
• Wong, B.K., Bodnovich, T.A., Selvi, Yakup,
  "Neural Networks applications in business A
  Review and Analysis of the literature (1988-95)",
  Decision Support Systems, 19, 1997, pp. 301-320.

• Zahedi, F., Intelligent Systems for Business,
  Wadsworth Publishing, Belmont, California, 1993.
• http//www.doc.ic.ac.uk/nd/surprise_96/journal/vo
  l4/cs11/report.html
