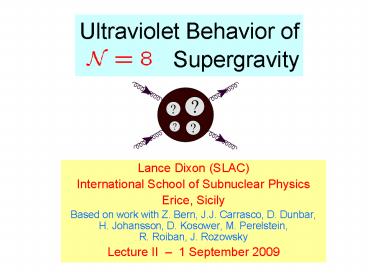

Ultraviolet Behavior of Supergravity

1
Ultraviolet Behavior of
Supergravity

• Lance Dixon (SLAC)
• International School of Subnuclear Physics
• Erice, Sicily
• Based on work with Z. Bern, J.J. Carrasco, D.
  Dunbar, H. Johansson, D. Kosower, M. Perelstein,
  R. Roiban, J. Rozowsky
• Lecture II 1 September 2009

2
Compare spectra
3
KLT copying
Bern, LD, Dunbar, Perelstein, Rozowsky (1998)

• KLT relations give the N8 SUGRA cuts
• products of N8 SUGRA trees, summed over all
  internal states very simply in terms of
• sums of products of two copies of N4 SYM cuts
• Need both planar (large Nc) and non-planar terms
• in corresponding multi-loop N4 SYM amplitude

4
KLT copying at 3 loops
Using
it is easy to see that
N8 SUGRA
N4 SYM
N4 SYM
rational function of Lorentz products of external
and cut momenta all state sums already performed
5
Extreme simplicity at 1 and 2 loops

• 1 loop

Green, Schwarz, Brink Grisaru, Siegel (1981)
color dresses kinematics
N8 supergravity just remove color, square
prefactors! Dc automatically same as for N4
SYM for L 1,2.
6
Ladder diagrams (Regge-like)
In N4 SYM
In N8 supergravity
Schnitzer, hep-th/0701217
7
For Lgt2, UV behavior of generic graphs looks
worse in N8 than N4
N4 SYM
N8 supergravity
2 from HE behavior of gravity
8
But Cancellations expected beginning at L3
L-particle cut of same integral reveals a
one-loop (L2)-point amplitude but with a
numerator factor which has too many loop
momenta to be consistent (strongly violates
no-triangle property)

• Implies that there have to be additional
  cancellations
• (but how strong?), from other types of integrals,

• not detectable in 2-particle cuts
• Inspired computation of full 4-graviton
  amplitude at 3 4 loops

9
3 loop amplitude
Bern, Carrasco, LD, Johansson, Kosower, Roiban,
th/0702112 Bern, Carrasco, LD, Johansson, Roiban,
0808.4112
Nine basic integral topologies
Seven (a)-(g) long known (2-particle cuts ?
easily determine using rung rule)
BDDPR (1998)
Two new ones (h), (i) have no 2-particle cuts
10
N4 numerators at 3 loops
manifestly quadratic in loop momentum
11
N8 numerators at 3 loops
Omit overall
also manifestly quadratic in loop momentum
BCDJR (2008)
12
N8 no worse than N4 SYM in UV
Manifest quadratic representation at 3 loops
same behavior as N4 SYM implies same critical
dimension still for L 3
13
4 loops

• Begin with the 4-loop cubic vacuum graphs
• Decorate them with 4 external legs to generate
• 50 nonvanishing cubic 4-point graphs
• Determine the 50 numerator factors, first for
  N4 SYM,
• then, using KLT, for N8 supergravity

14
Simplest (rung rule) graphsN4 SYM numerators
shown
15
Most complex graphsN4 SYM numerators shownN8
SUGRA numerators much larger
16
Checks on the final N4 result

• Lots of different products of MHV tree
  amplitudes.
• NMHV7 anti-NMHV7 and MHV5 NMHV6
  anti-MHV5
• evaluated by Elvang, Freedman, Kiermaier,
  0808.1720

17
All the N8 SUGRA detailsyou could ever want
and more

• In two locations we provide all 50 numerator
  factors for the 4-loop N8 SUGRA amplitude, in
  Mathematica readable files
• aux/ in the source of the arXiv version of
  0905.2326 hep-th
• EPAPS Document No. E-PRLTAO-103-025932
  (Windows-compatible!)

• Plus you can
• get rotatable 3D views of all 50 graphs
• extract all possible information about the 50
  numerators,etc.

18
UV behavior of N8 at 4 loops

• All 50 cubic graphs have numerator factors
  composed of terms
•
  loop momenta l
•
  external momenta k
• Maximum value of m turns out to be 8 in every
  integral

• Manifestly finite in D4 4 x 4 8
  26 - 2 lt 0

• Not manifestly finite in D5 4 x 5 8 26
  2 gt 0

19
Cancellations between integrals

• Cancellation of k4 l8 terms vanishing of
  coefficient of
• is fairly simple just set external momenta ki ?
  0,
• collect coefficients of the 2 resulting vacuum
  diagrams,
• observe that the coefficients cancel.

• Cancellation of k5 l7 and k7 l5 terms is
  trivial
• Lorentz invariance does not allow an odd-power
  divergence.

20
Identities among 4-loop integrals

• At order k6 l6 , relevant for UV behavior in
  D5-2e,
• after collecting all contributions, 30 vacuum
  integrals remain.
• There are multiple ways to take the limit ki ?
  0
• because one can first shift the loop momenta, by
• Comparing the different limits (which must be
  the same)
• provides consistency relations between the
  integrals, such as
• Checked by evaluated all UV poles all 30
  integrals
• Using these relations

UV pole cancels in D5-2e N8 SUGRA
still no worse than N4 SYM in UV at 4 loops!
21
Beyond four loops
higher-loop cancellations inferred from 1-loop
n-point (no triangle hypothesis)
inferred from 2-, 3-, 4-loop 4-point, via cuts
Same UV behavior as N4 super-Yang-Mills
UV behavior unknown
of loops

explicit 1, 2, 3 and 4 loop computations
of contributions
22
E7(7)
Cremmer, Julia (1978,1979)

• N8 SUGRA has a continuous symmetry group,
  a noncompact form of E7. The 70 scalars
  parametrize the coset space E7(7)/SU(8), so
  non-SU(8) part is realized nonlinearly.
• We didnt use this symmetry at all in our
  explicit computations. KLT relations make
  manifest only an SU(4) x SU(4) subgroup of SU(8).
• However, it is quite possible that
  understanding E7(7) better will be a key to
  further progress.
• Recently
• - Used to construct light-cone superspace
  Hamiltonian
• Explicit action on covariant fields described
• - Implications for tree-level S-matrix elements
  discussed

Brink, Kim, Ramond, 0801.2993
Kallosh, Soroush, 0802.4106

Bianchi, Elvang, Freedman, 0805.0757
Arkani-Hamed, Cachazo, Kaplan, 0808.1446
Kallosh, Kugo, 0811.3414
23
What might it all mean?

• Lets suppose N8 SUGRA is finite to all loop
  orders.
• Would this prove that it is a nonperturbatively
  consistent theory of quantum gravity?
• No!
• There are at least two reasons to think it might
  need a nonperturbative completion
• Likely L! or worse growth of the order L
  coefficients,
• L! (s/MPl2)L
• Different E7(7) behavior of the perturbative
  series (invariant!) compared with the E7(7)
  behavior of the mass spectrum of black holes
  (non-invariant!)

24
Is N8 SUGRA only as good as QED?

• QED is renormalizable, but its perturbation
  series has zero radius of convergence in a
  L! aL
• UV renormalons associated with UV Landau pole
• But for small a it works pretty well
  ge - 2 agrees with
  experiment to 10 digits, etc.
• We know of many pointlike nonperturbative UV
  completions for QED asymptotically free GUTs
• What is/are the nonperturbative UV completion(s)
  for N8 SUGRA? Could some be pointlike
  too?
• Some say N8 SUGRA is in the Swampland not
  connected to string theory
  Green, Ooguri, Schwarz
• If so, then maybe the completion has to be
  pointlike?!

25
Conclusions

• Through 4 loops, 4-graviton scattering amplitude
  of N8 supergravity has UV behavior no worse
  than the corresponding 4-gluon amplitude of N4
  SYM.
• Not only is N8 SUGRA finite at 3 and 4 loops,
  but
• Dc 6 at L3 Dc
  5.5 at L4
• same as for N4 SYM!
• Will the same continue to happen at higher
  loops? Partial evidence from generalized
  unitarity supports this.
• If so, N8 supergravity would be a
  perturbatively finite, pointlike theory of
  quantum gravity
• Although it may not be of direct
  phenomenological relevance, could it point the
  way to other, more realistic, finite theories?
  (with less than maximal SUSY, sadly)
• We may be engaged with, not a swampland, but a
  wetlands restoration project!

26
Extra slides
27
Numerator factors for N8 SUGRA
old numerator factors
BCDJKR (2007)
quartic in
new
BCDJR (2008)
(e-i) reshuffled so all terms are quadratic in
loop momenta
28
4 loop graphs
Scope of computational problem illustrated by
number of cubic 4-point graphs with nonvanishing
coefficients and various topological properties
29
Box cut
Bern, Carrasco, Johansson, Kosower, 0705.1864

• If the diagram contains a box subdiagram, can use
  the simplicity of the 1-loop 4-point amplitude to
  compute the numerator very simply
• Planar example

• Only five 4-loop cubic topologies
• do not have box subdiagrams.
• But there are also contact terms
• to determine.

30
Twist identity

• If the diagram contains a four-point tree
  subdiagram, can use a Jacobi-like identity to
  relate it to other diagrams.
•
  Bern, Carrasco,
  Johansson, 0805.3993

• Relate non-planar topologies to planar, etc.
• For example, at 3 loops, (i) (e) (e)T
  contact terms

-
