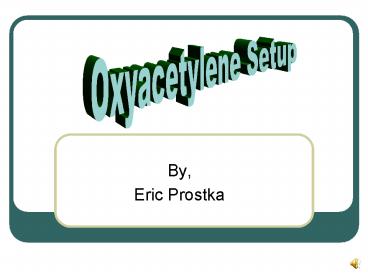

Oxyacetylene Setup

• By,
• Eric Prostka

2
Safety First

• MOST IMPORTANT
• Safety Glasses with appropriate lenses
• 5 Tint for cutting 10 Tint for welding
• Make sure to also wear
• Long Sleeve Shirts
• Full Length Pants
• Close Toed Shoes
• Leather Welding Gloves

3
Safety Cont.

• Regarding Tanks DO NOT
• Lay horizontally
• Knock over
• Break the tops
• Use oil or grease around them

4
Getting Started

• Back out adjusting screws on both tanks
• Proceed to open cylinder valves
• Oxygen Tank Open all the way (0-2200psi)
• Acetylene Tank Turn valve ¼ to ½ (0-300psi)
• NEVER MORE THAN 1 TURN

Cylinder Valve
Cylinder Pressure
Adjusting Screw
5
Working Pressure

• Adjust regulators on both tanks
• Oxygen Tank 40-60 pounds
• Acetylene Tank 5-7lbs

Working Pressure
Adjusting Screw
6
Torch Setup Acetylene

• Open needle valve ¼ turn
• Light torch with a spark igniter
• Continue opening valve until smoke clears

Acetylene Needle Valve
7
Torch Setup Oxygen

• Open needle valve
• Continue opening until a neutral flame is reached

Oxygen Needle Valve
8
3 Types of Flames

• Neutral- equal oxygen
• acetylene
• Excess Acetylene- results in
• a feather look
• Oxidizing- Short with a
• roaring sound

9
While Working

• Watch the Regulators on the tanks
• Normal
• Open working pressure slightly decreases
• NOT Normal
• Open working pressure creeps and slowly increases

10
Always Remember

• Thickness of material determines pressure
  settings and torch tip size
• Oxyacetylene welding and cutting
• Works well with Mild and Carbon Steel
• Does not work with materials that have high
  melting points

11
Resources
