Integrated Information Sphere

1

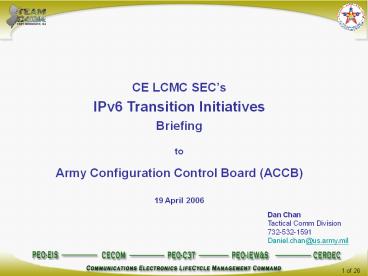

CE LCMC SECs IPv6 Transition Initiatives Briefing
to Army Configuration Control Board (ACCB)
19 April 2006
Dan Chan Tactical Comm Division 732-532-1591 Danie
l.chan_at_us.army.mil
2
Briefing Objectives

• Inform on current IPv6 mandates and status of DoD
  and Army goals.
• Provide an overview of SECs IPv6 initiatives and
  efforts
• Provide technical details of SECs IPv6 Pilot
  Project

3
IPv6 Policy Mandates

• DoD CIO -- June 2003
• Established goal of FY 08 to complete the
  transition to IPv6
• Prohibited use of IPv6 on operational networks
  until IA risk assessment was complete
• DoD CIO -- September 2003
• Established policy that products and systems
  procured or acquired after October 1, 2003 must
  be IPv6 capable
• Office of Management and Budget -- August 2005
• Established June 2008 by which all federal
  agencies infrastructure (network backbones) must
  be using IPv6

4
Army IPv6 Timeline
5
IPv6 Transition Application Demo Project

• Purpose
• Establish SEC as an active participant and
  contributor to Army and DoD strategic plans for
  IPv6 Transition
• Demonstrate as a viable proof of concept and
  feasibility to transition a legacy tactical
  systems messaging application to IPv6 compliant
  by leveraging capabilities/expertise across C4ISR
  community
• Elevate workforces awareness on DoD/OMB/Armys
  IPv6 transition mandate, provide IPv6 training to
  C4ISR managers and engineers, and create a
  channel for IPv6 knowledge/information exchange
  within the C4ISR communities
• Accomplishments
• Developed an Application Layer Gateway (ALG) for
  the MCS-L CommServer to successfully transitioned
  MCS-L messaging to IPv6 compliant.
• Elevated awareness within SEC/SED workforce and
  Fort Monmouth Community
• SEC/SEC Workforce Training 7 February 2006
• CE LCMC Workforce Training 8 February 2006
• Pilot Project Demonstration 6 Feb 2006
• Establishment of an IPv6 web portal on AKO which
  consists of a forum, news, calendar of events
  schedule, archived documents, and links to other
  relevant IPv6 sites
• Leveraged from STCD IPv6 laboratory capability,
  PM GCC2 and PM TRCS assets, SECs BSSD ABSD,
  and ILEX/Telcordia and SRI expertise

6
IPv6 Pilot Project Team

• Soft Config Mgt
• Soft Mgt Support
• ILEX/Telcordia Team

• Systems Soft Mgt
• Soft Apps Mgt
• Security, i.e. IAVAs

PM TRCS Support
PM GCC2 Support
Software Development and Sustainment Management
Software Engineering Support
Communication and Network System Engineer.

• Army IPv6 Lab since 2000
• DoD SME collaborating with
• Industry and Academia
• Participant of DoD and
• Industry Test Beds, i.e.
• MoonV6
• Designated developer of
• Army IPv6 Transition Plan
• Commissioned by DoD,
• CIO/G-6, G8, SEC, PM WIN-T,
• and PdM CHS to conduct
• research, MS analyses,
• testing, training on IPv6
• SRI Team

Soft Engineers Comp Scientists Support
7
IPv6 Transition ApplicationLive Demo

• Demo Essentials
• Migrated legacy MCS-L messaging capability to
  make it capable to operate in an IPv6 environment
  in peer-to-peer mode through Dual-Stacking,
  Tunneling, and Translation technologies
• Developed a transition methodology which may be
  replicated over other similar systems
• Network topology illustrates a configuration
  hosted in a current system (NOC-V) and depicting
  a legacy application (MCS-L) being IPv6 capable
  and interoperable
• Demonstration of 6 different interoperability
  test scenarios capturing a complete cross-section
  within a IPv4/IPv6 environment with MCS-L passing
  JVMF messages

8
Notional IPv6 Pilot Project
Legacy Application (MCS-L)
Armys Tactical Networks
Network Management System (NOC-V)
IPv4
Seamless Connectivity
IPv6
9
DemonstrationScenarios
10
Network Operation Center Vehicle
(NOC-V) Current Configuration
NOC-V
GPS
NTDR QEAM 1
EPLRS NM QEAM 2
Satellite Van (TSC-85/93, SMART-T START-T) to
BSN
GBS Dish
100 Base FX
S2/S3 vehicle
FBCB2
FSE
100 Base FX
TOC Server

• Local Voice Services
• 19 Analog Phones

Voice Circuits
10 Base 2
MSE
SUI LAN Access

• Network Management Client
• Sun Ray 1

GBS Video Access

• Network Management Client
• Sun Ray 2

FBCB2 SVGA Display Access
Cisco 2950C E-net Switch
SWLAN Black-Side Management Laptop
ISYSCON (V)4 (TIM) Laptop
MCS Light
ENM Laptop
Tent Area
11
Operational Scenario Upgraded MCS in Hybrid
Network
NOC-V
MCS 4
Remote TOC with legacy IPv4 MCS
EPLRS
Cisco 2924M
Cisco 2912MF
Cisco 2950C E-net Switch
MCS 6
Remote TOC with new IPv6-only MCS
MCS-6/4
Tent Area
MCS with Application Layer Gateway (ALG)
12
Demo Scenario with Upgraded MCS in Hybrid Network
Node 3
NOC-V
IPv6 / IPv4 Core (WIN-T / JTRS)
Remote TOC with legacy IPv4 MCS
Cisco 2924M
BSD dual-stacked router)
Cisco 2912MF
Cisco 2950C E-net Switch
Node 1
Node 2
MCS-6/4
Tent Area
Simulated TOC with an IPv6-only MCS and virtual
IPv6 Core Infrastructure
MCS-6/4 with Application Layer Gateway (ALG)
13
Demo Scenario 1 (Operational View) Sustain IPv4
Legacy Baseline Interoperability
Node 3
NOC-V
IPv6 / IPv4 Core (WIN-T / JTRS)
Remote TOC with legacy IPv4 MCS
Cisco 2924M
BSD dual-stacked router
Cisco 2912MF
Virtual / Live Gateway
OPNET Future Force IPv6 Core WIN-T/FCS
Cisco 2950C E-net Switch
Node 1
Node 2
Virtual / Live Gateway
MCS-6/4
Tent Area
MCS-6/4 with Application Layer Gateway (ALG)
Simulated TOC with an IPv6-only MCS and virtual
IPv6 Core Infrastructure
14
Demo Scenario 1 Sustain IPv4 Legacy Baseline
Interoperability
Node 2
Virtual Environment
Live Network
MCS with 6/4 Comm Server
Node 3
Node 1
OPNET Future Force IPv6 Core WIN-T/FCS
IPv6 MCS
Legacy MCS
BSD Dual-stacked Router
IPv4 JVMF Messages

• Purpose Demonstrate that the MCS with 6/4
  CommServer retains IPv4 legacy operational
  functionalities
• MCS with 6/4 CommServer (node 2) exchanges JVMF
  message with Legacy MCS (node 3)
• Node 2 initiates JVMF message addressed to node 3
• 6/4 CommServer recognizes destination address of
  URN as IPv4 and adds IPv4 header
• Message traverses IPv4 legacy core network (i.e.,
  router or NOC-V)
• Node 3 receives, processes, and displays message
• Repeat with message originating from the legacy
  MCS

15
Demo Scenario 2 (Operational View) Send and
Receive IPv6 JVMF Messages
Node 3
NOC-V
IPv6 / IPv4 Core (WIN-T / JTRS)
Remote TOC with legacy IPv4 MCS
Cisco 2924M
BSD dual-stacked router
Cisco 2912MF
Cisco 2950C E-net Switch
Node 1
Node 2
MCS-6/4
Tent Area
MCS-6/4 with Application Layer Gateway (ALG)
Simulated TOC with an IPv6-only MCS and virtual
IPv6 Core Infrastructure
16
Demo Scenario 2Send and Receive IPv6 JVMF
Messages
Node 2
Virtual Environment
Live Network
MCS with 6/4 Comm Server
Node 1
Node 3
OPNET Future Force IPv6 Core WIN-T/FCS
IPv6 MCS
Legacy MCS
BSD Dual-stacked Router
IPv6 JVMF Messages

• Purpose Demonstrate that IPv6 JVMF messages can
  be transmitted, received, and processed between
  the 6/4 CommServer (node 2) and an IPv6-only MCS
  client
• MCS with 6/4 CommServer (node 2) exchanges JVMF
  message with IPv6-only MCS via the virtual
  network
• Node 2 initiates a JVMF message addressed to node
  1
• 6/4 CommServer recognizes destination address of
  URN as IPv6, adds IPv6 header, and sends message
  to virtual / live gateway (VLG)
• The VLG processes the message and transmits it
  through the virtual network to the IPv6-only MCS
  host.
• Repeat with message originating from Node 1.

17
Demo Scenario 3 (Operational View) Exchange IPv6
/ IPv4 JVMF Message via Transport Relay Translator
IPv4
Node 3
NOC-V
IPv6
IPv6 / IPv4 Core (WIN-T / JTRS)
Remote TOC with legacy IPv4 MCS
Cisco 2924M
BSD dual-stacked router
Cisco 2912MF
Cisco 2950C E-net Switch
Node 1
Node 2
MCS-6/4
Tent Area
Simulated TOC with an IPv6-only MCS and virtual
IPv6 Core Infrastructure
MCS with ALG and Transport Relay Translation (TRT)
18
Demo Scenario 3Exchange IPv6 / IPv4 JVMF Message
viaTransport Relay Translator
Node 2
Virtual Environment
IPv4
Live Network
TRT
IPv6
MCS with 6/4 Comm Server
Node 1
Node 3
OPNET Future Force IPv6 Core WIN-T/FCS
IPv6 MCS
Legacy MCS
BSD Dual-stacked Router
IPv6 / IPv4 Relayed JVMF Messages

• Purpose Demonstrate that the MCS 6/4 can
  transparently translate and forward a message
  from an IPv4 node (node 3) to an IPv6 node (node
  1) and vice-versa. Node 2 acts as a Transport
  Relay Translator (TRT) in this scenario.
• Node 3 sends a single JVMF message to node 1
• Node 3 initiates a JVMF message addressed to node
  1 (but URN table points to node 2).
• The 6/4 CommServer receives the message and
  notices that the destination URN is not its own.
• It then looks up the IP address of the
  destination URN (node 1 in this case) and sends
  the message on its way.
• Node 1 receives, processes, and displays the JVMF
  message
• Repeat with message originating from node 1

19
Demo Scenario 4 (Operational View) Multi-Destinati
on Unicast JVMF Messages in a 6/4 Hybrid
Environment
IPv4
Node 3
NOC-V
IPv6
IPv6 / IPv4 Core (WIN-T / JTRS)
Remote TOC with legacy IPv4 MCS
Cisco 2924M
BSD dual-stacked router
Cisco 2912MF
Cisco 2950C E-net Switch
Node 1
Node 2
MCS-6/4
Tent Area
Simulated TOC with an IPv6-only MCS and virtual
IPv6 Core Infrastructure
MCS with Application Layer Gateway (ALG)
20
Demo Scenario 4Multi-Destination Unicast JVMF
Messagesin a 6/4 Hybrid Environment
Node 2
Virtual Environment
IPv4
Live Network
MCS with 6/4 Comm Server
IPv6
Node 3
Node 1
OPNET Future Force IPv6 Core WIN-T/FCS
IPv6 MCS
Legacy MCS
BSD Dual-stacked Router
IPv4 Unicast JVMF Message
IPv6 Unicast JVMF Message

• Purpose Demonstrate that the 6/4 MCS can
  distribute a single JVMF message to a mix of IPv4
  and IPv6 clients
• Node 2 distributes a single JVMF message to an
  IPv6 node (node 1) and an IPv4 node (node 3)
• Node 2 initiates a JVMF message addressed to
  nodes 1 and 3
• 6/4 CommServer reads the URN for each destination
  and adds the appropriate v4 or v6 header for each
  outgoing message
• Each destination node receives, processes, and
  displays the JVMF message

21
Demo Scenario 5 (Operational View) Multicast JVMF
Messages in 6/4 Hybrid Environment
Node 3
IPv6 / IPv4 Core (WIN-T / JTRS)
NOC-V
Remote TOC with legacy IPv4 MCS
BSD dual-stacked router with Multicast
(rendezvous point)
Cisco 2924M
Cisco 2912MF
Cisco 2950C E-net Switch
Node 1
Node 2
MCS-6/4
Tent Area
MCS with Application Layer Gateway (ALG)
Simulated TOC with an IPv6-only MCS and virtual
IPv6 Core Infrastructure
22
Demo Scenario 5 Multicast JVMF Messages in 6/4
Hybrid Environment
Node 2
Virtual Environment
IPv4
Live Network
MCS with 6/4 Comm Server
IPv6
Node 3
Node 1
OPNET Future Force IPv6 Core WIN-T/FCS
IPv6 MCS
Legacy MCS
BSD Dual-stacked Router with Multicast
IPv4 Multicast JVMF Message
IPv6 Multicast JVMF Message

• Purpose Show that multicasting can be performed
  by a 6/4 MCS without loss of efficiency, i.e.,
  one originating message distributed to all
  multicast members
• Node 2 initiates a single multicast message to
  all multicast member in this case, a v4-only
  node (node 3) and a v6-only node (node 1)
• Node 2 initiates a single IPv6 multicast message
  addressed to the multicast group
• The BSD multicast router determines the URN of
  each multicast member, recognizes the IP version
  of each member, and redistributes the message
  accordingly.
• Each destination node receives, processes, and
  displays the multicast message

23
Demo Scenario 6 (Operational View) v6-over-v4
Automatic Tunnel Broker
IPv4-only Core
IPv6-only Core
NOC-V
IPv4-only Router
IPv4
Tunnel Broker
IPv6
Cisco 2924M
6-over-4 Tunnel
Cisco 2912MF
Cisco 2950C E-net Switch
Node 2
Node 1
MCS-6/4 with TB client
Tent Area
MCS IPv6-only
MCS with Application Layer Gateway (ALG)
24
Demo Scenario 6 v6-over-v4 Automatic Tunnel Broker
Live Network
Virtual Environment
Tunnel Broker
IPv4
IPv6
Node 1
IPv4 Legacy Network
Node 2
OPNET Future Force IPv6 Core WIN-T/FCS
IPv6 MCS
IPv6-only MCS with TB Client
IPv4-only Router
IPv6 Router
6-over-4 Tunnel

• Purpose Demonstrate how a tunnel broker can be
  used to traverse a legacy IPv4 network when both
  communicating endpoints are IPv6 applications
• Node 2 establishes a communication session with
  node 1. A 6-over-4 tunnel is transparently set
  up between the tunnel broker (TB) and the TB
  client
• Node 2 determines its interface is IPv4 but its
  destination is IPv6
• TB client negotiates a 6-over-4 tunnel with the
  TB
• Outgoing IPv6 message from node 2 is encapsulated
  in IPv4 header to create a tunnel and transmits
  the message onto the IPv4 network.
• The TB unwraps the IPv4 tunnel header and
  retransmits the message across the IPv6 network.
• Node 1 receives, processes, and displays the
  message.

25
Demo Summary

• Dual stack is main approach. Insert via Tech
  Refresh
• Applications (Must be able to use either v4 or v6
  transport)
• Host Operating Systems
• Routers (via integrated dual stack )
• Servers (Including DNS), and Application Layer
  Gateways (ALGs) for communications gateways
  between C4ISR enclaves
• Configured Tunnels
• Brokered Automatic Tunneling
• Translation as a mechanism of last resort for
  legacy devices

26
Conclusion

• The demo project represents only one transition
  solution but more evaluations and investigations
  will need to be explored
• The Army Community needs to evaluate all possible
  impacts when transitioning to IPv6
• SEC IPv6 Team can provide technical support if
  requested
• IPv6 Web Portal in AKO to serve as a channel for
  exchange of knowledge
• https//www.us.army.mil/suite/portal.do?p247087
• SEC POC Dan Chan daniel.chan_at_us.army.mil
• Bruce Weimer bruce.weimer_at_us.army.mil
