Rock Engineering for a Megaton Detector

1

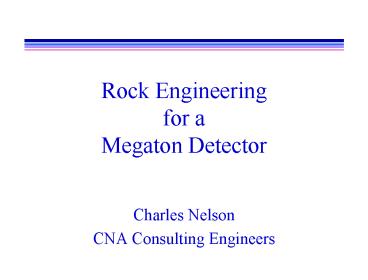

Rock Engineeringfor aMegaton Detector

• Charles Nelson
• CNA Consulting Engineers

2
Overview

• Rock engineering 101
• Cavern size shape
• Construction methods
• Feasibility
• Historical projects
• Numerical modeling
• Empirical design
• Other considerations

3
Rock Engineering 101

• Rock material strong, stiff, brittle
• Weak rock gt Strong concrete
• Strong in compression, weak in tension
• Postpeak strength is low unless confined
• Rock mass behavior controlled by
  discontinuities
• Rock mass strength is 1/2 to 1/10 of rock
  material strength
• Discontinuities give rock masses scale effects

4
Rock Engineering 101

• Massive rock
• Rock masses with few discontinuities, or
• Excavation dimension lt discontinuity spacing

5
Rock Engineering 101

• Jointed or blocky rock
• Rock masses with moderate number of
  discontinuities
• Excavation dimension gt discontinuity spacing

6
Rock Engineering 101

• Heavily jointed rock
• Rock masses with a large number of
  discontinuities
• Excavation dimension gtgt discontinuity spacing

7
Rock Engineering 101

• Rock stresses in situ
• Vertical stress ? weight of overlying rock
• 27 Kpa / m ? 16.5 MPa at 610 m
• 1.2 psi / ft ? 2,400 psi at 2000 ft
• Horizontal stress controlled by tectonic forces
  (builds stresses) creep (relaxes stresses)
• At depth, ?v ? ?h unless there are active
  tectonic forces

8
Rock Engineering 101

• What are the implications for large cavern
  construction?
• Find a site with good rock
• Characterizing the rock mass is JOB ONE
• Avoid tectonic zones characterize in situ
  stresses
• Select size, shape orientation to minimize
  zones of compressive failure or tensile stress

9
Cavern size shape
10
Cavern Size Shape
11
Construction methods

• Drill blast
• Small top headings
• Install rock support
• Large benches

12
Is a 106 m3 Cavern Feasible?

• Previous cavern projects
• Numerical modeling
• Empirical design methods

13
Is a 106 m3 Cavern Feasible?
14
Numerical Modeling
15
Failure Zones, Cylindrical Cavern
Strong
Intermediate
Weak
16
Failure Zones, Straight Cavern
Strong
Intermediate
Weak
17
Empirical design methods

• Appropriate during feasibility assessments
• Require classification of the rock mass
• Most commonly used today
• Bieniawski RMR rating
• NGI Q rating
• NGI Q rating used in the following

18
Rock Quality Assumptions

• Q100
• One joint set rough, irregular, undulating
  joints with tightly healed, hard, non-softening,
  impermeable filling dry or minor water inflow
  high stress, very tight structure
• Q3
• Two joint sets plus misc. smooth to
  slickensided, undulating joints slightly altered
  joint walls, some silty or sandy clay coatings
  medium water inflows, single weakness zones
• Q0.1
• Three joint sets slickensided, planar joints
  with softening or clay coatings large water
  inflows single weakness zones

19
Rock Quality
Q100
Q3
Q0.1
20
Rock Quality
21
Rock Quality
22
Rock Quality
23
Rock support methods

• Rockbolts or cable bolts
• Provides tensile strength confinement
• Shotcrete
• Sprayed on concrete
• Provides arch action, prevents loosening, seals
• Concrete lining
• Used when
• Required thickness exceeds practical shotcrete
  thickness
• Better finish is needed

24
Rockbolt Length vs Cavern Span
25
Rockbolt Spacing vs Rock Quality
26
Shotcrete Thickness vs Rock Quality
27
Cost Categories
28
Cost Conclusions

• Costs are sensitive to
• volume
• rock quality
• Costs are insensitive to
• Cavern shape
• Costs are moderately sensitive to
• Horizontal vs. vertical access (within ranges
  considered)

29
Challenges

• Find the best possible rock in an acceptable
  region
• Find a site with feasible horizontal access
• Explore co-use opportunities
• Develop layouts amenable to low cost excavation
  methods
• Give Geotechnical considerations as much weight
  as possible

30
U.G. Space Considerations

• Common facilities (infrastructure usable space)
• Cavern shapes sizes
• Laboratory-experiment relationship
• Special needs

31
Common Facilities
32
Common Facilities

• What common facilities are beneficial/desirable?
• Power, water, sewer, communications
• Machine shop, assembly areas??
• Storage, clean rooms??
• How should common space be allocated between
  underground aboveground?
• Administration, storage

33
Common Facilities

• Radon control
• Should the whole lab have radon control or just
  certain areas?
• What is the best means? Sealing? Outside air?
• Lab cleanliness standards
• 100? 1,000? 10,000?
• What standards for what spaces?
• What are the requirements for the various
  experiments?

34
Compact vs. Open Layout?

• Compact layout
• Allows more interaction
• Common space is more usable
• Reduced infrastructure costs
• Reduced cost to provide multiple egress ways
• Preserves underground space

35
Compact Layout
36
Compact vs. Open Layout?

• Open layout
• Better isolation
• Reduced impact during expansion
• Essential to create a Master Plan that will guide
  lab development

37
Cavern Shapes

• Use simple shapes, e.g. rural mailbox
• Avoid inside corners
• Avoid tall, narrow shapes
• Roof costs the most

38
Cavern Shapes
39
Cavern Shapes

• Avoid complex intersections
• Avoid closely spaced, parallel excavations
• Overexcavation underexcavation are common

40
Laboratory-Experiment Issues

• What are the issues?
• Different sources of funding
• Shared responsibilities
• Shared liabilities
• Users/tenants rights
• Conflict resolution
• Decommissioning (escrow funds?)
• Private tenants?

41
Specific examples

• How many caverns does the lab provide? 0? 1?
  2? More?
• Cavern sharing?
• Large caverns are cheaper
• Shared caverns create conflicts
• What is the logical boundary between lab-provided
  services and experiment-provided services?
• Power, heating cooling, clean rooms
• Storage space, assembly space

42
Other Experience

• Kansas City, MO, converted limestone mines widely
  used for warehouse manufacturing

43
Underground Owners

• Interact with building code officials
• Prepare enforce design / construction standards
• Control tenant improvements
• Control occupancy
• Restrict structural modifications

44
Underground Owners

• Restrict chemicals hazardous materials
• Require regular maintenance
• Provide labor or preferred contractors for
  improvements
• Typically make all improvements

45
What is not the same?

• Funding
• Typical UG space, tenants pay
• For NUSL, lab funding experiment funding are
  separate
• Special needs
• Typical UG space, special needs limited
• For NUSL, everything is special

46
What is not the same?

• Common space
• Typical UG space, limited common space
• For NUSL, extensive common space
• Shared space
• Typical UG space, share only infrastructure
• For NUSL, experiments may share caverns

47
Special Needs

• Shape
• Shielding
• Clean rooms, clean lab?
• Radon control
• Magnetic field cancellation
• Power use or reliability
• Heat generation

48
Special Needs (cont.)

• Water supply
• Flammable detector materials/gasses
• Suffocating gasses
• Occupancy
• Hours of access

49
Salt Cavern
50
Hard Rock Cavern
