CHAPTER 15 RIGGING

1

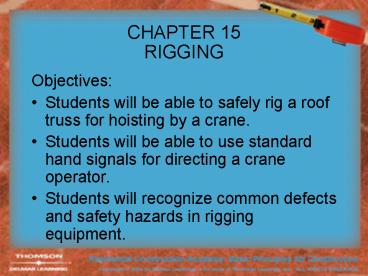

CHAPTER 15RIGGING

• Objectives
• Students will be able to safely rig a roof truss
  for hoisting by a crane.
• Students will be able to use standard hand
  signals for directing a crane operator.
• Students will recognize common defects and safety
  hazards in rigging equipment.

2
SLINGS

• Nearly all slings are made of wire rope,
  synthetic webbing, or steel alloy chains.
• The manufacturers tag lists
• Manufacturers name
• Rated capacity for hitches or angles at which the
  sling is used
• Type of material
• Wear-pads protect the sling from sharp corners on
  the load.

3
WIRE ROPE

• Made of wires, laid around a center in a pattern.
• Wire rope made of a few large wires will be more
  abrasion-resistant and less fatigue-resistant
  than wire rope made using smaller wires.

4
WIRE ROPE CORES

• The ropes core is the foundation for the
  strands.
• The type of core affects the ropes performance.
• Three common types
• Fiber core
• Independent Wire Rope core
• Strand core

5
LAY AND ROPE DESIGN

• Lay refers to
• The wire and strand positions in the rope.
• Strand direction and the relationship between the
  strands.
• A length measurement in manufacturing and
  inspection.
• Regular lay rope is more stable.

6
INSPECTION OF WIRE ROPE

• A record must be kept of each inspection.
• Things to look for during inspection are
• Cup and cone look
• Fatigue breaks
• Strand nicking
• Birdcage
• High strand
• Kinking
• A kinked rope must be replaced.
• Inspections should be frequent and thorough.

7
WEB SLINGS

• Synthetic slings offer advantages over wire
• Synthetic material conforms easier and slips less
• Synthetic material does not corrode or stain the
  load
• Synthetic slings can be damaged by exposure to
  extreme heat.
• These slings should also be inspected regularly.

8
CONSTRUCTION

• Web slings are made of nylon or polyester.
• Polyester is hurt by caustics but not acids.
• Nylon is hurt by acids but not caustics.
• Web slings usually have a male and female end.
• All synthetic slings have warning markers.

9
Standard Eye Sling
10
INSPECTION OF SYNTHETIC SLINGS

• OSHA says to inspect prior to each lift.
• Take the sling out of service if you find
• Acid or caustic burns
• Melting or charring
• Broken or worn stitching
• Excessive wear
• Knots
• Pitting or corrosion
• Cracked fittings
• Any damage that casts doubt on the slings
  strength

11
Chain Slings

• Used for heavy loads or high-heat areas.
• Not used often on construction sites due to
  potential harm to the load.
• Anyone rigging a chain sling should be able to
  identify damage to the sling.

12
Chain Sling
13
EFFECT OF ANGLE ONSLING CAPACITY

• CAUTION!!! Using slings at an angle can be deadly
  if the angle is not taken into consideration.
• To find the minimum sling rating for the intended
  lift
• Determine the weight to be lifted
• Calculate the Tension Factor
• Multiply the Lifting Weight by the Tension Factor

14
HARDWARE ATTACHMENTS

• Hooks are permanently attached.
• Types of hooks include eye hooks, reverse eye
  hooks, grab hooks, foundry hooks, latch hooks,
  clevis hooks, and choker hooks.
• Other sling hardware includes shackles, lifting
  eyes, and straight eye bolts.

15
Standard Eye Hook
16
THIMBLES/WIRE ROPE CLIPS

• Thimbles are used inside the eye of a wire rope
  sling to decrease wear.
• Thimbles must be inspected for wear.
• Wire rope clips fasten a loop to a wire rope.
• Clips come in sizes to match the rope.
• Use torque wrenches to tighten clips.

17
CRANE OPERATIONS

• Basic safety rules to follow
• One person on the ground directs operations
• Anyone not directly involved should be out of the
  way
• Only the designated person gives hand signals
• Use tag lines to control swing of the load
• Never hold or position loads by hand
• Prepare the area and use approved hand signs

18
Stop
19
Dog Everything
20
Move Slowly
21
Hoist
22
Lower
23
Raise Boom
24
Lower Boom
25
Swing
26
Raise the Boom andLower the Load
27
Lower the Boom andRaise the Load
28
Travel(Rail Mount or Trolley)
29
Extend Boom(Telescoping Booms)
30
Retract Boom(Telescoping Booms)
31
Travel
32
Travel(One Track)
33
SUMMARY

• Rigging is the use of slings, ropes, straps,
  chains, and fittings to hoist heavy objects.
• Safety and inspection of machinery and slings
  work together to keep a job site running smoothly
  and safely.
• People not directly involved with crane work
  should stay clear of the area.
