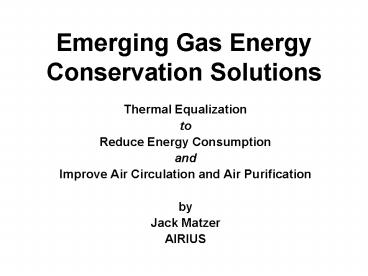

Emerging Gas Energy Conservation Solutions

1
Emerging Gas Energy Conservation Solutions

• Thermal Equalization
• to
• Reduce Energy Consumption
• and
• Improve Air Circulation and Air Purification
• by
• Jack Matzer
• AIRIUS

2
SOURCES OF INFORMATION

• U.S. Department of Energy Industrial Technology
  and Energy Management
• Rutgers University Industrial Assessment Center
• Colorado State University Industrial Assessment
  Center
• Kansas State University Destratification
  Energy Savings Analysis by Dr. Byron Jones,
  Ph.D., P.E., ASHRAE.
• Various manufacturers of destratification
  equipment and air purification equipment
• Various energy engineer experts

3
Agenda

• The Thermal Stratification Problem and Solution
  Alternatives
• Application Areas
• Case Studies and Economics
• The Rebates
• The Airius Photohydroionization Unit
• Summary

4
What Is Air Stratification?

• With minimal air movement, hot air rises and the
  cooler air falls, thus stratifying the air.
• With heaters, skylights and lights near the
  ceiling, this increases the effect.

5
Destratification Equipment Categories

• Ceiling Fans
• Traditional Ceiling Fans
• High VolumeSlow Speed Fans
• Ducting Equipment
• Free-Hanging Destratification Equipment

6
The Ceiling Fan

• Total air volume and coverage is dependent on
  several factors.
• Motor size, Height, Fan Blade (design, size, rpm)
• Ceiling fans are applicable in cooling conditions
  by creating an evaporative cooling affect on the
  skin surface.
• Often already installed in many application areas

7
Ceiling Fans

• Pros
• 100-200 product cost
• 100-300 Install cost
• Low maintenance
• Cooling effect in warm seasons
• Provides some destratification
• Provides some energy reduction in winter if
  running

• Cons
• Uses more electricity
• Minimal energy reduction
• Creates drafts
• Less effective as height increases
• Because they are 4-10 off ceiling provides
  incomplete destratification
• Strobe effect may trigger epileptic response

8
The Problems With Ceiling Fans

• They often are not mounted high enough
• Tend to chop air and provide spotty
  destratification
• Nearly zero energy transfer into thermal mass of
  floor or equipment
• Still cost 200 -400 installed

9
High-Volume-Low-Speed Fans

• High-Volume-Low-Speed Fans (HVLS) are very large
  ceiling fans operating at a very low speed.
• In high temperature applications, the HVLS Fan
  suppliers claim a reduction of the effective
  temperatures in the working area by 6-8 degrees
  Fahrenheit.
• Economics are strained typically gt 5 year
  break-even

10
HVLS Fans

• Cons
• Incomplete destratification
• Create drafts
• Large energy user 2-5 hp motor
• Less effective as height increases
• Expensive product and installation cost
• More expensive maintenance

• Pros
• Cooling effect in warm seasons
• Provides some destratification
• Provides some energy reduction

11
Thermal Equalization

• The Airius Thermal equalization unit pushes the
  air to the ground in a columnar laminar flow
• The floor becomes a thermal sink
• Free Hanging and in ceiling units from 265 to
  530
• 1-3 year break-even depending on rates, rebates
  and climate

12
Thermal Equalization Air Pattern Free-hanging Unit

• Over time, days to weeks, the energy of the warm
  ceiling air is transferred into the concrete
  creating a storage sink.
• Space temperature equalizes reducing heating
  loads

13
Free-Hanging Destratification Equipment

• Pros
• Good ROI
• Potential for improved employee comfort
• Significant energy reduction
• Eliminates hot and cold spots
• Moderate product and installation cost
• Lowers existing gas heater maintenance costs
• Easy to move

• Cons
• Doesnt work in all locations or applications

14
Agenda

• The Thermal Stratification Problem and Solution
  Alternatives
• Application Areas
• Case Studies and Economics
• The Rebates
• The Airius Photohydroionization Unit
• Summary

15
Key Airius Application Areas

• Educational institutions gymnasiums,
  auditoriums
• Grocery store shipping, receiving and
  refrigerated areas
• Retail establishments
• Public buildings - atriums, arenas, convention
  halls, airports and maintenance facilities
• Aviation hangers

• Auto, machine shops and construction equipment
  facilities
• Recreational facilities pools, workout areas
• Manufacturing spaces
• High bay heated warehouses
• Distribution centers

16
Agenda

• The Thermal Stratification Problem and Solution
  Alternatives
• Application Areas
• Case Studies Economics
• The Rebates
• The Airius Photohydroionization Unit
• Summary

17
Avedon Engineering, Inc.Longmont Colorado

• Two high bay ceiling tool rooms were retrofitted
  totaling 71,000 sq.ft., with an additional 29,000
  sq.ft. of office space
• 36 units installed
• 67 therm reduction or 45,000 therms from average
  of prior year

18
Installed Base Customers

• Introduced June 2004
• 2,200 units shipped
• 70 customers 40 private, 30 public
• 900 units to Montana Dakota Utilities (MDU)
• DOD customers are the largest segment

19
Selected CustomersOctober 2005

• Public Sector
• Federal, State and Local Governments
• Educational Institutions
• National Guard
• Private Sector
• Aviation and Transportation
• Distribution
• Electrical and Mechanical Contractors
• Energy, Engineering and Design Services
• Manufacturing
• Retail, Restaurants and Hospitality
• Service Facilities
• High Technology
• Religious and Non-Profit

20
Installation Considerations

• Existing ceiling power
• Amount of conduit to install
• Skylights free solar energy
• Ceiling height man-lift
• Building hours install during day/night
• Local lighting contractor labor rates

21
Agenda

• The Thermal Stratification Problem and Solution
  Alternatives
• Application Areas
• Case Studies Economics
• The Rebates
• The Airius Photohydroionization Unit
• Summary

22
Rebates Vary by Utility and State

• Excel Energy offers a rebate in MN, not in CO
• Need to contact the local utility
• Prior to any installation of energy reduction
  equipment
• Develop an estimate of cost saving
• Receive their approval of rebate amount
• City and County of Denver are utilizing rebate
  money to offset capital investment and reduce the
  life cycle cost payback
• Federal tax credits may be available

23
Agenda

• The Thermal Stratification Problem and Solution
  Alternatives
• Application Areas
• Case Studies Economics
• The Rebates
• The Airius Photohydroionization Unit
• Summary

24
Airius Photohydroionization

• Cleans the air of odors, germs and some chemicals

• Provides air circulation and thermal
  equalization to reduce energy consumption
• Improves building air quality and
  staff/student/customer environment

25
Typical Reductions in air
2nd Day 71.2 3rd Day 86.8 4rd Day 95.4
26
Odor Reductions in air
100 90 80 70 60 50 40 30 20 10 0
Off -
24 HOURS
Unit on
Unit off
27
Key Airius PHI Applications

• Day care centers
• Hospitals and clinics
• Nursing homes
• Correction centers
• Smoking establishments
• Waste disposal
• Waste treatment
• Public restrooms

• Educational laboratories
• Recreational locker rooms
• Agriculture Hogs, cattle and dairy
• Food processing
• Grocery stores backroom

28
Agenda

• The Thermal Stratification Problem and Solution
  Alternatives
• Application Areas
• Case Studies and Economics
• The Rebates
• The Airius Photohydroionization Unit
• Summary

29
Key Airius Benefits

• Energy Savings 15 to 60
• Payback 2-4 years
• Utility rebates and possible tax credits
• Lower maintenance of heating units fro reduced
  number of cycles
• Improved comfort for staff/students/customers
• Potential increased productivity from improved
  air environment
• Reduced spoilage from elimination of temperature
  gradients
• Manufacturing process improvements from
  temperature sensitive equipment
• Improved air circulation to eliminate hot and
  cold spots
• Reduced effects of sick building syndrome with
  the Airius PHI

30
CONCLUSIONITS BETTER TO DO SOMETHING THAN
NOTHING
31
Energy Savings Summary
32

• BSRIA Report (Building Services and Research
  Information Association)
• CFD simulations of building 430K ft3
  100x165x26
• 100KW heater 3600 CFM
• Need complete copy of report from BSRIA UK

33
(No Transcript)
34

• Atlanta Gas Light half a degree rise in
  temperature for every foot above thermostat
• Overall energy savings with destratification
  equipment is 0.5 per foot above thermostat
• So 25 ceiling is 20 .05 10
• This is the conservative utility thinking that
  needs to updated

35
New 30K Sq 25 Ceiling
36
Airius Retrofit of Ceiling Fans
37
Airius Customers
38
Appendix
