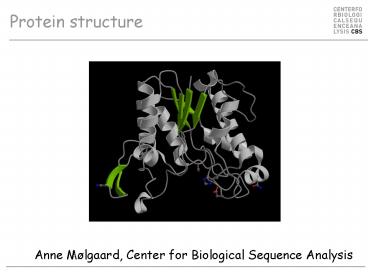

Protein structure

1
Protein structure
Anne Mølgaard, Center for Biological Sequence
Analysis
2
Could the search for ultimate truth really have
revealed so hideous and visceral-looking an
object?
Max Perutz, 1964 on protein structure
John Kendrew, 1959 with myoglobin model
3
Holdings of the Protein Data Bank (PDB)
Sep. 2001 Feb. 2005 X-ray 13116
25350 NMR 2451 4383 theoretical 338 0 tot
al 15905 29733
4
Methods for structure determination
X-ray crystallography Nuclear Magnetic Resonance
(NMR) Modeling techniques
5
Modeling

• Only applicable to 50 of sequences
• Fast
• Accuracy poor for low sequence id.
• There is still need for experimental structure
  determination!

6
Structual genomics consortium (SGC)

• The SGC deposited its 275th structure into the
  Protein Data Bank in August 2006
• currently operating at a pace of 170 structures
  per year
• at a cost of USD125,000 per structure.
• Scientific highlights include
• several (gt 1!!) novel structures of protein
  kinases
• completing the structural descriptions of the
  human 14-3-3
• adenylate kinase and cytosolic sulfotransferase
  protein families
• human chromatin modifying enzymes human inositol
  phosphate signaling
• and a significant number of structures from human
  parasites.

7
Amino acids
http//www.ch.cam.ac.uk/magnus/molecules/amino/
8
Amino acids
A Ala C Cys D Asp E Glu F Phe G Gly H
His I Ile K Lys L Leu M Met N Asn P
Pro Q Gln R Arg S Ser T Thr V Val W
Trp Y - Tyr
Livingstone Barton, CABIOS, 9, 745-756, 1993
9
Levels of protein structure

• Primary
• Secondary
• Tertiary
• Quarternary

10
Primary structure
MKTAALAPLFFLPSALATTVYLA GDSTMAKNGGGSGTNGWGEYL ASYL
SATVVNDAVAGRSAR(etc)
11
Ramachandran plot
left-handed ?-helix
?-sheet
?-helix
12
Hydrophobic core

• Hydrophobic side chains go into the core of the
  molecule but the main chain is highly polar
• The polar groups (CO and NH) are neutralized
  through formation of H-bonds

13
Secondary structure
?-helix CO(n)HN(n4)
?-sheet
(anti-parallel)
14
and all the rest

• 310 helices (CO(n)HN(n3)), p-helices
  (CO(n)HN(n5))
• b-turns and loops (in old textbooks sometimes
  referred to as random coil)

15
The ?-helix has a dipole moment
16
Two types of ?-sheet
parallel
anti-parallel
17
Tertiary structure (domains, modules)
Rhamnogalacturonan acetylesterase (1k7c)
Rhamnogalacturonan lyase (1nkg)
18
Quaternary structure
B.caldolyticus UPRTase (1i5e)
B.subtilis PRPP synthase (1dkr)
19
Protein structure and water
A. aculeatus RG acetylesterase
20
Classification schemes

• SCOP
• Manual classification (A. Murzin)
• CATH
• Semi manual classification (C. Orengo)
• FSSP
• Automatic classification (L. Holm)

21
Levels in SCOP

• Class Folds Superfamilies Families
• All alpha proteins 202 342 550
• All beta proteins 141 280 529
• Alpha and beta proteins (a/b) 130 213 593
• Alpha and beta proteins (ab) 260 386 650
• Multi-domain proteins 40 40 55
• Membrane and cell surface
• proteins 42 82 91
• Small proteins 72 104 162
• Total 887 1447 2630

http//scop.berkeley.edu/count.htmlscop-1.67
22
Major classes in SCOP

• Classes
• All alpha proteins
• Alpha and beta proteins (a/b)
• Alpha and beta proteins (ab)
• Multi-domain proteins
• Membrane and cell surface proteins
• Small proteins

23
All a Hemoglobin (1bab)
24
All b Immunoglobulin (8fab)
25
a/b Triose phosphate isomerase (1hti)
26
ab Lysozyme (1jsf)
27
Folds

• Proteins which have gt50 of their secondary
  structure elements arranged the in the same order
  in the protein chain and in three dimensions are
  classified as having the same fold
• No evolutionary relation between proteins
• confusingly also called fold classes

28
Superfamilies

• Proteins which are (remote) evolutionarily
  related
• Sequence similarity low
• Share function
• Share special structural features
• Relationships between members of a superfamily
  may not be readily recognizable from the sequence
  alone

29
Families

• Proteins whose evolutionarily relationship is
  readily recognizable from the sequence (gt25
  sequence identity)
• Families are further subdivided into Proteins
• Proteins are divided into Species
• The same protein may be found in several species

30
Links

• PDB (protein structure database)
• www.rcsb.org/pdb/
• SCOP (protein classification database)
• scop.berkeley.edu
• CATH (protein classification database)
• www.biochem.ucl.ac.uk/bsm/cath
• FSSP (protein classification database)
• www.ebi.ac.uk/dali/fssp/fssp.html

31
Why are protein structures so interesting?
They provide a detailed picture of
interesting biological features, such as active
site, substrate specificity, allosteric
regulation etc.
They aid in rational drug design and protein
engineering
They can elucidate evolutionary
relationships undetectable by sequence comparisons
32
Inferring biological features from the structure
1deo
Topological switchpoint
33
Inferring biological features from the structure
Active site
Triose phosephate isomerase (1ag1) (Verlinde et
al. (1991) Eur.J.Biochem. 198, 53)
34
Engineering thermostability in serpins
Overpacking Buried polar groups Cavities
Im, Ryu Yu (2004) Engineering thermostability
in serine protease inhibitors PEDS, 17, 325-331.
35
Evolution...
Structure is conserved longer than both sequence
and function
36
Rhamnogalacturonan acetylesterase (A. aculeatus)
(1k7c)
Platelet activating factor acetylhydrolase (Bos
Taurus) (1wab)
Serine esterase (S. scabies) (1esc)
37
Rhamnogalacturonan acetylesterase
Serine esterase
Platelet activating factor acetylhydrolase
Mølgaard, Kauppinen Larsen (2000) Structure, 8,
373-383.
38

• "We wish to suggest a structure for the salt of
  deoxyribose nucleic acid (D.N.A.). This structure
  has novel features which are of considerable
  biological interest.
• It has not escaped our notice that the specific
  pairing we have postulated immediately suggests a
  possible copying mechanism for the genetic
  material."
• J.D. Watson F.H.C. Crick (1953) Nature, 171,
  737.
