Intelligent Agents

1

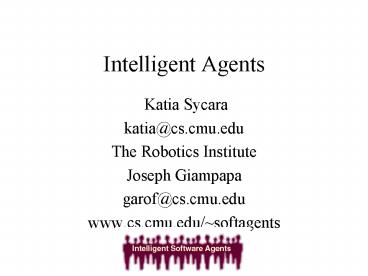

Intelligent Agents

• Katia Sycara
• katia_at_cs.cmu.edu
• The Robotics Institute
• Joseph Giampapa
• garof_at_cs.cmu.edu
• www.cs.cmu.edu/softagents

2
What is an agent?

• An agent is an autonomous computational entity,
  which
• is reactive and proactive
• is goal driven
• is intelligent
• able to reason, plan and sometimes learn
• has domain specific intelligence
• interacts with humans, other agents, and the
  environment via sensors and effectors in a high
  level language/protocol
• anticipates user needs and reacts based on them
• wish list friendly, understands natural lang.,etc

3
Multi-Agent Systems (MAS)

• An agent is more useful in the context of others
• can concentrate on tasks of its expertise
• can delegate other tasks to other experts
• can take advantage of its ability to
  intelligently communicate, coordinate, negotiate
• But, a MAS is not just a collection of agents
• it needs meaningful ways for agents to interact
• it needs some system design and performance
  evaluation

4
MAS - Two Approaches
1. Centralized design

• Build a system that is comprised of agents -
  should provide good performance
• Advantages may arise from
• possibility to develop each agent as an expert
• incorporation of non-local expertise
• rather simple to have multiple developers working
  concurrently
• Example a system within an organization

5
MAS - Two Approaches
2. Open MAS

• Usually, the system has no prior static design,
  only single agents within
• Agents seek others to provide services, without
  knowing in advance who they are
• There is a need for agent finding mechanism
• Other agent may be non-cooperative or untrusted
  or malicious
• Example markets, Internet

6
Centrally Designed MAS
Advantages

• Distributed loads and expertise
• Simplicity and predictability, since
• components are known
• interaction language and protocols are agreed
  upon
• agents can be (and usually are) cooperative
• agents share architecture - software reuse
• Costly maintenance (adding new agents may
  necessitate system re-design)
• May be less fault tolerant. Rigid
• Difficult to inter-operate with others
• Not reflecting real-world requirements (not
  realistic)

Disadvantages
7
Open MAS
Advantages

• Single agent or groups are designed separately
  (modular)
• Flexible, fault tolerant
• Evolutionary design
• Easier to maintain
• Dynamic, open society
• Overall behavior of the system not predictable
• Communication protocols, languages, ontologies
  may vary across agent types
• Self-interest and malicious behavior difficult to
  avoid
• Require more careful agent and interaction
  protocols design
• X

Disadvantages
8
Design and Architecture - Outline

• Design philosophies
• Information processing and needs
• Reactive architectures
• Deliberative architectures
• Layered architectures
• Belief, Desire, Intention (BDI)
• Concurrent architecture (RETSINA)

9
Agent Design Philosophies

• Agents reside in the environment the world and
  other agents
• The environment can be characterized by a set of
  states Ss1,s2,...
• Agents execute actions Aa1,a2,
• An action is a function action S?S, that
  affects the environment via state change
• So, in general, an agent is a set of actions that
  receive input from the world and manipulate the
  state of the world

10
Agent - Environment Interaction
Agent
Action Output
Sensor Input
Environment
11
Architecture Design

• A map of the internal structures of the agent,
  includes
• data structures
• operation that can be performed on them
• control and data flow between the structures
• Starts from a high-level definition and traverses
  through refinements
• Design decisions result in adding details,
  getting closer to code level, reducing generality

12
Information and Processing Needs

• System architecture design needs knowledge of
• what the expected inputs are?
• what the required/expected outputs are?
• what processing can provide this relation between
  input and output?
• For agents, in particular
• what are the possible/expected states of the
  world?
• how should the world state be perceived?
• how should the agents reasoning be affected by
  the world state?
• how should agent reasoning result in agent action?

13
Agent Information Needs

• Is the state of the world sufficient?
• Yes. Usually it is too much
• some or most of it may be inaccessible
• dynamic and possibly non-deterministic
• includes other agents, users, internet, etc
• Perception filters and reduces amount of info.
• Design question what is the minimal set of data
  and how to filter/extract it?

14
Agent Architectures

• Reactive architectures
• Deliberative architectures
• Layered architectures
• Belief, Desire, Intention (BDI)
• Concurrent architecture (RETSINA)

15
Agent Architectures (cont)

• Reactive vs. deliberative
• Reactive agents upon input from the environment,
  they react with action execution
• Deliberative agents upon input, a reasoning
  process is invoked. Action is based on the
  results of the reasoning
• Agents may populate the whole spectrum between
  purely reactive and maximally deliberative
  (rational)

16
Agent Processing Needs

• Reactive agents only need to map between world
  states and actions
• Deliberative agents need to reason for action.
  May include
• taking into account historical states of world
• creating and maintaining an internal state
• reasoning about world and states
• planning, re-planning for current/future action
• learning

17
Agent Processing Needs (continued)

• Collaborative (social) agents need, in addition
• maintain models of other agents and the society
• reason about others
• plan collaborative activity
• reason about interaction communication,
  coordination, collaboration

18
Required Agent Attributes

• Perception - a function perceive S?P, where
  Pp1,p2, a set of percepts
• required for both reactive and deliberative
  agents
• may be provided via sensor or any other input
• Internal state I (records history)
• not necessary for reactive agents
• deliberative agents need to maintain information
  regarding past activity to allow for deliberation
• Reasoning performed mainly by deliberative
  agents, but may be useful for reactive, too
• Learning only in deliberative agents

19
Reactive Architecture
Agent
Perception
Action
Environment
20
Agents without State (Reactive)

• Perception is a function perceive S?P
• Action is a function action S?S,
• Action selection is a function as P?A
• The world state results in a percept via
  perception, the percept results in an action
  selection, and the action transforms the state of
  the world

21
Example Subsumption (Brooks)

• An agent decision making is performed by a set of
  task accomplishing behaviors (TAB)
• In Brooks implementation, each TAB is a finite
  state machine
• In other implementation, TABs are rules of the
  type situation ? action, which maps percepts to
  actions
• In the subsumption architecture, multiple
  behaviors can be activated simultaneously
• Action selection is based on a subsumption
  hierarchy, behaviors arranged in layers, which
  are at different layers of abstraction (layered
  architecture)

22
Reactive Pros and Cons

• Pros
• simplicity, economy
• computational tractability
• fault tolerance
• overall behavior emerges from component
  interaction
• Cons
• without a model of the environment, agents need
  sufficient info. to determine action
• agents are short-sighted, may limit decision
  quality
• relationship between components not clear.

23
Agents with State Deliberative
Agent
Perception
Action
Reasoning
State
Environment
24
Agents with State (Deliberative)

• Perception is still a function perceive S ? P
• Action is still action S?S
• But action selection (was as P?A), is now the
  function as I?A
• In addition, update PI?I is a function that
  update the internal state based on percepts (may
  include complex reasoning)

25
Agents with State Refinement
Agent
Perception
Action
Reasoning
State
planning
learning
inference
Environment
26
Layered Agent Architectures

• Usually, but not always, deliberative
  architectures
• Decision making is performed via separation to
  several software layers
• Each layer reasons at a different level of
  abstraction. Layers interact
• Two major types
• vertical layers perception input and action
  output are dealt with by a single layer each
• horizontal layers each layer directly connects
  to perception input and action output

27
Layers design

• Typically, at least two layers, one for reactive
  behavior and one for proactive
• No reason not to have multiple layers
• Typology information and control flow between
  the layers, e.g.

Agent
Perception
Action
28
Information and Control Flow
Action output
Perceptual input
Action output
Perceptual input
Perceptual input
Action output
Horizontal Vertical (one pass)
Vertical (two pass)
29
Layers Pros and Cons

• Horizontal
• each layer acts like an agent - provides
  independency, simplicity
• for n different behaviors we implement n layers
• competition between layers can cause incoherence
• need for mediation between layers exponentially
  complex, a control bottleneck
• Vertical
• Low complexity, no control bottleneck
• Less flexible and not fault tolerant one
  decision needs all layers

30
TOURINGMACHINES

• Three layers produce suggestions for action
• reactive implements situation-action rules as in
  Brooks subsumption architecture
• planning achieves proactiveness via plans based
  on a library of schemas
• modeling model of world, other agents, self,
  predicts conflicts, generates goals to resolve
  them
• Domain of implementation multiple vehicles

31
Example TOURINGMACHINES
Perception input
Modeling layer
Perception subsystem
Action subsystem
Planning layer
Reactive layer
Action output
Control subsystem
32
INTERRAP

• A vertically layered two pass architecture
• Layers have similar purposes as in
  TOURINGMACHINES
• Each layer is associated with a knowledge-base
• Layers interact with each other
• bottom-up activation
• top-down execution

33
Example INTERRAP
Cooperation layer
Social knowledge
Plan layer
Planning knowledge
Behavior layer
World model
World interface
Perception input
Action output
34
Belief-Desire-Intention Architecture

• Based on practical reasoning and decision on
  actions. Involves
• decision on what goals we want to achieve
  deliberation
• decision on how to achieve these goals
  means-ends reasoning
• Choosing some options creates intentions. These
• usually lead to action
• should persist
• once adopted, an agent should persist with the
  intention, attempt to achieve it
• the intention should be dropped if
• it is clearly non-achievable
• it was already achieved
• the reason for the intention is not there anymore
• are related to beliefs about the future

35
BDI Architecture Components

• A set of current beliefs about the environment
• A belief revision function (brf) - updates
  current beliefs based on perception
• An option generation function - determines
  available options (desires) based on beliefs and
  intentions
• A set of desires (current options) - possible
  courses of action available
• A set of current intentions - the options the
  agents is committed to trying to perform
• A filter function (deliberation) - determines new
  intentions based on current beliefs, desires,
  intentions
• An action selection function - selects actions
  based on intentions

36
Schematic BDI Architecture
Perception input
brf
beliefs
Generate options
desires
filter
intentions
action
Action output
37
BDI Pros and Cons

• Key problem difficult to balance between mental
  activities
• Example dropping intentions requires
  reconsideration, which is costly but needed
• Rate of environment change helps set
  re-consideration
• Questionable what advantage do mental states
  provide?
• Intuitive, provides functional decomposition
• Easy to define formally, using logic, and convert
  to code

38
Concurrent Architectures(RETSINA Sycara al.)

• Include multiple functional and knowledge modules
  that work concurrently
• Coherence between the functional modules is
  achieved via shared databases
• Typical functional separation
• communication and collaboration
• planning and reasoning
• action scheduling
• execution and monitoring

39
Example RETSINA Agent Architecture
40
Functional Components

• Communicator handles incoming and outgoing
  messages in an ACL. Converts requests into
  goals/objectives
• Planner takes objectives and devises detailed
  plans to achieve them. Creates tasks, actions and
  new objectives. Uses plan fragments from
  libraries
• Scheduler schedules actions for execution
• Execution monitor executes actions and monitors
• Coordination/collaboration reasons for such
  activities, may be internal to planner or to
  communicator
• Self-awareness maintains self model load,
  state, etc

41
Planning

• By incremental instantiation of plan fragments
• Conditional planning mechanisms
• Interleaving planning, information gathering, and
  execution
• Declarative description of information flow and
  control flow requirements

11
42
Task decomposition
43
Knowledge Components

• Objective DB holds the agents objectives
• Task DB holds the agents tasks and actions,
  before they are scheduled for execution
• Schedule holds scheduled actions
• Task reduction library includes a set of
  possible task decompositions
• Task schema library includes plan fragments,
  each provides details on how to perform a task
• Beliefs DB holds the beliefs of the agent
  regarding information relevant to its activity

44
Architecture Attributes

• Functional components do not directly interface
  or synchronize with each other
• Knowledge components do not directly interface or
  synchronize with each other
• Functional components work concurrently
• These provide
• reusability and substitutability of components
• efficient utilization of computational resources
• timely task performance
• reduced development effort

45
RETSINA Agent Functionality

• Interacts with humans and other agents
• Anticipates and satisfy human information needs
• Provides decision support
• Integrates planning, information gathering and
  execution
• Acquires, use and disseminate timely and relevant
  information
• Adapts to user, task and situation

10
