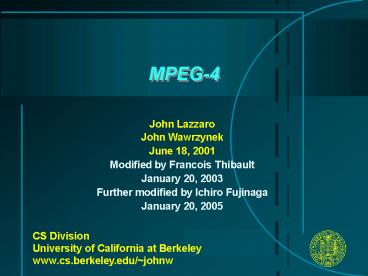

MPEG-4

1
MPEG-4
John Lazzaro John Wawrzynek June 18,
2001 Modified by Francois Thibault January 20,
2003 Further modified by Ichiro Fujinaga January
20, 2005
CS Division University of California at
Berkeley www.cs.berkeley.edu/johnw
2
MPEG 4 Standard

• Finalized its standardization process in 1999
  (Vancouver)
• Design to integrate visual and audio
• Includes "natural" (recorded) and "synthetic"
  (synthesized) coding of audio and video

3
MPEG 4 Scope

• Provides a set of technologies to satisfy the
  needs of
• authors
• network service providers
• end users
• Enables the production of content that has far
  greater reusability in
• digital television
• animated graphics
• web pages

4
MPEG 4 Features

• MPEG-4 provide standardized ways to
• represent units of aural, visual or audiovisual
  content, called media objects
• Natural origin
• Synthetic origin
• recorded with a camera or microphone, or
  generated with a computer
• describe the composition of these objects to
  create compound media objects that form
  audiovisual scenes
• multiplex and synchronize the data associated
  with media objects, so that they can be
  transported over networks providing a QoS
  (Quality of Service)
• interact with the audiovisual scene generated at
  the receivers end

5
MPEG 4 Standard (audio)
MPEG 4
audio
system
video
Natural coding
Synthetic coding
SA
TTS
AAC
T/F
CELP
Parametric
ISO/IEC 14496-3 sec5
6
MPEG 4 Audio Natural (recorded)

• AAC The Advanced Audio Coding
• Originally created as an extension to MPEG-2
• Provides better quality at 64 kbit/sec/channel
  than MP3 does at 128 kbit/sec/channel
• CELP A codebook-excited linear prediction
• scheme optimized for telephone- quality
  transmission of speech in the range 8-32 kbps
• Parametric
• A novel "harmonic vector noise" method that
  allows lossy but extremely low-bitrate coding of
  wideband sounds down to 2 kbps/sec/ channel

7
MPEG 4 Audio Synthetic (synthesized)

• Structured Audio
• A downloadable synthesis method that allows
  producers to describe new synthesis methods as
  part of the bitstream
• the receiver implements a reconfigurable
  synthesis engine and synthesizes the sound
  on-the-fly as the instructions are received
• Text-to-Speech
• An interface to standalone TTS systems is
  provided, so that synthetic speech can be
  synchronized in multimedia presentations
• No "method" of creating synthetic speech is
  standardized by MPEG

8
MPEG 4 Standard - Structured Audio
MPEG 4
audio
system
video
Natural coding
Synthetic coding
SA
TTS
AAC
T/F
CELP
Parametric
Structured Audio One component in the MPEG
audio standard.
ISO/IEC 14496-3 sec5
9
Audio Compression Basics
10
The Kolmogorov alternative

• Write a computer program that generates the
  desired audio stream.
• Transmit the computer program.
• To decode, execute the program.

Similar to Postscript!

• MPEG-4 Structured Audio (MP4-SA) uses this
  approach.
• Eric Scheirer, Editor (MIT Media Lab).
• http//sound.media.mit.edu/eds/mpeg4/

11
MP4-SA Encoding

• may be a creative act writing a program.
• directly (emacs), or
• indirectly (GUI, webpage)
• In this case, MP4-SA is a lossless compressor.
• may be automatic given a sound, an encoder
  writes a program that generates the sound.
• Automatic encoding is a hard in the general case.

12
Key Application Music Production

• Modern music production is computer-based.
• Musicians enter performances into computers as
  control information, not audio waveforms.
• Digital synthesizers, effects, and mixes create
  the final audio, under engineer/producer control.

13
Key Application Music Production

• Modern music production is computer-based.
• Musicians enter performances into computers as
  control information, not audio waveforms.
• Digital synthesizers, effects, and mixes create
  the final audio, under engineer/producer control.

Ideal for collaborative productions, remixes, and
...
14
Key Application Music Performance

• Music Performance requires dynamic control.
• True interactively requires parameterized sounds.
• Musicians control instruments and effects with
  interactive controllers.
• Control could be indirect and remote (ex games).

15
MPEG 4 Structured Audio

• A binary file format that encodes
• The programming language SAOL (pronounced sail).

• The musical score language SASL.
• Legacy support for MIDI.
• Audio sample data.
• Result is normative an MP4-SA file will sound
  identical on all compliant decoders.
• Different from MIDI files.

16
Why SAOL and MP4-SA?Why not Java?

• Musical performance have temporal structure that
  changes over several timescales

• Writing sound generation code in a conventional
  language results in code dominated by time-scale
  management.
• Hard to maintain, hard to optimize.

17
Time management is built into SAOL.

• A SAOL program executes by moving a simulated
  clock forward in time, performing calculations
  along the way in a synchronous fashion.
• Work is scheduled to happen
• at the a-rate (the audio sample rate)
• at the k-rate (envelope control rate)
• at the i-rate (rate for new notes)
• Language variables are typed as a/k/i-rate.
• A language statement is scheduled based on the
  rate of the variables it contains.

18
SAOL, SASL, and Scheduling

• Sound creation in MP4-SA can be compared to a
  musician playing notes on an instrument.
• A SAOL subprogram (called an instr or instrument)
  serves as the instrument.
• SASL commands (called score lines) act to play
  notes on SAOL instruments.
• Many instances of a SAOL instr can be active at
  one time, making sounds corresponding to notes
  launched by different score lines in a SASL file.

19
An example

• SAOL instrument tone, that plays a gated sine
  wave. (SAOL code in next slide.)

20
SAOL code for tone
instr tone (note, loudness) ivar a //
sets osc f ksig env // env output asig
x, y // osc state asig init a
2sin(3.141597cpsmidi(note)/s_rate) env
kline(0, 0.1, 0.5, dur-0.2, 0.5, 0.1, 0) if
(init 0) // first a-pass only x
loudness init 1 x x - ay
// the FLOPS happen in y y ax //
these 3 statements output(yenv) //
creates audio output // end of instr tone
21
SAOL Features

• Rate semantics
• i/k/a-rate execution
• Vector arithmetic
• ex ABC ? for i1,n AiBiCi
• All floating-point arithmetic.
• Extensive build-in audio function library
• signal generators, table operators, pitch
  converters, filters, fft, sample rate conversion,
  effects, ...

22
Sfront - a SAOL-to-C translator

• Converts MP4-SA files to a ANSI C program, that
  when executed, produces audio.

• Runs on UNIX, Windows, MacOS.
• Under Linux, supports real-time MIDI input,
  real-time audio input and output, and MIDI over
  RTP (Real Time Protocol).
• www.cs.berkeley.edu/lazzaro/sa

23
Generator Techniques

• Much of the SA standard describes a library
• 104 core opcodes (ex pow(), allpass(), reverb()
  )
• 16 wave table generators (ex harm, spline,
  random)
• Sfront optimizes the code produced for each
  library element instance based on the invocation
  attributes
• rate, width, size, constancy, integral nature of
  the parameters, number of paramaters

24
Conclusions

• MP4-SA puts emphasis on sound synthesis methods
  that can be described in a small amount of space.

• Physical Modeling
  good
• Sampling Natural Instruments bad
• If models are chosen carefully, compression
  ratios of 100 to 10,000 are possible.
• MP4-SA specifies that a decoder produces audio
  that sounds identical to computing the program
  accurately.
