Grid Computing and the Globus Toolkit

1

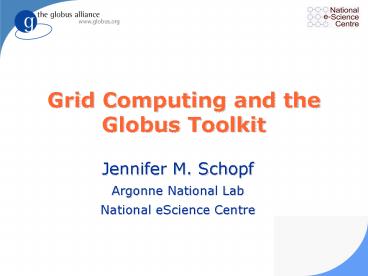

Grid Computing and the Globus Toolkit

• Jennifer M. Schopf
• Argonne National Lab
• National eScience Centre

2

• A Bit of Background
• Grid Architecture Overview
• Working With Applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an Example Application
• Globus Toolkit 4.0 and Futures
• Some Other Resources

3
What is a Grid

• Resource sharing
• Computers, storage, sensors, networks,
• Sharing always conditional issues of trust,
  policy, negotiation, payment,
• Coordinated problem solving
• Beyond client-server distributed data analysis,
  computation, collaboration,
• Dynamic, multi-institutional virtual orgs
• Community overlays on classic org structures
• Large or small, static or dynamic

4
Not A New Idea

• Late 70s Networked operating systems
• Late 80s Distributed operating system
• Early 90s Heterogeneous computing
• Mid 90s - Metacomputing
• Then the Grid Foster and Kesselman, 1999
• Also called parallel distributed computing

5
Why is this hard/different?

• Lack of central control
• Where things run
• When they run
• Shared resources
• Contention, variability
• Communication
• Different sites implies different sys admins,
  users, institutional goals, and often strong
  personalities

6
So why do it?

• Computations that need to be done with a time
  limit
• Data that cant fit on one site
• Data owned by multiple sites
• Applications that need to be run bigger, faster,
  more

7
History

• In the early 90s, Ian Foster (ANL, U-C) and Carl
  Kesselman (USC-ISI) enjoyed helping scientists
  apply distributed computing.
• Opportunities seemed ripe for the picking.
• Application of technology always uncovers new and
  interesting requirements.
• Science is cool!
• Big/Innovative science is even cooler!

8
History (continued)

• While helping to build/integrate a diverse range
  of applications, the same problems kept showing
  up over and over again.
• Too many different security systems
• Too many different scheduling/execution
  mechanisms
• Too many different storage systems
• Too many different monitoring/status/event systems

9
What Kinds of Applications?

• Computation intensive
• Interactive simulation (climate modeling)
• Very large-scale simulation and analysis (galaxy
  formation, gravity waves, battlefield simulation)
• Engineering (parameter studies, linked component
  models)
• Data intensive
• Experimental data analysis (high-energy physics)
• Image and sensor analysis (astronomy, climate
  study, ecology)
• Distributed collaboration
• Online instrumentation (microscopes, x-ray
  devices, etc.)
• Remote visualization (climate studies, biology)
• Engineering (large-scale structural testing,
  chemical engineering)
• In all cases, the problems were big enough that
  they required people in several organization to
  collaborate and share computing resources, data,
  instruments.

10
What Types of Problems?

• Too hard to keep track of authentication data
  (ID/password) across institutions
• Too hard to monitor system and application status
  across institutions
• Too many ways to submit jobs
• Too many ways to store access files and data
• Too many ways to keep track of data
• Too easy to leave dangling resources lying
  around (robustness)

11
Getting Started

• A bit of background
• Grid Architecture Overview
• Working with applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an example application
• Globus Toolkit 4.0 and Futures

12
Evolution of the Grid
App-specific Services
Open Grid Services Arch
Web services
Increased functionality, standardization
GGF OGSI, WSRF, (leveraging OASIS, W3C,
IETF) Multiple implementations, including Globus
Toolkit
X.509, LDAP, FTP,
Globus Toolkit
Defacto standards GGF GridFTP, GSI (leveraging
IETF)
Custom solutions
Time
13
With Grid Computing Forget Homogeneity!

• Trying to force homogeneity on users is futile.
  Everyone has their own preferences, sometimes
  even dogma.
• The Internet provides the model

14
Service-Oriented Architecture

• Idea is simple (and old)
• Define remote activities in terms of interface
  and behavior, not implementation
• Devil is in the details
• How to describe, discover, access, various type
  of service (semantically practically)
• Latest instantiation Web services
• Broad adoption, flexible XML-based model
• WSDL, SOAP, WS-Security
• Interfaces still being defined to date
• Performance challenges

15
Open Grid Services Architecture

• Define a service-oriented architecture
• the key to effective virtualization
• to address vital Grid requirements
• AKA utility, on-demand, system management,
  collaborative computing, etc.
• building on Web service standards.
• extending those standards when needed

16
Grid and Web Services Convergence

• The definition of WSRF means that the Grid and
  Web services communities can move forward on a
  common base.

17
WS Core Enables FrameworksE.g., Resource
Management
Applications of the framework(Compute, network,
storage provisioning,job reservation
submission, data management,application service
QoS, )
WS-Agreement(Agreement negotiation)
WS Distributed Management(Lifecycle, monitoring,
)
WS-Resource Framework WS-Notification
() (Resource identity, lifetime, inspection,
subscription, )
Web services(WSDL, SOAP, WS-Security,
WS-ReliableMessaging, )
An evolution of Open Grid Services
Infrastructure (OGSI)
18
WSRF WS-Notification

• Naming and bindings (basis for virtualization)
• Every resource can be uniquely referenced, and
  has one or more associated services for
  interacting with it
• Lifecycle (basis for fault resilient state
  management)
• Resources created by services following factory
  pattern
• Resources destroyed immediately or scheduled
• Information model (basis for monitoring
  discovery)
• Resource properties associated with resources
• Operations for querying and setting this info
• Asynchronous notification of changes to
  properties
• Service Groups (basis for registries collective
  svcs)
• Group membership rules membership management
• Base Fault type

19
Theory -gt Practice
20

• A Bit of Background
• Grid Architecture Overview
• Working With Applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an Example Application
• Globus Toolkit 4.0 and Futures
• Some Other Resources

21
Methodology

• Building a Grid system or application is
  currently an exercise in software integration.
• Define user requirements
• Derive system requirements or features
• Survey existing components
• Identify useful components
• Develop components to fit into the gaps
• Integrate the system
• Deploy and test the system
• Maintain the system during its operation
• This should be done iteratively, with many loops
  and eddys in the flow.

22
Who Is the Grid For?

• Any Grid (distributed/collaborative) application
  or system will involve several classes of
  people.
• End users (e.g., Scientists, Engineers,
  Customers)
• Application/Product Developers
• System Administrators
• System Architects and Integrators
• Each user class has unique skills and unique
  requirements.
• The user class whose needs are met varies from
  tool to tool (even within the Globus Toolkit).

23
How it Really Happens

• Implementations are provided by a mix of
• Application-specific code
• Off the shelf tools and services
• Tools and services from the Globus Toolkit
• Tools and services from the Grid community
  (compatible with GT)
• Glued together by
• Application development
• System integration

24
How it Really Happens
ComputeServer
SimulationTool
ComputeServer
WebBrowser
WebPortal
RegistrationService
Camera
TelepresenceMonitor
DataViewerTool
Camera
Database service
ChatTool
DataCatalog
Database service
CredentialRepository
Database service
Certificate authority
Resources implement standard access management
interfaces
Collective services aggregate /or virtualize
resources
Users work with client applications
Application services organize VOs enable access
to other services
25
How it Really Happens(without the Grid)
ComputeServer
A
SimulationTool
ComputeServer
B
WebBrowser
WebPortal
RegistrationService
Camera
TelepresenceMonitor
DataViewerTool
Camera
Database service
C
ChatTool
DataCatalog
Database service
D
CredentialRepository
Database service
E
Certificate authority
Resources implement standard access management
interfaces
Collective services aggregate /or virtualize
resources
Users work with client applications
Application services organize VOs enable access
to other services
26
How it Really Happens(with the Grid)
ComputeServer
GlobusGRAM
SimulationTool
ComputeServer
GlobusGRAM
WebBrowser
CHEF
Globus IndexService
Camera
TelepresenceMonitor
DataViewerTool
Camera
Database service
GlobusDAI
CHEF ChatTeamlet
GlobusMCS/RLS
Database service
GlobusDAI
MyProxy
Database service
GlobusDAI
CertificateAuthority
Resources implement standard access management
interfaces
Collective services aggregate /or virtualize
resources
Users work with client applications
Application services organize VOs enable access
to other services
27

• A Bit of Background
• Grid Architecture Overview
• Working With Applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an Example Application
• Globus Toolkit 4.0 and Futures
• Some Other Resources

28
Globus IsStandard Plumbing for the Grid

• Not turnkey solutions, but building blocks and
  tools for application developers and system
  integrators.
• Some components (e.g., file transfer) go farther
  than others (e.g., remote job submission) toward
  end-user relevance.
• Since these solutions exist and others are
  already using them (and theyre free), its
  easier to reuse than to reinvent.
• And compatibility with other Grid systems comes
  for free!

29
Leveraging Existingand Proposed Standards

• SSL/TLS v1 (from OpenSSL) (IETF)
• LDAP v3 (from OpenLDAP) (IETF)
• X.509 Proxy Certificates (IETF)
• GridFTP v1.0 (GGF)
• OGSI v1.0 (GGF)
• And others on the road to standardization
• WSRF (GGF, OASIS), DAI, WS-Agreement, WSDL 2.0,
  WSDM, SAML, XACML

30
What Is the Globus Toolkit?

• The Globus Toolkit is a collection of solutions
  to problems that frequently come up when trying
  to build collaborative distributed applications.
• Heterogeneity
• To date (v1.0 - v4.0), the Toolkit has focused on
  simplifying heterogenity for application
  developers.
• We aspire to include more vertical solutions in
  future versions.
• Standards
• Our goal has been to capitalize on and encourage
  use of existing standards (IETF, W3C, OASIS,
  GGF).
• The Toolkit also includes reference
  implementations of new/proposed standards in
  these organizations.

31
What Does the Globus Toolkit Cover?
32
Areas of Competence

• Connectivity Layer Solutions
• Service Management (WSRF)
• Monitoring/Discovery (WSRF and MDS)
• Security (GSI and WS-Security)
• Communication (XIO)
• Resource Layer Solutions
• Computing / Processing Power (GRAM)
• Data Access/Movement (GridFTP, OGSA-DAI)
• Collective Layer Solutions
• Data Management (RLS, MCS, OGSA-DAI)
• Monitoring/Discovery (MDS)
• Security (CAS)

33
What Is the Globus Toolkit?

• A Grid development environment
• Develop new OGSA-compliant Web Services
• Develop applications using Java or C/C Grid
  APIs
• Secure applications using basic security
  mechanisms
• A set of basic Grid services
• Job submission/management
• File transfer (individual, queued)
• Database access
• Data management (replication, metadata)
• Monitoring/Indexing system information
• Tools and Examples
• The prerequisites for many Grid community tools
• Note GT3 and GT4 releases include both WS and
  pre-WS components!

34
(No Transcript)
35
How To Use the Globus Toolkit

• By itself, the Toolkit has surprisingly limited
  end user value.
• Theres very little user interface material
  there.
• You cant just give it to end users (scientists,
  engineers, marketing specialists) and tell them
  to do something useful!
• The Globus Toolkit is useful to application
  developers and system integrators.
• Youll need to have a specific application or
  system in mind.
• Youll need to have the right expertise.
• Youll need to set up prerequisite
  hardware/software.
• Youll need to have a plan.

36
Easy to Use But Few Applications are Easy

• The uses that the Toolkit has been aimed at are
  not easy challenges!
• The Globus Toolkit makes them easier.
• Providing solutions to the most common problems
  and promoting standard solutions
• A well-designed implementation that allows many
  things to be built on it (lots of happy
  developers!)
• 6 years of providing support to Grid builders
• Ever-improving documentation, installation,
  configuration, training

37
GlobalCommunity
38
100,000 ComputersA Healthy Computing Pyramid
Today
Supercomputer
Cluster
Desktop
39

• A Bit of Background
• Grid Architecture Overview
• Working With Applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an Example Application
• Globus Toolkit 4.0 and Futures
• Some Other Resources

40
Review How it Really Happens

• Implementations are provided by a mix of
• Application-specific code
• Off the shelf tools and services
• Tools and services from the Globus Toolkit
• Tools and services from the Grid community
  (compatible with GT)
• Glued together by
• Application development
• System integration

41
Iterative Design

• Ideal for cutting-edge activities where detailed
  needs and the final goal arent fully known
  ahead of time.
• Provides maximum adaptability, course correction.
• Produces useful results early.

42

• Grid2003 An Operational Grid
• 28 sites (2100-2800 CPUs) growing
• 400-1300 concurrent jobs
• 8 substantial applications CS experiments
• Running since October 2003

Korea
http//www.ivdgl.org/grid2003
43
Computation-IntensiveScience Grid2003

• GriPhyN - Grid Physics Network (NSF)
• iVDGL - International Virtual Data Grid
  Laboratory (NSF)
• LCG - LHC Computing Grid (EU)
• PPDG - Particle Physics Data Grid (DOE)

44
Grid2003 Project Goals

• Ramp up U.S. Grid capabilities in anticipation of
  LHC experiment needs in 2005.
• Build, deploy, and operate a working Grid.
• Include all U.S. LHC institutions.
• Run real scientific applications on the Grid.
• Provide state-of-the-art monitoring services.
• Cover non-technical issues (e.g., SLAs) as well
  as technical ones.
• Unite the U.S. CS and Physics projects that are
  aimed at support for LHC.
• Common infrastructure
• Joint (collaborative) work

45
Grid2003 Requirements

• General Infrastructure
• Support Multiple Virtual Organizations
• Production Infrastructure
• Standard Grid Services
• Interoperability with European LHC Sites
• Easily Deployable
• Meaningful Performance Measurements

46
Grid2003 Applications

• 6 VOs, 11 Apps
• CMS proton-proton collision simulation
• ATLAS proton-proton collision simulation
• LIGO gravitational wave search
• SDSS galaxy cluster detection
• ATLAS interactive analysis
• BTeV proton-antiproton collision simulation
• SnB biomolecular analysis
• GADU/Gnare genone analysis
• Various computer science experiments

47
ExampleGrid2003Workflows
Genome sequence analysis
Sloan digital sky survey
Physics data analysis
48
Grid2003 Components

• Security
• GT GSI, CAS, GSI-OpenSSH
• Monitoring
• GT MDS, MonALISA, Ganglia
• Job Submission
• GT GRAM, Condor-G, Chimera Pegasus
• Data Tools
• GT GridFTP, GT RLS, GT MCS

49
Grid2003 Components

• Computers storage at 28 sites (to date)
• 2800 CPUs
• Uniform service environment at each site
• Globus Toolkit provides basic authentication,
  execution management, data movement
• Pacman installation system enables installation
  of numerous other VDT and application services
• Global virtual organization services
• Certification registration authorities, VO
  membership services, monitoring services
• Client-side tools for data access analysis
• Virtual data, execution planning, DAG management,
  execution management, monitoring
• IGOC iVDGL Grid Operations Center

50
System Overview
51
Grid2003 Operation

• All software to be deployed is integrated in the
  Virtual Data Toolkit (VDT) distribution.
• Each participating institution deploys the VDT on
  their systems, which provides a standard set of
  software and configuration.
• A core software team (GriPhyN, iVDGL) is
  responsible for integration and development.
• A set of centralized services (e.g., directory
  services) is maintained Grid-wide.
• Applications are developed with VDT capabilities,
  architecture, and services directly in mind.

52
Grid2003 Deployment

• Software installed at more than 25 U.S. LHC
  institutions, plus one Korean site.
• More than 2000 CPUs in total.
• More than 100 individuals authorized to use the
  Grid.
• Peak throughput of 500-900 jobs running
  concurrently, completion efficiency of 75.

53
Grid2003 Interesting Points

• Each virtual organization includes its own set of
  system resources (compute nodes, storage, etc.)
  and people. VO membership info is managed
  system-wide, but policies are enforced at each
  site.
• Throughput is a key metric for success, and
  monitoring tools are used to measure it and
  generate reports for each VO.

54
Grid2003 Metrics
55
Grid2003 Summary

• Working Grid for wide set of applications
• Joint effort between application scientists,
  computer scientists
• Globus software as a starting point, additions
  from other communities as needed

56

• A Bit of Background
• Grid Architecture Overview
• Working With Applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an Example Application
• Globus Toolkit 4.0 and Futures
• Some Other Resources

57
The Globus Toolkit Ecosystem

• Pieces of the Grid world-
• Globus Toolkit and associated software
• Security
• Monitoring
• Resource management
• Portals
• Packaging

58
Why Grid Security is Hard

• Resources being used may be valuable the
  problems being solved sensitive
• Resources are often located in distinct
  administrative domains
• Each resource has own policies procedures
• Set of resources used by a single computation may
  be large, dynamic, and unpredictable
• Not just client/server, requires delegation
• It must be broadly available applicable
• Standard, well-tested, well-understood protocols
  integrated with wide variety of tools

59
Security Tools

• Basic Grid Security Mechanisms
• Certificate Generation Tools
• Certificate Management Tools
• Getting users registered to use a Grid
• Getting Grid credentials to wherever theyre
  needed in the system
• Authorization/Access Control Tools
• Storing and providing access to system-wide
  authorization information

60
Basic Grid Security Mechanisms

• Basic Grid authentication and authorization
  mechanisms come in two flavors.
• Pre-Web services
• Web services
• Both are included in the Globus Toolkit, and both
  provide vital security features.
• Grid-wide identities implemented as PKI
  certificates
• Transport-level and message-level authentication
• Ability to delegate credentials to agents
• Ability to map between Grid local identities
• Local security administration enforcement
• Single sign-on support implemented as proxies
• A plug in framework for authorization decisions

61
Basic Grid Security Mechanisms

• Basic security mechanisms are provided as
  libraries/classes and APIs.
• Integrated with other GT tools and services
• Integrated with many Grid community tools and
  services (and applications systems)
• A few stand-alone tools are also included.

62
A Cautionary Note

• Grid security mechanisms are tedious to set up.
• If exposed to users, hand-holding is usually
  required.
• These mechanisms can be hidden entirely from end
  users, but still used behind the scenes.
• These mechanisms exist for good reasons.
• Many useful things can be done without Grid
  security.
• It is unlikely that an ambitious project could go
  into production operation without security like
  this.
• Most successful projects end up using Grid
  security, but using it in ways that end users
  dont see much.

63
Globus Certificate Service

• An online service that issues low-quality GSI
  certificates
• Intended for people who want to experiment with
  Grid components that require certificates but do
  not have any other means of acquiring
  certificates.
• These certificates are not to be used on
  production systems.
• Not a true Certificate Authority (CA)
• No revoking or reissuing certificates
• No verification of identities
• The service itself is not especially secure.

64
Simple CA

• A convenient method of setting up a certificate
  authority (CA).
• The Certificate Authority can then be used to
  issue certificates for users and services that
  work with GSI and WS-Security.
• Simple CA is intended for operators of small Grid
  testing environments and users who are not part
  of a larger Grid.
• Most production Grids will not accept
  certificates that are not signed by a well-known
  CA, so the certificates generated by Simple CA
  will usually not be sufficient to gain access to
  production services.

65
MyProxy

• MyProxy is a remote service that stores user
  credentials.
• Users can request proxies for local use on any
  system on the network.
• Web Portals can request user proxies for use with
  back-end Grid services.
• Grid administrators can pre-load credentials in
  the server for users to retrieve when needed.
• Greatly simplifies certificate management!

66
CAS Community Authorization Service

• CAS allows resource providers to specify
  course-grained access control policies in terms
  of communities as a whole.
• Fine-grained access control is delegated to the
  community.
• Resource providers maintain ultimate authority
  over their resources (including per-user control
  and auditing) but are spared most day-to-day
  policy administration tasks.

67
VOMS

• A community-level group membership system
• Database of user roles
• Administrative tools
• Client interface
• voms-proxy-init
• Uses client interface to produce an attribute
  certificate (instead of proxy) that includes
  roles capabilities signed by VOMS server
• Works with non-VOMS services, but gives more info
  to VOMS-aware services
• Allows VOs to centrally manage user roles

68
Monitoring and Discovery Challenges

• Grid Information Service
• Requirements and characteristics
• Uniform, flexible access to information
• Scalable, efficient access to dynamic data
• Access to multiple information sources
• Decentralized maintenance
• Secure information provision

69
Monitoring/Discovery Tools

• Basic WSRF Infrastructure Components
• Specialized Monitoring/Discovery Components
• Specialized collection/monitoring agents
• Viewing and display tools for showing system
  information for a variety of specialized purposes

70
WSRF Infrastructure Elements

• WS Core Monitoring Features
• Every service produces Resource Properties so
  monitoring is baked right in to WSRF
• Non-WSRF services can also provide information
  from wrappers
• Index Service
• Collection point for a set of data (registry)
• Also has last value of data in cache
• Indexes can be set up for a variety of uses,
  projects

71
Monitoring and Discovery Service in GT4 (MDS4)

• WS-RF compatible
• Monitoring of basic service data
• Primary use case is discovery of services
• Starting to be used for up/down statistics

72
MDS4 Information Providers

• Code that generates resource property information
• Were called service data providers in GT3
• XML Based not LDAP
• Basic cluster data
• Interface to Ganglia
• GLUE schema
• Some service data from GT4 services
• Start, timeout, etc
• Soft-state registration
• Push and pull data models

73
Ganglia Cluster Toolkit

• Ganglia is a toolkit for monitoring clusters and
  aggregations of clusters (hierarchically).
• Ganglia collects system status information and
  makes it available via a web interface.
• Ganglia status can be subscribed to and
  aggregated across multiple systems.
• Integrating Ganglia with MDS services results in
  status information provided in the proposed
  standard GLUE schema, popular in international
  Grid collaborations.

74
MDS4 Index Service

• Index Service is both registry and cache
• Subscribes to information providers
• Data, datatype, data provider information
• Caches last value of all data
• In memory default approach

75
MDS4 Trigger Service

• Compound consumer-producer service
• Subscribe to a set of resource properties
• Set of tests on incoming data streams to evaluate
  trigger conditions
• When a condition matches, email is sent to
  pre-defined address
• GT3 tech-preview version in use by ESG
• GT4 version alpha is in GT4 alpha release
  currently available

76
MDS4 Archive Service

• Compound consumer-producer service
• Subscribe to a set of resource properties
• Data put into database (Xindice)
• Other consumers can contact database archive
  interface
• Will be Tech Preview in GT4 Final release

77
Computing/Processing Tools

• Workflow Managers
• Organize and coordinate task execution within a
  complicated application
• Often coordinates data movement and task
  execution
• Metaschedulers
• Optimize use of distributed compute pools
• Virtual Data Tools
• Manage the trade-off between data storage and
  processing power

78
The Resource Management Challenge

• Enabling secure, controlled remote access to
  heterogeneous computational resources and
  management of remote computation
• Authentication and authorization
• Resource discovery characterization
• Reservation and allocation
• Computation monitoring and control
• Addressed by a set of protocols services
• GRAM protocol as a basic building block
• Resource brokering co-allocation services
• GSI for security, MDS for discovery

79
GRAM - Basic Job Submission and Control Service

• A uniform service interface for remote job
  submission and control
• Includes file staging and I/O management
• Includes reliability features
• Supports basic Grid security mechanisms
• Available in Pre-WS and WS
• GRAM is not a scheduler.
• No scheduling
• No metascheduling/brokering
• Often used as a front-end to schedulers, and
  often used to simplify metaschedulers/brokers

80
CondorG

• The Condor project has produced a helper
  front-end to GRAM
• Managing sets of subtasks
• Reliable front-end to GRAM to manage
  computational resources
• Note this is not Condor which promotes
  high-throughput computing, and use of idle
  resources

81
Chimera Virtual Data

• Captures both logical and physical steps in a
  data analysis process.
• Transformations (logical)
• Derivations (physical)
• Builds a catalog.
• Results can be used to replay analysis.
• Generation of DAG (via Pegasus)
• Execution on Grid
• Catalog allows introspection of analysis process.

Sloan Survey Data
Galaxy cluster size distribution
82
Pegasus Workflow Transformation

• Converts Abstract Workflow (AW) into Concrete
  Workflow (CW).
• Uses Metadata to convert user request to logical
  data sources
• Obtains AW from Chimera
• Uses replication data to locate physical files
• Delivers CW to DAGman
• Executes using Condor
• Publishes new replication and derivation data in
  RLS and Chimera (optional)

ChimeraVirtual DataCatalog
MetadataCatalog

t
DAGman
ReplicaLocationService
Condor
ComputeServer
StorageSystem
ComputeServer
StorageSystem
StorageSystem
ComputeServer
ComputeServer
83
Data Tools

• Virtual Data Tools
• Manage the trade-off between data storage and
  processing power (already covered)
• Movement/Transfer Tools
• Interfaces that meet specialized application or
  user needs
• Last mile integration to specialized storage
  systems
• Optimization Tools
• Help optimize the use of storage systems for
  specialized user communities

84
A Model Architecture for Data Grids
Attribute Specification
Replica Catalog
Metadata Catalog
Application
Multiple Locations
Logical Collection and Logical File Name
MDS
Selected Replica
Replica Selection
Performance Information Predictions
NWS
GridFTP Control Channel
Disk Cache
GridFTPDataChannel
Tape Library
Disk Array
Disk Cache
Replica Location 1
Replica Location 2
Replica Location 3
85
GridFTP

• A high-performance, secure, reliable data
  transfer protocol optimized for high-bandwidth
  wide-area networks
• FTP with well-defined extensions
• Uses basic Grid security (control and data
  channels)
• Multiple data channels for parallel transfers
• Partial file transfers
• Third-party (direct server-to-server) transfers
• Reusable data channels
• Command pipelining
• GGF recommendation GFD.20

86
Striped GridFTP Service

• A distributed GridFTP service that runs on a
  storage cluster
• Every node of the cluster is used to transfer
  data into/out of the cluster
• Head node coordinates transfers
• Multiple NICs/internal busses lead to very high
  performance
• Maximizes use of Gbit WANs

87
UberFTP

• UberFTP is an interactive (text prompt) client
  for GridFTP.
• Supports
• Parallelism
• Third-party transfer

88
RFT - File Transfer Queuing

• A WSRF service for queuing file transfer requests
• Server-to-server transfers
• Checkpointing for restarts
• Database back-end for failovers
• Allows clients to requests transfers and then
  disappear
• No need to manage the transfer
• Status monitoring available if desired

89
ExampleReliable File Transfer Service
Client
Client
Client
Request and manage file transfer operations
Grid Service
Notfn Source
File Transfer
Policy
Fault Monitor
Pending
interfaces
Query /or subscribe to service data
Performance
service data elements
Internal State
Policy
Perf. Monitor
Faults
Data transfer operations
90
OGSA-DAI

• OGSA interface for accessing XML and relational
  data stores
• Implements the GGF DAIS WG standard (in progress)

Figure courtesy of Malcolm Atkinson and Rob
Baxter, UK eScience Center
91
MCS - Metadata Catalog Service

• A stand-alone metadata catalog service
• WSRF service interface
• Stores system-defined and user-defined attributes
  for logical files/objects
• Supports manipulation and query
• Integrated with OGSA-DAI
• OGSA-DAI provides metadata storage
• When run with OGSA-DAI, basic Grid authentication
  mechanisms are available

92
RLS - Replica Location Service

• A distributed system for tracking replicated data
• Consistent local state maintained in Local
  Replica Catalogs (LRCs)
• Collective state with relaxed consistency
  maintained in Replica Location Indices (RLIs)
• Performance features
• Soft state maintenance of RLI state
• Compression of state updates
• Membership and partitioning information
  maintenance
• Note
• RLS (developed by Globus Alliance and the
  DataGrid Project) replaces earlier components in
  the Globus Toolkit 2.x.

93
Web Portals

• Tools for building web interfaces that provide
  access to system/application capabilities

94
CHEF/Sakai

• The CompreHensive collaborativE Framework (CHEF)
  is a flexible environment for supporting
  distributed learning and collaborative work.
• CHEF is rapidly evolving into Sakai, with
  emphasis on JSR-168 and localization.
• CHEF is highly extensible with support for
  JetSpeed, Velocity, and other portal interfaces.

95
Open Grid Computing Environment (OGCE)

• Extends CHEF/Sakai to include support for Grid
  services
• MyProxy
• GridPort
• GT services (GRAM, GridFTP, MDS, etc.)
• Java CoG
• Provides a quick start for building
  Grid-enabled portals.

96
System Packaging/Distribution

• Distribution and Packaging Tools
• Getting software distributed and installed
  uniformly throughout a broad collaboration
• Tools that help create integrated distributions
  that work on a wide variety of systems
• Integrated Distributions
• Customized distributions of common Grid software

97
Grid Packaging Tools (GPT)

• GPT is the packaging used for the Globus Toolkit,
  but it exists independently.
• Adds metadata to tar.gz files, putting more
  intelligence into build/install/config
• Tools for developers and users
• Focus is multiplatform, tricky builds
• Works on most Unix systems
• Source Binary packages
• Dependency management
• Relocatable installations (multiple installs)
• Setup (config) awareness
• Bundles (aggregations of packages)

98
Virtual Data Toolkit (VDT)

• VDT is a grid middleware distribution focused on
  the needs of the NSF-funded GriPhyN and iVDGL
  projects, both of which are focused on Physics
  and Astronomy applications.
• Ease of use (and installation) is key.
• Contents
• Globus Toolkit Condor, Condor-G
• Virtual Data Tools (Chimera, Pegasus, RLS)
• Utilities (GSI-OpenSSH, UberFTP, MonaLisa,
  MyProxy, KX.509, etc.)
• Uses PACMAN for distribution, install,
  configuration.
• Deployed on Grid3 (28 major U.S. sites)

99
GT2 Evolution To GT4

• ALL of GT2 functionality is in GT4
• What happened to the GT2 key protocols?
• Security Adapting X.509 proxy certs to integrate
  with emerging WS standards
• GRIP/LDAP Abstractions integrated into WSRF as
  resource properties
• GRAM ManagedJobFactory and related service
  definitions
• GridFTP Server updated, but not WSRF-compliant,
  RFT fills that role
• Also rendering collective services in terms of
  WSRF RFT, RLS, CAS, etc.

100

• A Bit of Background
• Grid Architecture Overview
• Working With Applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an Example Application
• Globus Toolkit 4.0 and Futures

101
(No Transcript)
102
Apache Axis Web Services Container

• Good news for Java WS developers GT4.0 works
  with standard Axis and Tomcat
• GT provides Axis-loadable libraries, handlers
• Includes useful behaviors such as inspection,
  notification, lifetime mgmt (WSRF)
• Others implement GRAM, etc.
• Major Globus contributions to Apache
• 50 of WS-Addressing code
• 15 of WS-Security code
• Many bug fixes
• WSRF code a possible next contribution

GT bits
App bits
Security Addressing
Axis
Modulo Axis and Tomcat release cycle issues
103
WS Core Enables FrameworksE.g., Resource
Management
Applications of the framework(Compute, network,
storage provisioning,job reservation
submission, data management,application service
QoS, )
WS-Agreement(Agreement negotiation)
WS Distributed Management(Lifecycle, monitoring,
)
WS-Resource Framework WS-Notification
() (Resource identity, lifetime, inspection,
subscription, )
Web services(WSDL, SOAP, WS-Security,
WS-ReliableMessaging, )
An evolution of Open Grid Services
Infrastructure (OGSI)
104
WSRF WS-Notification

• Naming and bindings (basis for virtualization)
• Every resource can be uniquely referenced, and
  has one or more associated services for
  interacting with it
• Lifecycle (basis for fault resilient state
  management)
• Resources created by services following factory
  pattern
• Resources destroyed immediately or scheduled
• Information model (basis for monitoring
  discovery)
• Resource properties associated with resources
• Operations for querying and setting this info
• Asynchronous notification of changes to
  properties
• Service Groups (basis for registries collective
  svcs)
• Group membership rules membership management
• Base Fault type

105
Globus 4.0 Structure
Your C Client
Your Python Client
Your Java Client
Your Python Client
Your Python Client
Your C Client
Your C Client
CLIENT
Your Java Client
Your Java Client
Your Python Client
Your C Client
Your Java Client
Interoperable WS-I-compliant SOAP messaging
X.509 credentials common authentication
RFT
GRAM
Delegation
Index
Trigger
Archiver
Your C Service
CAS
OGSA-DAI
Your Python Service
GTCP
Your Java Service
Your Java Service
RLS
Pre-WS MDS
SimpleCA
MyProxy
GridFTP
Pre-WS GRAM
C WS Core
pyGlobus WS Core
Java Services in Apache Axis Plus GT Libraries
and Handlers
C Services using GT Libraries and Handlers
Python hosting, GT Libraries
SERVER
106
Globus Ecosystem(Just a Few Examples Listed Here)

• Tools provide higher-level functionality
• Nimrod-G, MPICH-G2, Condor-G, Ninf-G
• NTCP telecontrol
• GT4IDE Eclipse IDE
• Packages integrate GT with other s/w
• VDT, NMI, CTSS, NEESgrid, ESG
• Solutions package a set of functionality
• VO management, monitoring, replica mgmt
• Documentation, e.g.
• Borja Sotomayors tutorial

107
Whats New inGT 4.0 (January 31, 2005)

• For all
• Additions data, security, execution, XIO,
• Improved packaging, testing, performance,
  usability, doc, standards compliance (phew)
• WS components ready for broader use
• For the end user
• More complementary tools solutions
• C, Java, Python APIs command line tools
• For the developer
• Java (Axis/Tomcat) hosting greatly improved
• Python (pyGlobus) hosting for the first time

108
GT4.0 Release Schedule
109
Wed Getting a Lot of Help,But Could do with A
Lot More

• Testing and feedback
• Users, developers, deployers plan to use the
  software now provide feedback
• Tell us what is missing, what performance you
  need, what interfaces platforms,
• Ideally, also offer to help meet needs (-
• Related software, solutions, documentation
• Adapt your tools to use GT4
• Develop new GT4-based components
• Develop GT4-based solutions
• Develop documentation components

110
Documentation Overview

• Current document drafts are publicly accessible
• http//www-unix.globus.org/toolkit/docs/developmen
  t/docmap.html
• We need reviewers!
• Suggestions for ways we might improve our
  documentation are appreciated
• We need contributors!
• We are happy to collaborate to write new documents

111
Testing Overview

• Nightly builds and tests
• Calls for Community Testing current calls
  include
• Delegation Service, CAS, RFT, GridFTP, RLS, WS
  GRAM, WS MDS, Java WS Core
• TestGrid at USC/ISI
• Stand up services for several weeks
• Perform stress tests
• TestGrid at LBNL
• Focus on WS Core performance and interoperability
  tests
• Performance and reliability testing is a major
  focus
• Bill Allcock (allcock_at_mcs.anl.gov) is
  coordinating this effort
• We welcome new testing collaborations!

112
How to Get Involved

• Become a GT4 Friend!
• Open group of people from various organizations
  working with GT4 pre-release code and documents
• Reporting problems in code and documents
• Contributing ideas, tests, documentation
• Building GT4-enabled applications
• Weekly telephone calls
• Discussion list
• To subscribe to the GT4 friends list, send an
  email to majordomo_at_globus.org which contains the
  words subscribe gt4-friends in the message body

113
Whats This Abouta Globus Company?

• Univa was announces yesterday (Dec 13, 2004)
• http//biz.yahoo.com/prnews/041213/nym040_1.html
• http//www.univa.com
• Steve Tuecke is CEO
• Both Carl Kesselman and Ian Foster are in
  advisory role
• Basic concept Redhat Linux for Globus
• This will NOT affect the GT open source policy
• This WILL allow greater industrial involvement
  and investment in Grids

114

• A Bit of Background
• Grid Architecture Overview
• Working With Applications
• Role of Globus
• Pieces of the Globus Toolkit
• And an Example Application
• Globus Toolkit 4.0 and Futures
• Some Other Resources

115
GRIDS Center (NMI)

• GRIDS Center
• GRIDS Grid Research Integration Development and
  Support
• Partnership of leading teams in Grid computing
• Funded by NSF Middleware Initiative (NMI)
• Goal Design, Develop, Deploy and Support
• Define an integrated, modular architecture that
  addresses current projected middleware
  requirements for the SE communities
• Create robust, tested, packaged, documented, and
  well-supported middleware solutions that are
  extensible within and beyond SE

116
GRIDS CenterSoftware Suite

• Globus Toolkit
• Condor-G
• Enhanced version of the core Condor software
  optimized to work with GT for managing Grid jobs.

• Network Weather Service (NWS)
• Monitors and dynamically forecasts performance of
  network and computational resources.
• Grid Packaging Tools (GPT)
• XML-based packaging data format defines complex
  dependencies between components.
• GSI-OpenSSH
• Modified version adds support for Grid Security
  Infrastructure (GSI) authentication and single
  sign-on capability

117
GRIDS CenterSoftware Suite (cont.)

• MyProxy
• Repository lets users retrieve a proxy credential
  on demand, without managing private key and
  certificate files across sites and applications.
• MPICH-G2
• Grid-enabled implementation of the Message
  Passing Index (MPI) standard, based on the
  popular MPICH library.
• GridConfig
• Manages the configuration of GRIDS components,
  letting users regenerate configuration files in
  native formats and ensure consistency.
• KX.509 and KCA
• A tool from EDIT that bridges Kerberos and PKI
  infrastructure.

118
Global Grid Forum (GGF)

• An Open Process for Development of Standards
• Grid Recommendations process modeled after
  Internet Standards Process (IETF)
• Persistent, Reviewed Document Series (similar to
  RFC)
• A Forum for Information Exchange
• Experiences, patterns, structures
• Useful even if every application Grid were
  completely separate and not interoperablebut
  ideally will result in interoperability!
• A Regular Gathering to Encourage Shared Effort
• In code development libraries, tools
• Via resource sharing shared Grids
• In infrastructure consensus standards
• http//www.ggf.org

119
OASIS

• Not-for-profit business consortium that drives
  the development, convergence and adoption of
  eBusiness standards
• Large space of standards
• Web Services, e-Commerce, Security, Law
  Government, Supply Chain, Computing Mgmt,
  Application Focus, Document-Centric, XML
  Processing, Conformance/Interop, Industry Domains
• Web Services Resource Framework (WSRF) is here
• http//www.oasis-open.org/home/index.php

120
Conclusions
121
Overall, We are Doing Well

• Communities individuals are, increasingly,
  using the Grid to advance their science
• Broad consensus on many key architecture
  concepts, if not always their implementation
• Significant base of open source software, widely
  used in applications infrastructure
• Service-oriented arch facilitates cooperation on
  software development code reuse
• Grid standards are making a difference on a daily
  basis e.g., GSI, GridFTP

122
Overall, We are Doing Well (2)

• A real understanding of how to operate Grid
  infrastructures is emerging
• Production infrastructures are appearing and are
  being relied upon for real science
• Productive international cooperation is occurring
  at many levels
• A vibrant community has formed and shows no signs
  of slowing down
• Real connections have been formed between
  computer science applications

123
Problem-Driven, Collaborative RD Methodology
Deploy
Build
Deploy
Global Community
Apply
Apply
Design
Apply
Apply
Analyze
124
Lessons Learned

• The Globus Toolkit consists of the basic building
  blocks needed
• But to meet applications needs, more should be
  examined
• The Grid community (collectively) has many useful
  tools that can be reused!
• System integration expertise is mandatory.
• OGSA, WSRF, and community standards (GGF, OASIS,
  W3C, IETF) are extremely important in getting all
  of this to work together.
• Theres much more to be done!

125
Standard Plumbing for the Grid

• Not turnkey solutions, but building blocks and
  tools for application developers and system
  integrators.
• Some components (e.g., file transfer) go farther
  than others (e.g., remote job submission) toward
  end-user relevance.
• Since these solutions exist and others are
  already using them (and theyre free), its
  easier to reuse than to reinvent.
• And compatibility with other Grid systems comes
  for free!

126
Wed Getting a Lot of Help,But Could do with More

• Testing and feedback
• Users, developers, deployers plan to use the
  software now provide feedback
• Tell us what is missing, what performance you
  need, what interfaces platforms,
• Ideally, also offer to help meet needs (-
• Related software, solutions, documentation
• Adapt your tools to use G4
• Develop new G4-based components
• Develop G4-based solutions
• Develop documentation components

127
Summary

• Things that are working
• Key standards are emerging
• Open source infrastructure appearing
• Success stories experience gained
• Challenges that remain
• Complexity of some WS infrastructure
• Missing specifications
• Limited practical experience
• Progress being made on all fronts

128
Thanks to

• Ian Foster, Carl Kesselman and Steve Tuecke
• Bill Allcock, Kate Keahey, Lee Liming, Gregor von
  Laszewski, Mike Wilde _at_ Argonne
• Globus Alliance members at Argonne, U.Chicago,
  USC/ISI, Edinburgh, PDC, NCSA
• Other partners in Grid technology, application,
  infrastructure projects
• And thanks to DOE, NSF (esp. NMI and TeraGrid
  programs), NASA, IBM, and the UK eScience Program
  for generous support

129
General Globus Help and Support

• Globus-discuss list
• discuss_at_globus.org
• http//globus.org/about/contacts.html
• Bugzilla
• Bugzilla.globus.org
• GT4 Information
• gt4-friends_at_globus.org
• Weekly telecons for early testers

130
For More Information

• Jennifer Schopf
• jms_at_mcs.anl.gov
• www.mcs.anl.gov/jms
• Globus Alliance
• www.globus.org
• Global Grid Forum
• www.ggf.org
• GlobusWORLD 2005
• Feb 7-11, Boston

2nd Edition www.mkp.com/grid2
