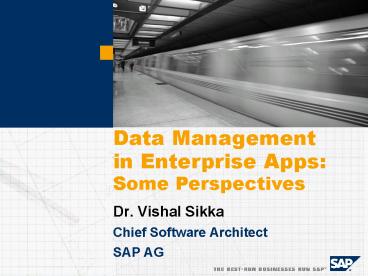

Data Management in Enterprise Apps Some
Perspectives

• Dr. Vishal Sikka
• Chief Software Architect
• SAP AG

2
A Brief Introduction to SAP and Data Management
in Our Applications
The Current Situation Some Existing and Emerging
Divides
Our Approach to Two of These Divides
The Lessons Learned and Some Open Problems
3
SAP at a Glance

• Who we are
• Founded in 1972
• 2005 revenues 8.5 Billion
• 34,600 customers
• 37,500 employees
• 12 Million users in 120 countries
• 1,600 partners
• What we do
• Largest enterprise applications company in the
  world
• Serve most back-end and front-end business
  processes
• Leader in ERP, CRM, SCM,
• Leading platform to build and run apps on
• 25 industry solutions

SAP Composites
Other Composites
SAP NetWeaver
Data
Infrastructure
Infrastructure
4
Our data management requirements are massive
mySAP ERP HCM Customer with payroll calculations
for 500,000 employees in 3 hours
SAP for Engineering Construction Customer with
5,000 concurrent active users
SAP for Consumer Products Customer with 1.4
million sales order line items per day
mySAP SCM Customer with 4.5 million
characteristic combinations 512 GB memory in
live cache
SAP NetWeaver Portal Customer with 300,000 users
(20,000 concurrent)
mySAP Business Suite
SAP for Utilities 25 million business partners
85 million service and sales orders per year
SAP NetWeaver BI Customer with 40 TB database
live Average DB size of top 10 live BI customers
5.5TB
mySAP ERP A customer with 5 users on a laptop
5
Data Management from SAPs Perspective

• There is gt10 PB of transactional and analytical
  data processed by SAP apps worldwide
• We are the largest applications consumer and
  reseller of data worldwide
• Our data is of many different types, shape and
  sizes
• Transactional, Analytical, Text/Unstructured,
  Master, Events,
• Data has different requirements different
  optimizations
• Significant need for deriving value from this data

SAP Applications
Unstructured
Event
Master
Transactional
Analytical
6
Data through the SAP Lens Not All Data Is
Alike
Progression Over Time
Textual and Unstructured Data
Analytical Data
Transactional Data
Event Data
Master Data

• Order 100G
• Write gt read
• Many changes
• Accurate
• Consistent
• Performance
• All back-end apps

• Order gt Tb
• Read only
• Slow changes
• Many queries
• Flexibility
• Performance

• Order 1G
• Mostly read
• Mid change
• Many queries
• Distributed

• Order lt Tb
• Many writes
• Few queries
• Distributed
• Filtering
• Correlation

• Order gt Tb
• Mostly read
• Slow change
• Many queries
• Unstructured
• Contextual

7
3-tier C/S Architecture of Basis Our Application
Server
8
Memory Management in Basis outside the DBMS

• Buffers in the application server help
  significantly improve performance. In a
  classical 3-tier system, network round trips
  mitigated benefits of the DBMS cache, while TCO
  optimization required one DB for gt10 app
  servers.
• Application level locking (Enqueue and
  Application LUW) mitigates the absence of fine
  granularity of locking in DBMS and transaction
  support needed by Application Servers (multiple
  users accessing the same DB, complex screen
  processing with workflow on front-end).
• Numerous other optimizations and DB abstractions.

9
Bringing Data Closer to Applications SAP
LiveCache

• LiveCache is a main-memory DB component used in
  SAP SCMs APO
• Rapid Planning Matrix in the Automotive Industry
• Common ERP system Plan the mfg of 20,000 Cars /
  Day
• Needed volumes are much higher
• liveCache enables planning 500,000 Cars / Hour
• Demand Planning (DP)
• Interactive planning 10x performance gain
  compared to DB based solution
• Consistent storage of data (no need for
  aggregation/disaggregation batch jobs)
• Production Planning (PP/DS)
• Performance gain of 15x in rescheduling
  production runs and DS heuristics
• Data volume 5x higher in planning board compared
  to common ERP system
• Consolidation of data structures via generic
  liveCache data types
• E.g. 1 order data type 1 order type with multiple
  attributes instead of a few dozen different
  specific order types in ERP
• Bringing development teams closer together
• LiveCache applications team bridges technology
  knowledge with business process knowledge by
  working together with the application team on the
  usage of the liveCache, as well as in
  optimization of business logic.
• Common team working together for several years ?
  3000 happy deployments.

10
A Brief Introduction to SAP and Data Management
in Our Applications
The Current Situation Some Existing and Emerging
Divides
Our Approach to Some of These Divides
The Lessons Learned and Some Open Problems
11
New needs Innovate, Be flexible, Stay
high-performant

Once my system is up and running, you, SAP, can
touch my core processes once every 5 years ...
and it needs to be a Saturday and my CEO
wants me to innovate every quarter
CIO, Fortune 1000 Manufacturing Company
12
New requirements, New divides

• More decoupled business processes
• More visible Physical-Digital divide
• Infrastructure subjected to much higher volumes
  (events, sensors, )
• Greater need for in-context usage
• Multiple UIs
• More visible work-personal divide
• Users are a lot more used to search, lack of
  structure is academic to them
• Different requirements on front-end than on
  back-end
• e.g. easier front-end application composition
• Many more deployment options
• Greater flexibility ? easy integration, better
  components semantics

New application architectures are necessary SOA
is the biggest component, but there are others
13
Technology Shifts
Architectural Shift
Technology Drivers
Improvement
1990
2006
2006
1990
143x
7.15 MIPS/
0.05 MIPS/

• Disk based data storage
• Simple consumption of applications (Fat client
  UI, EDI)
• General-purpose, application-agnostic database

• In-memory data stores
• Multi-channel UI, high event volume, cross
  industry value chains
• Application-aware and intelligent data
  management

CPU
250x
5 MB/
0.02 MB/
Memory
2 x
64 Bits
16 Bits
48
Addressable Memory
10 Gbps
100x
100 Mbps
Network Speed
5 Kilo RPM
3x
15 Kilo RPM
Disk Speed
14
A Brief Introduction to SAP and Data Management
in Our Applications
The Current Situation Some Existing and Emerging
Divides
Our Approach to Two of These Divides
The Lessons Learned and Some Open Problems
15
Addressing DB Architecture Gap SAP BI Accelerator
Performance 1 Billion records analyzed in 3
seconds Delivery Off the shelf hardware,
appliance setup Predictability Consistent
response, no tuning, fast load Integration Built
for closely integrated with SAP NW BI
16
Addressing DB Architecture Gap SAP BI Accelerator

• Performance 1 Billion records analyzed in 3
  seconds
• Affordability Off the shelf hardware, appliance
  setup
• Agility Consistent response, no tuning, fast
  load
• Integration Closely integrated with SAP BI

17
BI Accelerator Key Technology
BI Application Server
SAP BI AppServer
SAP BI Accelerator

• Main memory technology
• Inspired by text search
• On the fly aggregation
• L2 cache miss optimization
• Column based data structures
• Highly compressed, dictionary based, golomb,
  sparse, ...
• Fast updates with write-optimized delta mechanism
• Compressed data structures for read access
• Parallel and distributed execution engine
• Distributed joins, horizontal table split
• Intelligent partitioning (along join paths)
• Data distribution optimizer
• Model based data layer
• Exploit data model for performance optimization
  and data distribution

Storage subsystem
Database Server
Scalability by adding blades
18
Key Benefits

• Predictable (near constant) query response time
• Query execution shifted from DB to BI Accelerator
• Fast in memory full table scans guarantee stable
  response times
• Column based data structures support fast joins
• Intelligent partitioning and data distribution
  allows massive parallelization
• Reduced maintenance costs
• Simplified cube modeling (normalization for
  semantic reasons only)
• No more aggregates (or aggregate administration)
• Less need for DB optimization
• Reduced hardware costs
• Commodity hardware (blades) with standard
  equipment
• Linear scalability with number of processors /
  cores
• Use of blade infrastructure instead of big SMP
  box
• Packaged as an appliance

19
BI Accelerator Future

• Complete OLAP layer as part of the BI Accelerator
• Integration of text search and BIA technology
• Master data support
• Enterprise search on BI data
• Reporting on text data ( information extraction)
• Support of flat cubes
• Use of commodity coprocessors
• Network processors
• Graphic card processors
• Application data model integration

20
SAP Enterprise Search

• Search in the enterprise
• Business objects
• Business context awareness
• Role
• Authorizations, Compliance
• Current work context
• Graceful degradation with decreasing structure
• Multiple clients
• Stand alone and embedded into applications
• Integration into non-SAP sources
• SAP Enterprise Search is a stand alone business
  search xApp and a framework for search as a
  service

Portal
Office
Devices
Desktop
SAP Enterprise Search
SAP NetWeaver Business Process Platform
DesktopSearchService
InternetSearchService
R/3 via BAPIs
Search Indexing
my SAPBus.Suite
3rdparty
Docu-ments
21
SAP Enterprise Search

• Access more information from any place
• Get the right answer to enterprise questions
  anywhere, anytime
• Access data from your workplace or mobile device.
• Simple to use Open to everyone
• Pre-build common queries
• Smart context
• Better Answers Leverage context information and
  meta data
• Support targeted search for object types
• Enhance search and displays by contextual meta
  data related queries, object scoping
• Go Deep Find the right information Across all
  your sources
• Penetrate entire corporate data sources including
  Search for documents and business objects
  simultaneously
• Ensure service-oriented, multi-device scalable
  operation
• Reach Out Embed search into everyday tools
• Design simple search front ends that are
  compliant to the respective devices, including
  Portal, Desktop, SMS, e-mail, mobile

22
The Argo Widget
23
Enterprise Search Example
24
Enterprise Search Example (Contd)
25
A Brief Introduction to SAP and Data Management
in Our Applications
The Current Situation Some Existing and Emerging
Divides
Our Approach to Some of These Divides
The Lessons Learned and Some Open Problems
26
Master Data Management

• Characterized By
• Business Entities with
• Multiple data models
• Multiple application sources
• Reference Models
• Single logical model
• Multiple physical models
• Source of Truth
• No single source of truth
• Access Characteristics
• Serves as reference data
• Few systems write
• Many systems read
• 360 view of data
• Full analytics view
• Full operational view

Master Data Management Architecture
MDM Application Services
Quality
Visibility
Governance
Validation
Analytics
Meta-dataMaster
Unified Data Management Layer
Distributed Query
Data Federation
Multiple Data Source Management
Data Mappings
Legacy Data
Unstructured Data
Structured Data
Connectivity Fabric
Events
Services
27
Event Processing

• Characterized By
• Continuous Streams of near real-time data
• High data flow rate and large volume needs
  parallel processing
• Significant main memory processing
• Continuous evaluation of rules
• Edge Devices as data producers
• (RFID, sensor data) generate significant number
  of events
• orders of magnitude scale data e.g., shop floor
  sensor devices
• Large volume of event data dictates
  pre-processing for consumption
• Events externalized non-invasively for several
  forms of consumption
• Automatic correlation and context determination
  of business events

Business Events Actions Query Results BI/Reports A
lerts
Event Streams Data (IN)
Output Streams
Input Streams
Event Management
Filters
Response
Correlation Engine
Correlation Rules
Event Memory/Storage
28
Lessons Learned

• Its not the technology, stupid. Application
  perspectives provide grounding for data
  management.
• ? So learn what the apps needs are
• One size does not fit all. Applications data
  mgmt needs are changing and this requires a
  rethink in data mgmt architecture.
• ? So lets go rethink data mgmt for the enterprise
