Nuclear Physics

1

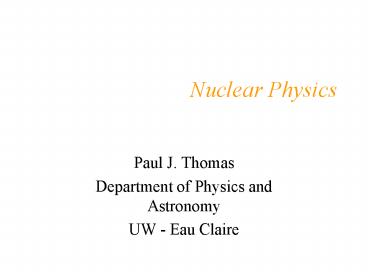

Nuclear Physics

• Paul J. Thomas
• Department of Physics and Astronomy
• UW - Eau Claire

2
Early Atomic Ideas

• Greek atomos cannot be cut.
• Early atomistic theories of Democritus and
  Leucippus.
• Dalton elements combine in constant ratios of
  mass.
• Brownian motion

3
The Structure of the Atom

• Static electricity implies that atoms contain
  separate charges.
• Plum pudding model of Thomson.
• Rutherfords experiment.

4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
Particles Inside Atoms

• Inside the nucleus
• Protons, charge 1, mass 1.
• Neutrons, charge 0, mass 1.
• Surrounding the nucleus
• Electrons, charge -1, mass 1/2000.

9
(No Transcript)
10
Atomic and Mass Number

• The type of element is determined by the number
  of protons. This is the atomic number (Z).
• The number of protons neutrons is the mass
  number (A).
• For light elements, there are roughly as many
  protons and neutrons. Heavier elements have more
  neutrons than protons.

11
(No Transcript)
12
Isotopes

• Atoms of the same element, with different numbers
  of neutrons in the nucleus.
• They are chemically identical, and thus cannot be
  separated by any chemical process.

13
Isotopes

• Have the same chemical behavior.
• Can be very different in nuclear behavior (e.g.
  radioactivity).
• Example 12C is stable, but 14C is radioactive,
  with a half-life of 5730 y.
• Half-life time required for half of the initial
  sample to decay.

14
Half-lives

• 26Al 1.6 106 y
• 3H 12.33 y
• 14C 5,730 y
• 90Sr 28.1 y
• 235U 7.04 108 y
• 239Pu 24,000 y
• After N half-lives, ½N of original remains.

15
(No Transcript)
16
(No Transcript)
17
Marie and Pierre Curie

• Deduced that the radiation emitted by uranium and
  thorium was identical and must be a property of
  the interior of the atom.
• Discovered the radioactive elements Polonium and
  Radium.
• First known victims of radiation poisoning.
• Awarded the 1903 Nobel Prize in Physics Marie
  won the 1911 Nobel Prize in Chemistry.

18
Radioactive Decay

• Alpha Decay
• 212Bi ? 208Tl 4He
• 238U ? 234Th 4He
• Beta Decay
• 14C ? 14N e- ?
• 12N ? 12C e ?
• Gamma Decay
• 4He ? 4He ?

19
(No Transcript)
20
Alpha Decay
21
Beta Decay
22
? decay and the neutrino
23
Neutrinos

• Probably most common fundamental particle.
• Neutral.
• Small mass (recently discovered) 0.14 millionth
  of electron mass.
• Extremely nonreactive with other particles.
• Three types electron neutrino ne, muon neutrino
  nm and tau neutrino nt.

24
How are Neutrinos Made?

• Nuclear reactions, particularly at very high
  energies.
• During the Big Bang.
• In the centers of stars.
• In supernovas.
• When cosmic rays hit the Earths atmosphere.
• Radioactive beta decay.

25
Neutrinos are nonreactive!

• 100 billion solar neutrinos pass through each
  square inch of our bodies every second, day or
  night!
• Big bang models predict there should be 50
  billion neutrinos per electron.
• Neutrino mass has to be very small, or the
  universe would have already collapsed.

26
Super-Kamiokande

• In Kamioka, Gifu-ken, Honshu, Japan.
• 12.5 million gallons of pure water in a stainless
  steel lined cavity, with 13,000 photomultiplier
  tubes.
• Data taken during 1996-98 indicates neutrinos
  undergo oscillations.
• This means that they possess mass (0.14
  millionth of an electron mass).

27
Super-Kamiokande
28
Super-Kamiokande
29
Neutrino Detection at S-K
30
The Sun in Neutrino Light
31
Neutrino Oscillations

• Super-Kamiokande observed muons and electrons
  from atmospheric neutrinos.
• Well-established nuclear physics theories predict
  2? as many muon neutrinos than electron
  neutrinos.
• In fact, the numbers are equal.
• Furthermore, there are fewer muon neutrinos
  coming from the other side of the Earth.

32
Neutrino Oscillations

• Conclusion the muon neutrinos are changing to
  other types of neutrinos!
• If they do this, they cannot travel at the speed
  of light.
• If they do this, they have mass - and we can
  calculate how much.
• This may explain the solar neutrino puzzle!
• This may account for 10 or more of the dark
  matter!

33
NuMI The Next Test (2003)

• Neutrino beam generated at Fermilab by proton
  beam collision.
• Beam is aimed at Soudan 2 neutrino detector,
  Minnesota (730 km away).
• Goal to observe neutrino oscillations.

34
Forces inside the Atom

• Typical size of a nucleus 10-15 m. Strong
  nuclear force holds protons and neutrons
  together.
• Typical size of an atom 10-10 m. Electromagnetic
  force holds protons and electrons together.

35
Particle Accelerator
Fermilab Accelerator (Proton Synchrotron),
Batavia, Illinois
36
Particle Accelerator
Main accelerator ring, Fermilab
37
Four Forces
38
Hundreds of New Particles

• The muon, who ordered that?
  I.I. Rabi
• If I wanted to remember the names of all of
  these particles, I would have been a biologist.

  Leon Lederman
• As the number of particles increases, all that
  increases is our ignorance. Martinus
  Veltman

39
Leptons and Hadrons

• Leptons
• e, ?, ?, ?e, ??, ??,
• no internal structure
• conserved
• do not interact via the strong force
• Hadrons
• p, n hundreds of particles
• internal structure (quarks)
• baryons are conserved, mesons are not
• interact via the strong force

40
(No Transcript)
41
Quark Properties
42
(No Transcript)
43
Cosmic Rays

• Energetic particles from space.
• When particles interact with our atmosphere, they
  release showers of high energy particles.

44
Where do Cosmic Rays come from?

• Most (lower energy) cosmic rays come from the
  Sun.
• The amount of solar cosmic rays correlates with
  low numbers of sunspots.
• This is because the Suns magnetic field
  partially shields the Earth.

45
Galactic Cosmic Rays

• Other cosmic rays come from outside the solar
  system. (And perhaps the Galaxy).
• Possible origins
• Supernovas
• Pulsars

46
Cloud Chamber

• First developed in 1911 by Charles Wilson.
• Uses a supercritical vapor that is triggered to
  condense when a charged particle passes through.
