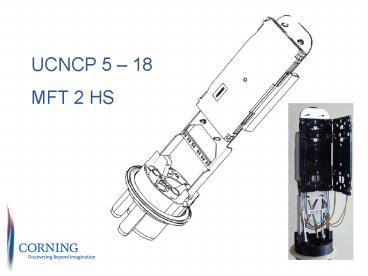

UCNCP 5 18 MFT 2 HS
2
UCNCP 5 -18 MFT 2 HSApplications

• Applicable
• Direct buried
• Ducts and manholes
• Aerial
• Features and Benefits
• With 1 oval port for uncut cables
• Cable port sealing with heat-shrink tube
  and branching clip for oval port
• 3 Circular ports for branching cables
• Up to 24 splices per MFT tray
• 2 MFT trays applicable (max. 48 splices)
• Individual splice tray access
• Minimum fiber bend controls

3
UCNCP 5 -18 MFT 2 HSProduct Description

• Dimensions
• Length 575 mm
• Diameter 160 mm
• Cable Diameter
• Oval port 2 x 10 up to 25 mm
• Circular port 3 x 8 up to 16 mm
• Trays 2 Standard MFT for 24 splices each
• Order Information
• Closure S46998-A2-A210
• Splice tray set HS S46998-A2-R135
• Splice tray set Crimp S46998-A2-R136
• (Splice tray set consist of 2 trays and 1 cover)
• To be ordered separately
• Splice Trays
• Splice Protectors
• Branching Sets S46998-M8-A1
• Wall Pole mounting S46998-M1-A3

4
UCNCP 5 -18 MFT 2 HSKit Content

• End-Cap
• Tray holder frame with buffer storage
• Canister
• Clamping Ring
• Screws for tray holder frame
• Sealing ring
• Heat-Shrink tube
• Branching clip
• Cleaning cloth
• Aluminum flame protection
• Emery cloth
• Cable ties reusable
• Cable tie sockets
• Flat-head screws for tray fixing
• Installation grommets
• Small cable ties

3
1
6
5
4
2
12
7
17
13
18
10
14
15
20
9
8
16
11
17. Lubricant 19. Cleaning cloth 18.
Brush 20I. Installation instruction
5
UCNCP 5 -18 MFT 2 HSInstallation

• Splice tray installation
• Lower tray fixed with 2 screws onto the
  metal frame
• Second tray fixed with standard MFT break
  out hinges
• Buffer storage
• Buffer tube length 3,1m
• Buffer storage up to 8
• Buffer tubes fixed by reusable cable ties

6
UCNCP 5 -18 MFT 2 HSInstallation
Reusable cable ties Well organized buffer
slack Splice tray screw inserts
7
UCNCP 5 -18 MFT 2 HSInstallation Comparison

• Installation UCNCP MFT Flip 4 HS UCNCP 5-18 MFT
  2 HS
• Cable central member 7min per cable
  0,5min per cable
• Example With 5 cable installed the savings are
  32,5min !
• UCNCP 5-18 MFT 2 HS is equipped with less
  components.
• All other installation and handling steps are
  similar to the standard closure.

8
UCNCP 5 -18 MFT 2 HSSummary

• For 2 MFT splice trays
• Up to 48 Splices ( 24 per MFT tray)
• For HS and Crimp splice protector
• Simple cable preparation
• No additional strain relief system required
• Cables fixed with high quality heat shrink tube
• Easy and effective central strength member fixing
• All outer components as standard UCNCP
• Maximum protection against environmental
  influences
• IP 68 and all other test successful passed in
  accordance with UCNCP specification
  S45750-T7003-P465
• Standard accessories like wall / pole mounting
  useable
