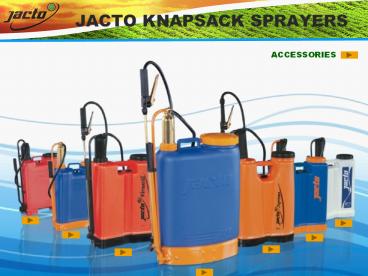

JACTO KNAPSACK SPRAYERS

1
JACTO KNAPSACK SPRAYERS
ACCESSORIES
2
PJH
20 litres
1.35 m long hose
Metal piston pump for long life and chemical
resistance Volume 620 ml and piston cup
diameter 35 mm
Convenient top handle for easy carrying and
storage
Extra-large fill opening and strainer for faster
filling, reducing chance of spillage
In-tank pump for safety
Accurate scale measures litres, gallon and
imperial gallons
Adjustable shoulder straps with metal hook for
easy loading on the back
Ergonomic shape fits on the operators back for
maximum comfort
Internal mechanical agitator for constant mixing
High density polyethylene UV resistant tank
Anti-corrosion electrostatic powder painting
Heavy-duty trigger valve is field serviceable.
Filter Inside
Metal bushings for long-life resistance
Metal spray lance for long-life durability
Net weight 5.5 kg
3
PJ-16, PJ-18 and PJ-21
16, 18, 21 litres
1.35 m long hose
Metal piston pump for long life and chemical
resistance Volume 620 ml and piston cup
diameter 35 mm
Convenient top handle for easy carrying and
storage
Large fill opening and deep strainer for faster
filling, reducing chance of spillage
In-tank pump for safety
Accurate scale measures litres, gallon and
imperial gallons
Adjustable shoulder straps with metal hook for
easy loading on the back
Ergonomic shape fits on the operators back for
maximum comfort
Internal mechanical agitator for constant mixing
High density polyethylene UV resistant tank
Anti-corrosion electrostatic powder painting
Heavy-duty trigger valve is field serviceable.
Filter Inside
Metal spray lance for long-life durability
Metal bushings for long-life resistance
Net weight PJ-16 4.2 kg
PJ-18 4.4 kg PJ-21 4.6 kg
4
Versatili / HD
16 and 20 litres
1.65 m long PVCrubber hose
Polypropylene/Polyacetal piston pump Volume
900 ml and piston cup diameter 45 mm
Convenient top handle for easy carrying and
storage
Large fill opening and deep strainer for faster
filling, reducing chance of spillage
Heavy-duty trigger valve is field serviceable.
Filter Inside
In-tank pump for safety
Accurate scale measures litres, gallon and
imperial gallons
Quick-adjust shoulder straps for easy load
Ergonomic shape fits on the operators back for
maximum comfort
Lever and Lance parking device for easy carrying
and storage
Polypropylene UV resistant tank
Right-hand and Left-hand operation
Internal mechanical agitator for constant mixing
No screw for manual easy maintenance
Metal bushings for long-life resistance
Internal valve prevents over-pressurising the
piston pump
Net weight 16 L 3.4 kg 20
L 3.7 kg
5
Supremo
16 litres
1.65 m long PVCrubber hose
Polypropylene/Polyacetal piston pump Volume
900 ml and piston cup diameter 45 mm
Convenient top handle for easy carrying and
storage
Large fill opening and deep strainer for faster
filling, reducing chance of spillage
Heavy-duty trigger valve is field serviceable.
Filter Inside
In-tank pump for safety
Accurate scale measures litres, gallon and
imperial gallons
Quick-adjust shoulder straps with smooth shoulder
pad
Ergonomic shape fits on the operators back for
maximum comfort
Lever and Lance parking device for easy carrying
and storage
Polypropylene UV resistant tank
Right-hand and Left-hand operation
Transparent
Internal mechanical agitator for constant mixing
No screw for manual easy maintenance
Metal bushings for long-life resistance
Internal valve prevents over-pressurising the
piston pump
Net weight 4.0 kg
EcoValve pressure and flow rate valve control
Bely Belt avoid the tank shaking on the back
6
X-15
15 litres
1.65 m long PVCrubber hose
Polypropylene/Nylon piston pump Volume 1 litre
and piston cup diameter 45 mm
Convenient top handle for easy carrying and
storage
Large fill opening and deep strainer for faster
filling, reducing chance of spillage
In-tank pump for safety
Accurate scale measures litres, gallon and
imperial gallons
Quick-adjust shoulder straps
Ergonomic shape fits on the operators back for
maximum comfort
Right-hand and Left-hand operation
High density polyethylene UV resistant tank
Internal mechanical agitator for constant mixing
Heavy-duty trigger valve is field serviceable.
Filter Inside
Internal valve prevents over-pressurising the
piston pump
Net weight 4.8 kg
7
ACCESSORIES FOR KNAPSACK SPRAYERS

• 1

907837 Pliable boom
902296 Boom 500
761882 Spray hood
073296 Bed boom
336115 Nozzle Y
100016 extension 160
8
ACCESSORIES FOR KNAPSACK SPRAYERS

• 2

834309 Flow calibrator
962959 Measuring cup
728139 Extension 600
590513 Eco Valve Constant pressure and flow
rate valve control
Trigger valves
Spray lances
