Title: AirBreathing Proton Exchange Membrane Fuel Cell Analysis


1

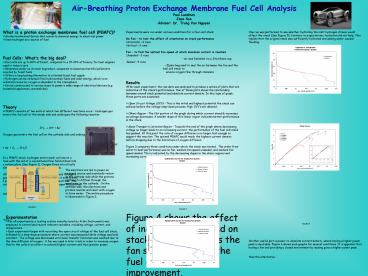

Air-Breathing Proton Exchange Membrane Fuel Cell
Analysis Paul Landrum Jane Sun Advisor Dr. Trung
Van Nguyen
  • What is a proton exchange membrane fuel cell
    (PEMFC)?
  • An electrochemical device that converts chemical
    energy to electrical power
  • Uses hydrogen as a source of fuel
  • Fuel Cells Whats the big deal?
  • Fuel cells are up to 80 efficient, compared to a
    15-30 efficiency for heat engines used in
    todays cars
  • Generates water as its main byproduct, compared
    to numerous harmful pollutants created by fossil
    fuels
  • Offers a long lasting alternative to a limited
    fossil fuel supply
  • Hydrogen can be obtained from hydrocarbon fuels
    and solar energy, which is an unlimited resource
    oxygen is abundant in the atmosphere
  • Can be constructed to various sizes to power a
    wide range of electrical devices (e.g. household
    appliances, automobiles)
  • Theory
  • A PEMFC consists of two ends at which two
    different reactions occur. Hydrogen gas enters
    the fuel cell at the anode side and undergoes the
    following reaction
  • 2H2 ? 4H 4e-
  • Oxygen gas enters the fuel cell on the cathode
    side and undergoes the reaction
  • One run was performed to see whether hydrating
    the inlet hydrogen stream would affect the stack
    (See Figure 5). Contrary to expectations,
    hydration did not help. This implies that the
    original stack was sufficiently hydrated and
    adding water caused flooding.
  • FIGURE 5
  • Experiments were run under various conditions for
    a four-cell stack
  • No Fan to test the effect of orientation on
    stack performance
  • Horizontal 4 runs
  • Vertical 3 runs
  • Fan to find the optimal fan speed at which
    maximum current is reached
  • Unsealed 3 runs
  • air was funneled via a Styrofoam cup
  • Sealed 9 runs
  • Ziploc bag used to seal the air between the
    fan and the fuel cell stack to
  • ensure oxygen flow through channels
  • Results
  • After each experiment, the raw data was analyzed
    to produce a series of plots that are indicative
    of the stacks performance. One of these plots
    shows the relationship between overall stack
    potential and absolute current density. In this
    type of graph, three parts are examined
  • Open Circuit Voltage (OCV) This is the initial
    and highest potential the stack can achieve
    before the voltage step-down process. High OCVs
    are desired.

The electrons are led to power an external source
and eventually return to the cathode side while
the protons continue to diffuse through the
membrane to the cathode. On the cathode side,
the electrons and protons reunite and react with
oxygen to form water. The entire procedure is
illustrated in Figure 2.
  • Experimentation
  • For all experiments, a testing system
    manufactured by Arbin Instruments was employed to
    control and record relevant variables, including
    voltage, current, and temperature.
  • Each experiment began with recording the open
    circuit voltage of the fuel cell stack, followed
    by a step-down procedure where current was
    measured while voltage was held constant. The
    voltage was decreased until mass transfer
    limitation was reached due to the slow diffusion
    of oxygen. A fan was used in later trials in
    order to increase oxygen flow to the cells in an
    effort to achieve higher current and thus greater
    power.
