On Heuristics for Learning Model Trees

1

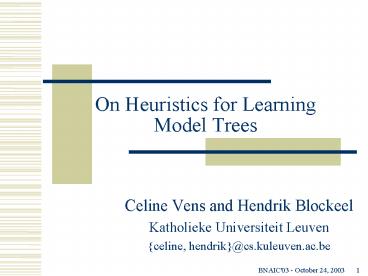

On Heuristics for Learning Model Trees

• Celine Vens and Hendrik Blockeel
• Katholieke Universiteit Leuven
• celine, hendrik_at_cs.kuleuven.ac.be

2
Overview

• Introduction
• Variance based approach
• A new heuristic
• Experimental results
• Conclusions

3
Introduction

• Model Tree
• Regression tree with linear models in leaves
• TDIDT instantiation
• Split criterion min p(L).Imp(L) p(R).Imp(R)
• Existing approaches
• M5
• Retis

4
Variance based approach

• Examples M5, M5
• Split criterion
• min p(L).Var(L) p(R).Var(R)
• But
• Quality of linear model independent of variance!!

5
Variance based approach

• Illustrating example
• Simplest model
• YX if 0ltXlt1
• Y2-X if
  1ltXlt2
• Total variance variance left variance right

6
Variance based approach

• What split is chosen?
• The split Xltc that minimizes the average variance
  in both subsets.
• c is computed by minimizing
• h(c) c.Var(YXltc) (2-c).Var(YXgtc)
• assume clt1
• c 0.4

7
Variance based approach

• M5 splits at c0.4
• ?
• random split 60 chance to do better!
• Left branch linear, right branch analogous

8
Variance based approach

• Final tree built by M5
• LM1 y 0.00285 1.01x
• LM2 y 0.577
• LM3 y 0.713
• LM4 y 0.795
• LM5 y 0.871
• LM6 y 0.956
• LM7 y 0.859
• LM8 y 0.743
• LM9 y 1.53 0.675x
• LM10 y 1.85 0.92x

9
Variance based approach

• Tends to split in the wrong places
• Reduces explanatory power
• Trees too large
• Splits not informative
• May reduce predictive performance
• Superfluous partitioning ? small areas with few
  examples ? local models less accurate

10
A new heuristic

• Variance doesnt work well as a heuristic
• Constructing linear models for the subsets and
  evaluating their goodness should work better
• cfr Retis building multiple linear model for
  subsets and computing their residual variance
  (complexity O(attr ³) )

11
A new heuristic

• 4 options to evaluate split when considering
  multiple predictor attributes
• no regression (cfr M5)
• simple regression on split attribute
• simple regression on all attributes separately
• multiple regression on all attributes together
• (cfr Retis)

12
A new heuristic

• Our choice option 2
• Complexity close to option 1 (O(attr) )
• Provides solution for undesirable behavior
• Evaluating predicting power for each attribute
  independently
• MAUVE M5 adapted to univariate regression

13
Experimental results synthetic data set, 1
predictor variable
14
Experimental resultssynthetic data set, 1
predictor variable
15
Experimental resultssynthetic data set, 1
predictor variable
16
Experimental resultssynthetic data set, 2
predictor variables
17
Experimental resultssynthetic data set, 2
predictor variables
18
Experimental resultsreal world data sets
19
Conclusions

• Use of variance reduces explanatory power
• New approach with complexity same order as M5
• Experiments on synthetic data sets simpler trees
  with equal predictive accuracy
• Experiments on real world data sets more
  ambiguous
