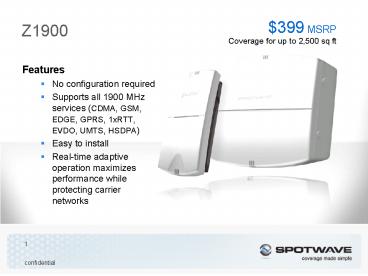

Z1900

1
Z1900
399 MSRP
Coverage for up to 2,500 sq ft

• Features
• No configuration required
• Supports all 1900 MHz services (CDMA, GSM, EDGE,
  GPRS, 1xRTT, EVDO, UMTS, HSDPA)
• Easy to install
• Real-time adaptive operation maximizes
  performance while protecting carrier networks

2
Product Positioning

• Simple, affordable, and effective coverage
• Best performance for up to 2,500 sq ft
• Unleashes potential of new data / broadband
  services
• Everything you need in a consumer-friendly
  package
• No configuration required
• Supports all 1900 MHz services (CDMA, GSM, EDGE,
  GPRS, 1xRTT, EVDO, UMTS, HSDPA)
• Carrier-approved and network friendly
• Powered by SpotCell Technology
• It auto-adjusts for consistent coverage area in
  your home
• Protects the network
• Once installed its maintenance free

3
Retail Product Packaging
Top
Side
Front
Bottom
Rear
4
Contents of Retail Variant (100-10113-01)
5
Installation

• Retail Package
• Installed by the end user
• In most installations NAU can be placed on the
  inside of an exterior wall
• Thin and flexible RG59U cable eases cable routing
• CU can be placed on a wall or on a desk or other
  horizontal surface using the desktop stand
• Single room installations are supported
• Quick install guide and user manual provided
