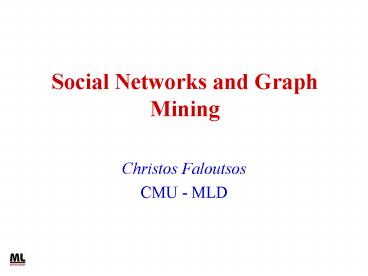

Social Networks and Graph Mining

• Christos Faloutsos
• CMU - MLD

2
Outline

• Problem definition / Motivation
• Graphs and power laws
• Virus propagation
• e-bay fraud detection
• Conclusions

3
Motivation

• Data mining find patterns (rules, outliers)
• Problem1 How do real graphs look like?
• Problem2 How do viruses propagate?
• Problem3 How to spot fraudsters in e-bay?

4
Problem1 Joint work with

• Dr. Deepayan Chakrabarti (CMU/Yahoo R.L.)

5
Graphs - why should we care?
Internet Map lumeta.com
Food Web Martinez 91
Protein Interactions genomebiology.com
Friendship Network Moody 01
6
Graphs - why should we care?

• network of companies board-of-directors members
• viral marketing
• web-log (blog) news propagation
• computer network security email/IP traffic and
  anomaly detection
• ....

7
Problem 1 - network and graph mining

• How does the Internet look like?
• How does the web look like?
• What constitutes a normal social network?
• What is normal/abnormal?
• which patterns/laws hold?

8
Graph mining

• Are real graphs random?

9
Laws and patterns

• NO!!
• Diameter
• in- and out- degree distributions
• other (surprising) patterns

10
Solution

• Power law in the degree distribution SIGCOMM99

internet domains
att.com
ibm.com
11
But

• Q1 How about graphs from other domains?
• Q2 How about temporal evolution?

12
The Peer-to-Peer Topology
Jovanovic

• Frequency versus degree
• Number of adjacent peers follows a power-law

13
More power laws

• citation counts (citeseer.nj.nec.com 6/2001)

log(count)
Ullman
log(citations)
14
Swedish sex-web
Nodes people (Females Males) Links sexual
relationships
Albert Laszlo Barabasi http//www.nd.edu/networks
/ Publication20Categories/ 0420Talks/2005-norway
-3hours.ppt
4781 Swedes 18-74 59 response rate.
Liljeros et al. Nature 2001
15
More power laws

• web hit counts w/ A. Montgomery

Web Site Traffic
log(count)
Zipf
ebay
log(in-degree)
16
epinions.com

• who-trusts-whom Richardson Domingos, KDD 2001

count
trusts-2000-people user
(out) degree
17
But

• Q1 How about graphs from other domains?
• Q2 How about temporal evolution?

18
Time evolution

• with Jure Leskovec (CMU/MLD)
• and Jon Kleinberg (Cornell sabb. _at_ CMU)

19
Evolution of the Diameter

• Prior work on Power Law graphs hints at slowly
  growing diameter
• diameter O(log N)
• diameter O(log log N)
• What is happening in real data?

20
Evolution of the Diameter

• Prior work on Power Law graphs hints at slowly
  growing diameter
• diameter O(log N)
• diameter O(log log N)
• What is happening in real data?
• Diameter shrinks over time
• As the network grows the distances between nodes
  slowly decrease

21
Diameter ArXiv citation graph
diameter

• Citations among physics papers
• 1992 2003
• One graph per year

time years
22
Diameter Autonomous Systems
diameter

• Graph of Internet
• One graph per day
• 1997 2000

number of nodes
23
Diameter Affiliation Network
diameter

• Graph of collaborations in physics authors
  linked to papers
• 10 years of data

time years
24
Diameter Patents
diameter

• Patent citation network
• 25 years of data

time years
25
Temporal Evolution of the Graphs

• N(t) nodes at time t
• E(t) edges at time t
• Suppose that
• N(t1) 2 N(t)
• Q what is your guess for
• E(t1) ? 2 E(t)

26
Temporal Evolution of the Graphs

• N(t) nodes at time t
• E(t) edges at time t
• Suppose that
• N(t1) 2 N(t)
• Q what is your guess for
• E(t1) ? 2 E(t)
• A over-doubled!
• But obeying the Densification Power Law

27
Densification Physics Citations

• Citations among physics papers
• 2003
• 29,555 papers, 352,807 citations

E(t)
??
N(t)
28
Densification Physics Citations

• Citations among physics papers
• 2003
• 29,555 papers, 352,807 citations

E(t)
1.69
N(t)
29
Densification Physics Citations

• Citations among physics papers
• 2003
• 29,555 papers, 352,807 citations

E(t)
1.69
1 tree
N(t)
30
Densification Physics Citations

• Citations among physics papers
• 2003
• 29,555 papers, 352,807 citations

E(t)
1.69
clique 2
N(t)
31
Densification Patent Citations

• Citations among patents granted
• 1999
• 2.9 million nodes
• 16.5 million edges
• Each year is a datapoint

E(t)
1.66
N(t)
32
Densification Autonomous Systems

• Graph of Internet
• 2000
• 6,000 nodes
• 26,000 edges
• One graph per day

E(t)
1.18
N(t)
33
Densification Affiliation Network

• Authors linked to their publications
• 2002
• 60,000 nodes
• 20,000 authors
• 38,000 papers
• 133,000 edges

E(t)
1.15
N(t)
34
Outline

• Problem definition / Motivation
• Graphs and power laws
• Virus propagation
• e-bay fraud detection
• Conclusions

35
Virus propagation

• How do viruses/rumors propagate?
• Will a flu-like virus linger, or will it become
  extinct soon?

36
The model SIS

• Flu like Susceptible-Infected-Susceptible
• Virus strength s b/d

Healthy
N2
N
N1
Infected
N3
37
Epidemic threshold t

• of a graph the value of t, such that
• if strength s b / d lt t
• an epidemic can not happen
• Thus,
• given a graph
• compute its epidemic threshold

38
Epidemic threshold t

• What should t depend on?
• avg. degree? and/or highest degree?
• and/or variance of degree?
• and/or third moment of degree?
• and/or diameter?

39
Epidemic threshold

• Theorem We have no epidemic, if

ß/d ltt 1/ ?1,A
40
Epidemic threshold

• Theorem We have no epidemic, if

epidemic threshold
recovery prob.
ß/d ltt 1/ ?1,A
largest eigenvalue of adj. matrix A
attack prob.
Proof Wang03
41
Experiments (Oregon)
b/d gt t (above threshold)
b/d t (at the threshold)
b/d lt t (below threshold)
42
Outline

• Problem definition / Motivation
• Graphs and power laws
• Virus propagation
• e-bay fraud detection
• Conclusions

43
E-bay Fraud detection
w/ Polo Chau, CMU
44
E-bay Fraud detection - NetProbe
45
Conclusions

• Graphs pose fascinating problems
• self-similarity/fractals and power laws work,
  when textbook methods fail!
• Need ML/AI, Stat, NA, DB (Gb/Tb), Systems
  (Networks), sociology,

46
Contact info

• christos_at_cs.cmu.edu
• www.cs.cmu.edu/christos

THANK YOU!
