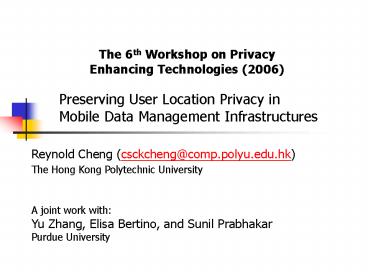

Title: Preserving User Location Privacy in Mobile Data Management Infrastructures
1Preserving User Location Privacy in Mobile Data
Management Infrastructures
The 6th Workshop on Privacy Enhancing
Technologies (2006)
- Reynold Cheng (csckcheng_at_comp.polyu.edu.hk)
- The Hong Kong Polytechnic University
A joint work with Yu Zhang, Elisa Bertino, and
Sunil Prabhakar Purdue University
2Location-Based Services
Find a friend within 50m of my location.
Where is my nearest gas station?
Service Provider
3The Location Privacy Problem
- Beresford et al. BG03 Location privacy is the
ability to prevent other parties from learning
ones current or past location - Need to prevent
- Tracking of the users whereabouts
- Discovery of the users personal habits
4Location Cloaking BS03,GG03
Actual Location
y
x
time
Uncertainty region seen by service provider
5Privacy, Cloaking, and Quality
Location Cloaking
More uncertainty, More privacy
More uncertainty, Poorer service
Better service, lower privacy?
Location Privacy
Service Quality
6Location Cloaking Framework CP04
Imprecise Location Service Request
Precise Location Service Request
Location Cloaking Engine
Service Provider
User
Service quality report
7Our Contributions
- A framework that trades off location privacy and
service quality - An efficient algorithm for processing an
important query class - Definition of query quality
- Experimental simulations
- Privacy threats and solutions
8Cloaked Location Model
Uniform distribution
Evaluated by imprecise queries to produce answers
with probabilistic confidence
9The Cloaking Agent
10The Policy Translator
- Possible privacy preferences
- k-anonymity BG03, GG03 at least k users in the
cloaking region - Privacy minimum uncertainty region size
- Accuracy maximum uncertainty region size
- Locations cloaking required when being near to a
certain object (physical or logical) - Other users/service providers presence
known/hidden to them?
11Service Translator and Service Provider
- Evaluate cloaked data, provide probabilistic
answer, compute quality - Example Range query (e.g., who is within 50m
from me)
12Result Translator
- Provide query result and quality reports
- Convert probabilistic answers to interpretable
results - Example Map probability ranges
(0,0.2,(0.2,0.8,(0.8,1 to LOW, MEDIUM and HIGH
13Precise Location-based Range Query
Example Who is within 100 metres from me?
Only S4 is the answer.
14Imprecise Location-based Range Query
Overall probability (S2,0.1),, (S3,0.7),
(S4,0.9)
Q2 (S3,0.9), (S4,1)
Q1 (S2,0.2),, (S3,0.6), (S4,0.7)
15Query Evaluation (1)
- Transformation decomposes imprecise queries into
sub-queries - Evaluation computes the probabilistic answers
for each precise sub-queries - Aggregation summarizes the final result from all
sub-queries
16Query Evaluation (2)
- Probability pj(u,v) of user Sj satisfying the
range query issued at point (u,v) ? U
Can be Expensive!
- Probability pj of user Sj satisfying the range
query issued by U
17Efficient Query Evaluation
- Pruning removes all objects that do not have any
chance of satisfying the query - Transformation decomposes imprecise queries into
sub-queries - Evaluation computes the probabilistic answers
for each precise sub-queries - Aggregation summarizes the final result from all
sub-queries
18Pruning Cloaked Locations
- The Minkowski Sum can be evaluated with
computational geometry techniques BK00
19Quality of Imprecise Queries
- Query quality metric measures the effect of
cloaking on service quality - Query quality is affected by
- Uncertainty of query issuers location
- Uncertainty of data being queried
20Quality of Imprecise Queries
- The larger the query issuers uncertainty, the
more likely that different sub-query answers are
generated - Low quality when
- There are many different answer sets
- The members of different answer sets differ from
each other significantly
21Query Quality An Illustration
22Query Quality Metric
- Precision of Rk with respect to R
- Probability that S gets the answer Rk
- Query Score
23Experiment Model
- Based on the City Simulator 2.0 developed at IBM
KMJ01 - 71 buildings, 48 roads, 6 road intersections and
1 park - 10,000 people moving in a city
24Quality and Privacy
25Privacy and Performance
26Quality and Query Size
27Implementation Issues
- Systems that dont track locations regularly
- Example GPS, RFID
- GPS receiver in user obtains info from satellites
- Cloaking agent controls when to report location
- Systems that track locations regularly
- Example GSM, PCS
- Cloaking agent reports cloaked locations in terms
of neighboring cells regularly WL00
28References
- BK00 M. Berg, M. Kreveld, M. Overmars and O.
Schwarzkopf. Computational Geometry Algorithms
and Applications. 2nd ed., Springer Verlag
(2000). - BS03 A. Beresford and F. Stajano. Location
Privacy in Pervasive Computing. IEEE Pervasive
Computing, 2(1)46-55, 2003. - CKP03 R. Cheng, D. Kalashnikov and S.
Prabhakar. Evaluating Probabilistic Queries over
Imprecise Data. In Proc. of ACM SIGMOD, June
2003. - CKP04 R. Cheng, D. Kalashnikov and S.
Prabhakar. Querying Imprecise Data in Moving
Object Environments. . In Transactions of
Knowledge and Data Engineering, 2004. - CP04 R. Cheng and S. Prabhakar. Using
uncertainty to provide privacy-preserving and
high-quality location-based services. In Workshop
on Location Systems Privacy and Control,
MobileHCI 2004. - GG03 M. Gruteser and D. Grunwald. Anonymous
Usage of Location-based Services through Spatial
and Temporal Cloaking. In Proc. of the 1st Intl.
Conf. on Mobile Systems, Applications and
Services, May 2003. - GL05 B. Gedik and L. Liu. Location Privacy in
Mobile Systems A Personalized Anonymization
Model. ICDCS, 2005. - KMJ01 J. Kaufman, J. Myllymaki and J. Jackson.
IBM City Simulator Spatial Data Generator 2.0,
2001. - VL2000 V. Wong and V. Leung. Location
management for next-generation personal
communications network. IEEE Network (2000).
29Conclusions and Future Work
- A framework for capturing uncertainty, location
privacy, service quality - Evaluation and quality metrics for imprecise
range queries - Future work
- Large-scale data indexing
- Other query types
- Possible privacy threats
- System prototype development
Contact Reynold Cheng (csckcheng_at_comp.polyu.edu.hk
) for more details http//www.comp.polyu.edu.hk/c
sckcheng
30Related Work Cloaking
- Adaptive-Interval Cloaking Algorithm GG03
partition the area into quadrants of equal area
until the user and other k-1 users are included - Clique-cloak algorithm GL05 each user has her
own k-anonymity requirement - These work did not provide probability
computation and precise measurements over service
quality
31Related Work Uncertainty Management
- Probabilistic queries CKP03, CKP04 manage
uncertain data in location and sensor databases - Evaluation of answers with probabilities
- Metrics for query ambiguity
- Assume queries are precise (i.e., no uncertainty
about the query issuer)
32Privacy of Cloaking
- Size of uncertainty region
- Coverage of sensitive region
33Privacy Threats
34Possible Solutions to Privacy Threats
35Uncertainty vs. Velocity
36Quality vs. Privacy
37Response Time vs. Velocity
38Query Pruning
- Called the Minkowski Sum, which can be computed
with computational geometric techniques BK00
