nuclear physics of the s process

1

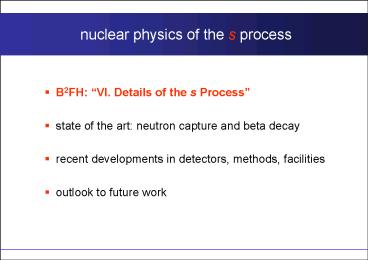

nuclear physics of the s process

• B2FH VI. Details of the s Process
• state of the art neutron capture and beta decay
• recent developments in detectors, methods,
  facilities
• outlook to future work

2
cross section x abundance
2 processes Alt100 not saturated Agt100 flow
equilibrium
branchings indicated for Pb/Bi region
3
r-process abundances
r-only isotopes predominantly r waiting
point concept
4
stellar (n, g) cross sections
completeness 320 out of 400 cross
sections measured instead of 25
1.73 0.05 61.1 2.4
accuracy often 2 5 instead of factor 2 - 3
5
MACS data _at_ kT30 keV
Oak Ridge Livermore Brookhaven CERN Dubna Geel Ge
nt Harwell Karlsruhe Los Alamos Notre
Dame Obninsk Rensselaer Tokyo
6
status and requests
needed cross sections with uncertainties
between 1 and 5 for complete
set of isotopes from 12C to 210Po,
including unstable samples
7
what about theory?
176Hf, 178Hf, 180Hf MACS uncertainties 1 - 2

exercise joined by 6 leading groups calculate
MACS of 174Hf and 182Hf prior to measurement
8
s-process branchings MACS and ß-rates for
unstable isotopes
probing neutron density, temperature, pressure,
time scales !
9
stellar enhancement of ß-rates

• ß- rates - decay of thermally populated excited
  states
• - bound beta decay
• EC - ionization versus capture from
  continuum

10
ß-rates of unstable isotopes
11
what determines quality of (n, ?) data?

• neutron source (energy range, flux, resolution)
• samples (available mass, purity, activity)
• detectors (resolution, efficiency,
  granularity)
• data acquisition (fast digitizers, off-line
  analyses)
• data analysis (simulations, R-matrix codes)
• methodology (TOF or activation)

12
state of the art ?-ray detectors

• resolution compromised by efficiency, high
  resolution HPGe detectors
• crucial for activation measurements

• efficiency important for measurements of small
  cross sections and to
• compensate for sample mass or weak
  neutron neutron flux

• segmentation multi-detector arrays for higher
  efficiency, angular distributions,
• and background suppression, g
  calorimeters (FZK, LANL, n_TOF)

• sensitivity improved background suppression
  (C6D6 detectors)

13
optimized C6D6 detectors
14
g-ray calorimeters
42 independent modules in total 60 l of BaF2
ecasc gt 98 clear signatures good TOF resolution
detailed computer model for GEANTsimulations of
detector response to g-cascades from capture and
fission events and for evaluation of corrections
15
data acquisition and analysis

• completeness data taking with flash-ADC for
  flexible and comprehensive
• off-line analysis (fast digitizers for
  recording full detector
• response, e.g. over 16 ms with 500 MS/s)

• simulations MCNP and GEANT are becoming
  standard tools for
• planning of experiments and necessarily -
  for the analysis
• of cross section measurements with complex
  detector arrays

16

17
resolution sensitivity
151Sm(n,g)
recently at LANL 0.44 mg of 237Np smallest
sample ever used in TOF
18
comparison of pulsed neutron sources
19
activation technique at kT25 keV

• neutron production via 7Li(p,n)7Be reaction at
  Van de Graaff
• induced activity measured with HPGe detectors

• possible when product nucleus is radioactive
• very high sensitivity ? small samples small
  cross sections
• use of natural samples possible, no enriched
  sample necessary
• Direct Capture component included

20
activation unique sensitivity
4-5 orders of magnitude higher flux than best
TOF facilities!
measurement of mbarn cross sections
measurements with ng samples, important for
cross sections of unstable isotopes
28 ng 147Pm
21
activation versus TOF
22
future strategies

• key cross sections need to be checked
• discrepancies different methods show
  inconsistent results
• uncertainties in historic data often
  underestimated or not recognized

• state of the art techniques mandatory
• facilities spallation sources DANCE, n_TOF,
  J-PARC,
• intense low energy accelerators
• detectors optimized and highly segmented 4p
  arrays
• DAQ fast digitizers for recording full
  information
• analysis GEANT and MCNP simulations

• complementary measurements
• redundancy measurement and data analysis
  repeated with different perspectives
• consistency combination of independent
  experiments (e.g. TOF and activation/AMS)
• sensitivity better accuracy, small and
  unstable samples

23
unstable samples now and soon
s process
branch point status
63Ni 79Se 81Kr 85Kr 147Nd 147Pm 148Pm 151Sm 154E
u 155Eu 153Gd 160Tb 163Ho 170Tm 171Tm
179Ta 185W 204Tl
24
summary

• present tools available for stable samples
• facilities, detectors,
  DAQ systems, analysis codes

near future all stable and some unstable
isotopes fluxes high enough
for most important unstable nuclei
challenges unstable isotopes ? MACS and ß
rates from s process to explosive
nucleosynthesis
25
thank you
26
how good are current data?
27
the Frankfurt Neutron source at the SGZ
Ep 1.9 2.4 MeV, Dt 1 ns TOF mode 250 kHz,
2 mA or CW mode 175 MHz, 200 mA
28
n_TOF measurements on Zr isotopes
