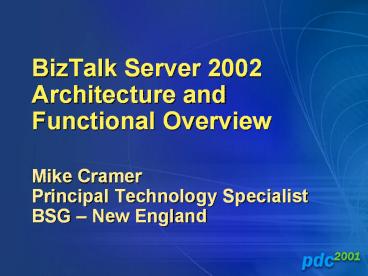

Title: BizTalk Server 2002 Architecture and Functional Overview


1
BizTalk Server 2002 Architecture and Functional
Overview
  • Mike Cramer
  • Principal Technology Specialist
  • BSG New England

2
Agenda
  • BizTalk Server 2000 Overview
  • BizTalk Server 2002 Release Themes
  • BTS 2002 Functional Overview
  • QA

3
Roadmap
  • BizTalk Server 2000
  • Released December 2000
  • BizTalk Server 2002
  • Code name Bizet
  • Enterprise Edition
  • Most commonly requested features in Enterprise
    customer base
  • Currently in Beta

4
BTS 2002 Functional Overview
  • Target Enterprise Operational areas
  • Deployment
  • Intra-Company
  • Inter-Company
  • Monitoring
  • Management
  • Tools and Add-On Features
  • EDI Enhancements
  • XML Tools Enhancements
  • Orchestration Enhancements
  • Documentation/High-End Samples

5
Deployment Scenarios
  • Intra-Company Deployment
  • How can operations managers move BizTalk Server
    solutions from one environment to another (e.g.
    dev? test? staging? production)?
  • How can operations managers deploy BizTalk Server
    solutions between machines in a server farm?
  • Inter Company Deployment
  • How can an enterprise hub help its trading
    partners connect without incurring costs
    associated with technical hand-holding?

6
Deployment Requirements
  • Encapsulate a BizTalk Application
  • Simple and intuitive experience
  • Facilitate deployment across clusters/firewalls
  • Staging Development to Test to Staging to
    Production
  • Deploy Now
  • Scheduled replication
  • Automatically within a cluster

7
Intra-Company Deployment
Development/Staging Environment
Firewall
8
Intra-Company Deployment
  • Solution based on Application Center
  • BizTalk driver for Application Center
  • Enumerates configuration artifacts hierarchically
  • Messaging ports, distribution lists, custom
    counters, receive functions (channel, docdefs,
    maps, envelopes, etc
  • Native Application Center drivers
  • File System Orchestration schedule files.
  • COM COM apps.
  • Web sites.

9
Inter-Company Deployment
  • Goal Rapidly create B2B relationships
  • Scenario
  • Typical Hub-Spoke model
  • IT Dept woes
  • Ensuring data from client is in order
  • Client Configuration debugging
  • Connectivity testing
  • SEED Tools Super Effective and Efficient
    Deployment

10
SEED Methodology
  • Hub Tasks
  • Create SEED packages
  • Establish Testing Service (BTS in the sky)
  • Spoke Tasks
  • Download SEED
  • Run client tools
  • Perform
  • Self Test Local Loopback
  • Remote Loopback
  • Request to do Business
  • IT Manager approval

11
Inter-Company DeploymentSEED
Hub
6. Done
Spoke
12
Monitoring Customer Feedback
  • Target Users
  • IT operations
  • Business User
  • We need
  • Richer, user defined, events and counters.
  • Guidance on interpreting NT Events
  • More powerful alerts and notifications.
  • Orchestration related performance counters.

13
Monitoring/Tracking
  • Solution will be based on Microsoft Operations
    Manager (MOM)
  • Features
  • Health Monitoring across server farms
  • User definable monitoring, alerts, and
    notification
  • Better problem resolution support
  • Event consolidation and alert/notification
    throttling

14
New Tracking/Monitoring Features
  • Custom Counters
  • Richer Suspended Queue Event
  • MOM Management Pack
  • NT Event rules and KB
  • Alerting and Notification
  • New Orchestration performance counters

15
Custom Counters
  • Need to monitor, alert, and notify based on
    richer set of document processing info.
  • Example
  • Important Customer NorthWind
  • If the orders per day from my fulfillment
    organization to NorthWind drop below 100, raise
    an alert in MOM and notify me via email.

16
MOM
WMI
Inbound Interchange
Outbound Interchange
BTS Messaging
17
Custom Counters (cont.)
  • Custom Counter Properties
  • Counter (WMI class instance) name
  • Source Organization
  • Source Qualifier
  • Source Value
  • Destination Organization
  • Destination Qualifier
  • Destination Value
  • Document Type
  • Time Interval
  • BTS Group Name

18
Suspended Queue Event
  • Additional Properties
  • Document Source
  • Document Destination
  • Document Type
  • Processing Stage (e.g., parsing, transform,
    Transport
  • Channel Port IDs
  • User created MOM rules consume, filter, alert,
    and notify.
  • Will ship sample MOM rules.

19
NT Events
  • BTS 2000 single event ID
  • Bizet unique event IDs in description
  • MOM Rules and KB for consuming and responding to
    NT Events
  • Rules are language neutral

20
MOM
  • MOM management pack
  • Basic providers and rules
  • Knowledge base, local and MS.com links
  • NT Events
  • Custom counters
  • Suspended queue event enhancements
  • Performance Counters (includes new XLANG)
  • Samples
  • Globalization/localization

21
EDI Enhancements
  • Outbound batching-Functional Acknowledgements of
    EDI Documents
  • EDI Parser Enhancements
  • All versions, all schemas, Industry specific
    subsets Partnership with 3rd party

22
BizTalk XML Tools
  • Standards support
  • Export XSD schemas
  • Upgrade DTD Import module
  • Jscript in functoids
  • Map grid scalability
  • Instance based map testing

23
Orchestration
  • Schedule Instance based Correlation
  • Avoid per-schedule instance queues
  • Samples
  • Schedule Instance Pooling
  • Exception Handling
  • DB Maintenance scripts

24
Documentation
  • Documentation
  • More of why, rather than how
  • Scenario based concept section
  • Integrating documentation with samples
  • White Papers
  • Dynamic ports and how to use them
  • BizTalk for EAI
  • Commerce Server and BizTalk integration paper
  • Native XDR Schemas and BTS
  • High-End Samples
  • 25 applications

25
Summary
  • Targets deployment, management, monitoring and
    commonly requested features
  • Due for release in Q4 CY 2001
