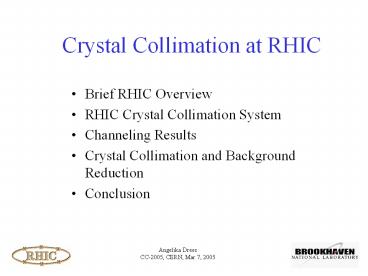

Crystal Collimation at RHIC

• Brief RHIC Overview
• RHIC Crystal Collimation System
• Channeling Results
• Crystal Collimation and Background Reduction
• Conclusion

• Angelika Drees
• CC-2005, CERN, Mar 7, 2005

2
Collaborators

• BNL
• Ray Fliller (FNAL)
• Dave Gassner
• Lee Hammons
• Gary McIntyre
• Steve Peggs
• Dejan Trbojevic

• IHEP Protvino
• Valery Biryukov
• Yuriy Chesnokov
• Viktor Terekhov

3
Run Species Integrated Luminosity Energy
2000 Au-Au 7.3 mb-1 (PHENIX) 70 GeV/u
2001 Au-Au 92.6 mb-1 (PHENIX) 100 GeV/u
2002 Polarized protons 100 nb-1 (STAR) 100 GeV
2003 d-Au 27 nb-1 (PHENIX) 100 GeV/u
2003 Polarized protons 2500 nb-1 (STAR) 100 GeV
2004 Au-Au 1368 mb-1 (PHENIX) 100 GeV/u
2004 Polarized protons 3200 nb-1 (STAR) 100 GeV
2005 Cu-Cu 14 nb-1 (PHENIX) 100 GeV/u
4
Typical RHIC Parameters

• 95 norm. Emittance e15 p mm-mrad (Gold), 25 p
  mm-mrad (Cu, p)
• rms momentum spread sp 0.13
• Bunch length sl 0.2 m
• Energy 100 GeV/u (Gold, Cu) 250 GeV/u (p)
• Avg. Store Length 4 hours
• Beam size at collimator 5.3mm (bPHENIX1m)

5
2 Stage Crystal Collimation System
Idea Use a bent crystal to channel halo away
from the beam core, intercept with a scraper
(secondary collimator) downstream.
6
Crystal Collimator Geometry
7
Considerations for Crystal Collimation

• Crystal alignment to beam halo.
• Angular divergence of beam hitting crystal.
• Positioning of secondary jaws/scrapers

However, in RHIC all warm spaces have large a!

• Crystal should be placed at a location that has
  low a and D and a maximun of b so that
• channeling angle is independent of x0
• angular divergence is reduced
• Channeling efficiency is increased
• Operation of crystal collimator is easier

8
RHIC Collimation System
Changed after FY2003
STAR
Scraper can move horizontally, vertically and
rotate in horizontal plane
Downstream PIN Diodes
Upstream PIN Diodes
Hodoscope courtesy of Y. Chesnokov and V.Terekhov
9
Vessel Cutaway
Pivot
Inchworm
Crystal
Moveable Stage

• Crystal can rotate approx /- 6 mrad
• Measurement Resolution 20 mrad
• Angular Step Size approx. 30 nrad

10
Crystal Vessel
Crystal
Crystal Motion
Beam
11
Crystal
Serpukov style holder
12
Lattice Functions
bPHENIX 2 m FY2003
13
Available data sets
scan refers to a scan of the angular range of
the crystal
Run Species bPHENIX Stores Scans
FY2001 Au 5 m 8 27
FY2001 Au 2 m 4 24
FY2001 Au 1 m 12 109
FY2002 p 3 m 11 119
FY2003 Au 2 m 4 20
14
Typical Crystal Scan
sx(x0)
Volume Capture
Crystal Aligned
xp
Crystal Channeling
November 12, 2001 Au beam at store.
15
Comparison to Simulation

• Model Optics
• Location wrong
• dip width too narrow
• efficiency too large

Design optics do not agree well with data.
However, measured optics agrees better.
Simulation used CATCH and one turn matrix.
16
Comparison to Simulation
Volume capture region strongly affected by number
of turns in simulation.
17
Channeling Efficiency
Run bPHENIX Channeling Efficiency Channeling Efficiency Channeling Efficiency Channeling Efficiency Channeling Efficiency
Run bPHENIX Design optics Measured optics Simulation Measured width Channeling data
FY2001 5 59 19 2 24 3
FY2001 2 71 39 2 37 1 9 1 28 3
FY2001 1 74 75 1 56 3 20 2 19 3
FY2002 3 79 21 2 26 3
FY2003 2 71 52 2 50 1 26 2 26 3
Channeling Efficiency does not match predictions
from the theory. This is because the beam
divergence on the crystal does not match theory.
Using the measured beam divergence (from sx(x0)
) the efficiency agrees well for most cases.
18
Channeling Results

• We observed proton and heavy ion channeling
• RHIC optics did not match model, so initial
  predictions overestimated crystal performance
• Simple theory overestimates channeling efficiency
  lacking multiple turns, model of halo
  distribution too simple.
• Simulation agrees well with data (for the most
  part)
• Channeling efficiency is understood once optics
  and beam halo distribution are understood.
• Accurate knowledge of lattice functions and halo
  distribution is very important

19
STAR Background
4 crystal scans with different scraper positions
- xs
Crystal not moved horizontally
20
Other Experiment Backgrounds
Only BRAHMS sees a significant effect
21
STAR Background Reduction
Scraper only
Raw Background
Crystal collimation does not do better than
scraper alone!
22
Crystal Collimation vs. Raw Background
Scraper moves closer to beam
Crystal Collimation reduces Background to
uncollimated rate
Au beam, d-Au run, crystal collimation not
always effective in reducing background.
23
Crystal Collimation Results

• Crystal can cause background in experiments.
• Scraper position very important.
• Because of low channeling efficiency, crystal
  collimation was not successful.
• Scraper alone collimated the best.
• Crystal Collimator removed from RHIC.
  Traditional two stage collimation system
  installed for FY2004 run.

24
Summary

• Bent Crystals were used for collimation in RHIC
• Crystal Channeling worked as expected once
  lattice functions and halo distribution were
  understood.
• Collimation was unsuccessful because lattice was
  not optimized in area of collimator.
• Crystal caused background.
• Tevatron has installed the BNL crystal vessel
  ready to be commissioned end of this month ?

25
Measuring Crystal Angle
By measuring the deflection of the laser beam,
the crystal angle is measured

• Crystal can rotate approx 6 mrad
• Measurement Resolution 20 mrad
• Angular Step Size 30 nrad

26
Beam Divergence
Run bPHENIX sx(x0) mrad sx(x0) mrad sx(x0) mrad sx(x0) mrad
Run bPHENIX Design optics Measured optics Simulation Channeling data
FY2001 5 12.3 39 4
FY2001 2 9.98 19 1 20 1 78 4
FY2001 1 8.91 9 1 11 1 38 3
FY2002 3 10.8 58 3
FY2003 2 9.98 14 1 16 1 28 2
Even using the correct optics, the predicted
angular spread is too small. Multiple turns are
not in the theory! Assumed Gaussian halo
distribution!
27
Channeling Angle vs. Position
b1m at PHENIX
Design mrad/mm
Measured Optics mrad/mm
Data mrad/mm
28
Placing the Scraper
Scattering from scraper
Scattering from crystal
By using both sets of PIN diodes, we know when
the scraper becomes the primary aperture
