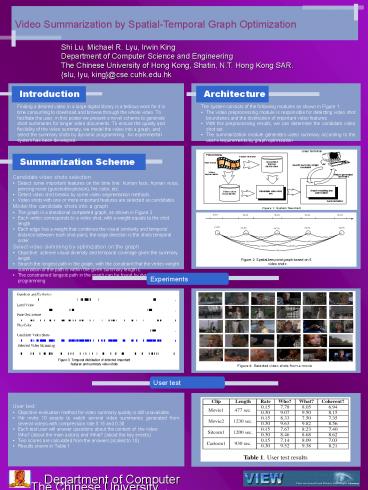

Video Summarization by Spatial-Temporal Graph Optimization

1
Video Summarization by Spatial-Temporal Graph
Optimization
Shi Lu, Michael R. Lyu, Irwin King Department of
Computer Science and Engineering The Chinese
University of Hong Kong, Shatin, N.T. Hong Kong
SAR. slu, lyu, king_at_cse.cuhk.edu.hk
Finding a desired video in a large digital
library is a tedious work for it is time
consuming to download and browse through the
whole video. To facilitate the user, in this
poster we present a novel scheme to generate
short summaries for longer video documents. To
ensure the quality and flexibility of the video
summary, we model the video into a graph, and
select the summary shots by dynamic programming.
An experimental system has been developed.

• The system consists of the following modules as
  shown in Figure 1
• The video preprocessing module is responsible for
  detecting video shot boundaries and the
  distribution of important video features
• With the preprocessing results, we can determine
  the candidate video shot set.
• The summarization module generates video summary
  according to the users requirements by graph
  optimization

• Candidate video shots selection
• Detect some important features on the time line
  human face, human voice, piercing noise
  (gunshot/explosion), fire color, etc.
• Detect video shot breaks by some video
  segmentation methods
• Video shots with one or more important features
  are selected as candidates
• Model the candidate shots into a graph
• The graph is a directional completed graph, as
  shown in Figure 2
• Each vertex corresponds to a video shot, with a
  weight equals to the shot length
• Each edge has a weight that combines the visual
  similarity and temporal distance between each
  shot pairs the edge direction is the shots
  temporal order
• Select video skimming by optimization on the
  graph
• Objective achieve visual diversity and temporal
  coverage given the summary length
• Search the longest path in the graph, with the
  constraint that the vertex weight summation of
  the path is within the given summary length L
• The constrained longest path in the graph can be
  found by dynamic programming

Cluster2

• User test
• Objective evaluation method for video summary
  quality is still unavailable
• We invite 10 people to watch several video
  summaries generated from several videos with
  compression rate 0.15 and 0.30
• Each test user will answer questions about the
  content of the video
• Who? (about the main actors) and What? (about
  the key events)
• Two scores are calculated from the answers
  (scaled to 10)
• Results shown in Table 1

Department of Computer Science and Engineering
The Chinese University of Hong Kong
