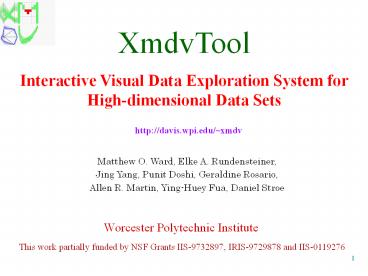

XmdvTool Interactive Visual Data Exploration
System for High-dimensional Data Sets
http//davis.wpi.edu/xmdv
Matthew O. Ward, Elke A. Rundensteiner, Jing
Yang, Punit Doshi, Geraldine Rosario, Allen R.
Martin, Ying-Huey Fua, Daniel Stroe
This work partially funded by NSF Grants
IIS-9732897, IRIS-9729878 and IIS-0119276
2
XmdvTool Features

• Hierarchical visualization and interaction tools
  for exploring very large high-dimensional data
  sets to discover patterns, trends and outliers
• Applications
• Bioterrorism Detection
• Bioinformatics and Drug Discovery
• Space Science
• Geology and Geochemistry
• Systems Monitoring and Performance Evaluation
• Economics and Business
• Simulation Design and Analysis
• Multi-platform support (Unix, Linux, Windows)
• Public domain software http//davis.wpi.edu/xmdv

3
Xmdv Main Features

• Scale-up to High Dimensions Visual Hierarchical
  Dimension Reduction
• Scale-up to Large Data Sets Interactive
  Hierarchical Displays, Database Backend with
  Minmax Encoding, Semantic Caching and Adaptive
  Prefetching
• Interlinked Multi-Displays Parallel
  Coordinates, Glyphs, Scatterplot Matrices,
  Dimensional Stacking
• Visual Interaction Tools N-Dimensional Brushes,
  Structure-Based Brushing, InterRing

4
Scale-Up for Large Number of Dimensions

• Solution to High Dimensional Datasets
• Group Similar Dimensions into Dimension Hierarchy
• Navigate Dimension Hierarchy by InterRing
• Form Lower Dimensional Spaces by Dimension
  Clusters
• Convey Dimension Cluster Information by
  Dissimilarity Display

5
Visual Hierarchical Dimension Reduction Process
6
Visual Hierarchical Dimension Reduction Process
A 42-dimensional Data Set
A 4-Dimensional Subspace
Dimension Hierarchy Interaction Tool InterRing
7
InterRing - Dimension Hierarchy Navigation and
Manipulation
Roll-up/Drill-down
Rotate Zoom in/out
Modify
Distort
8
Dissimilarity Display
Three Axes Method
Diagonal Plot Method
Mean-Band Method
Axis Width Method
9
Scale-up for Large Number of Records

• Solution to Large Scale Datasets
• Group Similar Records into Data
  Hierarchy
• Navigate Data Hierarchy by Structure-Based
  Brushing
• Represent Data Clusters by Mean-Band
  Method
• Provide Database Backend Support using MinMax
  Tree, Caching, Prefetching

10
Interactive Hierarchical Display
Hierarchical Clustering
Structure-Based Brushing
11
Interactive Hierarchical Display
Flat Display
Hierarchical Display
Mean-Band Method in Parallel Coordinates
12
Interactive Hierarchical Display
Flat Display
Hierarchical Display
Mean-Band Method in Parallel Coordinates
13
Scalability of Data Access

• Approach
• Attach database system to visualization front-end
• MinMax hierarchy encoding
• Key idea avoid recursive processing
• Pre-computed
• Caching
• Key idea reduce response time and network
  traffic
• Prefetching
• Key idea use application hints and predict user
  patterns
• Performed during idle time

14
Scalability of Data AccessMinMax Hierarchy
Encoding

• Pre-compute object positions
• level-of-detail (L)
• extent values (x,y)
• preserve tree structure

• New query semantics
• objects are now rectangles
• select objects that touch L
• select objects that touch (x, y)
• structure-based brush intersection of two
  selections

15
Scalability of Data Access Caching

• Purpose
• reduce response time and network traffic
• Issues
• visual query cannot directly translate into
  object IDs
• high-level cache specification to avoid complete
  scans
• Semantic caching
• queries are cached rather than objects
• minimize cost of cache lookup
• dynamically adapt cached queries to patterns of
  queries

16
Scalability of Data Access Prefetching

• Strategy
• Speculative (no specific hints)
• navigation remains local
• both user and data set influence exploration
• Adaptive (strategy changes over time)
• Evolves as more knowledge becomes available
• Non-pure (interruptible prefetching)
• leave buffer in consistent state
• Requirements
• non-pure prefetching large transactions small
  object size semantic caching ? small
  granularity (object level)
• speculative, non-pure prefetcher ? cache
  replacement policy guessing method

17
Scalability of Data Access Experimental
Evaluation

• Conclusions
• Caching reduces response time by 80
• Prefetching further reduces response time by 30
• Designing better prefetching strategies might
  help further reduce response time

18
Scalability of Data Access Prefetching
Mean Strategy
Random Strategy
Direction Strategy
Localized Speculative Strategies
Exponential Weight Average Strategy
Focus Strategy
Vector Strategies
Data Set Driven Strategy
19
Xmdv System Implementation

• Tools
• C/C
• TCL/TK
• OpenGL
• Oracle 8i
• ProC

20
Publications (available at http//davis.wpi.edu/x
mdv)

• Jing Yang, Matthew O. Ward and Elke A.
  Rundensteiner, "InterRing An Interactive Tool
  for Visually Navigating and Manipulating
  Hierarchical Structures", InfoVis 2002, to appear
• Punit R. Doshi, Elke A. Rundensteiner, Matthew O.
  Ward and Daniel Stroe, Prefetching For Visual
  Data Exploration.
• Technical Report WPI-CS-TR-02-07, 2002
• Jing Yang, Matthew O. Ward and Elke A.
  Rundensteiner, Interactive Hierarchical
  Displays A General Framework for Visualization
  and Exploration of Large Multivariate Data Sets,
  Computers and Graphics Journal, 2002, to appear
• Daniel Stroe, Elke A. Rundensteiner and Matthew
  O. Ward, Scalable Visual Hierarchy Exploration,
  Database and Expert Systems Applications, pages
  784-793, Sept. 2000
• Ying-Huey Fua, Matthew O. Ward and Elke A.
  Rundensteiner, Hierarchical Parallel Coordinates
  for Exploration of LargeDatasets, IEEE Proc. of
  Visualization, pages 43-50, Oct. 1999
• Ying-Huey Fua, Matthew O. Ward and Elke A.
  Rundensteiner, Navigating Hierarchies with
  Structure-Based Brushes, IEEE Proceedings of
  Visualization, pages 43-50, Oct. 1999
