Multivehicle Cooperative Control Raffaello DAndrea Mechanical

1

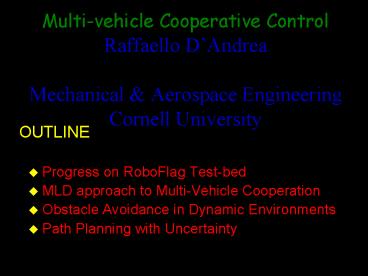

Multi-vehicle Cooperative ControlRaffaello
DAndreaMechanical Aerospace Engineering
Cornell University
OUTLINE

• Progress on RoboFlag Test-bed
• MLD approach to Multi-Vehicle Cooperation
• Obstacle Avoidance in Dynamic Environments
• Path Planning with Uncertainty

2
SYSTEMS OF INTEREST
CENTRALCONTROL
SENSE
GLOBALSENSING
PROCESSING
HIGH LEVELDECISION MAKING
COMMS
COMMS
COMMUNICATIONS NETWORK
COMMS
COMMS
COMMS
COMMS
COMMS
ACTUATE
COMMS
HUMANINTERFACE
LOW LEVELCONTROL
HIGH LEVELCONTROL
VEHICLE
SENSE
3
What is RoboFlag?
4
RoboFlag System
Vision computer
Arbiter
Overhead cameras
Computers for each entity
.
.
.
.
.
RF transceiver
5
SOFTWARE ARCHITECTURE
LOW LEVEL CONTROL INTERFACE
WIRELESSINTERFACE
LOCAL
MACHINE VISIONBASEDGLOBAL ANDLOCAL SENSING
VEHICLEHIGH LEVELCONTROL
VEHICLEHIGH LEVELCONTROL
VEHICLELOW LEVELCONTROL
VEHICLELOW LEVELCONTROL
COMMUNICATIONS NETWORKSIMULATOR
GLOBAL
ARBITER
CENTRALCONTROL
HUMANINTERFACE
6
HARDWARE ARCHITECTURE
WIRELESSHARDWARE
HARDWARE PORT
INTERFACE ANDARBITRATIONCOMPUTER
MACHINE VISIONCOMPUTER
HARDWARE PORT
WIRELESSHARDWARE
LOCAL
LOCAL
VEHICLE(S)HIGH LEVELCONTROL COMPUTER
VEHICLE(S)HIGH LEVELCONTROL COMPUTER
VEHICLE
HUMAN INTERFACECOMPUTER
CENTRAL CONTROLANDCOMMUNICATIONS
NETWORKCOMPUTER
VEHICLE
HUMAN INTERFACECOMPUTER
7
SIMPLE COMMUNICATIONS NETWORK MODEL
Bi,j data units
Bi,j data units
buffer Li,j
Bi,j data units
buffer Li,j -1
buffer 0
Ui
Uj
8
People

• Michael Babish (Research Support)
• Andrey Klochko (Programmer)
• JinWoo Lee (Post-Doc)
• 30 UG and M.Eng. students

9
The RoboFlag Drill
Start out simple and work up (Earl and DAndrea
02)

• Attacking robots are drones directed toward
  defense zone
• Defending robots want to intercept attackers
  before they enter the defense zone
• Constraints defenders must avoid collisions
  and must not enter the defense zone defenders
  have limited control authority

10
The RoboFlag Drill Modeling
Model drill as a mixed logical dynamical system
subject to constraints (MLD system) (Bemporad and
Morari 99)
Defender dynamics
Constraints
11
The RoboFlag Drill Modeling
Attacker dynamics
Constraints
12
The RoboFlag Drill MLD form
Converting logic expressions into inequalities
using HYSDEL (Torrisi et al. 00) we can write
system in MLD form
13
The RoboFlag Drill
Strategy synthesis using an optimization approach
(Bemporad and Morari 99)
Using this modeling approach the cost can easily
model a wide array of objectives
We take the cost to be the total score of the
drill
Objective Find control input that minimizes the
cost subject to the dynamics and constraints
14
The RoboFlag Drill Results
The optimization problem reduces to a mixed
integer linear program (MILP)

• 3 defenders, 8 attackers
• MILP problem
• 4040 integer variables
• 400 continuous variables
• 13580 constraints
• CPLEX solves in 244 seconds on Linux PIII 866MHz

15
The RoboFlag Drill
FUTURE WORK

• Better modeling to avoid discretization in time
• Speed up solution time
• Perform optimization repeatedly (MPC) to obtain
  strategy for dynamically changing and uncertain
  environments
• Add more components from the RoboFlag game
  (limited sensor footprint, latency and bandwidth
  limitations, etc.)
• Decentralization

16
People

• Matthew Earl (Graduate Student)

17
Obstacle Avoidance in Dynamic Environments
Objective Computationally fast algorithms for
path planning in multi-agent adversarial
environments with delayed information.
APPROACH

• Game Theoretic Avoiding a rational adversary in
  a delayed
• environment can be modeled as a non-cooperative
  imperfect
• information game . Trajectory generation is an
  outcome of
• such an approach.
• Randomized Algorithm This algorithm uses an
  existing
• trajectory generation routine to generate
  feasible paths in the
• presence of obstacles. One way to incorporate the
  effect of delay
• is to associate with each obstacle a reachability
  regime over the
• delayed steps.

18
Randomized Algorithm
Terminology

• Primary Node

An equilibrium configuration belonging to the
state-space of the agent.

• Secondary Node

An element of the state space of the agent which
lies on the path from the initial point to a
primary node.
19
Randomized Algorithm
Main Idea (Frazzoli,Dahleh Feron 00)

• The main idea is to search for random
  intermediate points in the state-space which
  might generate a feasible path to the
  destination. A feasible path being the one
  without any
• collisions.
• Among all the feasible paths the one with the
  lowest cost (eg. time) is then chosen.
• The underlying assumption in using this algorithm
  is that one already has a way of generating
  trajectories in the absence of obstacles.

20
Randomized Algorithm
Main Idea and Implementation

• This algorithm is probabilistically complete that
  is it returns a feasible path if there exists
  one, else it returns failure, in the
  probabilistic sense.
• Contrary to the tree data structure that was used
  by the author to store the data, we use a grid
  data structure which takes a large storage space
  but has faster access time.

21
Future Work

• Implementing the randomized algorithm framework
• for multiple agents in a centralized fashion,
  which would
• be a relatively easy extension to the present
• algorithm by increasing the state-space
  dimension.
• Developing a protocol enabling the
  decentralization
• of the above computation. PROVE that the
  protocol achievesthe desired objective.

22
People

• Pritam Ganguly (Graduate Student)

23
Path Planning under Uncertainty
Motivation

• Uncertainty in information leads naturally to
  probabilistic approach

MAIN IDEAS

• Construction of probability map from available
  data
• Measurement data
• A priori statistics
• Convert the probability map to a directed graph
• Path planning by solving shortest path problem
  in digraph

24
Probability Map Building

• Measurement update by measured data

sensor characteristics

• Time update by a priori statistics of environment

environment statistics

• Map building

25
Conversion to Digraph
0.015
0.02
0.013
0.02
0.015
0.013
0.015
0.01
0.02
0.015
0.01
0.013
0.013
0.013
0.001
0.001
0.013
0.001
Digraph
Probability Map
26
Simulation
Dynamic Replanning
Case with Multiple Vehicles
27
Contribution and Future Work
Contribution

• Building a probability map in uncertain dynamic
  environments
• Path planning of multiple vehicles in uncertain
  dynamic environments based on probability map

Future Works

• Finding an algorithm to efficiently integrate
  map building and path planning
• Consideration of time and velocity in path
  planning for multiple vehicles
• Consideration penalty for frequent acceleration
  and deceleration

28
People

• Myungsoo Jun (Post-Doc)
• Atif Chaudry (Graduate Student)
