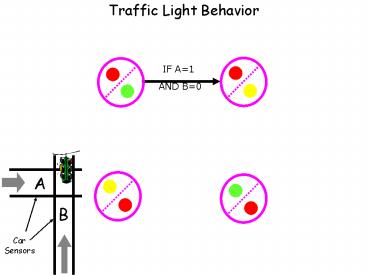

Traffic Light Behavior

1
Traffic Light Behavior
IF A1 AND B0
2
Traffic Light Behavior
Otherwise
IF A1 AND B0
3
Traffic Light Behavior
Otherwise
IF A1 AND B0
Always
4
Traffic Light Behavior
Otherwise
IF A1 AND B0
Always
IF A0 AND B1
Otherwise
5
Traffic Light Behavior
Otherwise
IF A1 AND B0
Always
Always
IF A0 AND B1
Otherwise
6
Traffic Light Behavior
Otherwise
NoteClock beats every 4 sec.So Light is
Yellow for 4 sec.
IF A1 AND B0
Always
Always
IF A0 AND B1
Otherwise
7
Traffic Light State Machine
Otherwise
NoteClock beats every 4 sec.So Light is
Yellow for 4 sec.
IF A1 AND B0
Always
Always
IF A0 AND B1
Otherwise
8
Traffic Light Design

• Weve figured out the logical behavior of the
  Traffic Light in terms of a State Machine
• We know what the states are.
• For each state, given any input,we know which
  state to go to next.
• How do we build it?

9
Traffic Light Design

• Thinking this through
• Our machine needs to

10
Traffic Light Design

• Thinking this through
• Our machine needs to
• Remember which state it is in (Memory)

11
Traffic Light Design

• Thinking this through
• Our machine needs to
• Remember which state it is in (Memory)
• Given the state it is in and input values, it
  must determine which state to go tonext (Logic)

12
Traffic Light Design

• Thinking this through
• Our machine needs to
• Remember which state it is in (Memory)
• Given the state it is in and input values, it
  must determine which state to go tonext (Logic)
• And thats all !

13
Traffic Light Design

• Problem 1
• Remember which state it is in (Memory)
• How do represent the states?
• We could keep one bit of memory for whether Light
  A is Green or not, whether it is Yellow or not,

• This would take 6 bits of memory.
• There is a much simpler way!

14
Traffic Light Design

• Problem 1
• Remember which state it is in (Memory)
• How do represent the states?
• Answer
• Just number them (using binary numbers).
• We have 4 states.
• Call them 00, 01, 10, 11.
• We (human designers) will keep track of what
  these names mean.

15
Traffic Light States
Otherwise
IF A1 AND B0
Light A
Always
Always
IF A0 AND B1
Otherwise
Light B
16
Traffic Light States
Otherwise
IF A1 AND B0
01
00
Light A
Always
Always
IF A0 AND B1
11
10
Otherwise
Light B
17
Traffic Light Design

• Problem 2
• Given the state it is in and input values, it
  must determine which state to go tonext (Logic)
• Answer

18
Traffic Light Design

• Problem 2
• Given the state it is in and input values, it
  must determine which state to go tonext (Logic)
• Answer
• Build a Truth Table
• Use Universal Method!

19
Traffic Light Behavior
Build A Truth Table for next state / Output
20
Traffic Light Behavior
Otherwise
IF A1 AND B0
01
00
Light A
Always
Always
IF A0 AND B1
11
10
Otherwise
Light B
21
Traffic Light Behavior
Build A Truth Table for next state / Output
22
Traffic Light Behavior
Otherwise
IF A1 AND B0
01
00
Light A
Always
Always
IF A0 AND B1
11
10
Otherwise
Light B
23
Traffic Light Behavior
Build A Truth Table for next state / Output
24
Traffic Light Behavior
Otherwise
IF A1 AND B0
01
00
Light A
Always
Always
IF A0 AND B1
11
10
Otherwise
Light B
25
Traffic Light Behavior
Build A Truth Table for next state / Output
26
Traffic Light Behavior
Otherwise
IF A1 AND B0
01
00
Light A
Always
Always
IF A0 AND B1
11
10
Otherwise
Light B
27
Traffic Light Behavior
Build A Truth Table for next state / Output
28
Traffic Light Behavior
Otherwise
IF A1 AND B0
01
00
Light A
Always
Always
IF A0 AND B1
11
10
Otherwise
Light B
29
Traffic Light Behavior
Build A Truth Table for next state / Output
30
Traffic Light Design

• We understand how to represent which state the
  system is in (so we can store it in Memory)
• We understand how the system can determine which
  state to go to next (Logic)
• Lets put it together

31
Traffic Light Design
Input Sensor A
Input Sensor B
32
Traffic Light Design
Current State
D1
M1
2-bit Memory Register
D2
M2
Write
Sensor A
Sensor B
33
Traffic Light Design
Current State
Next State
2-bit Memory Register
Logic For Next State Output
Write
Sensor A
6 Outputs for eachLight
Sensor B
34
Traffic Light Design
Current State
2-bit Memory Register
Logic For Next State Output
Write
Sensor A
6 Outputs for eachLight
Sensor B
35
Traffic Light Design
Current State
2-bit Memory Register
Logic For Next State Output
Clock
Sensor A
6 Outputs for eachLight
Sensor B
36
Design for Any State Machine
Manybits
Current State
Memory Register
Logic For Next State Output
Clock
Inputs
Outputs
37
State Machinesin Real Life

• Elevator control systems
• Car control systems
• VCRs
• Alarm Clocks
• Personal Computers
• Just about everything!

38
More Sophisticated Designs

• Just add more states, more inputs, more outputs,
  more rules
• Example Add a longer delay before Traffic Light
  changes from Yellow to Red. (Say 8 seconds
  instead of 4.)

39
Traffic Light Behavior
Otherwise
IF A1 AND B0
Always
Always
Light A
Always
Always
IF A0 AND B1
Otherwise
Light B
40
More Sophisticated Designs

• Note that the new delay states we added
  correspond to the SAME combinations of lights as
  other states (Red/Yellow).
• The purpose of the new states is only to add
  delays.
• Logical states need not correspond to different
  observable states of the machine!

41
More Sophisticated Designs

• Can also add other State Machines!

42
More Sophisticated Designs

• Example (Fairness)
• We might want a separate Timer machine for the
  Traffic Light
• If cars keep coming, Light should decide after 3
  minutes to switch lights.
• A Timer is just a state machine that keeps
  counting beats of the Clock

43
More Sophisticated Designs
Inputs
Outputs
Timer StateMachine
44
Computers!
State Machines that you can program
45
Review

• In designing state machines, we used
• Binary Representation (to represent states)
• Memory (to store the current state)
• Logic Circuits Universal Method (to determine
  the next state)
• In this way, we learned how to buildspecial-purpo
  se digital systems(e.g. traffic lights)

46
General Purpose Computers

• What makes a PC different?
• Today your PC cant play Final Fantasy X.
• Tonight, you buy the Final Fantasy X CD-ROM
• Tomorrow your PC can play the game!
• PCs are general-purpose computers.
• Realize state machines for traffic lights,
  digital cameras, VCRs,
• You can write a program (software) to control the
  circuitry (hardware) of a general purpose computer

47
The Stored Program

• Idea is simple
• Build a machine that can execute certain
  instructions.
• Then, write down different lists of instructions
  (programs) to accomplish different things.
• One program plays an adventure game
• Another program lets you write papers
• Another lets you surf the Web

48
Programming

• Using software to control hardware
• Hardware is fixed circuitry
• Software is instructions to the processor to
  control the inputs to the fixed circuitry
• Inputs to the hardware are of 2 types
• Data
• Program
• We dont differentiate
• Both are stored in computers memory

49
History of ProgrammableMachines

• First programmablesystem was the early
  printing process developed in China circa 800
  C.E.
• First program wasperhaps Chinese translation
  ofBuddhist Canon(the Tipitaka)

50
History (cont.)

• Gutenbergs Printing Press(circa 1450)
• Main Contribution
• Just a few basic instructions
  (smalleralphabet size) suffice.

51
History (cont.)

• Huygens Pendulum Clock(circa 1650)
• Main Contribution
• Timing, clock ticks increase accuracy

52
History (cont.)

• Musical Machines Barrel Organs (1500!) Music
  boxes (between) Player Pianos (c. 1700)
• Main Contributions
• Drive cylinder or disk with pins (bits!!) which
  play notes at the right time
• Change disk -gt change song!!

53
History (cont.)

• Jacquards Loom(circa 1810)

• Punched Cards stored program for
  weaving patterns.

54
History (cont.)


• Charles Babbage (1822-64)
• Input -- Punched Cards
• Hardware -- general-purpose
  mechanical mathematical system
• (Analytical Engine) -- never built
• Could be programmed
• punched card could sayGo back 5 punched cards
• Instructions could be Executed repeatedly, or in
  different order.

55
The Modern Computer
von Neumann (1945) Princeton, NJ

• Basic Idea still the sameA machine that can
  execute certain instructions.
• Machine instructions represented by sequences of
  0s and 1s(Machine Language)
• Instructions, and data, stored in Memory

56
Memory

• Weve seen that memory can be used to build State
  Machines.
• In modern computers, memory is also usedin a
  different way
• Big arrays of Memory called RAM Random Access
  Memory
• RAM is a place to store information while the
  computer is running
• The information includes the data that the
  program reads and writes, as well as the program
  itself (I.e. its instructions)

57
Programs are Just Like Data

• One of the important features of the von Neumann
  model is the fact that
• The instructions themselves
• And
• The data the instructions manipulate
• are all stored in the same RAM.
• This was one of the revolutionary features of the
  modern computer, totally unlike Punch-Card
  computers proposed in the past.

58
Programs are Just Like Data

• This innovation is crucial to modern computing.
• It even allows for the possibility of programs
  that change themselves as they are executed.
• With great power comes great risk
• Computer Viruses!

59
How Memory (RAM) Works

• Take a single bit of memory

D
M
Write
60
RAM (cont.)

• Group 8 of them together.
• 8 bits (b)is called abyte (B).
• Most RAMis arrangedin bytes.

61
RAM (cont.)

• A byte of memory (a.k.a. an 8-bit register)

8 bits input
8 bits Output
8 bits (1 byte)of Memory
Write
62
RAM (cont.)

• We want a HUGE number of such 1 byte memory
  cells.

63
RAM (cont.)

• We want a HUGE number of such 1 byte memory
  cells.
• Problem How do we indicate which byte ofmemory
  we want to use at any given time?

64
RAM (cont.)

• Solution Assign each byte an address.
• We can number all the bytes in binary.
• Each bytes assigned number is called the bytes
  address in memory.
• Then, we can ask the RAM
• What is byte number 011010101010?
• Or tell the RAM
• Write 01101100 into memory at
  address011010101010

65
RAM (cont.)
Address
Data Output
Data input
Write
66
RAM (cont.)
20 bits of address
Address
Data Output
Data input
Write
67
RAM (cont.)
20 bits of address
Address
Data Output
Data input
Write
8 bits (1 byte)of data
