Using Non-Taxonomic Knowledge to Improve Semantic Matching

1

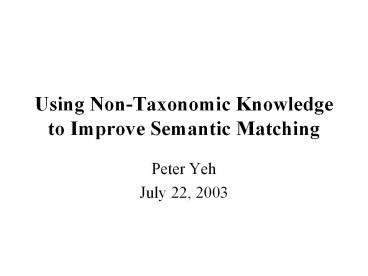

Using Non-Taxonomic Knowledge to Improve Semantic
Matching

• Peter Yeh
• July 22, 2003

2
Talk Outline

• Introduction
• Analysis of Existing Techniques
• Our Approach
• Initial Evaluation
• Proposed Work

3
Introduction

• Many AI tasks require determining whether two
  knowledge representations encode the same
  knowledge.

4
Information Retrieval

• Match queries with documents.

Q A car with a bumper made of gold.
A Acme makes a car made of Gold.
5
Knowledge Acquisition

• Match new knowledge with existing knowledge.

KB
KB Are you trying to encode a conversion?
6
Rule-based Classification

• Match rule antecedents with working memory. For
  example, Course of Action (COA) critiquing.

Pattern
COA
This COA has a rating of good for enemy maneuver
engagement.
7
The Core Problem

• Solving this matching problem is hard because
  multiple encodings of the same knowledge rarely
  match exactly.
• Representations dont match exactly because
• Expressive Ontology.
• Knowledge is encoded by different sources.
• Knowledge being encoded is complex.

8
Types of Mismatches

• Informal examination of a knowledge-base
  containing
• Patterns.
• COAs.
• Knowledge-base was built by two Subject Matter
  Experts (SMEs) participating in DARPAs RKF
  project.
• Looked for cases of mismatch.

9
Types of Mismatches (cont.)
an armored brigade engaging an armored
battalion.

• Taxonomic Differences

10
Types of Mismatches (cont.)
One military unit attacking another unit.

• Taxonomic Differences
• Equivalent Alternatives

11
Types of Mismatches (cont.)
Mechanized infantry brigade engaging mechanized
infantry battalion.

• Taxonomic Differences
• Equivalent Alternatives
• Omissions

12
Types of Mismatches (cont.)
Support attack occurs before main attack.

• Taxonomic Differences
• Equivalent Alternatives
• Omissions
• Granularity

13
Analysis of Existing Techniques

• Analogy
• Inexact Matching
• Semantic Matching
• Conceptual Indexing
• Ontology Merging

14
Analogy

• Analogy mapping of knowledge from a base domain
  to a target domain.
• Structure Mapping Engine (Forbus et. al. 89)
• Maps relational knowledge (mappable systems).
• Systematicity Principle used to select best
  analogy.
• Analogy based on common generalizations (Leishman
  92)
• Maps both relational knowledge and object
  attributes.
• Prefers minimal common generalization.

15
Analogy Structure Mapping Engine
16
Inexact Matching

• Inexact Matching tries to address mismatches
  between representations
• Graph Editing (Tsai et. al. 83, Shapiro and
  Haralick 81, Messmer et. al. 93, Wolverton et.
  al. 2003)
• Uses edit distance parameters.
• Similarity based on shortest sequence of edits.
• Partial Matching
• Does not require representations to be
  isomorphic.
• Similarity based on amount of structural overlap.
• Minimal Common Supergraph (Bunke et. al. 2000)
  and Maximal Common Subgraph (Bunke and Shearer
  98).

17
Inexact Matching MCS
18
Semantic Matching

• Semantic Matching uses knowledge to match
  representations.
• Projection
• Uses taxonomic knowledge.
• Ontoseek (Guarino et. al. 99) and ELEN (Huibers
  et. al. 96).
• Projection Projection alone is too restrictive
• ??-projection (Genest and Chein 97).
• Common generalization, graph splitting, regular
  expressions (Fargues 92, Buche et. al. 2000,
  Martin et. al. 2001).
• Semantic Overlap
• Maximal Joins and Generalizations (Myaeng 92,
  Poole et. al. 95).
• Shared Semantic Structures (Zhong et. al. 2002).

19
Semantic Matching Semantic Overlap
20
Conceptual Indexing

• Conceptual indexing how to organize and index
  knowledge.
• Requires so form matching.
• Generalization hierarchy (Bournard et. al. 95,
  Ellis 92, Levinson 82, Woods 97).
• Knowledge indexed by common generalizations.
• Generalizations organized hierarchically by
  subsumption relationships.
• Retrieve Most Specific Subsumer (MSS) of a query.
• Match procedure is similar to Projection -
  suffers the same problems.

21
Ontology Merging and Translation

• Ontology Merging merge multiple ontologies built
  by different sources
• Chimaera (McGuinness et. al. 2000)
• SMART (Noy and Musen 99).
• Ontology Translation translates a representation
  from one language to another
• Ontomorph (Chalupsky 2000).
• Goals are different but share some of the same
  problems.

22
Our Approach

• The goal of this research is to solve the
  matching problem.
• We believe existing semantic approaches can be
  extended with additional knowledge to
  significantly improve matching.
• What kinds of additional knowledge?
• Transformations
• Handle mismatches.
• Improve matching.
• Not taxonomic knowledge.

23
Our Approach (cont.)

• Generality and domain-independence.
• Want additional knowledge (e.g. Transformations)
  to be useful across domains.
• We believe domain-independence is possible given
  a reusable domain-neutral upper ontology.
• Contains a small set of general concepts.
• SMEs use this upper ontology to build KBs on
  specialized topics (e.g. chemistry, biology,
  battle space planning).
• No training in logic or knowledge representation.

24
Illustration of Our Framework
Ontology
Domain-independent KB for the task of matching.
KB can be viewed as a domain-specific matcher
(e.g. match symptoms to diseases).
25
Our Prototype

• Extend semantic matchers with transformations.
• Apply transformations in a forward-chaining
  manner.
• Use existing techniques for reasoning with
  Conceptual Graphs (Corbett et. al. 99, Salvat et.
  al. 96, Willems 95)
• Projection.
• Unification.
• Graph rules.
• Two caveats because existing techniques lead to
  promiscuous matches.

26
Transformations that Retains Semantics
Projection
27
Transformations that Retains Semantics
28
Rule Applicability
29
Rule Applicability
30
Enumerating Transformations

• Transformations derived from our domain-neutral
  upper ontology.
• Enumerated all ways that a relation can be
  legally used to encode information in a
  conceptual graph.
• Considered whether the same information can be
  expressed differently.
• Enumeration was possible because
• Small upper ontology.
• Each concept had well-defined semantics.

31
Transformations Enumerated

• We were able to enumerate about 300
  transformations.
• Resulting transformations fall into three general
  categories
• Transitivity
• Part Ascension
• Transfers Through

32
Transformations Enumerated (cont.)
relation Transitive Part Ascension Transfers Through
causes X - subevent, resulting-state
caused-by X subevent-of resulting-from
defeats - - -
defeated-by - subevent-of caused-by
enables X - causes, resulting-state, subevent
enabled-by X subevent-of caused-by, resulting-from
inhibits - subevent-of resulting-state
inhibited-by - subevent-of caused-by, resulting-from
by-means-of X - -
means-by-which X - -
prevents - subevent-of -
prevented-by - subevent-of caused-by, resulting-from
resulting-state - - causes
resulting-from - - -
33
Example Our Approach
l1
l1 (1,A)
M
(1,A)
34
Example Our Approach
35
Example Our Approach
36
Example Our Approach
37
Initial Evaluation

• Used our matcher in an application in the domain
  of battle space planning (DARPA's RKF Project).
• The task is to analyze COAs.
• Battle space ontology built by extending our
  upper ontology.
• Two military analysts used this ontology to build
  KBs containing
• Patterns.
• COAs.
• Our matcher matched the patterns to COAs.

38
Example Output
39
Experiment 1

• Evaluates our first hypothesis.
• How significant is the improvement?
• Compared our matcher to
• Maximal Common Subgraph (MCS).
• Semantic Search Lite (SSL).
• Methodology
• 300 domain-neutral transformations 80
  domain-specific transformations.
• Matched the patterns to the COAs.
• A pattern matches a COA if the match score meets
  or exceeds a pre-specified threshold.
• Used metrics of precision and recall.

40
Experiment 1 Precision
41
Experiment 1 Recall
42
Experiment 2

• Initial evaluation of our second hypothesis.
• Assesses the domain independence of using
  transformations.
• Limited - conducted in only one domain, but can
  still offer some insight.
• Methodology
• Divided transformations into 2 groups
  (domain-neutral vs. domain-specific).
• Used domain-neutral transformations to construct
  DN
• Used domain-specific transformations to construct
  DS
• Everything else is the same as Experiment 1.

43
Experiment 2 Precision
44
Experiment 2 Recall
45
Proposed Work

• More Comprehensive Evaluation.
• Use background knowledge.
• Incorporate indexing to make matching more
  efficient.

46
Comprehensive Evaluation

• Evaluate our approach in several applications in
  four domains.
• Four data sets
• Chemistry (Halo).
• Biology (RKF).
• Battle Space Planning (RKF).
• Office Procedures (EPCA).
• Three Applications
• Elaboration Chemistry and Office Procedures.
• Question Answering Biology and Battle Space.
• Plan Evaluation Battle Space and Office
  Procedures.

47
Background Knowledge

• Background Knowledge.
• Can be used to normalize new knowledge at
  acquisition time via a join (Mineau et. al. 93).
• Idea can be applied to matching.
• Increase similarity.
• Two problems
• When should a join be performed?
• How to better control the join?

48
Background Knowledge

• Background Knowledge.
• Can be used to normalize new knowledge at
  acquisition time via a join (Mineau et. al. 93).
• Idea can be applied to matching.
• Increase similarity.
• Two problems
• When should a join be performed?
• How to better control the join?

49
Indexing

• Need indexing to make matching more efficient.
• A common technique is a generalization hierarchy
• Overhead for storage can be expensive.
• Finding the MSS can also be expensive.
• We intend to study
• How to index knowledge by content?
• Other index structures that are more parsimonious.
