POLYMORPHISM

1

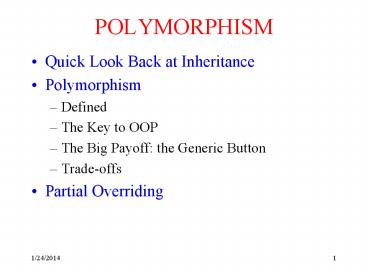

POLYMORPHISM

• Quick Look Back at Inheritance
• Polymorphism
• Defined
• The Key to OOP
• The Big Payoff the Generic Button
• Trade-offs
• Partial Overriding

2
Quick Look Back at Inheritance

• Remember the inheritance of private instance
  variables?
• Weve seen that idea before!
• just like public and private properties!
• what can the subclass access in the diagram on
  next slide?
• what cant it access?

3
Quick Look Back at Inheritance
public method of superclass
protected method of superclass
private methods and private instance variables of
superclass
public method of superclass
public abstract method of superclass
public instance variable of superclass
protected instance variable of superclass
4
Quick Look Back at Inheritance

• Remember that, when a class provides public
  methods, those methods can alter private data!
• similarly, inherited methods can alter private
  data of the superclass
• therefore we do pseudo-inherit private
  properties because the normally inherited methods
  might need to access them!

5
A Contrived Example

• So when we construct an instance of SubMobile, it
  makes a new City instance to pass to its
  superclasss constructor.
• SuperMobile takes that City instance and uses it
  to instantiate a ICS111Mobile.
• Then our instance of SubMobile calls move(),
  which it inherits.
• This method uses the superclasss private
  instance mobile, so we must have inherited it!

6
Polymorphism

• Remember Inheritance lecture
• SportsCar, Van, and ICS111Mobile are all
  subclasses of the Car class
• Car has an abstract move() method that each of
  its subclasses define
• however, each of its subclasses defines this
  method differently
• Thus each subclass responds to move() differently

7
Polymorphism
8
Polymorphism

• What happens when we
• tell SportsCar to move()?
• (moves fast)
• tell Van to move()?
• (moves at a moderate speed)
• tell ICS111Mobile to move()?
• (sometimes moves, sometimes just sputters along!)

9
Polymorphism Defined

• Polymorphism is a fancy word for multiple
  forms,
• e.g., multiple forms of response to the same
  message
• Key points about Polymorphism
• subclass inherits methods from superclass, it
  responds to the same messages
• we can use an instance of subclass as if it were
  instance of superclass
• Car car // Declaration
• car new Van ()// Instantiation
• object will respond according to implementation
  defined in subclass

10
Polymorphism Defined

• Key points about Polymorphism
• assignment does NOT create an instance of Car,
  since new Car() is illegal, because Car is
  abstract. It is a Car, but not an instance of
  Car!
• car.move() //will move like a Van, though we
  refer to it as a Car!
• Car is declared type, while Van is actual
  type
• we can only call Car methods on car since Java
  determines which methods can be called by looking
  at the declared type, i.e. Car
• we cannot assign a superclass instance to a
  variable of subclass type because superclass
  instance does not know all the declared subtypes
  methods

11

• / A simple example of Polymorphism. /
• public class RaceTrack
• private Car carOne, carTwo, carThree /they're
  all declared as Cars!/
• public RaceTrack ()
• carOne new SportsCar ()
• carTwo new Van ()
• carThree new ICS111Mobile ()
• // but actual types are subtypes of Car
• public void startRace() /tell Car instances to
  move/
• carOne.move ()
• carTwo.move ()
• carThree.move ()
• / Note move() called as if all were Cars,
  but
• executed polymorphically on instances of
• subtypes/

12
Polymorphism The Key to OOP

• When a sending message to an instance, we do not
  need to know its exact class...
• as long as it is a subclass that extends a
  superclass, can send the subclass any message
  that we can also send to the subclasss
  superclass
• but message may be handled differently by
  different subclasses, so we may get different
  results

13
Polymorphism The Key to OOP

• Classic example shapes
• each shape subclass knows how to draw itself, but
  all do it differently simply say shape.draw()
• See ShapesFrame.java
• public class Shapes
• private Shape shape1 new Triangle()
  private Shape shape2 new Square ()
• public void drawShapes () shape1.draw
  () shape2.draw ()
• public static void main(String args)
• new Shapes().drawShapes()

14
Example Adding a new Shape

• Pressing a button will draw a different shape
• RightTriangle, Square, Circle
• See file DrawShapeButtonFrame.java
• What if we added a new Shape subclass?
• Would we need to make a new DrawShapeButton for
  each Shape subclass?
• By using polymorphism, we can add as many Shape
  subclasses as we want, without having to create a
  new DrawShapeButton for each subclass!

15
The Big Payoff of Polymorphism the Generic Button

• / This button draws any instance of Shape.
  Since this class is written generically, we don't
  need to recompile it if we add more shapes and
  buttons /
• class DrawShapeButton extends RoundedRectangle
• private Shape shape
• public DrawShapeButton(Shape shape)
• this.shape shape
• public voidmouseReleased(MouseEvent e)
• shape.draw()

declared type is a generic parameter! Caller
passes in an instance of a specific actual type
(not to be confused with actual parameter,
which it also is). The declared type may be
abstract, but the actual type must be concrete,
as it must be instantiated.
16
More about DrawShapeButton

• DrawShapeButton doesnt know a Square from a
  RightTriangle, but it works correctly because it
  just expects any instance of Shape
• a subclass of Shape may not even be written until
  after DrawShapeButton has been compiled!
• This is very general way to code
• we can write code that deals only with superclass
  (whether concrete or abstract)
• we can add new subclass and all code that uses
  superclass still works
• no need to change existing code!

17
More about DrawShapeButton

• Java compiler helps enforce this generality
• we can only use objects that are Shape with
  DrawShapeButton, otherwise code would not compile

• DrawShapeButton doesn't care about the actual
  type of the instance, as long as it's a Shape
• allows many objects, possibly written by
  different people or at different times, to
  respond to the same message in very different
  ways
• you "code to" public "interface", not private
  implementation

18
Example New Shape Application

• To make three buttons, each of which moves a
  different Shape, just instantiate three
  DrawShapeButton and pass each a different Shape!
• public class DrawShapeButtonFrame extends Frame
• private Shape shape1 new RightTriangle(.
  . .)
• private Shape shape2 new Square(. . . )
• private Shape shape3 new Circle(. . . )
• private DrawShapeButton button1, button2,
  button3
• public DrawShapeButtonFrame()
• button1 new DrawShapeButton(100, 400,
  shape1)
• button2 new DrawShapeButton(300, 400,
  shape2)
• button3 new DrawShapeButton(500, 400,
  shape3)
• public static void main (String
  arguments)
• new DrawShapeButtonFrame()

19
Trade-offs of Polymorphism

• Type of variable limits which messages it can be
  sent
• only messages defined by superclass
• if subclass defines additional methods, they
  can't be called directly on a reference to
  superclass
• In a minor way, this limits our flexibility
• if Circle has a method getRadius() not defined in
  Shape, we can't use a generic Shape to call
  shape.getRadius()
• why? Because all we know what a Shape can do is
  in its definition

20
Trade-offs of Polymorphism

• But polymorphism also provides us with extra
  options
• code is the same no matter which subclass of
  Shape is actually instantiated
• to make a new subclass of Shape work, we dont
  need to revise, rewrite or debug methods that are
  in the Shape class already huge payoff of OOP!

21
Class Exercise

• Create a new shape
• Add the class to file ShapesFrame.java
• For example, an isosceles right triangle
• Add a new button
• Add the button to DrawShapeButtonFrame.java
• Note that we do not have to create a new button
  class, as the class DrawShapeButton can reference
  (point to) any instance that is a subclass of
  Shape

22
Partial Overriding

• / Models a version of the ICS111Mobile that
  holds clowns in order to demonstrate new idea
  partial overriding. /
• public class CrazyMobile extends ICS111Mobile
• private BandOfClowns clowns
• public CrazyICS111Mobile(BandOfClowns clowns)
• this.clowns clowns
• public void move ()
• clowns.pileIntoCar ()
• super.move ()
• clowns.pileOutOfCar ()

23
Partial Overriding

• Remember that overriding allows us to replace
  superclass definition of method
• Partial overriding overrides superclass method
  in part
• reusing superclass method rather than completely
  replacing it
• calls superclass method with the same name using
  super, plus providing additional code

24
Partial Overriding

• public void move ()
• // add some extra functionality
• clowns.pileIntoCar ()
• / We want to move like the superclass moves,
  so we call superclass's move() method. No need
  to repeat code that is already written in
  ICS111Mobile's move() method!/
• super.move ()
• // add some more functionality
• clowns.pileOutOfCar ()
• // end of move()

25
Partial Overriding

• super.move() can be called more than once
• super.move() can even be called in another method
• But we can use only overridden methods from
  immediate superclass super.super.move() doesn't
  work!
• Alert what happens here if we call this.move()
  instead of super.move()?
• Exception in thread "main" java.lang.StackOverflo
  wError

26
Polymorphism can be tricky

• Lets say that class Garage has following method
• public void storeCar(ICS111Mobile car)...
• . . . and we construct a local variable with
  declared type Car and actual type
  ICS111MobileCar niceCar new
  ICS111Mobile()garage.storeCar(niceCar)//error

27
Polymorphism can be tricky

• We cannot pass our niceCar variable into
  storeCar()
• niceCar, as a Car, doesnt have all of
  ICS111Mobiles methods available, hence a
  parameter type mismatch
• This is the corrected code
• ICS111Mobile niceCar new ICS111Mobile()
• garage.storeCar(niceCar)

28
Polymorphism can be tricky

• Declared type of actual parameter must be same
  class (or subclass) of declared type of formal
  parameter
• Car (declared type of actual parameter) is
  superclass of ICS111Mobile (declared type of
  formal parameter) . . . so wont work!

29
Class Exercise

• Whats the output?
• See Tracing.java
• A similar problem will be on the next exam

30
Example Code

• Check out the SketchApplication files
• SketchApplication contains classes Cursor
  DrawButton
• See class websites Example Code link
• Class Cursor contains class Point
• Class DrawButton has 4 subclasses
• UpButton, DownButton, LeftButton, RightButton
• This is an example of polymorphism
• Depending on what type of DrawButton we click
  (i.e., UpButton, DownButton), the line will move
  up, down, etc.
