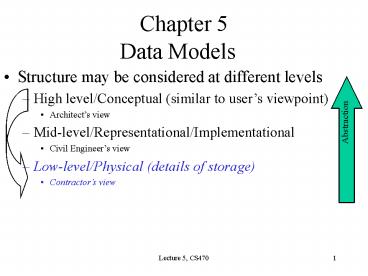

Chapter 5
Data Models

• Structure may be considered at different levels
• High level/Conceptual (similar to users
  viewpoint)
• Architects view
• Mid-level/Representational/Implementational
• Civil Engineers view
• Low-level/Physical (details of storage)
• Contractors view

Abstraction
2
Concepts

• The true meaning of near and dear and A bird
  in hand is worth two in the bush
• Cost ( performance) decreases with distance
• PDA gt laptop gt Desktop
• Capacity increases with distance
• I can carry a backpack, my car can carry my bike,
  my house can hold a lot more
• Why getting ABS on your new car means also paying
  for the moonroof package
• Flexibility in degree of granularity drives up
  costs (and retards performance)
• Reason why FEDEX has pickups at end of day

3
Concepts

• Increasing efficiency by parallelizing
• Racing car team takes seconds to change all four
  tires
• Protection against complete loss increases the
  probability of partial loss
• Spreading the eggs (Diverse stock portfolio
  versus investing entire savings in Enron or
  Worldcom)

4
Physical storage

• Primary faster than Secondary storage but smaller
• Primary
• Cache (L1, L2) faster than Main memory but
  smaller
• Secondary
• Magnetic disk faster than CD-ROM faster than
  magnetic tape
• Tape jukeboxes
• Flash memory (EEPROM)
• Modem upgrades

5
Database storage

• Dirty secret Ultimately, everything is organized
  in terms of files, each containing a set of
  records
• Records in file may be
• Heaped (Stuff in teenagers room)
• Sequential (Sorted, Can use Binary Search)
• Hashed (Almost unique shortcut to locations on
  disk)
• Arranged as B-trees (Efficient retrieval)
• Only part of Database in main memory
• Rest online on Disk or offline on tape

6
Gramophone players still rule?

• Disk drives (Figure 5.1) are digital gramophone
  players
• Similarities
• Circular Disks (Records)
• Head (Stylus)
• Seek time (Time to position stylus at beginning
  of song)
• Latency/Rotational Delay (Wait for song to begin)
• Differences
• Disk packs/Cylinders (One LP record, one track at
  a time)
• Concentric digital tracks (Spiral analog groove)
• Blocks (Scratch by scratch)
• Disk controller (Human being)
• Uniform/Variable sector density (Variable sector
  density)

7
Redundant Array of Inexpensive (Independent) Disks

• Improved Reliability and Performance compared to
  individual disks
• Protect against total data loss (and improve
  performance) by striping across multiple disks
• Bit level OR Block level
• Protect against partial data loss by redundant
  copies of data
• Duplication (Mirroring/Shadowing)
• Error correcting codes (Parity bits, minimal
  redundant information)

8
Concurrency (Multi-tasking, NOT Concurrency
Control)

• Apparent concurrency Switching between jobs
  faster than ability to detect (Superman dealing
  with Hawaii volcano and Himalayan avalanche at
  the same time)
• True concurrency Simultaneous execution (Figure
  5.5)
• Accessing RAID disks
• Double buffering (Fig 5.6)
• Process contents of block n in buffer A while
  block n1 is being read into buffer B

9
Record formats

• Records and Record Types (déjà vu?)
• Record type Field names Field Types
  Sequence (implicit)
• Record Collection of either actual values for
  fields OR pointers to values (Binary Large
  Objects - BLOBs)
• Example
• struct movie
• char name 50
• char releaseDate 8
• Film reel

10
Record Length

• Records may be
• Fixed-length Good performance, wasted space
• Variable length Compact space, bookkeeping
  overhead
• Heterogeneous file
• Variable field lengths
• Optional fields
• Repeating (multivalued, déjà vu?) fields
• Accommodate variable length by
• Including field name with field value
• Field separator OR field length parameter
• Nulls (pseudo variable length)

11
Putting records into blocks

• If blockSize gt recordSize, may have more than one
  record per block
• Blocking factor number of records/block
• ?blockSize / recordSize?
• If blockSize is a perfect multiple of recordSize,
  no space wasted (Figure 5.8)
• Blocking factor for variable length records?

12
Putting blocks into records

• If recordSize gt blockSize, need spanned records
• Spanned records also worth considering if
• recordSize is almost as large as blockSize
• record-length is variable (Figure 5.8)
• overhead in performance
• More than one block may need to be retrieved
• Need to search for start of record

Putting blocks into files

• Consecutive OR Linked
• Clusters are a compromise
