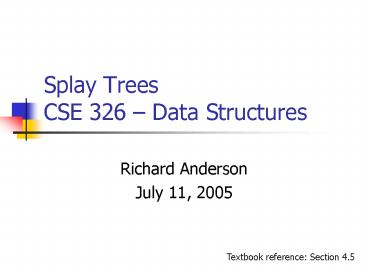

Splay Trees CSE 326 Data Structures

1
Splay TreesCSE 326 Data Structures

• Richard Anderson
• July 11, 2005

Textbook reference Section 4.5
2
Classroom Presenter and Student Submissions
3
AVL Trees

• What is the most important aspect of AVL trees?

4
Lecture Outline

• Amortized Complexity
• Splaying Binary Search Trees
• Double rotations
• Search Tree operations using splay trees
• Why it works

5
Amortized cost

• Cost per operation vs. cost of a sequence of
  operations
• Total cost of ownership
• Examples
• Owning a car
• Small recurring costs gas, parking
• Big expenses insurance, repairs
• Processing email
• Dealing with arriving messages
• Cleaning up inbox once every three months

6
Data Structure ExampleBuffering recent items

• Problem
• Allow access to the most recent k items received
• Solution
• Maintain an array of recent items, add items at
  the end, compact the array when full
• Array of size 2k
• If space left just add the item
• If full shift all elements k positions to the left

7
Problem What is the amortized cost of inserting
k2 items?

• Number of insertions
• Cost per insertion
• Total cost of insertions

• Number of array compactions
• Cost per compaction
• Total cost of compactions

Total overall cost Amortized cost per item
8
Balancing trees

• Basic binary search trees
• No explicit balancing
• Order determined by order of insertion
• AVL Trees
• Explicit operations to keep tree balanced
• Guarantees on height of tree with respect to
  number of nodes
• Self adjusting trees
• Operations applied which help keep the tree
  balanced

9
Splay Trees

• Splay trees are tree structures that
• Are not perfectly balanced all the time
• Data most recently accessed is near the root.
• The procedure
• After node X is accessed, perform splaying
  operations to bring X to the root of the tree.
• Do this in a way that leaves the tree more
  balanced as a whole

10
The result

• Splay trees support insert, find, and delete at
  O(log n) Amortized cost
• The cost of a sequence of n insert, find, and
  delete operations is O(n log n)
• No guarantee (better than O(n)) on the cost of a
  single operation

11
Splaying a node
Elements in increasing order A,B,,G

• Rotate a node to the root of the tree two levels
  at a time

D
G
G
G
G
A
A
A
A
D
F
F
C
D
E
C
B
E
E
E
D
B
B
F
C
C
D
B
12
ZIG-ZIG
Z
Y
D
X
C
A
B
13
ZIG-ZAG
Show the ZIG-ZAG transformation to bring X to the
root
Z
Y
A
D
X
B
C
14
ZAG-ZIG, ZAG-ZAG, ZIG, ZAG

• Other two level transformations similar
• ZIG and ZAG used to handle the case of a path to
  root of odd length

15
Find operation

• Find the value as in a binary search tree
• Once the value is found, splay it to the root
• This will rearrange nodes in the tree, generally
  making future operations less expensive

16
Splay E
E
Items order A, , I, smallest to largest
H
B
I
A
D
F
G
C
I
H
A
B
G
F
C
D
E
17
Splay E (submit your answer)
E
I
A
H
B
A
G
C
I
D
F
B
H
C
G
D
F
E
18
Insert and Remove

• Insert x
• Apply standard BST insert
• Splay x to the root
• Remove x
• Splay x to the root
• Delete the root
• Splay largest element of left subtree to the root
• Merge trees

19
Remove
X
X
Z
Z
Z
20
Describe how you find the largest element in a
tree
21
Splaying summary

• Every time we access an element, we bring it to
  the root with a splay
• This ensures that the work done in accessing a
  node also rebalances the tree

22
Splay tree performance

• Claim n Insert, Remove, Find operations take
  O(n log n) time
• Intuitive argument long splay operations reduce
  the depth of many nodes
• Rigorous argument accounting based proof to
  show each step costs O(log n)

23
Splay Trees

• What is the most important aspect of Splay trees?
