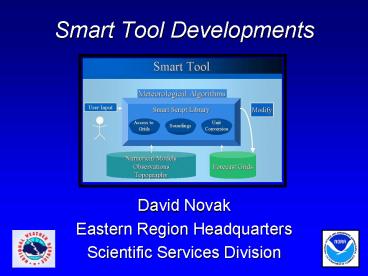

Smart Tool Developments

1
Smart Tool Developments

• David Novak
• Eastern Region Headquarters
• Scientific Services Division

2
Outline

• Eastern Region Smart Tool infrastructure
• Activities this year
• Vision for the Future

3
Eastern Region Smart Tool Infrastructure
4
Role of ST/SITs in IFPS paradigm

• Populate the IFPS Database
• Employ scientific technique
• Streamline grid editing process
• Ensure meteorological grid consistency
• Infuse new science into IFPS

5
Regional ST Coordinator

• Coordinate Regional development, implementation,
  and training activities
• Provide science-based ST/SIT training resources
• Foster research transfer through ST/SIT
  development application

C S T A R
6
Sharing of ST/SIT Resources

• National Smart Tool Repository
• http//140.90.90.253/applications/STR/index.php3
• Many tools, various degrees of scientific
  validity and documentation
• Eastern Region Smart Tool Review Procedure

7
Eastern Region ST Review Procedure
8
ST/SIT Communication

• Eastern Region ST/SIT Homepage
• Announcements
• Repository Information
• Bi-monthly In Focus section
• Training Resources
• ER Smart Tool mail list
• ER IFPS CC items

9
http//www.werh.noaa.gov/ssd/smarttools/new_smartt
ool.htm

• Click here

10

• Click here

11

• Click here

12

• Click here

13

• Click here

14

• Click here

15
Regional Smart Tool Working Group

• Identify and address regional tool development
  needs
• Identify scientifically sound and
• operationally relevant tools
• Provide forum for discussion on
• regional Smart Tool
• usage and development

16
Activities This Year
17
Improving the Smart Tool Repository

• Documentation Requirement
• Categorized by Element Edited
• Tracking number of downloads

18
Recommended Tool List

• Tools nominated by the field
• Tested by ST Working Group
• Discussion and voting

19
Focused Development

• ER_QCcheck (Tom Mazza RLX)
• -derived from Steve Nelsons QC_Check
• -Highlight or fix areas of
  internal grid inconsistencies
• -Allows flexibility in how the grids are
  corrected

20
ER_QCcheck Temperature Example
Temperature
Dewpoint
21
ER_QCcheck Temperature Example
Highlight Grid
Red shows where Td gt T
22
ER_QCcheck Temperature Example
Original Dewpoint
Final Dewpoint
23
ER_QCcheck

• Additional checks are planned

24
Snow-Ratio Smart Tool (Dan Cobb SOO CAR)
Focused Development

• Based on recent research e.g. Dube (2003),
  Waldstreicher (2002), Roebber et al. (2003)
• Snow crystal size primarily a function of temp
• Largest and fastest growing crystals form at
  temperatures between (-12C and -18C)
• Rate of crystal production is a function of
  supersaturation with respect to ice, which is
  directly linked to vertical motion.

25
Algorithm Example
Consider a 3 layer cloud with the following layer
average temperatures and vertical motion First
map temperatures to a snow-ratio.
26
Algorithm Example
27
Algorithm Example
Layer temperature has now been mapped to
snow-ratio (SR) Layer vertical motion is now
being re-cast as the percent of the column total.
28
Algorithm Example
Now, the weighted snow-ratios are summed up over
the three cloud layers yielding the cloud-base
snow-ratio. So, the snow-ratio would then be
2.0 12.0 2.3 16.3 Or 16.31
29
Verification (PQI) 2004 Jan 19
30
Focused Development

• Using BUFR data in GFE

31
Vision for the Future
32
National Smart Tool Team

• Establish process for scientific
• validation and verification
• Establish baselining process
• Scientifically sound operationally
  relevant tools
• National Forum for Discussion
• Coordination of local, regional, national efforts

33
Verification of ST and SITs
Eta 40-km data to 5-km via Smart Init
12-km 2m T data remapped to 5 km
34
ERH LAPS Temperature Analysis in GFE
35
40-km Smart Init Errors
12-km 2m T errors
36
Smart Tool Science

• Incorporate local collaborative research results
  into ST/SIT application (Smart Tool Science)
• DiurnalTMinMaxT (Steve Nelson Cheryl Sharpe)
• Diurnal temperature curve based on climatology

37
Smart Tool Science
Use of Lightning Climatologies in GFE
Grid
Manager
Spatial Editor
Courtesy Irv Watson (SOO TLH)
38
Smart Tool Science
Use of Probabilistic Guidance
MM5 Ensemble Most Probable Precip Category
Model Blend
Ensemble MOS
39
Smart Tool Science
Use of Probabilistic Guidance
MRF Smart Initialization
Ensemble MOS Adjusted
40
Smart Tool Science

• Intelligent Use of a
• Lapse Rate Smart
• Tool In the GFE
• Harry Gerapetritis
• Laurence Lee (2002)
• (ER Tech Attach)

41
Smart Tool Science

• Dewpoint Research

Courtesy Rob Radzanowski (CTP)
Courtesy Ken Crawford
42
Future Challenges

• National Coordination of Efforts
• Assuring Scientifically Sound Techniques
• Capitalizing on Advances in Science
  and Technology

43
Links of Interest

• ER Smart Tool Home Page
• http//www.werh.noaa.gov/ssd/smarttools/new_smartt
  ool.htm
• National Smart Tool Repository
• http//140.90.90.253/applications/STR/index.php3
• Master Consistency Tool
• http//www.werh.noaa.gov/ssd/smarttools/mastercons
  istency/
• masterconsistency.htm
• Dube (2003) Snow Ratio Study
• http//meted.ucar.edu/norlat/snowdensity/from_mm_t
  o_cm.pdf
• Ensemble Mean MOS Bulletins
• http//eyewall.met.psu.edu/mos/weather/index.html
