Vehicle Dynamics Its all about the Calculus

1

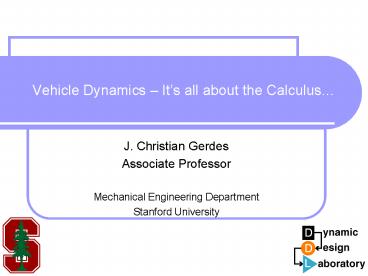

Vehicle Dynamics Its all about the Calculus

• J. Christian Gerdes
• Associate Professor
• Mechanical Engineering Department
• Stanford University

2
Future Vehicles
Clean Multi-Combustion-Mode Engines Control of
HCCI with VVA Electric Vehicle Design
Safe By-wire Vehicle Diagnostics Lanekeeping
Assistance Rollover Avoidance
Fun Handling Customization Variable Force
Feedback Control at Handling Limits
3
Electric Vehicle Design

• How do we calculate the 0-60 time?

4
Basic Dynamics

• Newtons Second Law
• With Calculus
• If we know forces, we can figure out velocity

5
What are the Forces?

• Forces from
• Engine
• Aerodynamic Drag
• Tire Rolling Resistance

6
Working in the Motor Characteristics
7
Working in the Motor Characteristics
8
Some numbers for the Tesla Roadster

• From Teslas web site
• m mass 1238 kg
• Rgear final drive gear ratio 8.28
• A Frontal area Heightwidth
• Overall height is 1.13m
• Overall width is 1.85m
• This gives A 2.1m2 but the car is not a box.
  Taking into account the overall shape, I think A
  1.8 m2 is a better value to use.
• CD drag coefficient 0.365
• This comes from the message board but seems
  reasonable

9
More numbers for the roadster

• From other sources
• rwheel wheel radius 0.33m (a reasonable
  value)
• Frr rolling resistance 0.01mg
• For reference, see
• http//www.greenseal.org/resources/reports/CGR_tir
  e_rollingresistance.pdf
• r air density 1.2 kg/m3
• Density of dry air at 20 degrees C and 1 atm
• To keep in mind
• Engine speed w is in radians/sec
• The Tesla data is in RPM
• 1 rad/s .1047 RPM
• (or 0.1 for back of the envelope calculations)
• 1mph 0.44704 m/s

10
Motor issues

• The website lists a motor peak torque of 375 Nm
  up to 4500RPM. This doesnt match the graph.
• They made changes to the motor when they chose to
  go with a single speed transmission. I think the
  specs are from the new motor and the graph from
  the old one.
• Here is something that works well with the new
  specs

11
Results of my simulation

• Pretty cool it gives a 0-60 time of about 3.8s
• Tesla says under 4 seconds
• Top speed is 128 mph (they electronically limit
  to 125)

12
P1 Steer-by-wire Vehicle

• P1 Steer-by-wire vehicle
• Independent front steering
• Independent rear drive
• Manual brakes
• Entirely built by students
• 5 students, 15 months from start to first driving
  tests

steering motors
handwheel
13
Future Systems

• Change your handling in software
• Customize real cars like those in a video game

• Use GPS/vision to assist the driver with
  lanekeeping
• Nudge the vehicle back to the lane center

14
Steer-by-Wire Systems

• Like fly-by-wire aircraft
• Motor for road wheels
• Motor for steering wheel
• Electronic link
• Like throttle and brakes
• What about safety?
• Diagnosis
• Look at aircraft

15
Bicycle Model

• Basic variables
• Speed V (constant)
• Yaw rate r angular velocity of the car
• Sideslip angle b Angle between velocity and
  heading
• Steering angle d our input
• Model
• Get slip angles, then tire forces, then
  derivatives

16
Vehicle Model

• Get forces from slip angles (we already did this)
• Vehicle Dynamics
• This is a pair of first order differential
  equations
• Calculate slip angles from V, r, d and b
• Calculate front and rear forces from slip angles
• Calculate changes in r and b

17
Calculate Slip Angles
b
a
ar
b
d
V
af
r
ar
d af
18
Lateral Force Behavior

• ms1.0 and mp1.0
• Fiala model

19
When Do Cars Spin Out?

• Can we figure out when the car will spin and
  avoid it?

20
Comparing our Model to Reality
linear
nonlinear
loss of control
21
Lanekeeping with Potential Fields

• Interpret lane boundaries as a potential field
• Gradient (slope) of potential defines an
  additional force
• Add this force to existing dynamics to assist
• Additional steer angle/braking
• System redefines dynamics of driving but driver
  controls

22
Lanekeeping on the Corvette
23
Lanekeeping Assistance

• Energy predictions work!
• Comfortable, guaranteed lanekeeping
• Another example with more drama

24
Handling Limits

• What happens when tire forces saturate?
• Front tire
• Reduces spring force
• Loss of control input
• Rear tire
• Vehicle will tend to spin
• Loss of stability

handling limits linear region
Is the lanekeeping system safe at the limits?
25
Countersteering

• Simple lanekeeping algorithm will countersteer
• Lookahead includes heading error
• Large heading error will change direction of
  steering
• Lanekeeping system also turns out of a skid

Lateral error
Projected error
Example Loss of rear tire traction
26
Lanekeeping at Handling Limits
27
Video from Dropped Throttle Tests
28
Yaw Stability from Lanekeeping
Lanekeeping Active
Lanekeeping Deactivated
Controller countersteers to prevent spinout
29
A Closer Look
Controller response to heading error prevents the
vehicle from spinning
30
Conclusions

• Engineers really can change the world
• In our case, change how cars work
• Many of these changes start with Calculus
• Modeling a tire
• Figuring out how things move
• Also electric vehicle dynamics, combustion
• Working with hardware is also very important
• This is also fun, particularly when your models
  work!
• The best engineers combine Calculus and hardware
