Title: Electric Motors in Robot Transmissions and Arms


1

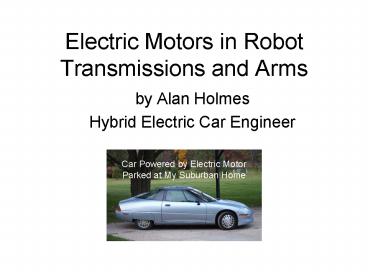

Electric Motors in Robot Transmissions and Arms
  • by Alan Holmes
  • Hybrid Electric Car Engineer

2
Presentation Contents
  • Background
  • Electric Motors
  • Electricity
  • Mechanical Motion
  • Construction and Types of Electric Motors
  • Brush-Type DC Motor Example
  • Arm Design
  • Transmission Design

3
Presentation Contents
  • Background
  • Electric Motors
  • Electricity
  • Mechanical Motion
  • Construction and Types of Electric Motors
  • Brush-Type DC Motor Example
  • Arm Design
  • Transmission Design

4
Electric Motors Introduction
  • Electric motors convert energy and power
  • Electrical power to mechanical power
  • Electricity (electron motion)
  • Voltage V
  • Current i
  • Mechanical motion
  • Rotary
  • Torque T around a point
  • Speed N (or ?) around a point
  • Linear
  • Force F in a straight line
  • Speed v in a straight line

5
Electricity Basic Ideas
  • Electricity is a flow of electrons
  • Voltage V measured in volts
  • Force of each electron
  • Voltage can push electrons through things
  • 48V or more can be hazardous
  • Current i measured in amps
  • Amount of electron flow
  • Current can do useful work
  • Current causes heating

6
Electricity different types
  • DCDirect Currentbatteries
  • Electricity flows in one direction
  • Positive ( red) and negative ( black)
  • Comes from battery or DC generator
  • 12V is used in cars (and robots)
  • ACAlternating Currentwall outlet
  • Electricity flows back and forth (sine wave)
  • /- (black, red) and 0 (white, green)
  • Comes from inverter or AC generator
  • 110V-120V used in homes (in America)

7
Electrical Power
  • Power voltage x current
  • Example high voltage and low current
  • 240W 120V x 2A
  • Small wires but shock danger to humans
  • Short circuits are a burn hazard!
  • Example low voltage and high current
  • 240W 12V x 20A
  • Minimal shock hazard but larger wires
  • Short circuits are a burn hazard!

8
Mechanical Motion
  • Rotary torque (T) and speed (N)
  • Linear force (F) and speed (v)
  • Torque
  • Twisting around a point or shaft
  • Same as a force acting at some distance
  • Torque force x distance
  • Examples
  • 1 pound-inch 1 lb x 1 in
  • pound-inch or inch-pound
  • 1 newton-meter 1 N x 1 m

9
Rotary Mechanical Units
  • Torque force x distance
  • Foot-pounds (1/12)
  • Inch-pounds (1)
  • Inch-ounces (16)
  • Newton-meters (0.113)
  • Newton-millimeters (113)
  • Speed
  • RPM revolutions per minute (1000)
  • Radians per second 2 x pi / 60 (104.7)

10
Rotary Mechanical Power
  • Power torque x speed
  • Horsepower (in-lb torque x rpm / 63025.)
  • Watt (Nm x rad/s)
  • Example high torque and low speed
  • 0.1 hp 630 in-lb x 10 rpm / 63025
  • 75 W 71.2 Nm x 1.047 rad/s
  • Example low torque and high speed
  • 0.1 hp 6.3 in-lb x 1000 rpm / 63025
  • 75 W 0.712 Nm x 104.7 rad/s

11
Linear Mechanical Power
  • Power force x speed
  • horsepower (lb x in/s / 6600)
  • watts (N x m/s)
  • Example high force and low speed
  • 0.1 hp 55 lb x 12 in/s / 6600
  • 75 W 245 N x 0.3048 m/s
  • Example low force and high speed
  • 0.1 hp 0.55 lb x 1200 in/s / 6600
  • 75 W 2.45 N x 30.48 m/s

12
Electrical to Mechanical Conversion
  • Electric Motor converts power
  • Electricity IN
  • Voltage (V)
  • Current (i)
  • Electrical power V x i
  • Rotary Motion OUT
  • Torque (T)
  • Speed (N)
  • Mechanical power T x N

13
Rotary to Linear Transformation
  • Wheel, Pulley, Sprocket or Arm
  • Rotary Motion IN
  • Torque (T)
  • Speed (N)
  • Mechanical power T x N
  • Linear Motion OUT
  • Force (F)
  • Speed (v)
  • Mechanical power F x v

14
Presentation Contents
  • Background
  • Electric Motors
  • Electricity
  • Mechanical Motion
  • Construction and Types of Electric Motors
  • Brush-Type DC Motor Example
  • Arm Design
  • Transmission Design

15
Construction of Electric Motors
  • Stator main stationary part, in housing
  • Iron core and copper windings OR
  • Permanent magnets
  • Rotor main rotating part, on shaft
  • Iron core and copper windings OR
  • Iron core and aluminum bars OR
  • Permanent magnets OR
  • Permanent magnets in iron core OR
  • Iron core alone

16
Example of Motor Construction
  • Stator in housing
  • permanent magnets
  • Rotor on shaft
  • iron core with copper windings
  • Commutator
  • Copper bars on end of shaft
  • Carbon brushes in end of housing
  • Brush DC Motor

17
Operation of Electric Motors
  • Most run by action of two magnetic fields
  • Stator
  • Rotor
  • One magnetic field is stationary
  • Permanent magnets OR
  • Constant flow of current through coil or coils
  • One magnetic field is rotating or changing
  • AC through coil or coils OR
  • Switched current flow through coil or coils

18
Switching for DC Electric Motors
  • Commutator
  • Switches DC current and magnetic field
  • Brush commutator
  • Carbon brushes attached to housing
  • Copper bars attached to rotor
  • Easy to make but brushes eventually wear out
  • Most small DC motors
  • Electronic commutator
  • Switching circuit, usually with sensor
  • Used with permanent magnets on rotor
  • Computer fan motors, run from internal DC supply

19
Common Types of Electric Motors
  • Brush DC
  • 99 of DC motors are brush-type.
  • Some AC motors are brush-type AC/DC motors.
  • Brushless DC (Electronic Commutation)
  • DC motors needing long life or high efficiency
  • AC Induction
  • 90 of AC motors are induction-type.
  • Construction (FYI)
  • Stator with windings
  • Rotor with iron core and aluminum bars
  • Bars look like a squirrel cage / hamster wheel

20
Presentation Contents
  • Background
  • Electric Motors
  • Electricity
  • Mechanical Motion
  • Construction and Types of Electric Motors
  • Brush-Type DC Motor Example
  • Arm Design
  • Transmission Design

21
Brush-Type DC Motor Example
  • Motor performance chart or curves and specs

22
Brush DC Motor Example CIM Motor from Robot
Kits
23
Brush DC Motor Operation
  • Output speed N varies with motor voltage V
  • In CIM motor performance chart, voltage is
    always 12 V.
  • Speed control can be done by varying the voltage
    with PWM.
  • PWM is pulse width modulation done with
    electronic switching.
  • Input current i varies with output torque T
  • In CIM motor performance chart, i(T) is a
    straight line
  • Current is proportional to total torque
  • Some friction torque in motor, so line has an i
    intercept
  • Power torque x speed
  • Goes up with increasing torque
  • Goes down with decreasing speed
  • Maximum with best combination of torque and speed
  • Efficiency is 59 at rated power

24
Brush DC Motor Example CIM Motor from Robot
Kits
25
CIM Brush DC Motor Summary
  • Power
  • Maximum Output Power 286 watts mechanical power
  • Rated Output Power 204 watts
  • Rated at speed of 4,300 rpm (at 12 V)
  • Rated at torque of 64 oz-in (in-oz) 4 in lb
  • Rated at current of 28.7 amps (12 V x 28.7 A
    344 W electrical input)
  • Torque
  • Maximum torque (stall torque) 276 oz-in 17.25
    in-lb
  • Maximum torque requires 112.4 amps!
  • Torque at 40 A 90 oz-in 5.6 in-lb
  • Speed
  • Maximum (12 V) No-load speed of motor alone
    5,600 rpm
  • Maximum (12 V) speed of motor at 40 A 3,600 rpm

26
Presentation Contents
  • Background
  • Electric Motors
  • Electricity
  • Mechanical Motion
  • Construction and Types of Electric Motors
  • Brush-Type DC Motor Example
  • Arm Design
  • Transmission Design

27
Arm Design
  • Transforms mechanical motion
  • From Motor
  • Rotary motion
  • High speed (1000s of RPM)
  • Low torque (A few inch-pounds)
  • To Robot
  • Rotary motion (or Linear motion)
  • High force (10s of pounds)
  • Low speed (A few RPM)

28
Example of Arm Operation
  • Arm on rotating joint
  • Lifting object under the force of gravity

29
Torque for Arm Operation
  • Torque on joint force x distance
  • Force from gravity always points straight down
  • Distance is perpendicular to force
  • Greatest horizontal distance from pivot point
  • Load is straight out from pivot
  • Maximum distance
  • Maximum torque needed
  • Total torque needed
  • To lift load
  • To lift arm, too!

30
Example of Torque for Arm
  • Load
  • Force 10 lbs
  • Distance 30 in
  • Torque 300 in lbs
  • Arm
  • Force weight 10 lbs
  • Distance 18 in
  • from center of gravity of arm to pivot of arm
  • Torque 180 in lbs
  • Total torque 480 in lbs

31
Mechanical Motion Transformation
  • Gear, chain or pulley mechanical ratio
  • Diameter or number of teeth on one, d1 or n1
  • Diameter or number of teeth on other, d2 or n2
  • R d1 / d2 or n1 / n2
  • Torque ratio mechanical ratio
  • Larger has more torque
  • Not exactly equal because efficiency lt 100
  • Speed ratio is inverse of mechanical ratio
  • Smaller turns faster

32
Transformation of Arm Motion
  • Total torque required for arm 480 in-lbs
  • Motor torque available 5.6 in-lbs
  • Torque ratio needed
  • 480 in-lbs / 5.6 in-lbs 85.7
  • If n1 11 teeth (smallest), then n2 943 teeth!
  • Very high ratio must be taken in stages
  • Total ratio is the product of ratios for all
    stages
  • R total R stage I x R stage II
  • 85.7 91 9.5 x 9.5 ( 105 / 11 x 105 / 11)
  • Speed ratio is the inverse of mechanical ratio
  • N arm N motor / (R stage I x R stage II )
  • 40 rpm 3,600 rpm / ( 105 / 11 x 105 / 11 )

33
Transformation of Arm Motion
  • Stages with higher torque must be stronger
  • Larger gears (follow gear specifications) OR
  • Larger chain and sprockets or cable and pulleys
  • Use linear transformation to find load on chain
    or cable.
  • Efficiency affects output torque and required
    ratio!
  • If efficiency were 100, then Power OUT Power
    IN
  • Efficiency of gears, chains or cables is less
    than 100
  • 99 to 75 or lower per stage, depending on
    construction
  • Power OUT Power IN x efficiency
  • Speed ratio is not affected by efficiency
  • Torque OUT Torque IN x R x efficiency
  • 480 in-lb 5.6 in-lb x 9 x 97 x 10 x 97

34
Presentation Contents
  • Background
  • Electric Motors
  • Electricity
  • Mechanical Motion
  • Construction and Types of Electric Motors
  • Brush-Type DC Motor Example
  • Arm Design
  • Transmission Design

35
Transmission Design
  • Transforms mechanical motion
  • From Motor
  • Rotary motion
  • High speed (1000s of RPM)
  • Low torque (A few inch-pounds)
  • To Robot
  • Linear motion
  • High force (10s of pounds)
  • Low speed (A few feet per second)
  • Variable transformation (Shifting Gears)

36
Example of Robot Driving
  • Robot driven by wheels (or tracks)
  • Pushing against something heavy
  • Reaction force F on robot from ground
  • 120 lbs for example

37
Example of Robot Driving
  • Force F produces torque T on wheel
  • T F x wheel radius
  • 960 in-lb 120 lb x 4 in
  • Motors to drive robot produce small torque
  • T 5.6 in-lb x 2 11.2 in lb

38
Transformation of Wheel Motion
  • Total torque required for wheels 960 in-lbs
  • Motor torque available 11.2 in-lbs
  • Torque ratio needed
  • 960 in-lbs / 11.2 in-lbs 85.7
  • If n1 11 teeth (smallest), then n2 943 teeth!
  • Very high ratio must be taken in stages
  • Total ratio is the product of ratios for all
    stages
  • R total R stage I x R stage II
  • 85.7 91 9.5 x 9.5 ( 105 / 11 x 105 / 11)
  • Speed ratio is the inverse of mechanical ratio
  • N wheel N motor / (R stage I x R stage II )
  • 40 rpm 3,600 rpm / ( 105 / 11 x 105 / 11 )

39
Example of Robot Transmission
  • Speed across floor is very slow
  • V N wheel x 2 x pi x wheel radius
  • 1000 in/min 40 rpm x 2 x pi x 4 in
  • 1000 in/min 16 in/s 1.4 ft/s 1 mph
  • Possible improvements
  • Reduce drive ratio to increase speed
  • R 15 gives 6 mph and 20 lb driving force
  • Add multiple-ratio drive system (shifting)
  • One ratio for high force R 91
  • One ratio for high speed R 15

40
The End
  • Thanks!
  • Good luck in the design and construction of your
    robot.
Write a Comment
User Comments (0)
About PowerShow.com
