Measures of Spread

1

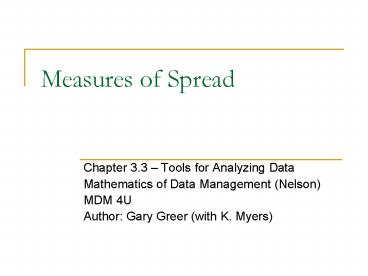

Measures of Spread

• Chapter 3.3 Tools for Analyzing Data
• Mathematics of Data Management (Nelson)
• MDM 4U
• Author Gary Greer (with K. Myers)

2
What is spread?

• spread tells you how widely the data are
  dispersed
• for example, the two histograms have identical
  mean and median, but the spread is significantly
  different

3
Why worry about spread?

• spread indicates how close the values cluster
  around the middle value
• less spread means you have greater confidence
  that values will fall within a particular range.
• for example
• if you were making car parts, you might be
  concerned about certain measurements falling into
  a certain range
• while 2 shipments of parts might have the same
  mean dimensions, you would be much happier to
  have the shipment with the smaller spread

4
Vocabulary

• spread and dispersion seem to refer to much the
  same thing
• range is the difference between the largest and
  smallest value
• a quartile is one of three numerical values that
  divide a group of numbers into 4 equal parts
• the interquartile range is the range between the
  first and third quartiles

5
Quartiles Example

• 26 28 34 36 38 38 40 41 41 44 45 46 51 54 55
• range 55 26 29
• Q2 41 Median
• Q1 36 Median of lower half of data
• Q3 46 Median of upper half of data
• IQR 46 36 10 (contains 50 of data)
• if a quartile occurs between 2 values, it is
  calculated as the average of the two values

6
A More Useful Measure of Spread

• the interquartile range is a somewhat useful
  measure of spread
• standard deviation is more useful
• To calculate it we need to find the mean and the
  deviation
• Mean is easy, as we have done that before
• Deviation is the difference between a particular
  point and the mean

7
Deviation

• The mean of these numbers is 48
• The deviation for 24 is 48-24 24
• 24
• 12 24 36 48 60 72 84
• -36
• The deviation for 84 is 48 84 -36

8
Standard Deviation

• deviation is the distance from the piece of data
  you are examining to the mean
• variance is a measure of spread found by
  averaging the squares of the deviation calculated
  for each piece of data
• Taking the square root of variance, you get
  standard deviation
• Standard deviation is a very important and useful
  measure of spread

9
Standard Deviation

• s² is used to represent variance
• s is used to represent standard deviation
• s is commonly used to measure the spread of data,
  with larger values of s indicating greater spread
• we are using a population standard deviation

10
Example of Standard Deviation

• 26 28 34 36
• mean (26 28 34 36) / 4 31
• s² (2631)² (28-31)² (34-31)² (36-31)²
• 4
• s² 17
• s v17 4.12

11
Standard Deviation with Grouped Data

• grouped mean (22 36 46 52) / 16 3.5
• deviations
• 2 2 3.5 -1.5
• 3 3 3.5 -0.5
• 4 4 3.5 0.5
• 5 5 3.5 1.5
• s² 2(-1.5)² 6(-0.5)² 6(0.5)² 2(1.5)²
• 16
• s² 0.7499
• s v0.7499 0.866

12
Exercises

• read through the examples on pages 164-167
• try page 168 2b, 3b, 4, 6, 7, 10
• you are responsible for knowing how to do simple
  examples by hand
• however, we will use technology to calculate any
  serious examples (Fathom/TI83)
• have a look at your calculator and see if you
  have this feature

13
Normal Distribution

• Chapter 3.4 Tools for Analyzing Data
• Mathematics of Data Management (Nelson)
• MDM 4U
• Author Gary Greer (ideas from K. Myers)

14
Histograms

• histograms may be skewed...

15
Histograms

• ... or symmetrical

16
Normal?

• a normal distribution creates a histogram that is
  symmetrical and has a bell shape, and is used
  quite a bit in statistical analyses
• also called a Guassian Distribution
• it is symmetrical with equal mean, median and
  mode that fall on the line of symmetry of the
  curve

17
A Real Example

• the heights of 600 randomly chosen Canadian
  students from the Census at School data set
• the data approximates a normal distribution

18
The 68-95-99.7 Rule

• area under curve is 1 (ie it represents 100 of
  the population surveyed)
• approx 68 of the data falls within 1 standard
  deviation
• approx 95 of the data falls within 2 standard
  deviations
• approx 99.7 of the data falls within 3 standard
  deviations
• http//www.ruf.rice.edu/lane/hyperstat/A25329.htm
  l

19
Distribution of Data
20
Why is the normal distribution so important?

• many psychological and educational variables are
  distributed approximately normally
• reading ability, memory, etc.
• normal distributions are statistically easy to
  work with
• all kinds of statistical tests are based on it
• Lane (2003)

21
Normal Distribution

• the notation above is used to describe the normal
  distribution where x is the mean and s² is the
  variance (square of the deviation)
• the area under any normal curve is 1
• the percent of data that lies between two values
  in a normal distribution is equivalent to the
  area under the normal curve between these values
• see examples 2 and 3 on page 175

22
An example

• suppose the time before burnout for an LED
  averages 120 months with a standard deviation of
  10 months (and is approximately normally
  distributed)
• what is the length of time a user might expect an
  LED to last?
• 95 of the data will be within 2 standard
  deviations of the mean
• this will mean that 95 of the bulbs will be
  between 120 210 months and 120 210
• so 95 of the bulbs will last 100-140 months

23
Example continued

• suppose you wanted to know how long 99.7 of the
  bulbs will last?
• this is the area covering 3 standard deviations
  on either side of the mean
• this will mean that 99.7 of the bulbs will be
  between 120 310 months and 120 310
• so 99.7 of the bulbs will last 90-150 months
• this assumes that all the bulbs are produced to
  the same standard

24
Example continued
99.7
95
34
34
13.5
13.5
2.35
2.35
120
140
150
100
90
months
months
months
months
months
25
Exercises

• try page 176 1, 3b, 6, 8, 9, 10

26
References

• Lane, D. (2003). What's so important about the
  normal distribution? Retrieved October 5, 2004
  from http//davidmlane.com/hyperstat/normal_distri
  bution.html
• Wikipedia (2004). Online Encyclopedia. Retrieved
  September 1, 2004 from http//en.wikipedia.org/wik
  i/Main_Page
